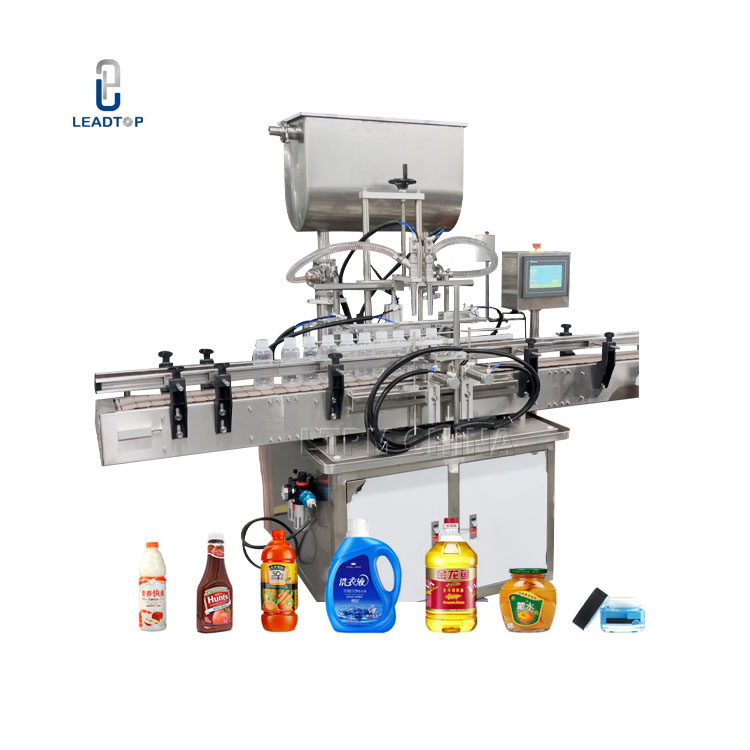

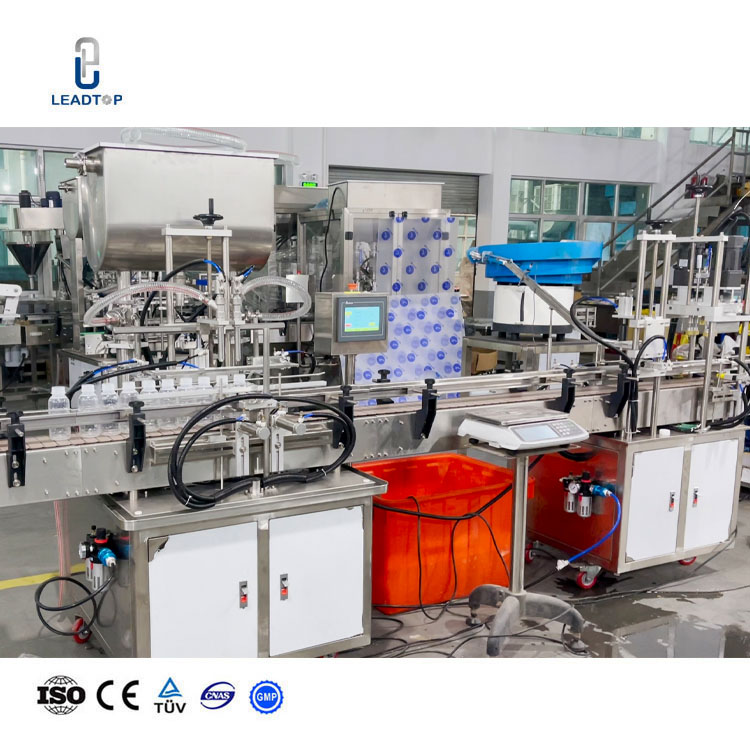

12-Head Automatic Liquid Filling Machine With Magnetic Pump For Water Oil Beverage & Liquor Quantitative Dispensing Machine

Product Description

Attention Notice
Attention:

--- All prices and parameters shown above are automatically generated by the system. If you want to know the exact information, please send an inquiry to us.

--- Due to the time difference, we suggest sending us an inquiry instead of online chat.

--- When sending us an enquiry or message, please include your email or instant messaging contact details (WhatsApp/Wechat/Skype, etc.) so we can contact you quickly.

Products Description
Automatic Pneumatic Liquid Filling Capping Machine

LTXG-Eco Series Automatic Pneumatic Liquid Filling Capping Machine

The LTXG-Eco Series Liquid Filling Capping Machine is specially designed and manufactured for liquid filling manufacturing factories. This machine is a complete Pneumatic Filling System with simple and easy adjustment.
It is widely used in the food, cosmetic, and agriculture industries for filling water, waterlike liquids, creams, oils, and ointments.
Note: Different materials may require different filling pumps. Please confirm your material specifications before placing an order.
Liquid Packaging System
Whether you want to fill carbonated drinks, fruit juice drinks or mineral water, beer or alcoholic drinks, disinfectant, laundry detergent or shower gel, or others, you can trust our machinery solutions. We have 15 years of rich experience. We can tailor and optimize our solutions to your requirements, whether for a complete new plant, a new process, or a packaging line.
Main Technical Data
Model Name LTXG-2Eco LTXG-6Eco LTXG-12Eco
Power supply 220/110V 50/60HZ
Air pressure 0.6-0.8mpa
Output 0-20 bottles/min 0-40 bottles/min 0-80 bottles/min
Filling Accuracy ±1%
Filling Range 20-100ml, 30-300ml, 50-500ml, 100-1000ml, 500-2100ml, 700-3000ml, 1000-5000ml
Power (Kw) 1 1.5 2
Filling head 2 6 12
Dimension (mm) 2000*900*1750 3000*1000*1750 4500*1100*1750
Weight (Kg) 150 450 750
Features
1
Pneumatic Filling System: Simple design and easy to clean.
2
Material Contact Parts: All contact parts are made of stainless steel 304. SS316L is optional.
3
Control System: Intuitive touch screen integrated with a stable PLC system.
4
Wide Range Utility: Standard filling range from 50ml up to 5000ml.
5
Cost-Effectiveness: Delivers low operational costs with a high production capacity.
Product Details

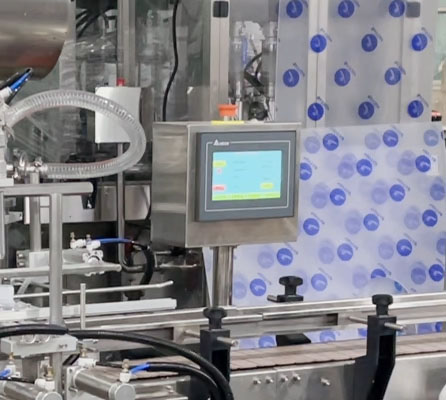

Touch Screen Panel
01
With a touch screen control panel, it is more convenient to adjust different kinds of parameters. The visual working data makes the adjustment more accurate.

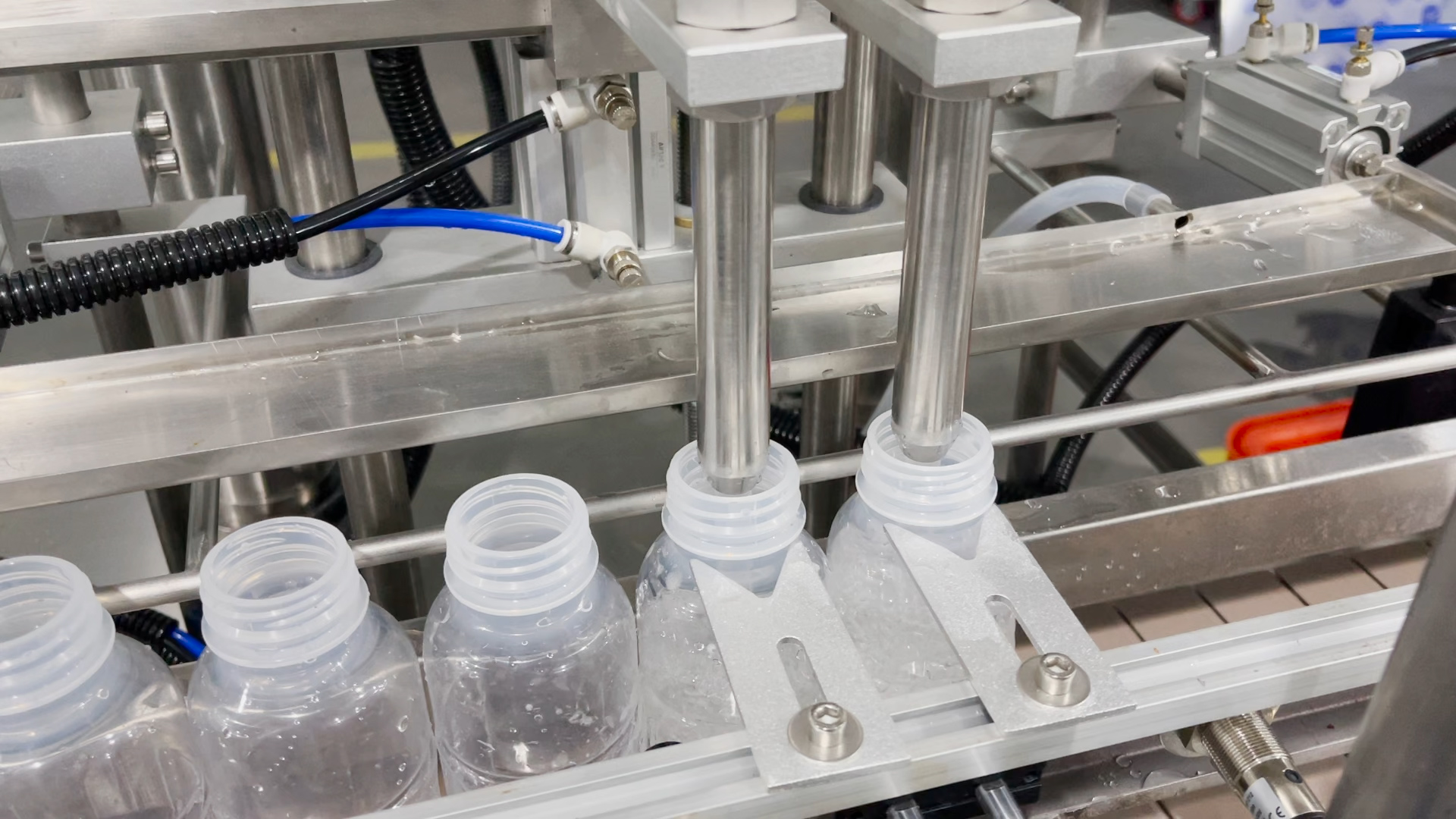

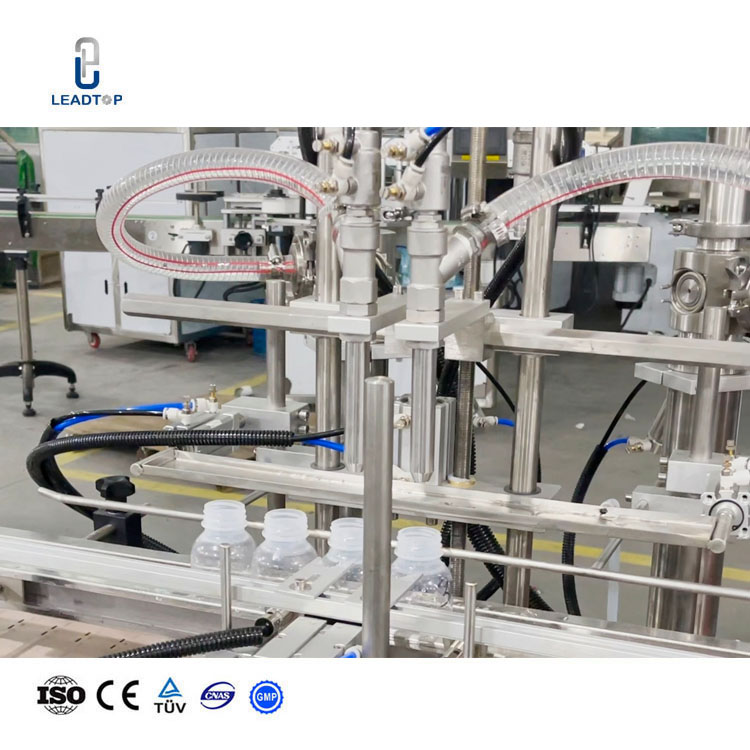

Filling Head Options
02
1. Filling head quantity: 2, 4, 6, 8, 10, 12 (Optional)
2. Filling head diameters: 6mm, 8mm, 10mm, 12mm, 14mm, 20mm (other sizes can be customized)
3. Anti-drip filling nozzle (optional)

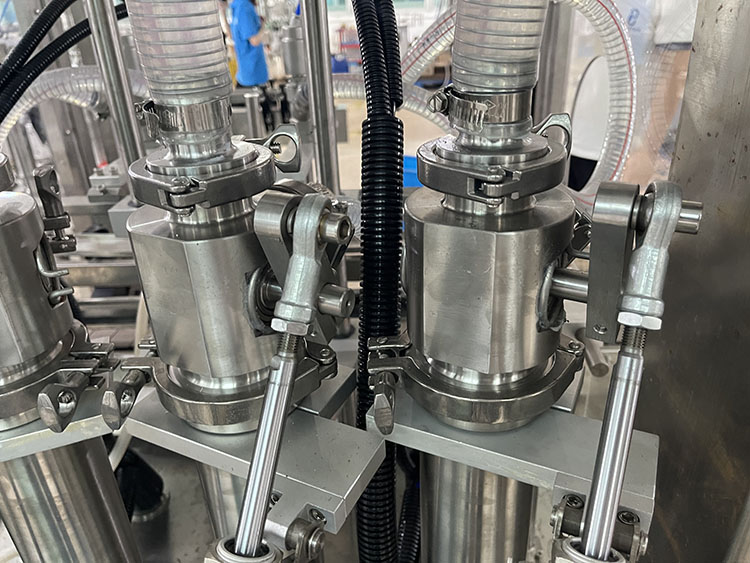

Stainless Steel Structure
03
1. All material contact parts are stainless steel 304. SS316L is optional.
2. Pneumatic Filling System: Simple structure and easy to clean.

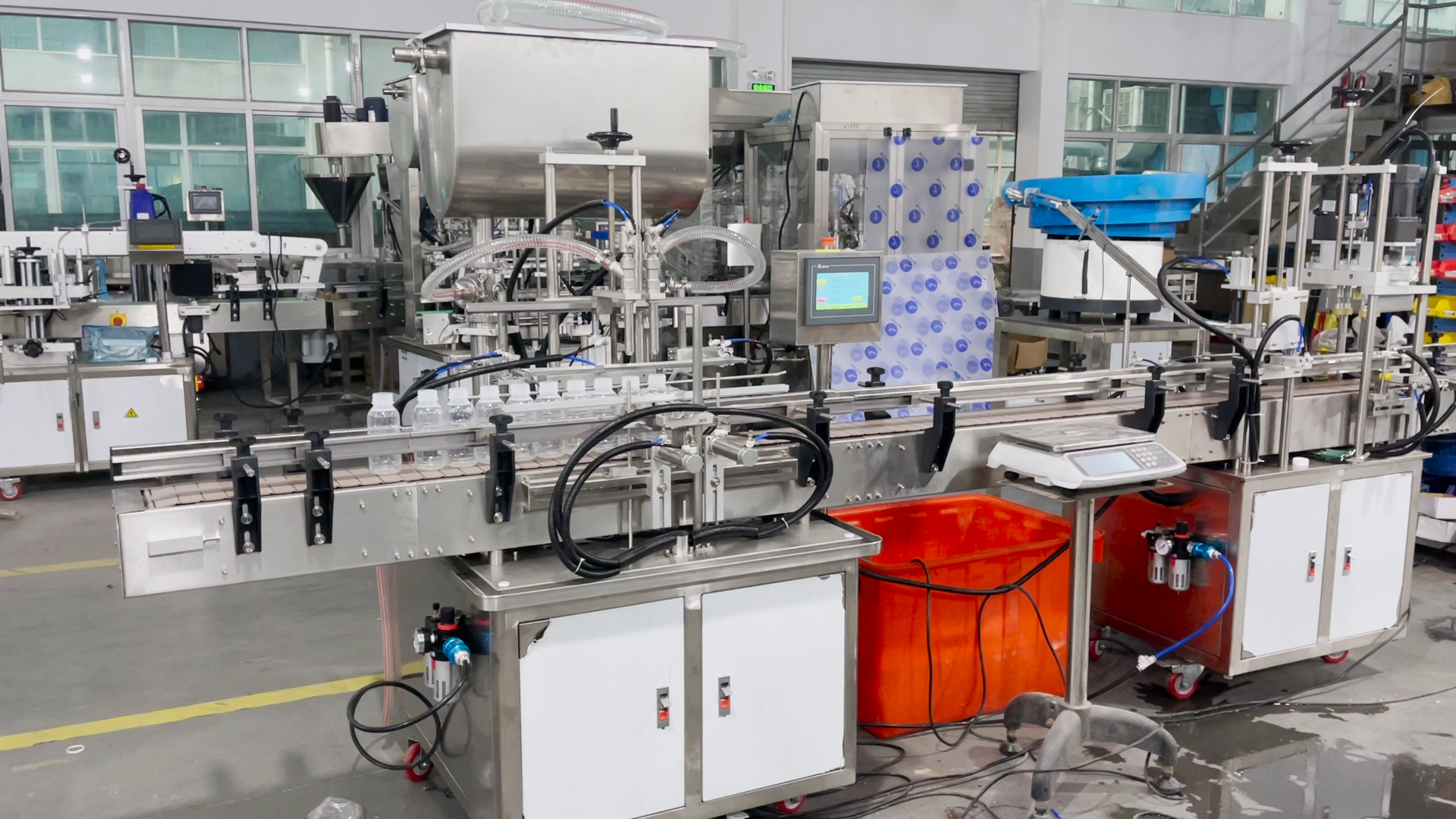

Production Line Integration
04
The filling machine can be connected with other equipment to form a complete filling production line, such as capping machines, labeling machines, bottle feeders, or bottle collectors.

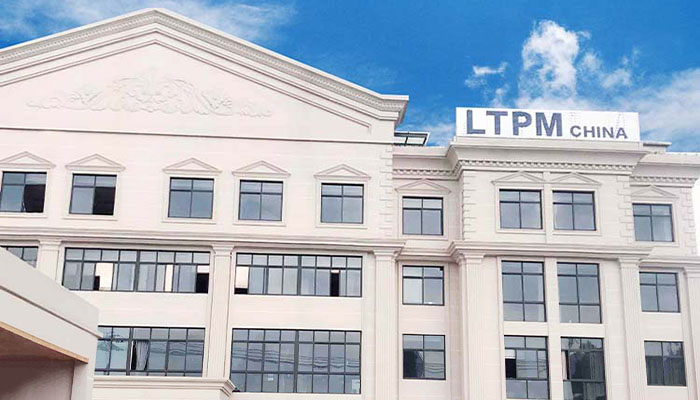

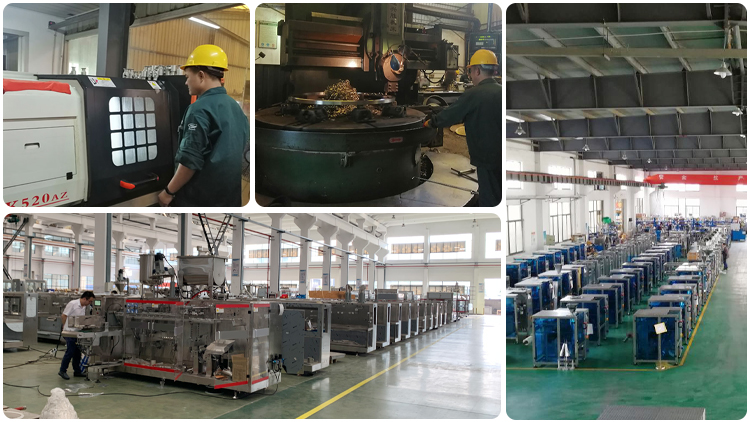

Company Profile
FAQ
Q: What price terms do you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW, and other price terms based on your request.
Q: What payment terms do you accept?
A: T/T, L/C, and other common terms are workable.
Q: Will you help with installation and staff training?
A: Yes, we can send our engineers to your location to guide the installation and train your workers if needed. The buyer should bear the costs for the technician's round-trip tickets, accommodation, food, and a daily subsidy of USD 100/day.
Q: How can I visit your factory?
A: Our factory is located in Zhejiang Province. Just let us know your schedule in advance and we will help arrange the logistics for your visit.
Q: What materials is this machine suitable for?
A: This machine is widely used in food, cosmetic, and agriculture industries for filling water, waterlike liquids, creams, oils, and ointments.
Q: Can this machine be connected with other equipment?
A: Yes, it can be easily integrated with capping machines, labeling machines, bottle feeders, or bottle collectors to form a complete production line.
Any other doubts about our machine, please feel free to contact us.
