Advanced Fully Automatic Ton Bag Packing Machine System for Efficient Packaging

Basic Info.

Model NO. ATP-2200

Application Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions 3500 (L) × 2800 (W) × 3000 (H) mm

Total Power Approx. 13 Kw

Total Weight 3.5 -6 Tons

Load Cell Accuracy Grade C3/C6/C10 (Selectable)

Weighing Accuracy ±0.1%

Packaging Speed 5 - 15 Bags/Hour

Bag Storage Capacity 5 - 20 Bags (Expandable)

Control Method PLC + Touchscreen

Power Supply 380V, Five-Wire Three-Phase

Air Source 0.5-0.7 MPa

Noise Level ≤80 dB (at 1 Meter From Equipment)

Communication Protocol Supports Pn, Dp, 485, etc. (Optional)

Specification 300-1000 kg/bag

Origin China

Product Description

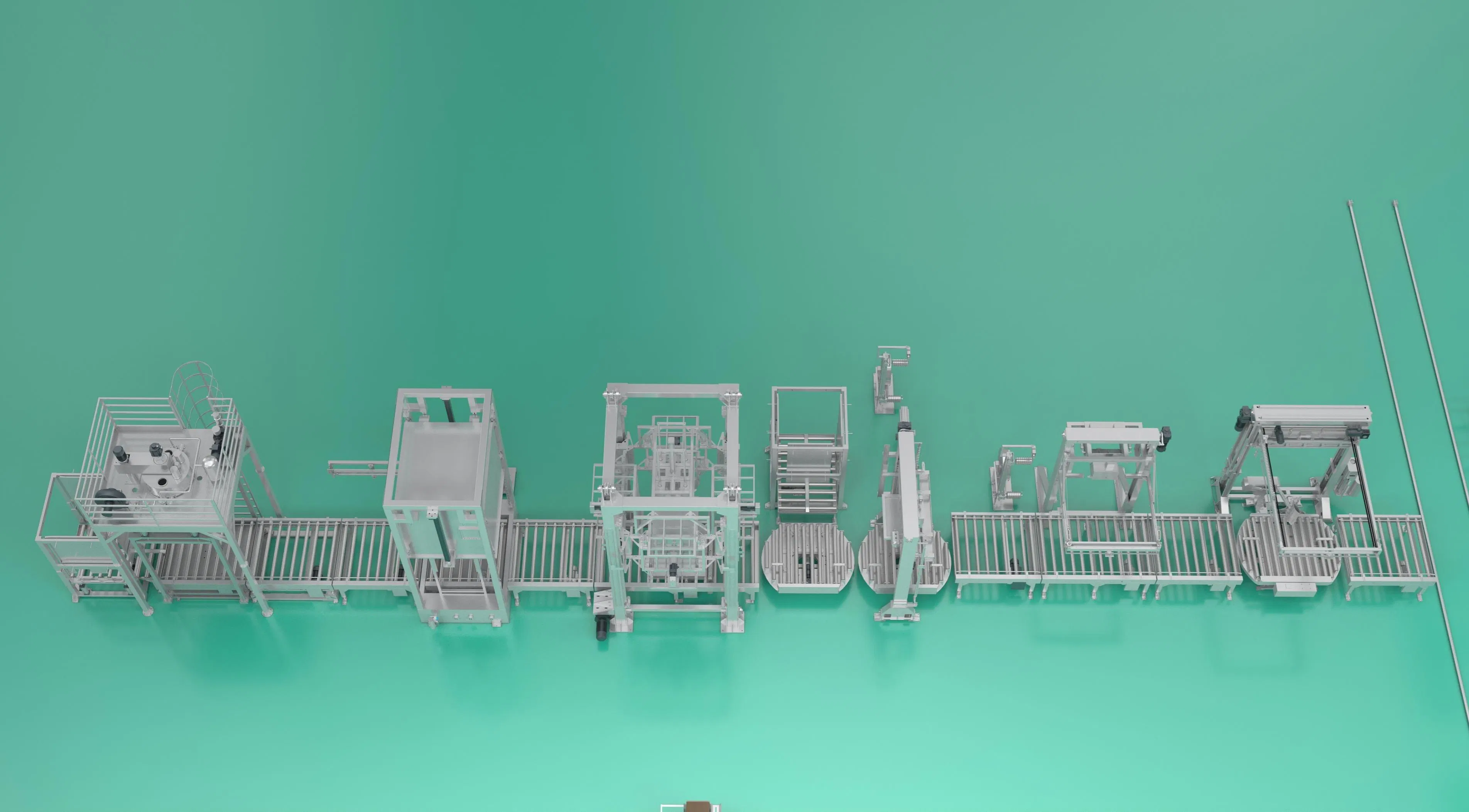

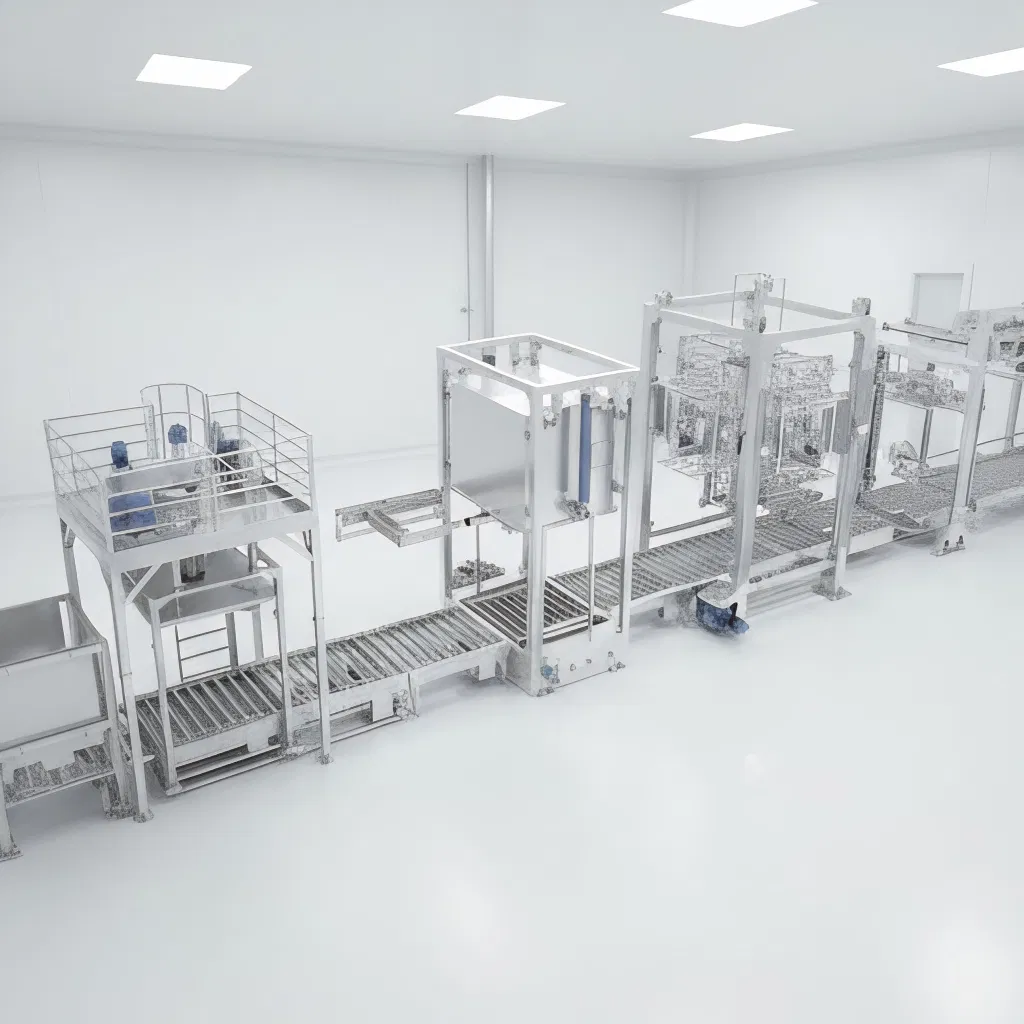

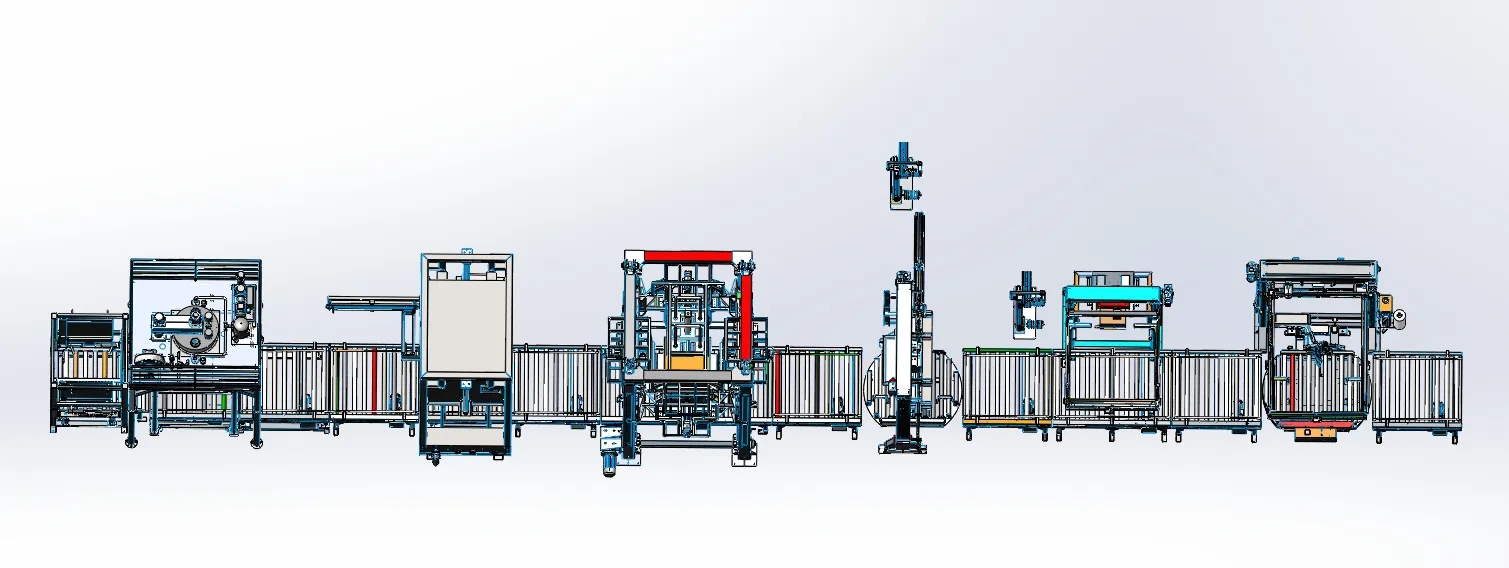

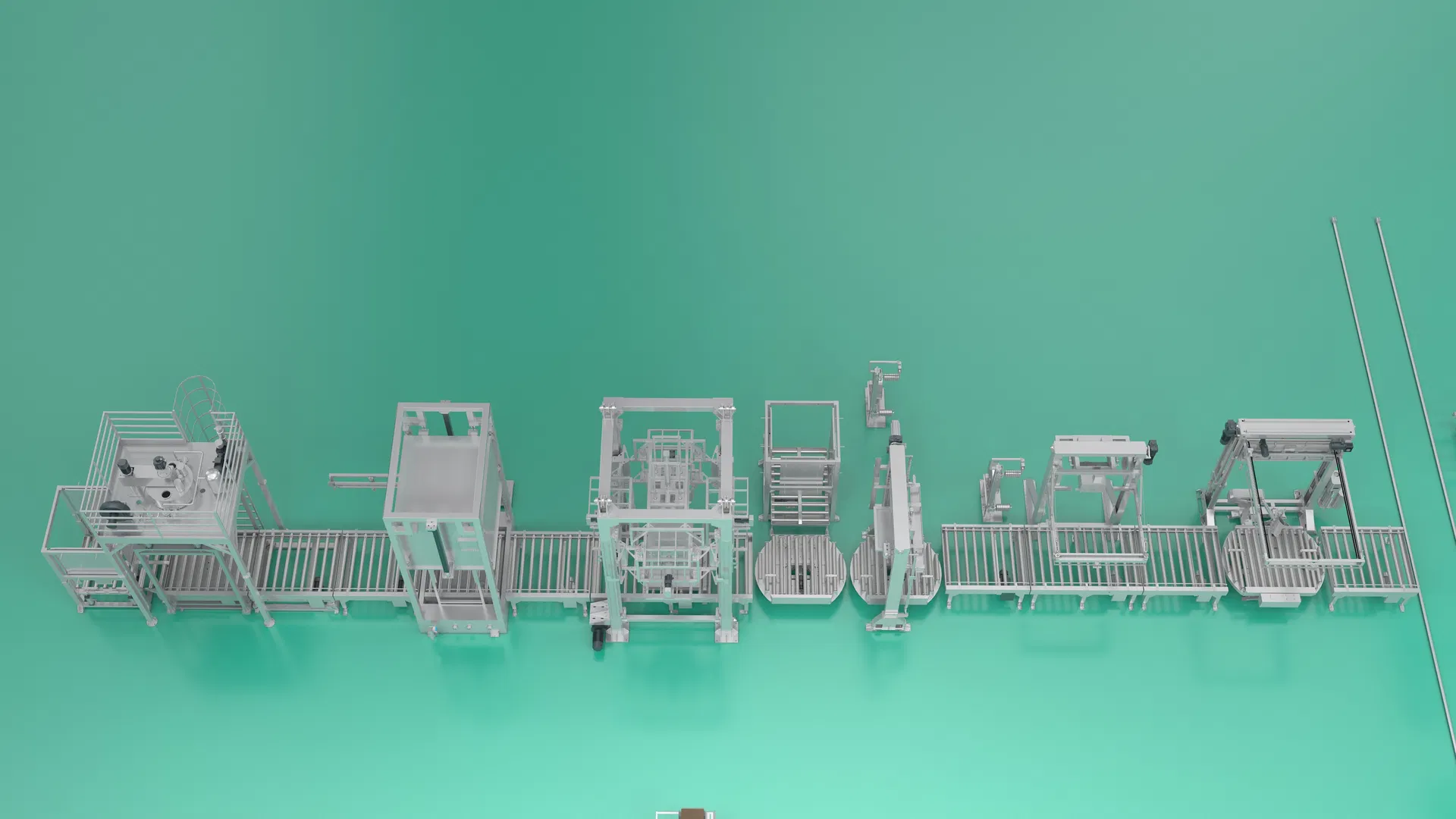

Fully Automatic Ton Bag Packaging Machine

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

Advanced Fully Automatic Ton Bag Packing Machine System for Efficient Packaging

Structural Advantages

1. Modular Design Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.
2. Safety Design Complies with international PL d safety standards.
3. Precise Measurement High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.
4. Bag Loading System Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.

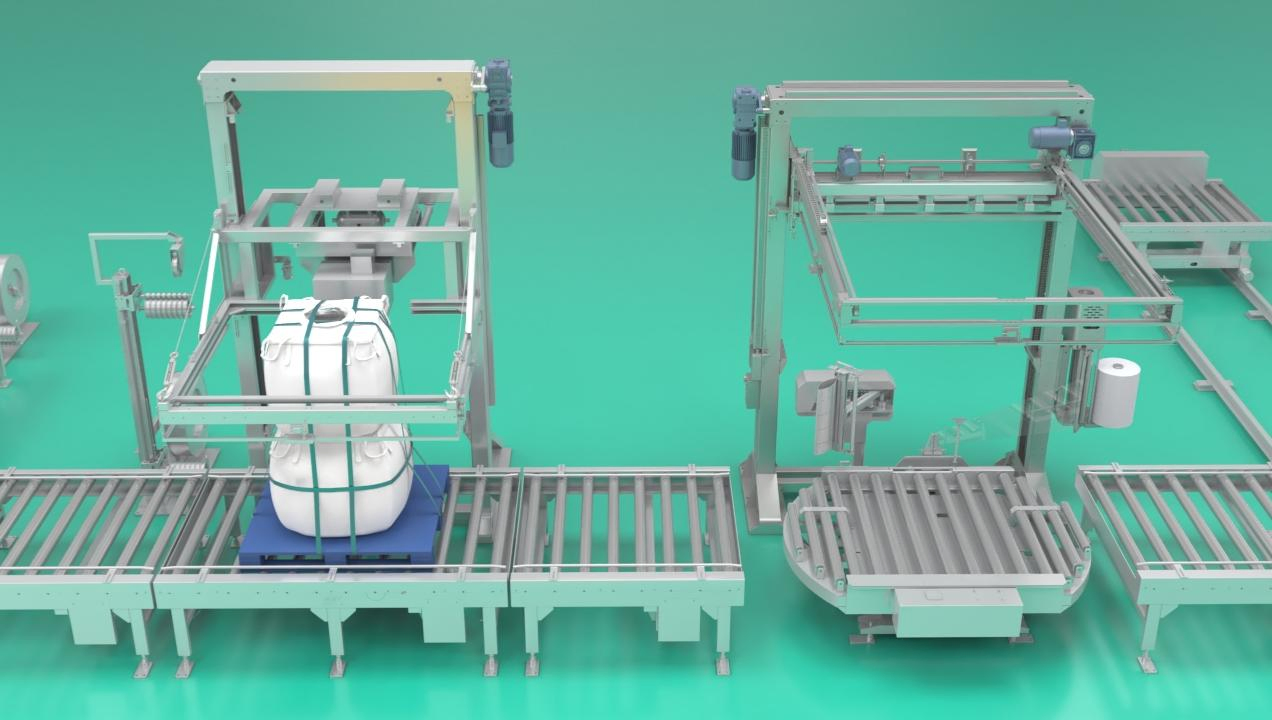

5. Stable Bag Transfer Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications

Specification Parameter	Detail Specifications
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	300 - 1000 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 13 kW
Total Weight	3.5 - 6 tons
Load Cell Accuracy Grade	C3/C6/C10 (optional)
Measurement Accuracy	±0.1%
Packaging Speed	5 - 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity	5 - 20 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol	Supports PN, DP, 485, etc. (optional)

Main Products

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. Our company was established in 2014 and is located near to Shanghai.

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As a high-tech enterprise, we have profound technical strength and advanced production technique. The company has established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

The company has acquired ISO9001-2015 quality certificate and some patents. In 2022, its products have obtained CE certificate. Its customers are some from the world famous companies like LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, CP GROUP, etc.

We have been upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strives to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.

Packaging & Shipping

Our Service

Pre-sale Services

Accept your inquiries and organize our engineers to analyze your requirements on equipment. We will provide you with a suitable detailed Proposal.

After-sales Services

Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.
Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of wear parts, consumables, and critical components.
We provide 24-hour after-sales service of website and hotline.
We will provide on-site or video installation guidance for the equipment. We will also conduct irregular visits to customer sites to assess equipment performance.

FAQ

1. Are you a manufacturer or trading company?

We are professional manufacturer with license of exporting and importing.

2. What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment and material handling and transfer equipment.

3. What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile container, fixed stations, and unloading stations.

4. Do you accept Customized Equipment?

Sure, we design and manufacture equipment based on our customers' actual requirements. So please share your specific requirements with us, and we will design a suitable solution for you.

5. What material industries can your equipment be applied to?

Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.

6. What is the delivery time?

For package scale, the production time is usually within 30 working days. For package machine, the production time is usually 30 - 60 working days. For IBC tank, the production time is usually 45 - 60 working days. The specific and precise delivery time depends on the exact requirements and quantity of equipment. Please communicate with us to get the exact delivery time.
