Smart Gravity Feed Pouch Packing System for Customized Packaging

Overview

Model NO. ASP-50

Automatic Grade Automatic

Application Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions 3500 (L) × 2800 (W) × 3000 (H) mm

Total Power Approx. 10 Kw

Total Weight 3t

Load Cell Accuracy Grade C3/C6/C10 (Selectable)

Measurement Accuracy ±0.1%

Packaging Speed 100-600 Bags/Hour

Bag Storage Capacity 100-1000 Bags (Expandable)

Control Method PLC + Touchscreen

Power Supply 380V, Five-Wire Three-Phase

Air Source 0.5-0.7 MPa

Noise Level ≤80 dB (at 1 Meter From Equipment)

Communication Protocol Supports Pn, Dp, 485, etc. (Optional)

Specification 5-50 kg/bag

Trademark MY

Origin China

Product Description

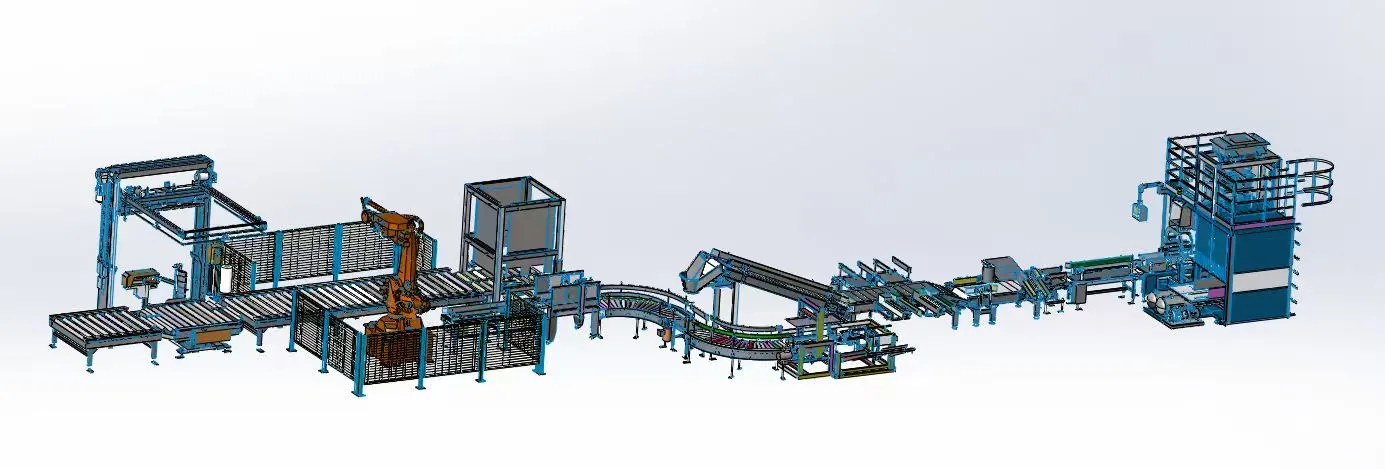

Fully Automatic Small Bag Packaging Machine

The fully automatic bag-loading small bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

Smart Gravity Feed Pouch Packing System for Customized Packaging

Structural Advantages

Modular Design: Optional integration of functions including conveyor lines, heat sealing, re-inspection, metal detection, and vacuum packaging based on requirements.
Safety Design: Complies with international PL d safety standards.
Precise Measurement: High-precision net-weight electronic scale with strong anti-interference capability and sustained operational stability.
Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various soft bags; automatic bag detection compatible with M-fold and pillow-style bags.
Stable Bag Transfer: Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	5 - 50 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 10 kW
Total Weight	3 tons
Load Cell Accuracy Grade	C3/C6/C10 (Optional)
Measurement Accuracy	±0.1%
Packaging Speed	100 - 600 bags/hour
Bag Storage Capacity	100 - 1000 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (Optional)
Communication Protocol	Supports PN, DP, 485, etc. (Optional)

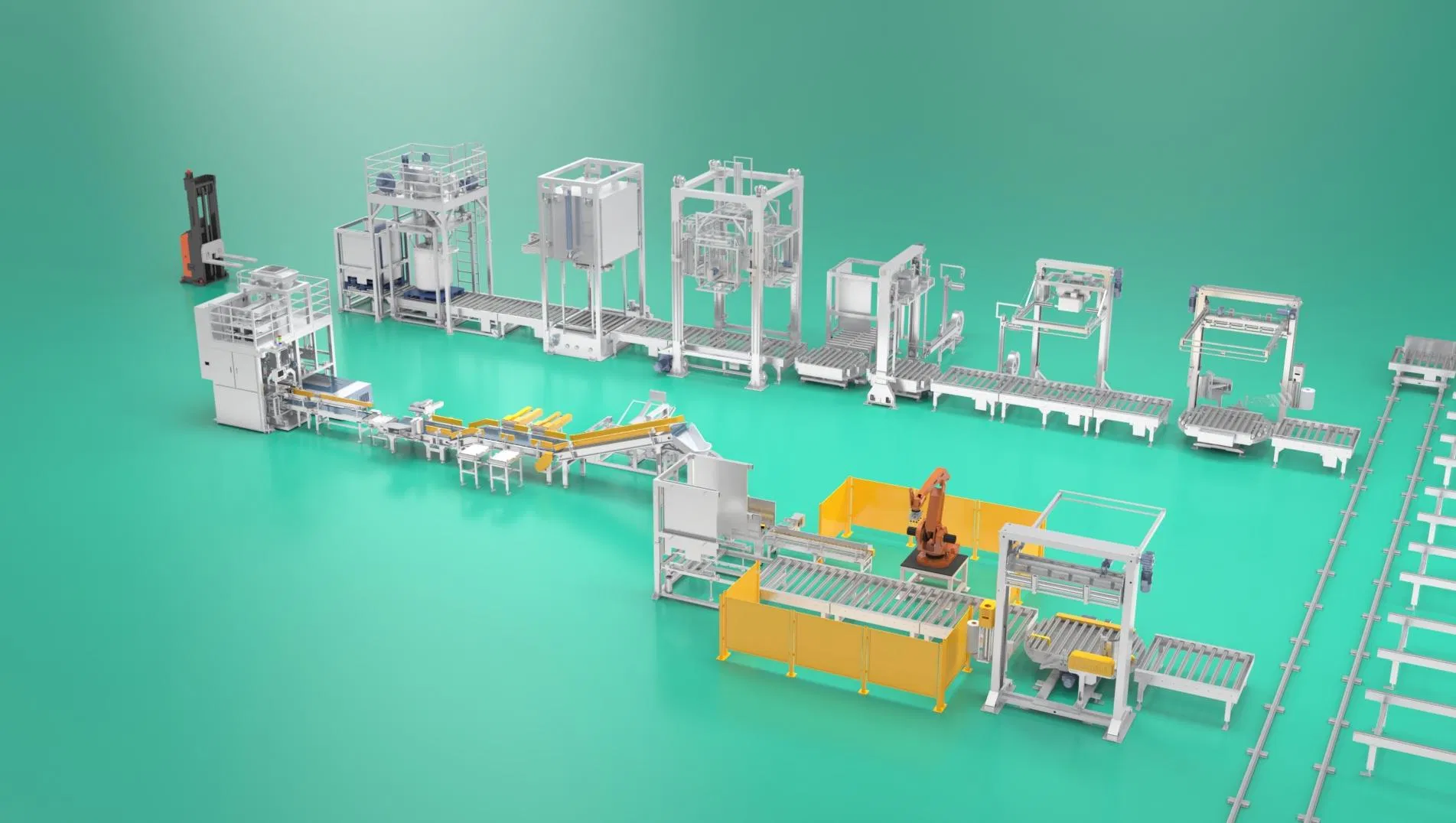

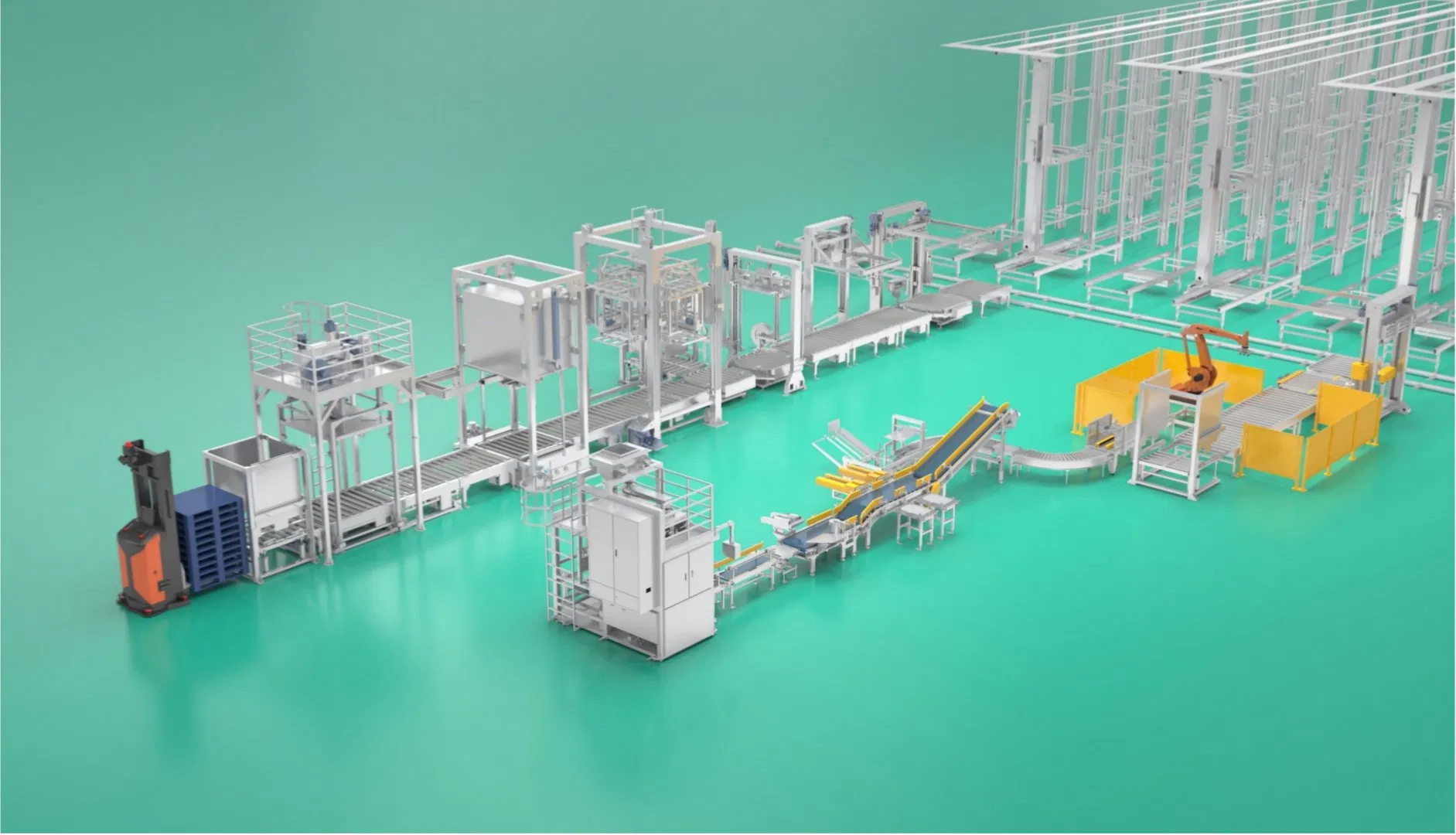

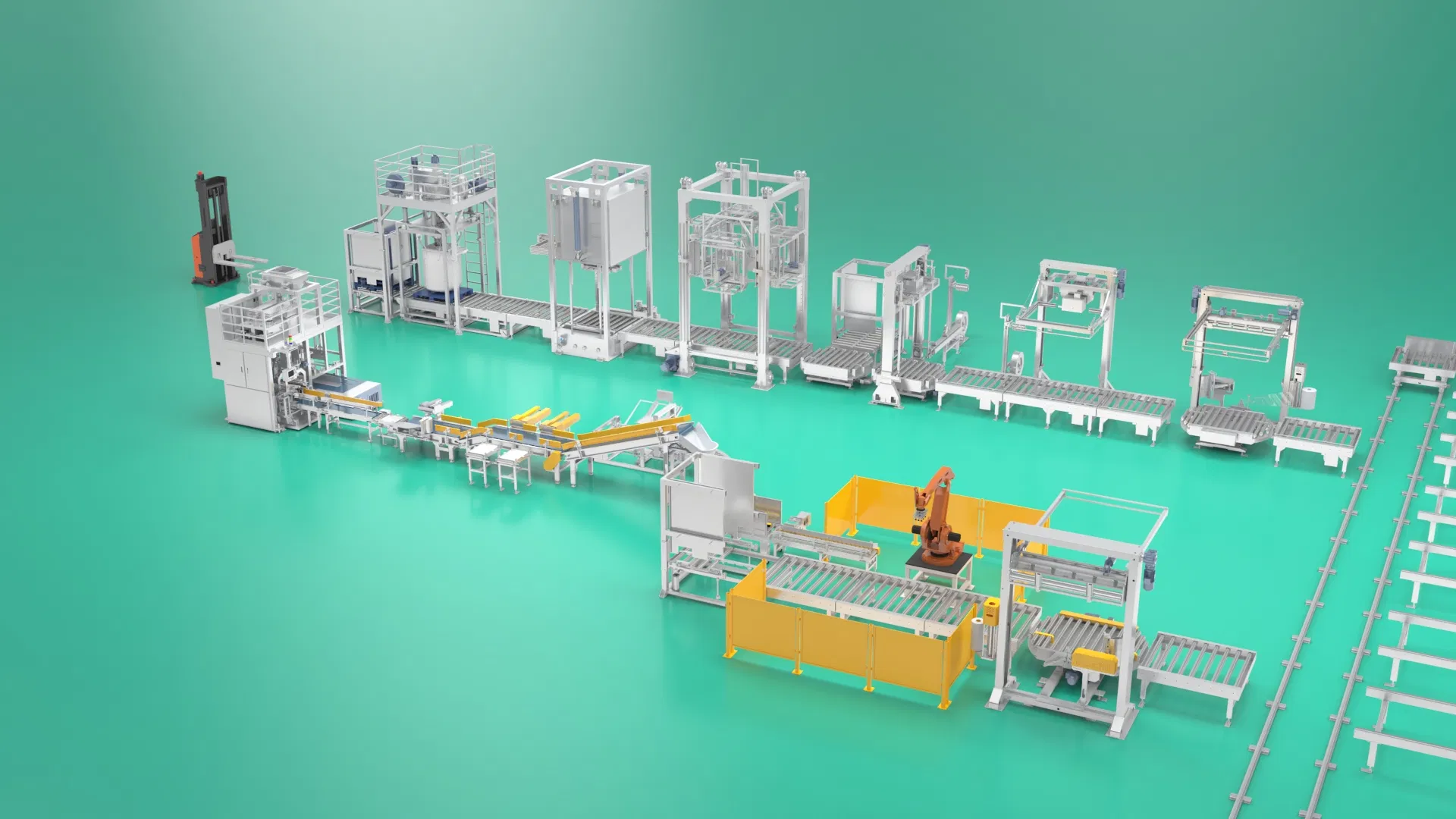

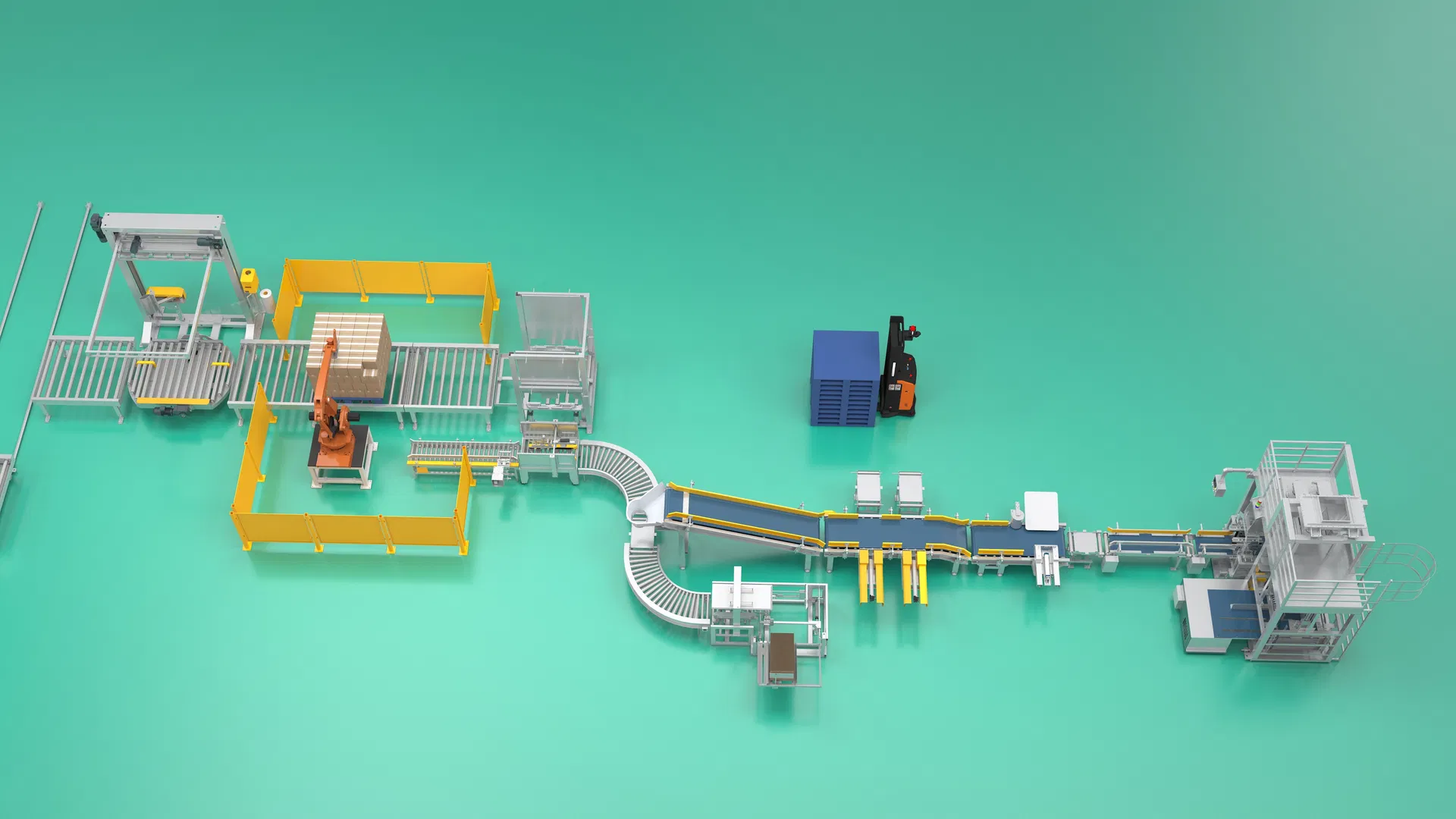

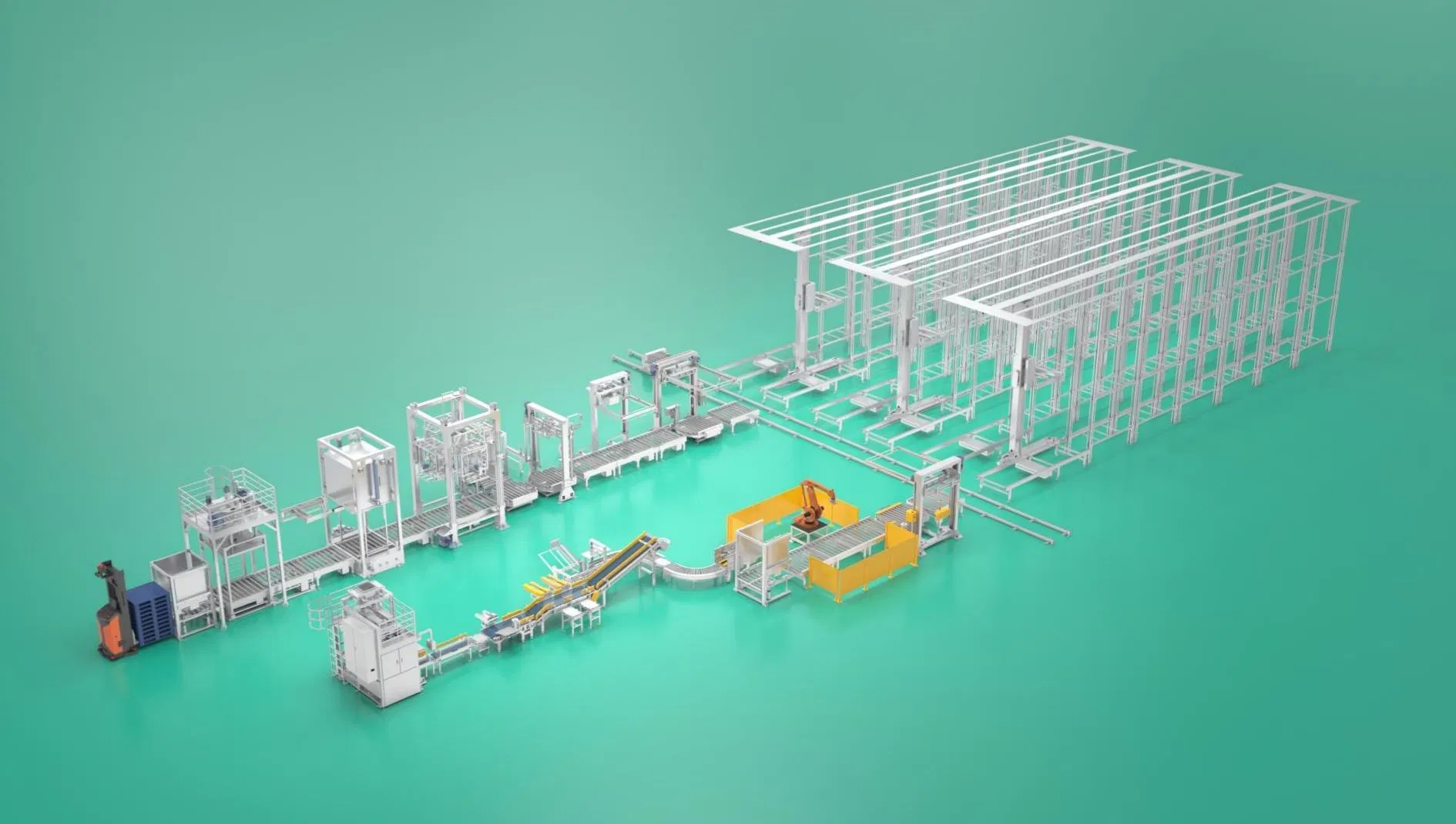

Main Products

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment.

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As one of the high-tech enterprises, we have profound technical strength and advanced production techniques. The company has established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

We have acquired ISO9001-2015 quality certificate and some patents. In 2022, our products obtained CE certificate. Our customers include world-famous enterprises.

We have been upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.

Packaging & Shipping

Our Service

Pre-sale Service

We accept your inquiries and organize our engineers to analyze your requirements on equipment. We will provide you with a suitable detailed Proposal.

After-sales Service

Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.
Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of customer requests for wear parts, consumables, and critical components.
We provide 24-hour after-sales service.
We will provide on-site or video installation guidance for the equipment. We will also conduct irregular visits to customer sites to assess equipment performance.

FAQ

Are you a manufacturer or trading company?

We are a professional manufacturer with a license for exporting and importing.

What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment and material handling and transfer equipment.

What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.

Do you accept Customized Equipment?

Sure, we design and manufacture equipment based on our customers' actual requirements. Please contact us to share your specific requirements, and we will design a suitable solution for you.

What material industries can your equipment be applied to?

Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.

What is the delivery time?

For packaging scales, the production time is usually within 30 working days. For packaging machines, the production time is usually 30 - 60 working days. For IBC tanks, the production time is usually 45 - 60 working days. The specific delivery time depends on the exact requirements and quantity of equipment. Please communicate with us to get the exact delivery time.
