5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
1 / 5
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver

5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver

Send Inquiry

Product Description

Product Description

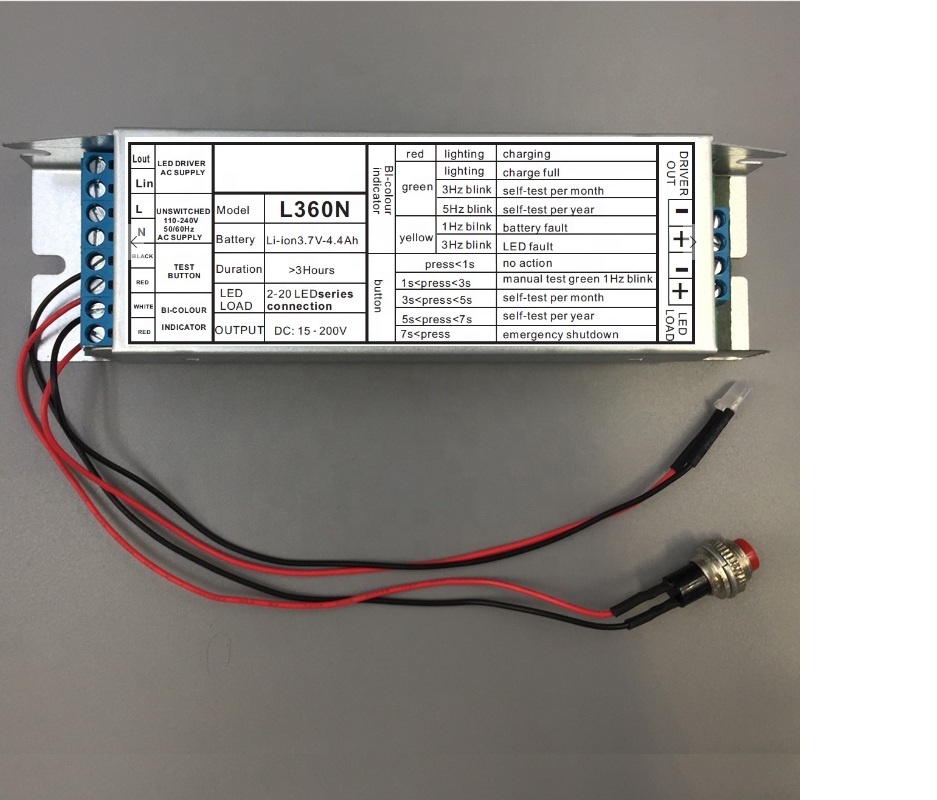

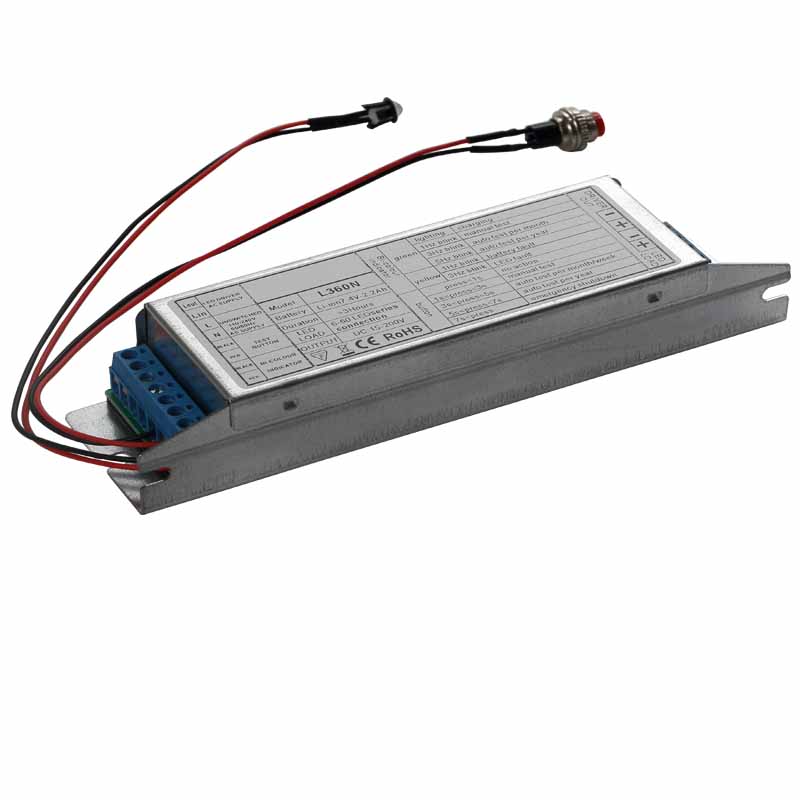

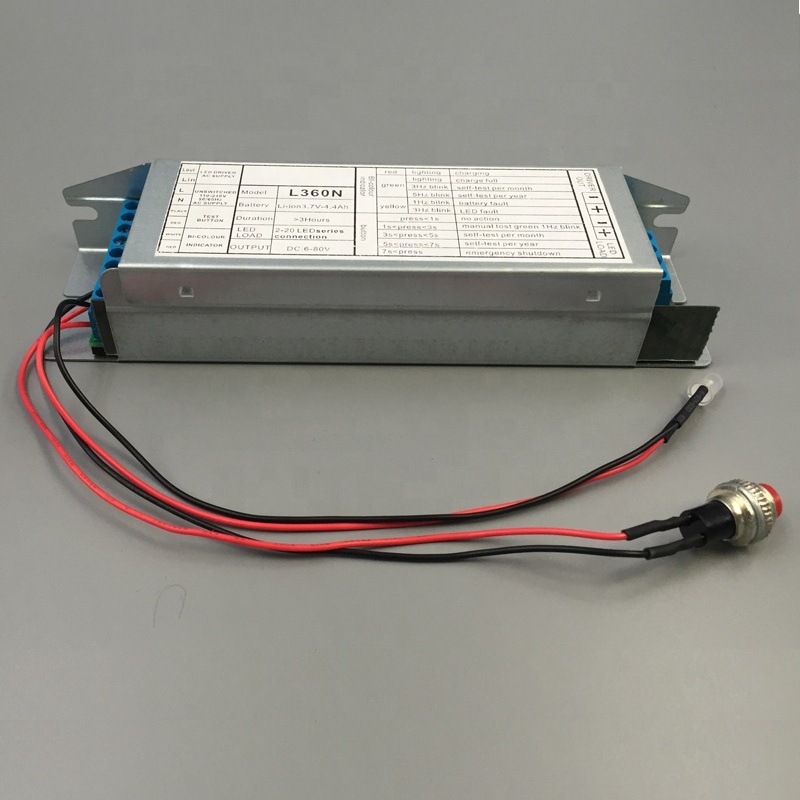

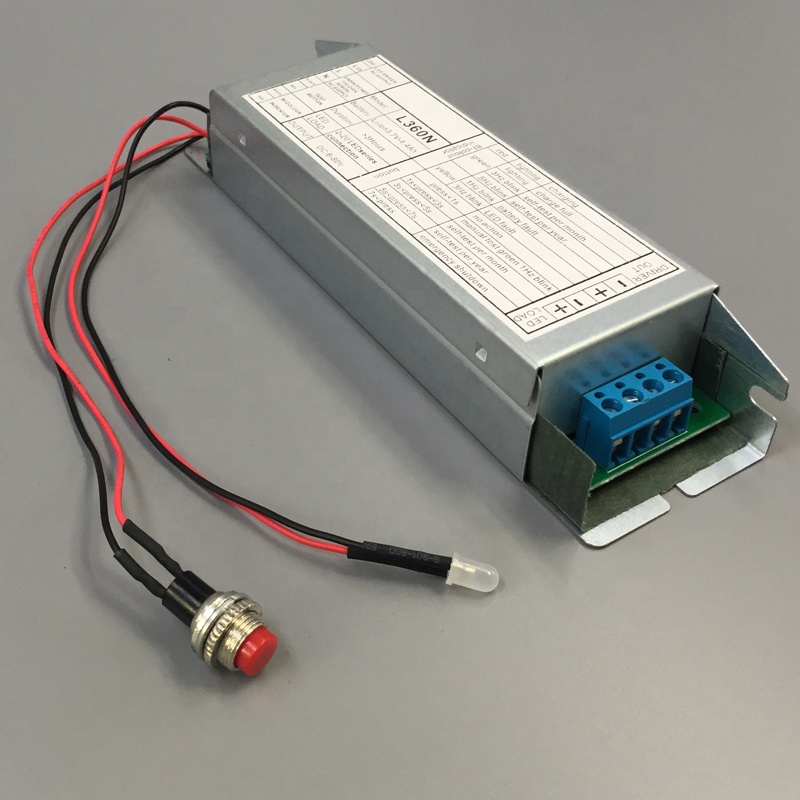

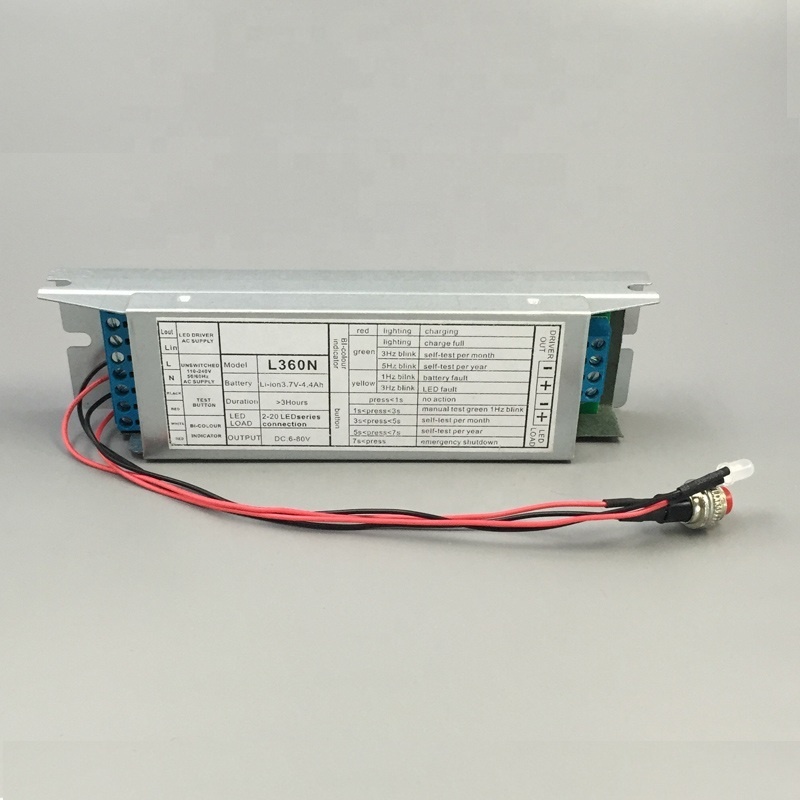

5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver
Input Voltage 220V-240V 50/60Hz
Battery Li-ion Battery 3.7V/4.4AH
Indicator Green LED Indicates Charging
Duration Time More than 3 hours
Construction Metal box
Installation Inside or outside of lamp
Weight 0.28 kg
Working Temperature -10℃ to 55℃
Metal Size 165mm × 45cm × 30mm
Output Power 4-5W
Packaging & Shipping
We supply high-quality inner boxes for our customers. Customized printing for the inner box option is fully supported.
  • Standard Packing: 50 pcs of products packed per carton.
  • Custom printed inner boxes are workable based on client requests.
Our Services
Backed by an experienced in-house R&D department, our factory is fully capable of providing customization services tailored to specific client needs, including alternative functions, adjusted emergency duration times, and custom packaging layouts.
Quality Control Processes

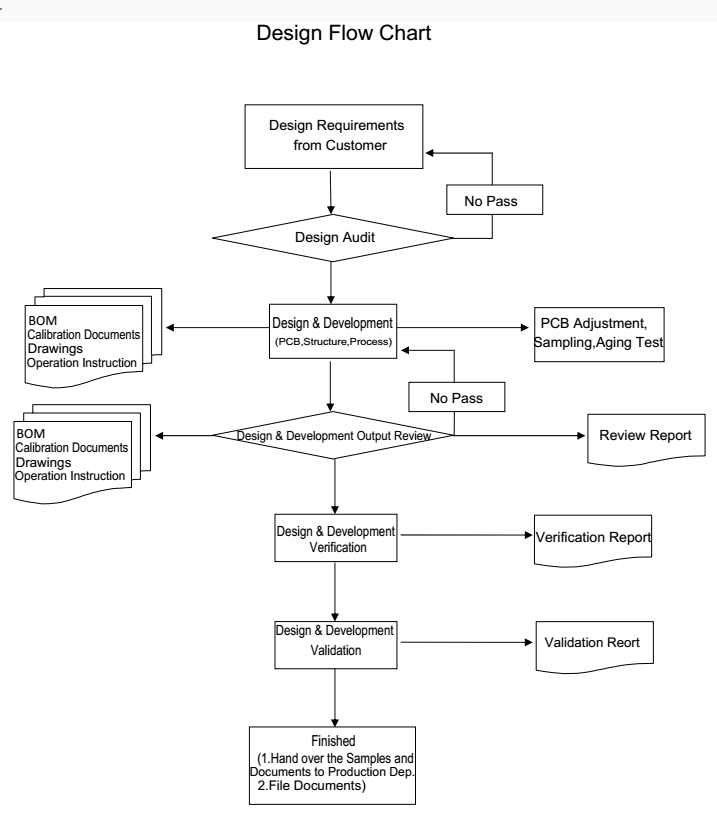

Quality Control Flowchart
5W 15-200VDC Backup Battery Rechargeable LED Emergency Driver Product View
Raw Material Inspection
  • The raw material warehouse only accepts materials meeting target quality standards. Spot checks are strictly performed upon arrival.
  • Before starting production, workers double-check all materials to prevent process waste.
In-Process Quality Control (IPQC)
  • 100% inspection of PCB assemblies before final casing. Critical parameters tested: charging current, discharging current, conversion voltage, and indicator light functionality.
  • Every component on the PCB must be securely fastened. Adhesive labels must display correct data. Batteries must be securely bundled.
  • Testing utilizes advanced testing equipment: voltage regulators, withstand voltage machines, aging test boards, and integrating spheres.
Finished Products Inspection
  • Indicator functionality must operate properly; all LEDs must light up immediately during power cuts. Button switches must engage smoothly.
  • The middle plate must be securely fastened with screws, presenting no significant color deviations from the main outer casing.
  • All emergency lights must be cleaned and meticulously finished.
Outgoing Quality Inspection
  • Random box selection is performed to verify appearance: check for damages, dust, or incorrect shipping marks.
  • Inspect inner boxes for accurate serial numbers. Each product has a unique ID number, clean surface, and accurate labeling.
  • Internal inspection ensures all components (especially transformers and wiring connections) are securely fixed and properly routed.
  • Functional inspection machine tests 4 core criteria: charging, discharging, shift voltage, and indicator performance.
  • Aging Test Board analysis is carried out to ensure the internal circuitry aligns with all operational standards.
Frequently Asked Questions (FAQ)

Q1: What is the main input voltage range for this LED emergency driver?

A1: The driver accepts a standard input voltage range of 220V-240V at 50/60Hz, making it suitable for various standard power grids.

Q2: How long does the backup battery sustain emergency operation?

A2: The emergency driver features a high-performance Li-ion battery (3.7V/4.4AH) that provides backup power for more than 3 hours during power outages.

Q3: Can this emergency driver be installed externally?

A3: Yes, the driver is built in a durable metal box case and is designed to be installed either inside or outside of the lamp fixture.

Q4: Do you offer customisation options for different output requirements?

A4: Yes, through our dedicated R&D department, we can customize operations, functionality, packaging layouts, and emergency duration times to suit customer requirements.

Q5: What are the packaging specifications for bulk shipments?

A5: The standard packing configuration consists of 50 pieces per outer carton. Custom printed inner boxes can also be produced according to specific requirements.

Q6: What quality control processes does the product undergo?

A6: Each unit undergoes rigorous testing, including raw material screening, 100% PCB checks under IPQC, finished product inspection, and outgoing quality testing using aging test boards and function testing equipment.
