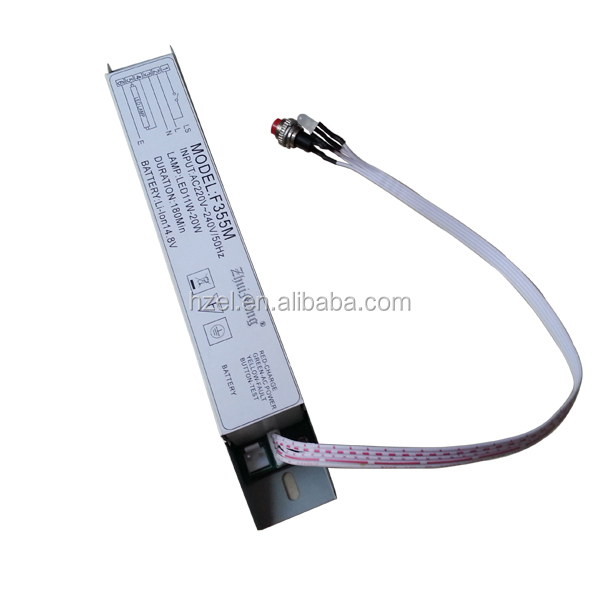

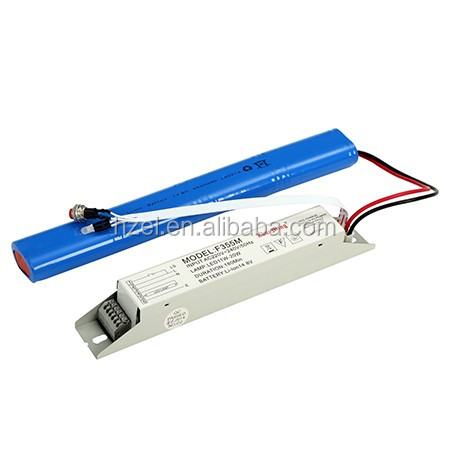

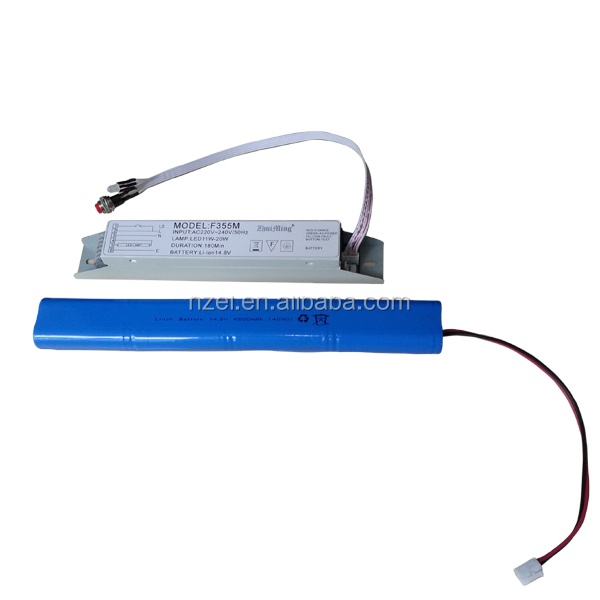

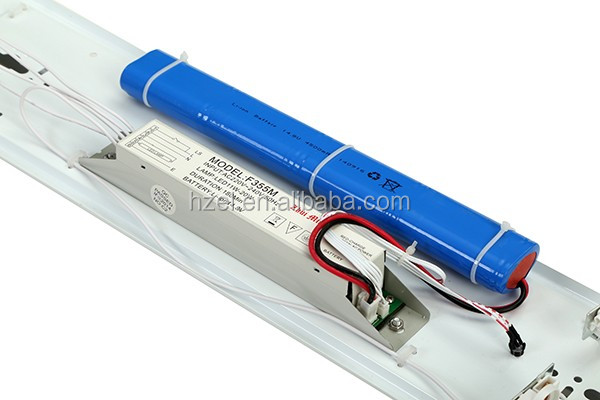

F355M is widely used. It mainly supplies power for lamps with self-contained electronic drivers, such as LED tubes, LED down lights, LED spotlights, LED bulb lights, and fluorescent lamps with electronic drivers.
F355M is made of high-quality electronic components. It features a long operating life and low power consumption.
F355M utilizes a highly cost-effective lithium battery. Delivering 100% output, there is no loss of brightness during emergency illumination.

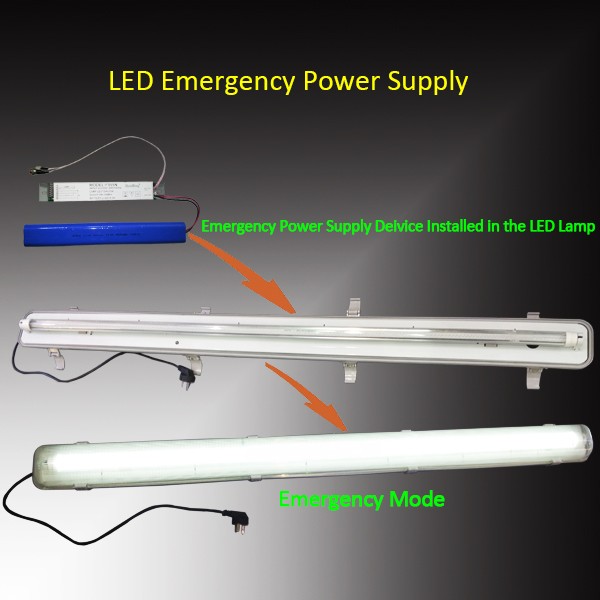

F355M can be used built-in or externally, depending on the requirements of the lamp fixture.
We accept ODM requests from customers for this conversion kit. Currently, we design 3 distinct types: BL10A, BL20A, and BL30A.
Equipped with a self-test feature to ensure continuous working order (please refer to the instruction details below).
Features a built-in protective circuit board in battery packs to ensure safety during charging and discharging cycles.

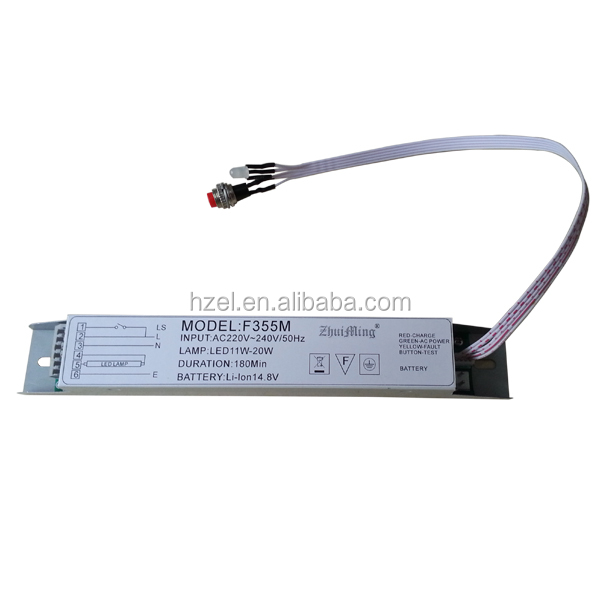

Supports working mode switching between Permanent and Non-Permanent conditions by connecting wires in different methods (refer to the connection diagram on the Nameplate).
| Number | Lamp Type | Rated Power | Battery Configuration | Emergency Time |
|---|---|---|---|---|
| 1 | LED tube | 11-18W | 14.8V/4500mAh | more than 3h |
| 2 | LED tube | 20-30W | 14.8V/4500mAh | more than 1.5h |
| 3 | LED downlight | 11-18W | 14.8V/4500mAh | more than 3h |
| 4 | LED downlight | 20-25W | 14.8V/4500mAh | more than 1.5h |
| 5 | LED downlight | 1-5W | 14.8V/2000mAh | more than 5h |
| 6 | LED downlight | 6-10W | 14.8V/2000mAh | more than 3h |
| 7 | LED spotlights | 11-18W | 14.8V/4500mAh | more than 3h |
| 8 | LED spotlights | 20-25W | 14.8V/4500mAh | more than 1.5h |
| Indicator Color | Light Performance | System Status Status |
|---|---|---|
| Red | Lit | Charging |
| Green | Lit | Fully charged |
| Slow blink (1Hz) | Manual check mode | |
| Blink (3Hz) | Automatic monthly self-check mode | |
| Quick blink (5Hz) | Automatic annual self-check mode | |
| Yellow | Lit | Battery aging, or emergency duration is too short |
| Slow blink (1Hz) | Battery is in short circuit or open circuit condition | |
| Blink (3Hz) | Incorrect connection with lamps or incompatible lamp type | |
| Off | - | Emergency mode or system stopped working |
| Pressed Duration | Indicator Status | Check Mode Details |
|---|---|---|
| <1s | No reaction | None. Prevents accidental operations. |
| 1 ~ 3s | Slow blink (1Hz) in Green | Check mode activated; discharges for 5 seconds. |
| 3 ~ 5s | Blink (3Hz) in Green | Monthly self-check mode; discharges for 2 minutes. |
| 5 ~ 7s | Quick blink (5Hz) in Green | Annual self-check mode; discharges for 1 hour. |
| >7s | Off | Stops discharging cycle to resume normal recharging. |
