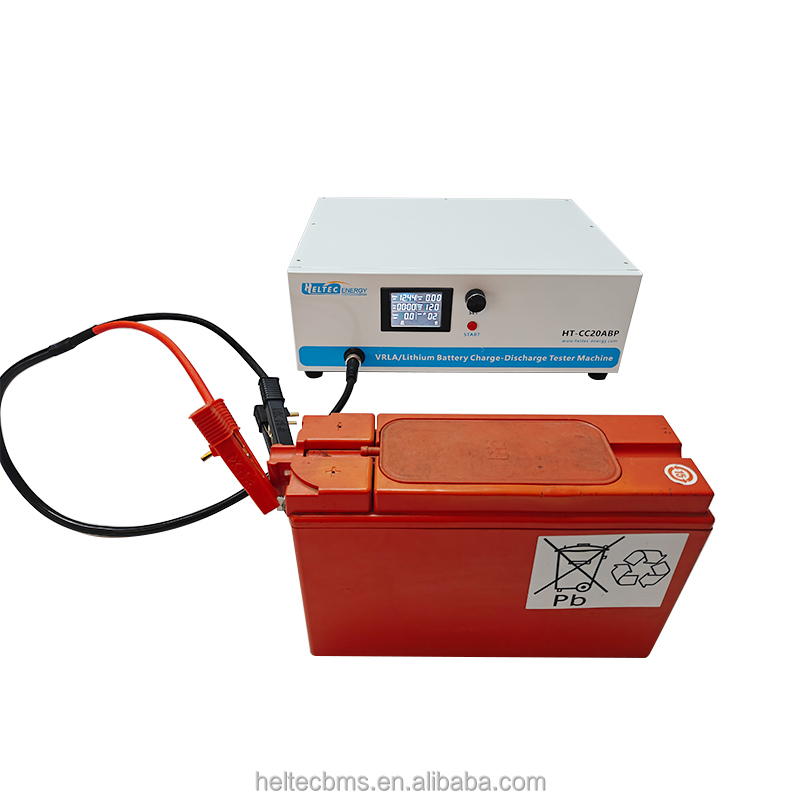

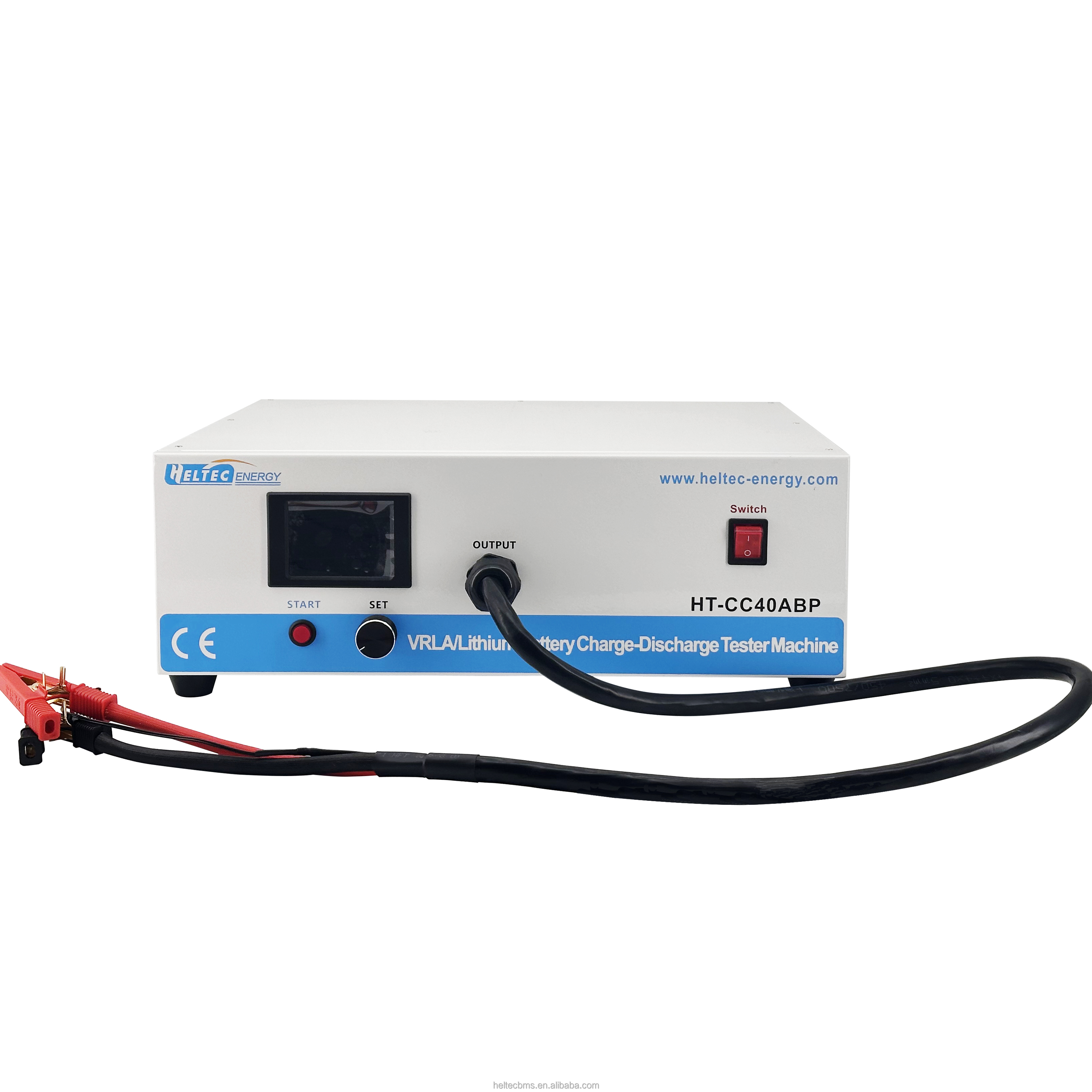

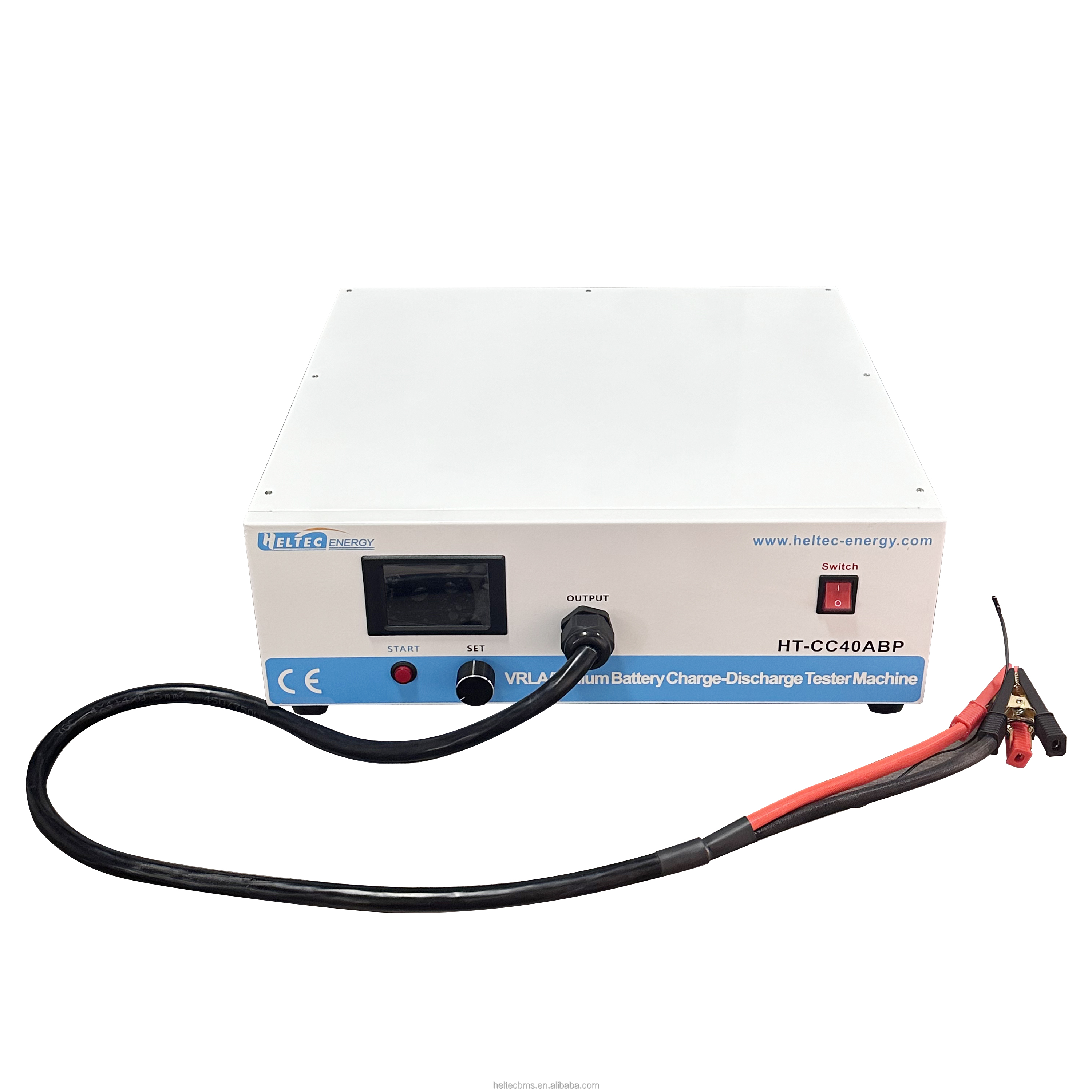

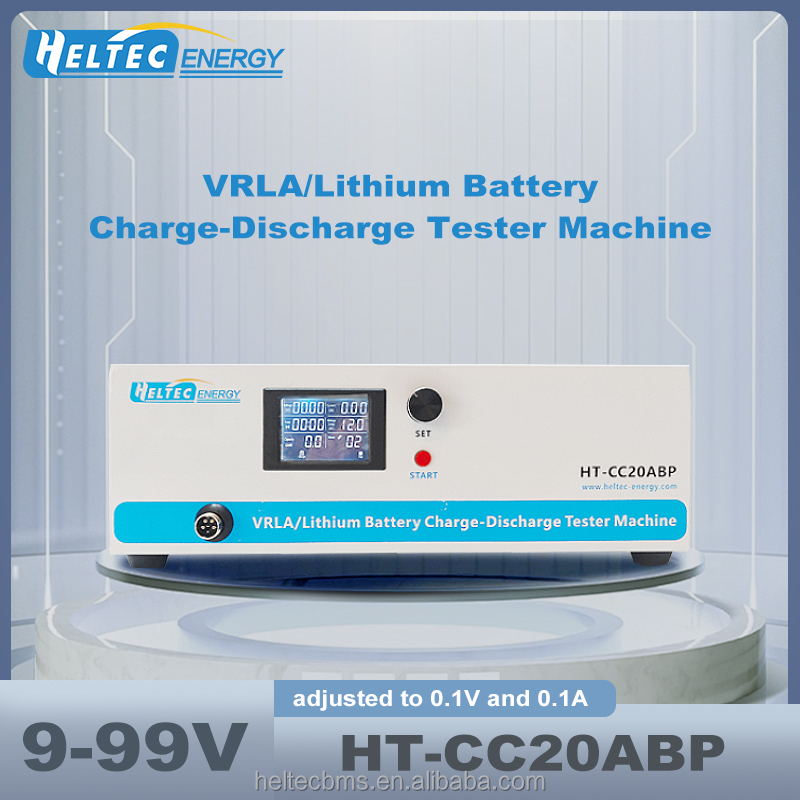

This Battery Charge-Discharge Test Machine is a specialized battery detection device which integrates with the functions of high-precision capacity discharge detection and high-precision series charging. It can perform the charge and discharge test for the lead-acid batteries, lithium ion batteries and other batteries. It's a high-precision specific instrument which is suitable for EV dealer and battery producer to test the performance of the batteries.
The higher the charge and discharge current of the instrument, the faster the monitoring speed.
| Models/SKU | HT-CC20ABP | HT-CC40ABP |
|---|---|---|
| Discharge cut-off voltage | 9 ~ 99V adjustable, adjustable range 0.1V | |
| Discharge current | 9V-21V: 0.5-10A adjustable 21V-99V: 0.5-20A adjustable |
0.5-40A constant current adjustable current 0.1A |
| Charging voltage range | 9-99V Adjustable 0.1V | |
| Charging current | 0.5-10A adjustable | Adjustable from 0.5-20A, current adjustable from 0.1A |
| Charge cut-off current | 0.1-5A 0.1A is adjustable | |
| Charge/Discharge Voltage accuracy | ±0.03V | |
| Charge/Discharge Current accuracy | ±0.03A | |
| Measuring Battery Type | Lead-acid battery, lithium-ion battery and other batteries | |
| Communication | Support PC | |

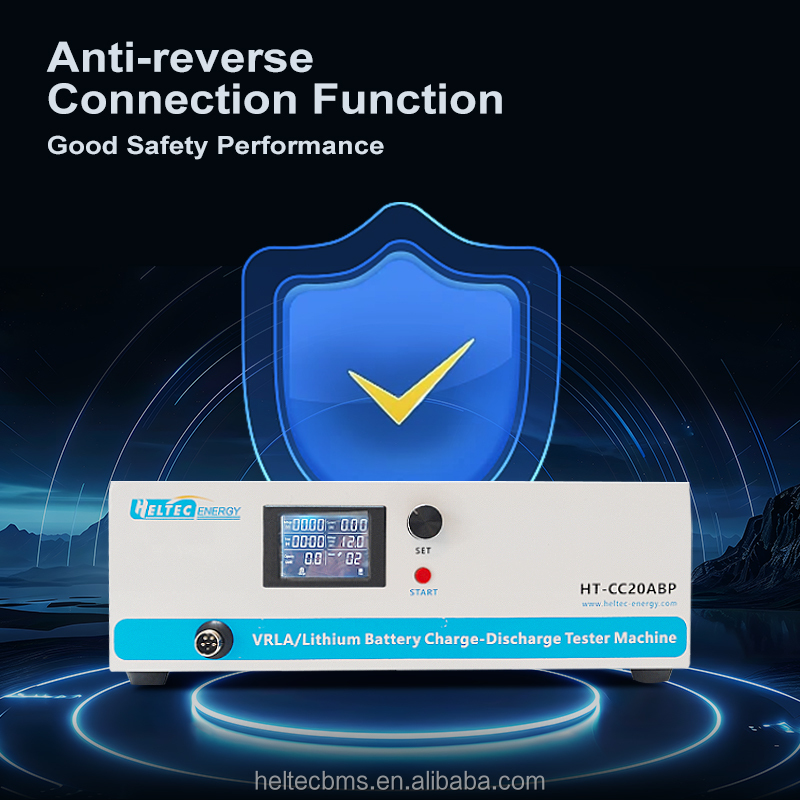

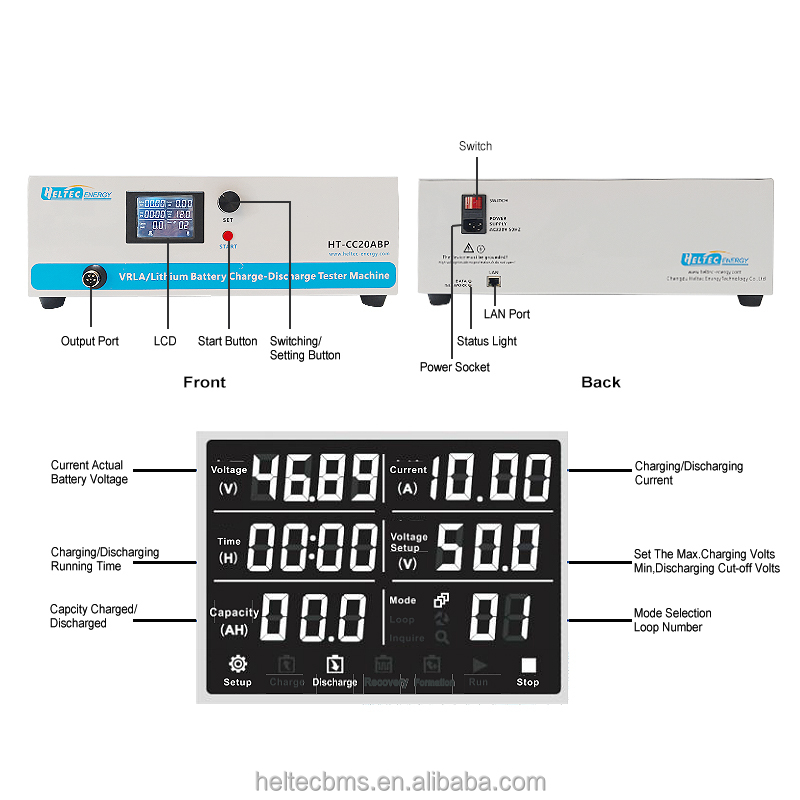

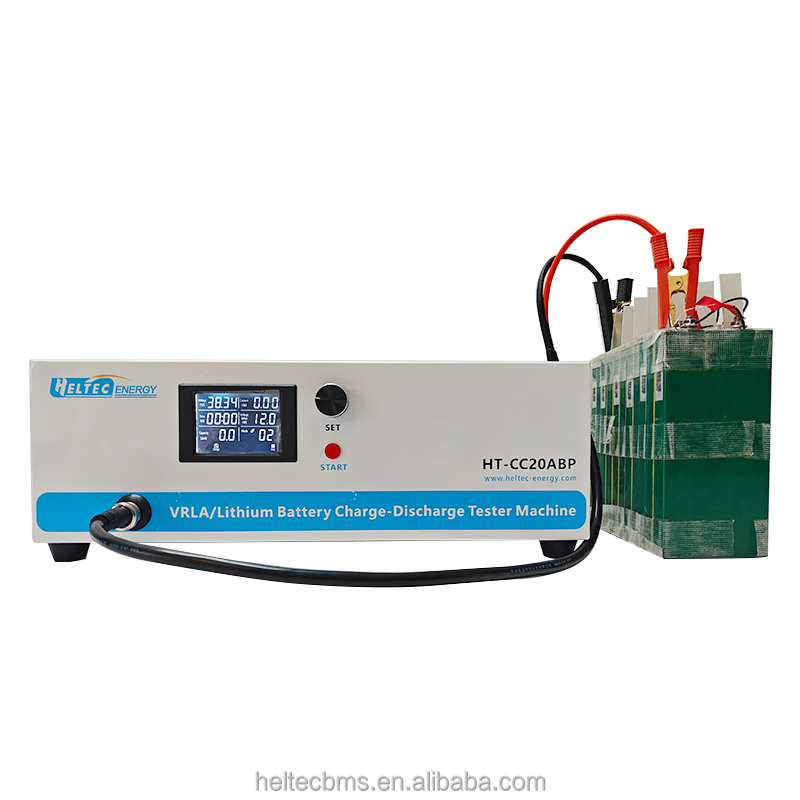

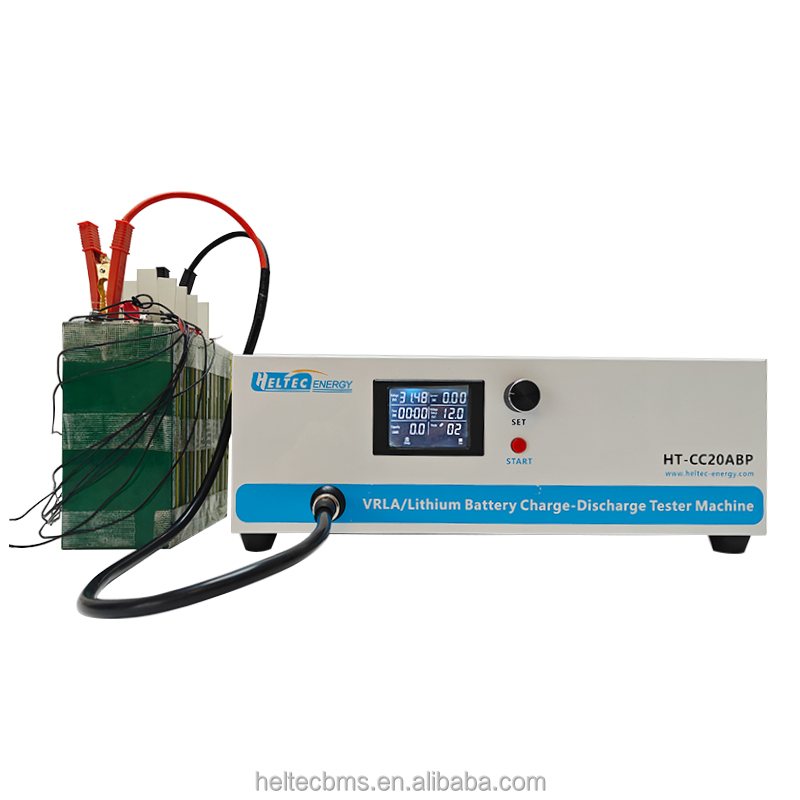

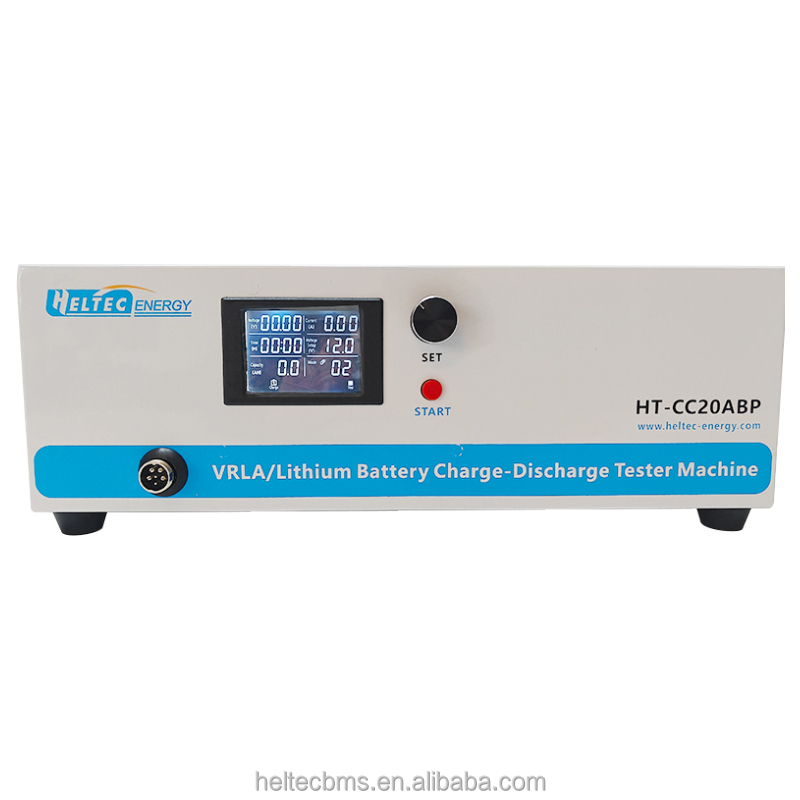

| Model: HT-CC20ABP Details | |||
|---|---|---|---|
| Discharging Test Cut-off Voltage: | 9V-99V 0.1V stepping adjustable |
Discharging Current: | 9V-21V:0.5-10A adjustable 21V-99V:0.5-20A adjustable |
| Charging Test Voltage: | 9V-99 adjustable 0.1V stepping |
Charging Current: | 0.5-10A adjustable |
| Discharging stepping Current: | 0.1A | Charging Stepping Current: | 0.1A |
| Charging Cut-off Current: | 0.1-5A adjustable | Loop Idle Interval: | 0-20 MINS adjustable |
| Max. Loop No.: | 99 times | Voltage/Current Errors: | <0.03 V/A |
| The Preset Charging Capacity of Last Loop: 0-99.9AH (If 0 is set, it means the charging capacity of last loop is not preset.) | |||

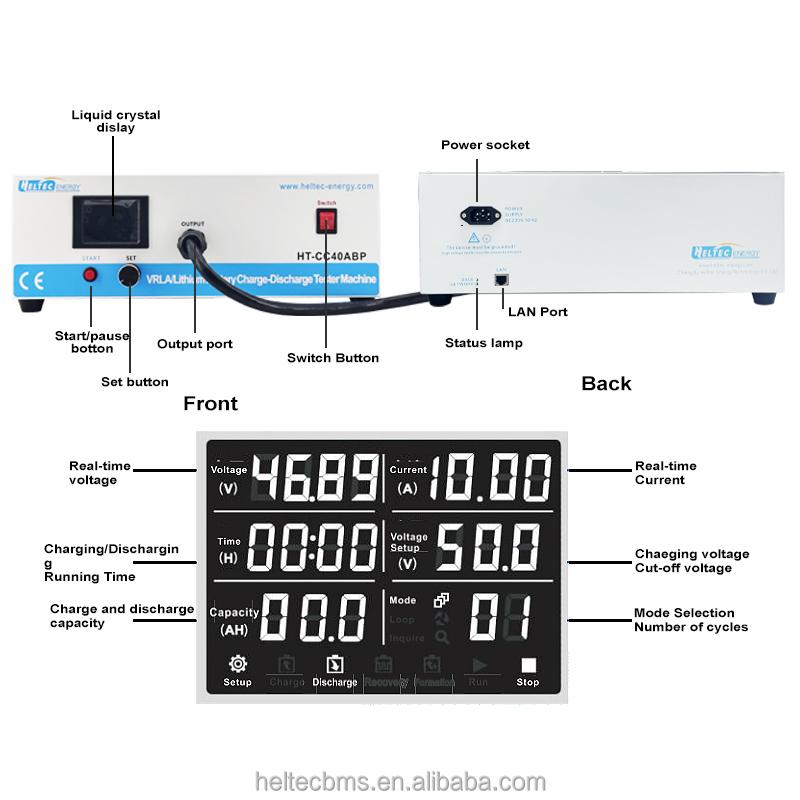

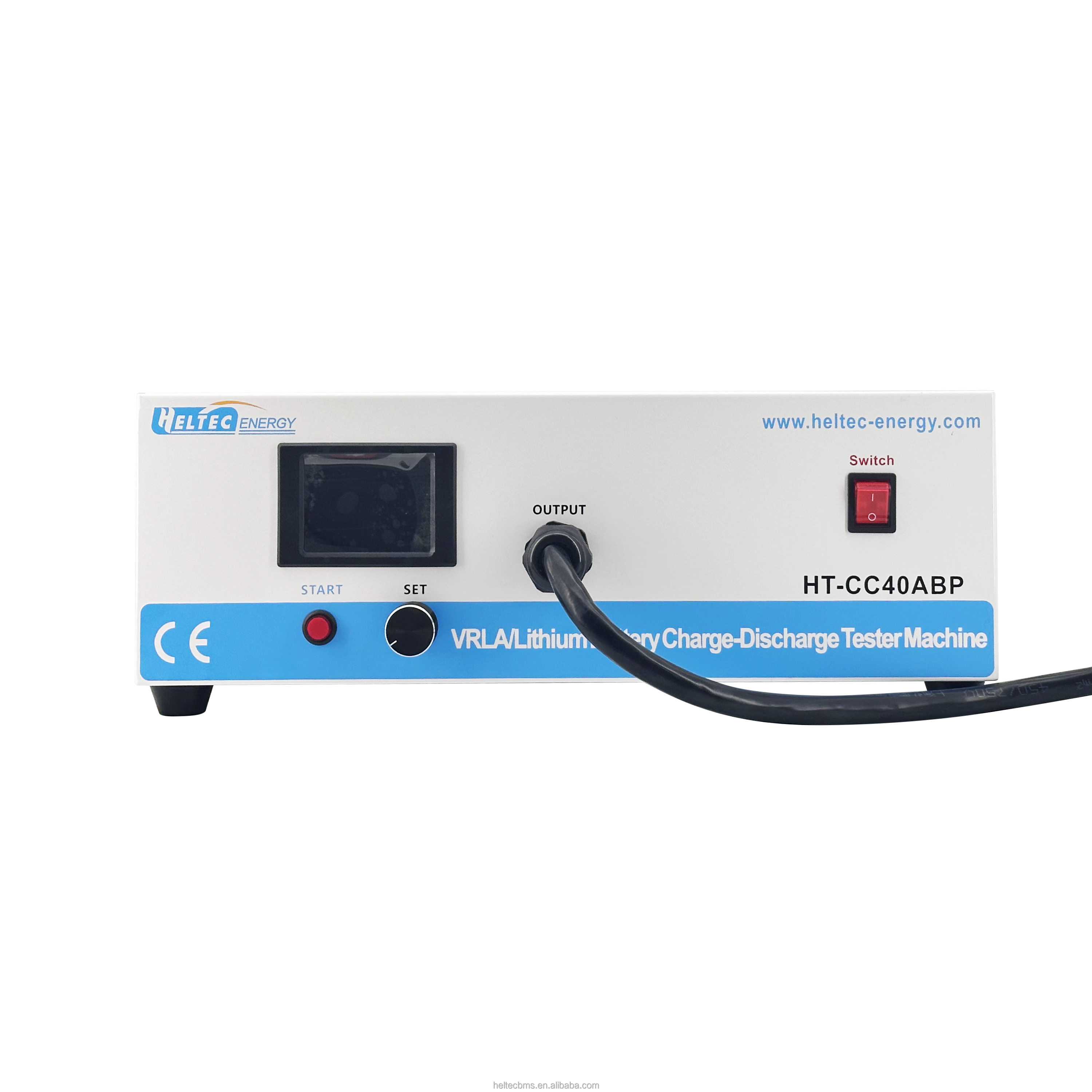

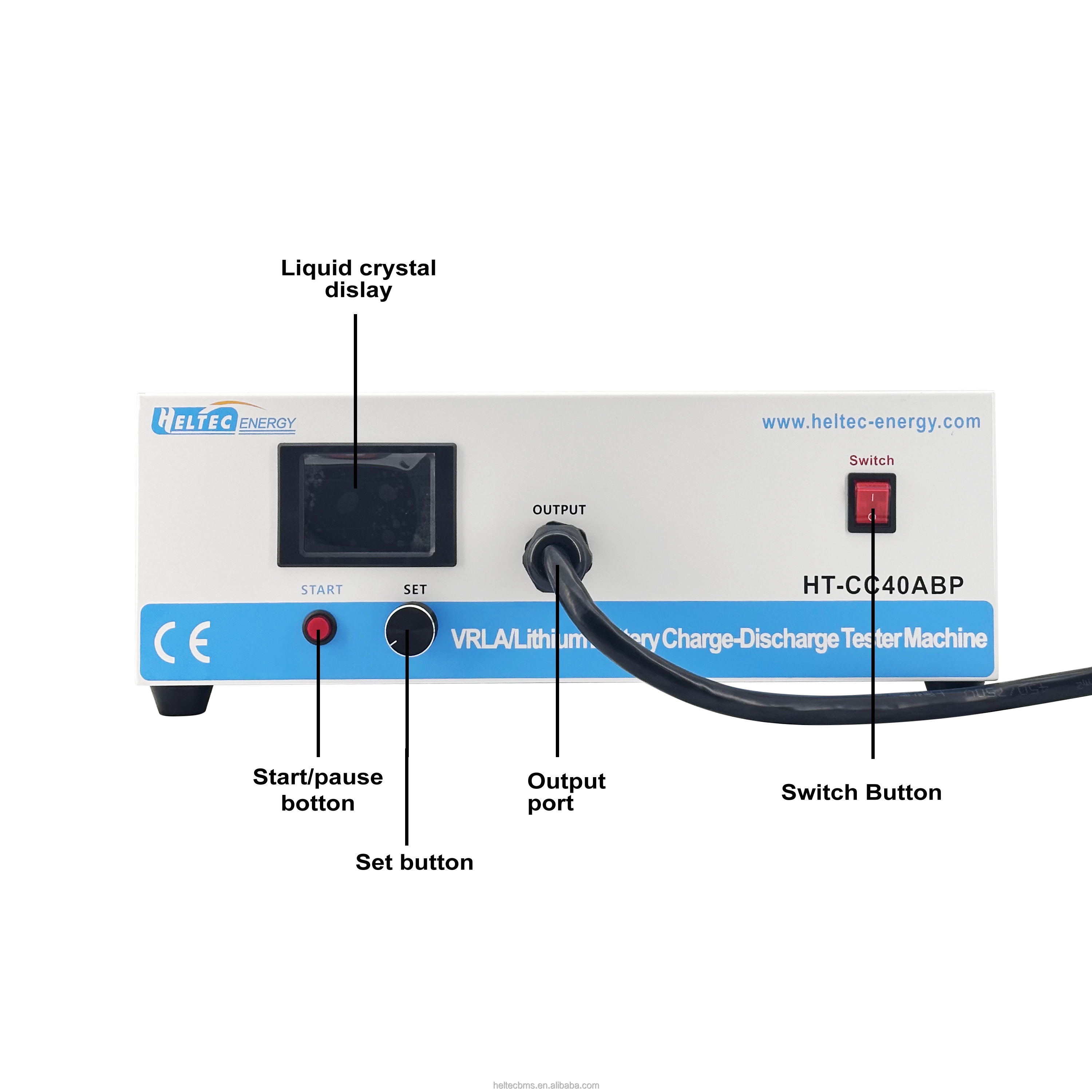

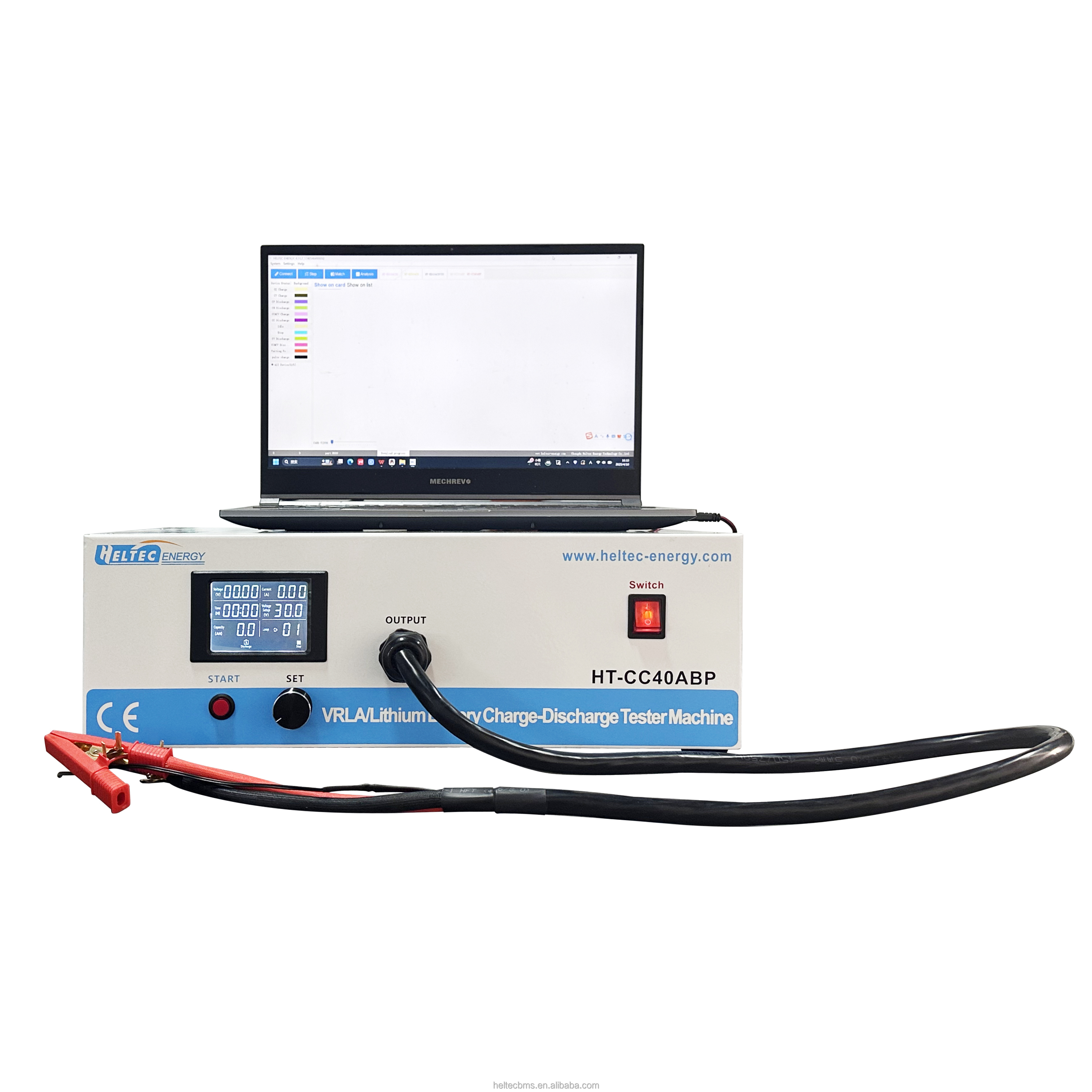

| Model Parameter | HT-CC40ABP Value |
|---|---|
| Discharge current accuracy | ±0.03A |
| Discharge voltage accuracy | ±0.03V |
| Discharge cut-off voltage | 9 ~ 99V adjustable, adjustable range 0.1V |
| Discharge current | 0.5 to 40A constant current, adjustable current 0.1A |
| Charging voltage accuracy | ±0.03V |
| Charging voltage range | 9-99V Adjustable 0.1V |
| Charging current | Adjustable from 0.5 to 20A, current adjustable from 0.1A |
| Charge cut-off current | 0.1-5A 0.1A is adjustable |
| Charging current accuracy | ±0.03A |
| Cyclic shelving time | 0-20 minutes |
| Maximum number of cycles | 16 times |
| Cycle last charge capacity preset | 0-99AH(0 indicates no preset) |

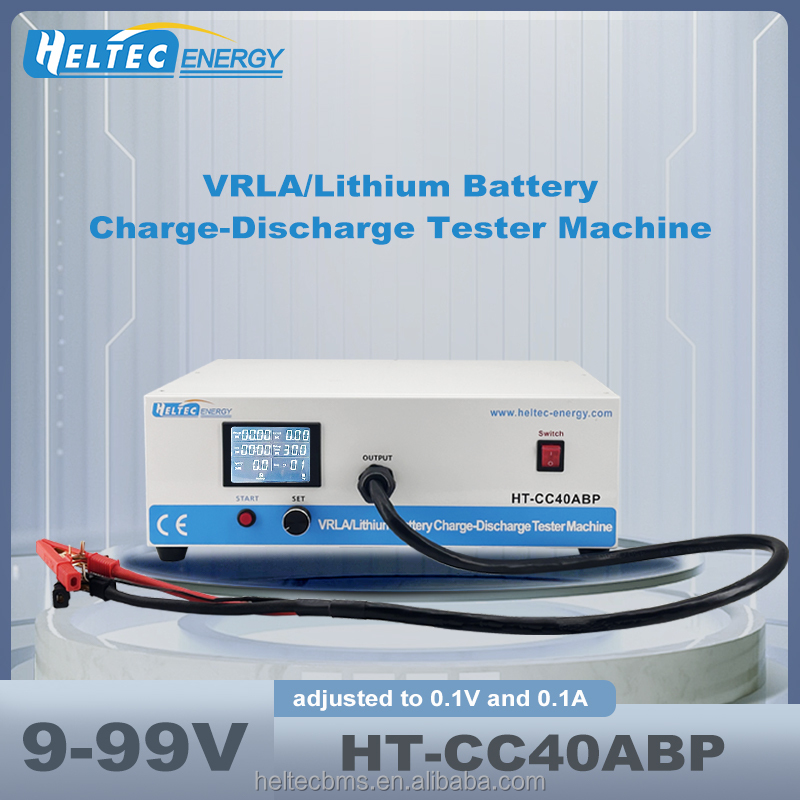

VRLA/Lithium Battery Charge-Discharge Test Machine is a specialized battery detection device which integrates with the functions of high-precision capacity series discharge detection and high-precision series charging. It can perform the charge and discharge test for lead-acid batteries, lithium ion batteries and other batteries. It's a high-precision specific instrument which is suitable for EV dealers and battery producers to test the performance of the batteries.
Electric lead-acid series detector is a special battery detection equipment which integrates high-precision capacity series discharge detection and high-precision series charging functions. Charge and discharge tests can be performed on lead-acid batteries, lithium ion batteries and other batteries. It is a high-precision special instrument suitable for electric vehicle dealers and battery manufacturers to test battery performance.
| Power Socket / Mode Code | Mode Description |
|---|---|

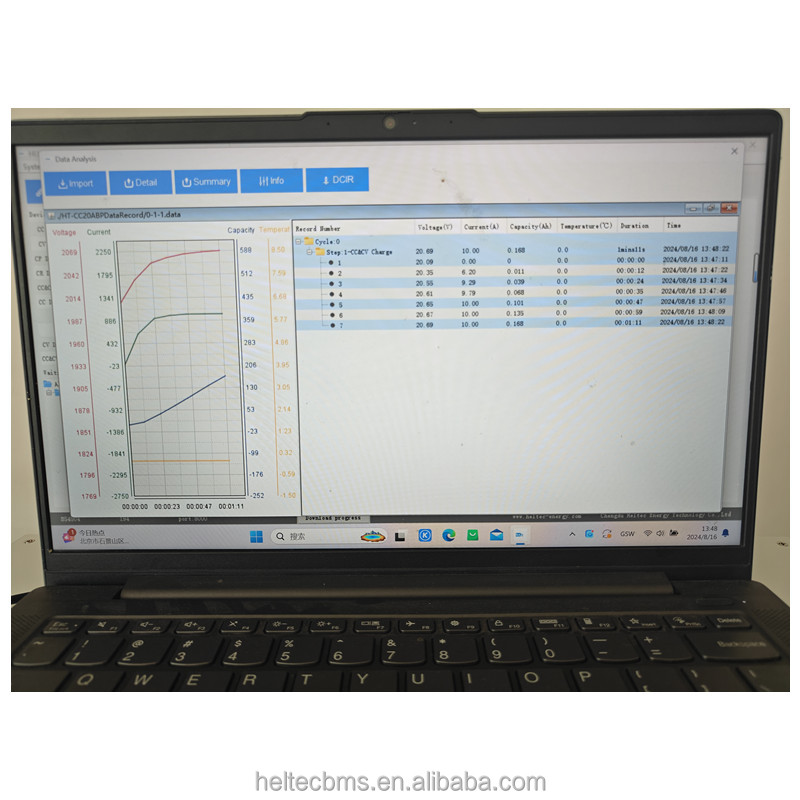

| 00 | Historical cyclic data query mode |
| 01 | Capacity test |
| 02 | Standard charge |
| 03 | Start with discharge and end with charge, cycle number 1-16 times |
| 04 | Start with charge and end with charge, cycle number 1-16 times |
| 05 | Start with discharge and end with discharge, cycle number 1-16 times |
| 06 | Start with charge and end with discharge, cycle number 1-16 times |

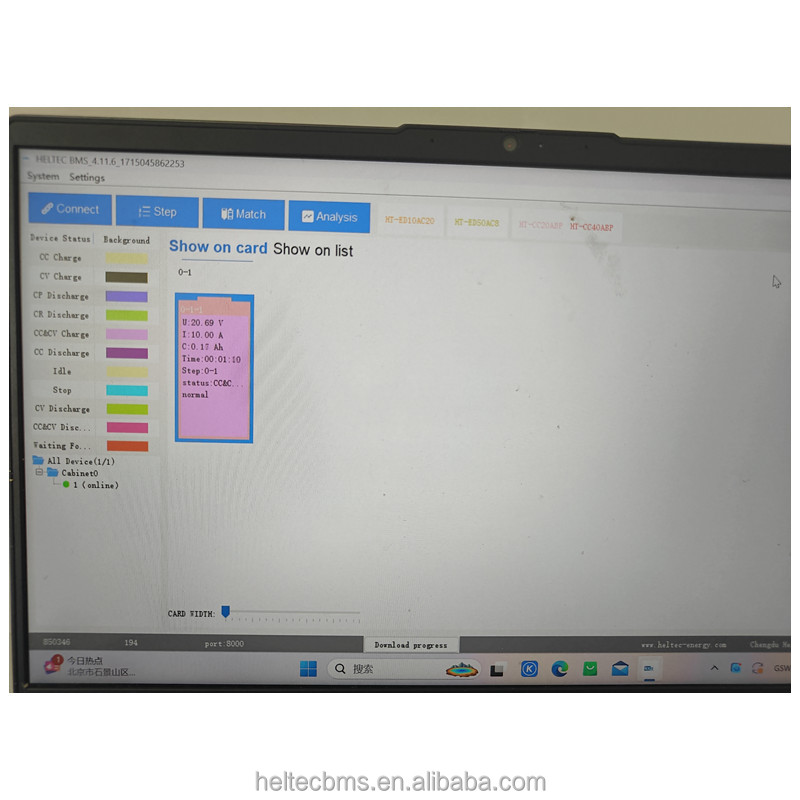

| 07 | Networking mode (automatically changed to this mode when the computer starts the device) |
Yes, we have a dedicated design department. We provide professional hardware design, ARM, and Mbed system software design to meet your requirements.
It takes about 3-5 days to complete sample production, and approximately 7-30 days for mass production.
We maintain sufficient storage for most standard products. For customized configurations, we utilize specialized SMT facilities to fulfill your demands quickly after confirmation.
According to the quantity and volume of your order, we will choose the most suitable and cost-effective way of transportation for you. You are also free to choose your preferred method.
We employ professional instruments and testing equipment during development. Each product undergoes manual testing and strict inspection before final packaging.
It is designed to perform charge and discharge tests on lead-acid batteries, lithium-ion batteries, and various other compatible battery types.
