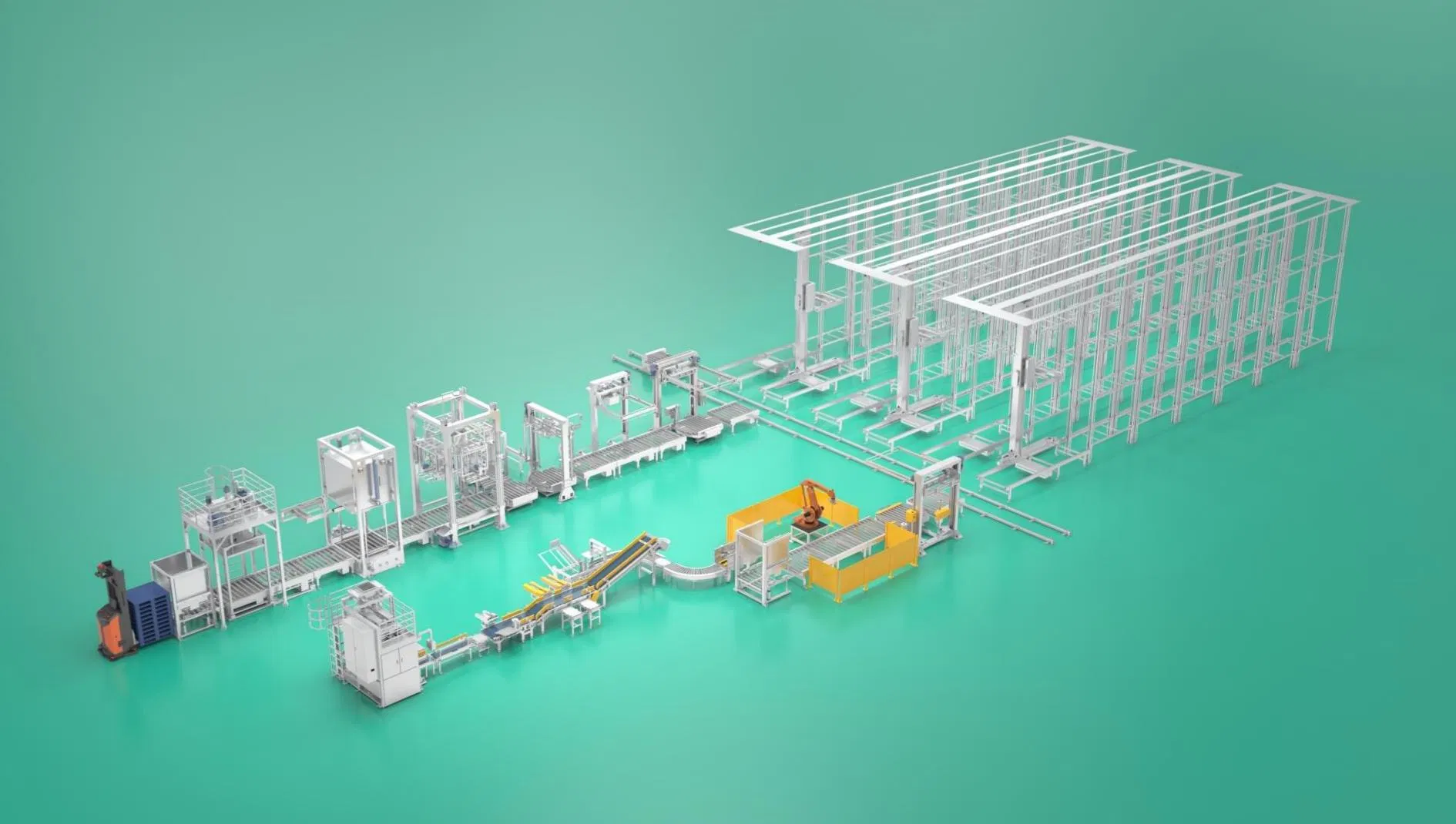

Efficient Small Bag Packing System for Versatile Applications

Fully Automatic Small Bag Packaging Machine

The fully automatic bag-loading small bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

Efficient Small Bag Packing System for Versatile Applications

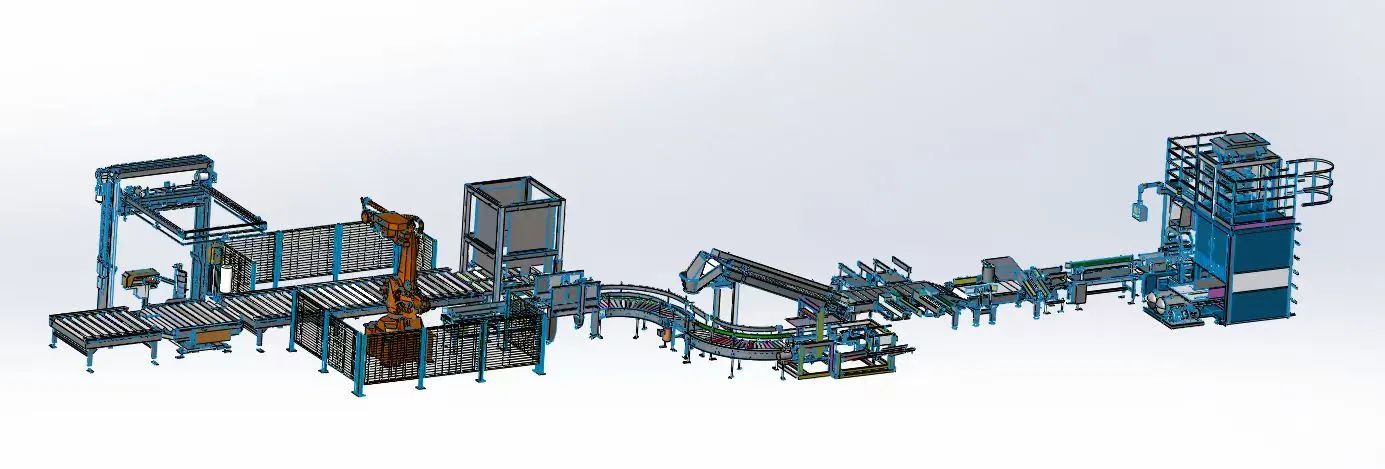

Efficient Small Bag Packing System for Versatile Applications Detail

Structural Advantages

Modular Design

Optional integration of functions including conveyor lines, heat sealing, re-inspection, metal detection, and vacuum packaging based on requirements.

Safety Design

Complies with international PL d safety standards.

Precise Measurement

High-precision net-weight electronic scale with strong anti-interference capability and sustained operational stability.

Bag Loading System

Chain conveyor with centering adjustment; specialized suction cups accommodate various soft bags; automatic bag detection compatible with M-fold and pillow-style bags.

Stable Bag Transfer

Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications

Parameter	Details & Standard Specifications
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	5 - 50 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 10 kW
Total Weight	3 tons
Load Cell Accuracy Grade	C3/C6/C10 (Optional)
Measurement Accuracy	±0.1%
Packaging Speed	100 - 600 bags/hour
Bag Storage Capacity	100 - 1000 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (Optional)
Communication Protocol	Supports PN, DP, 485, etc. (Optional)

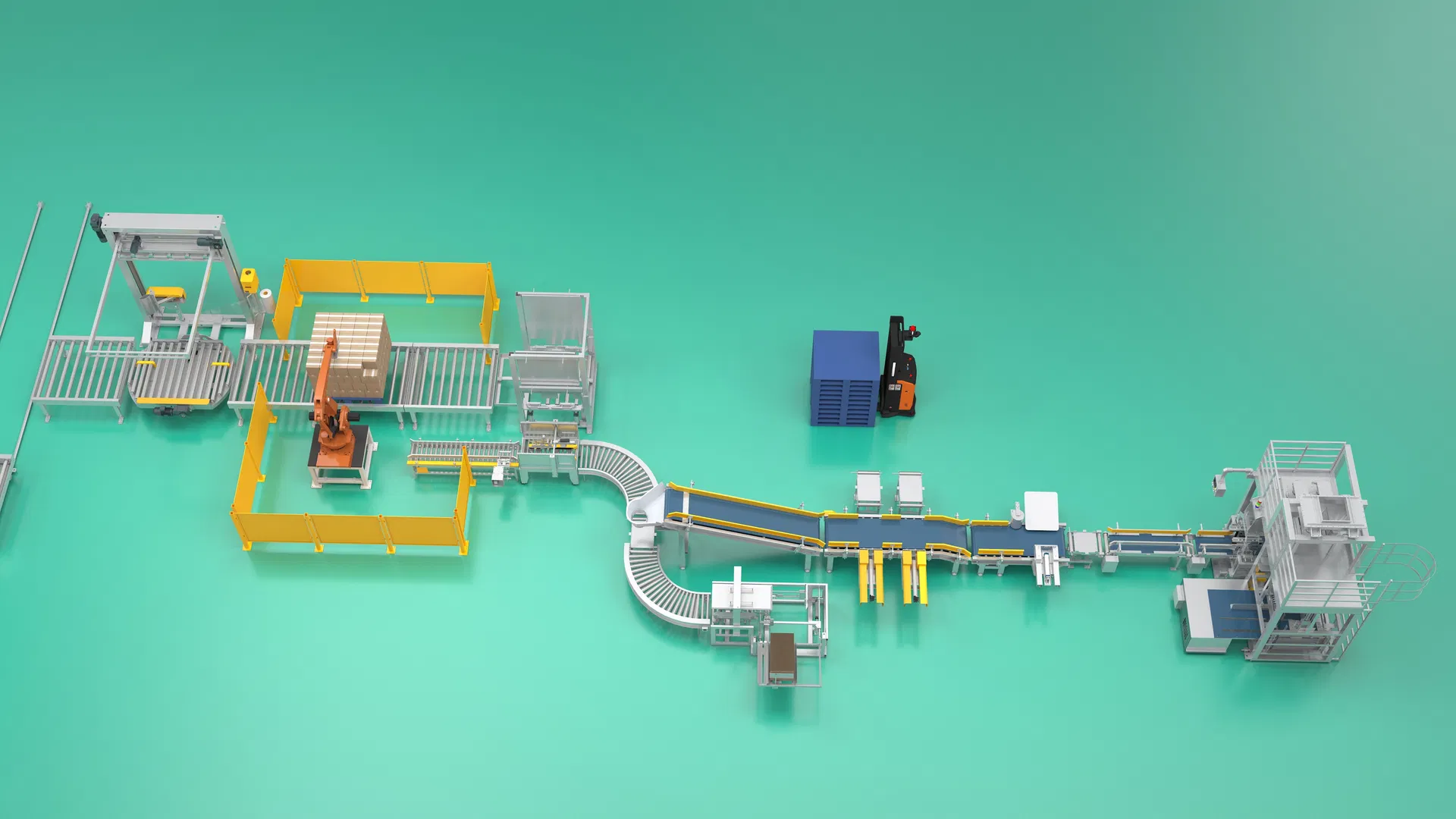

Efficient Small Bag Packing System Showcase

Efficient Small Bag Packing System Details

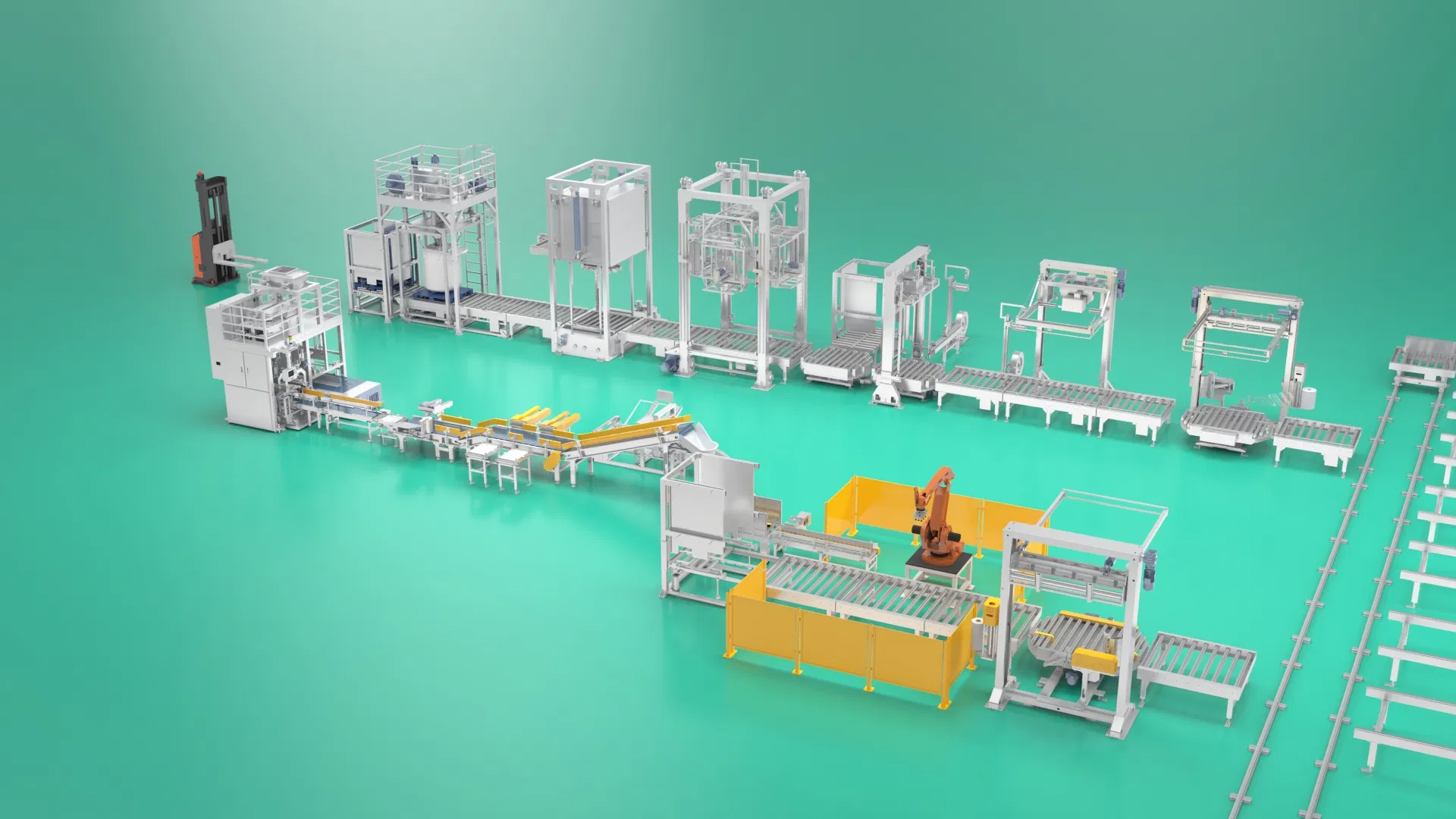

Efficient Small Bag Packing System Angle

Main Products

Company Profile

This high-tech enterprise specializes in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. The enterprise was established in 2014.

The primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As one of a high-tech enterprise, we have profound technical strength and advanced production technique. A scientifically structured talent pipeline boasts an engineering team anchored by numerous senior and intermediate technical professionals, including specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

The operations are backed by ISO9001-2015 quality certificate and some patents. In 2022, products obtained CE certification, serving key clients worldwide.

Upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" provides customers with high-quality products and reliable solutions. Striving to bring major innovation and changes to the industry, we look forward to becoming your trusted long-term collaborator.

Packaging & Shipping

Our Service

Pre-sale

Accept inquiries and organize engineers to analyze requirements on equipment, providing a suitable detailed proposal.

After-sales

Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.
Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of requests for wear parts, consumables, and critical components.
24-hour after-sales service is provided via website and hotline support.
On-site or video installation guidance for the equipment is available, along with irregular customer site visits to assess performance.

Frequently Asked Questions

Q Are you a manufacturer or trading company?

We are a professional manufacturer with licenses for exporting and importing.

Q What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment, as well as material handling and transfer equipment.

Q What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.

Q Do you accept Customized Equipment?

Sure, we design and manufacture equipment based on our customers' actual requirements.

Q What material industries can your equipment be applied to?

Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.

Q What is the delivery time?

For package scales, the production time is usually within 30 working days. For packaging machines, the production time is usually 30 - 60 working days. For IBC tanks, the production time is usually 45 - 60 working days.
