Fully Automatic Packing System Smart Pouch Packing Equipment Efficient Automatic Small Packer

Basic Info.

Model NO.

ASP-50

Automatic Grade

Automatic

Application

Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material

Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method

Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions

3500 (L) × 2800 (W) × 3000 (H) mm

Total Power

Approx. 10 Kw

Total Weight

3t

Load Cell Accuracy Grade

C3/C6/C10 (Selectable)

Measurement Accuracy

±0.1%

Packaging Speed

100-600 Bags/Hour

Bag Storage Capacity

100-1000 Bags (Expandable)

Control Method

PLC + Touchscreen

Power Supply

380V, Five-Wire Three-Phase

Air Source

0.5-0.7 MPa

Noise Level

≤80 dB (at 1 Meter From Equipment)

Communication Protocol

Supports Pn, Dp, 485, etc. (Optional)

Specification

5-50 kg/bag

Trademark

MY

Origin

China

Product Description

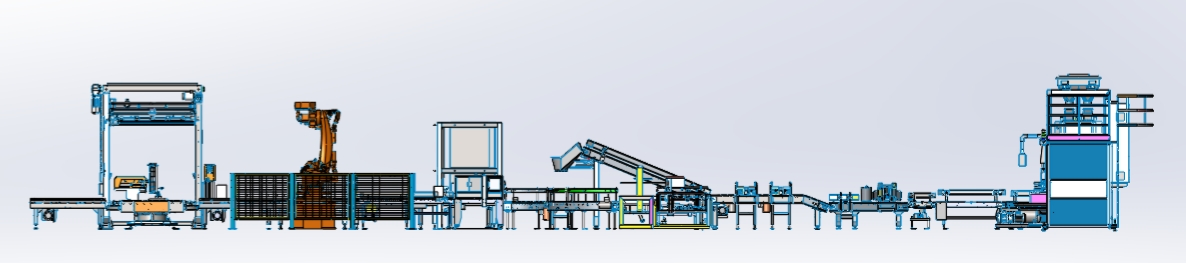

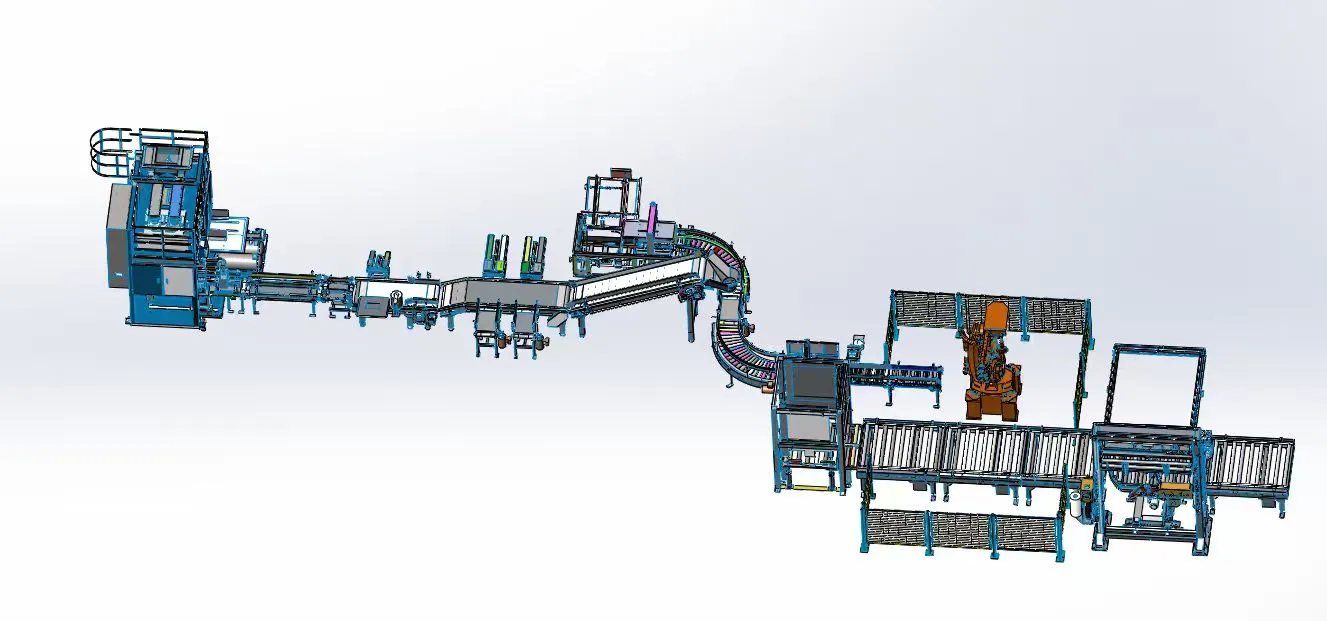

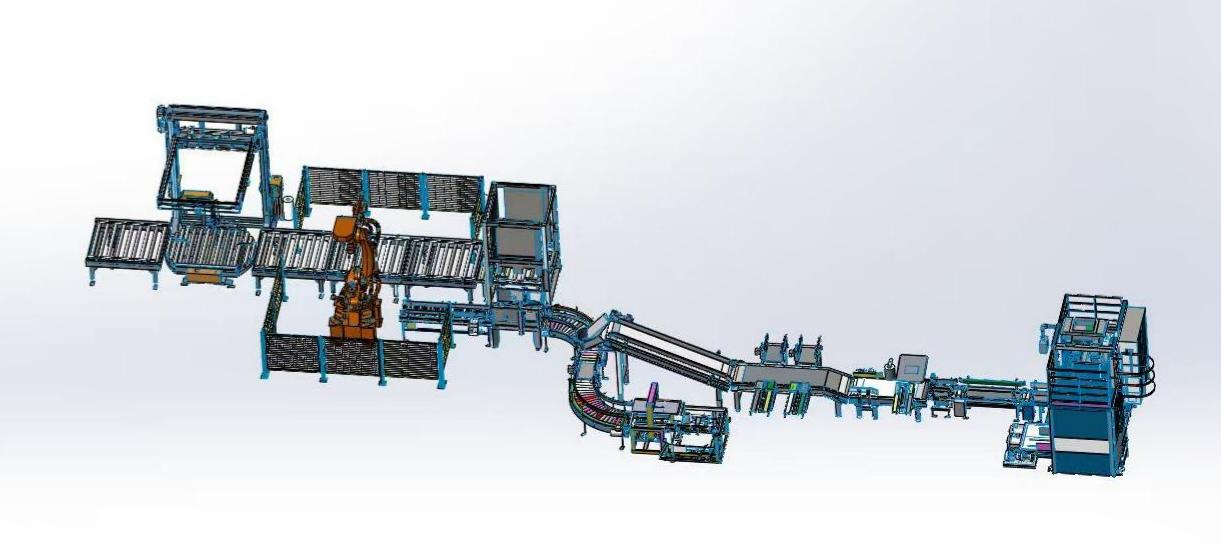

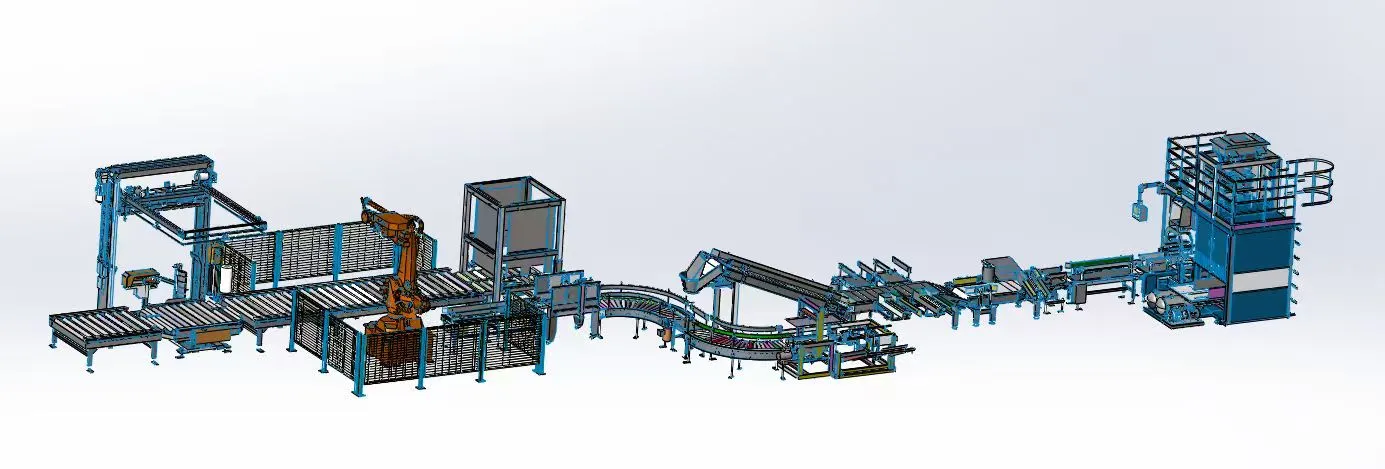

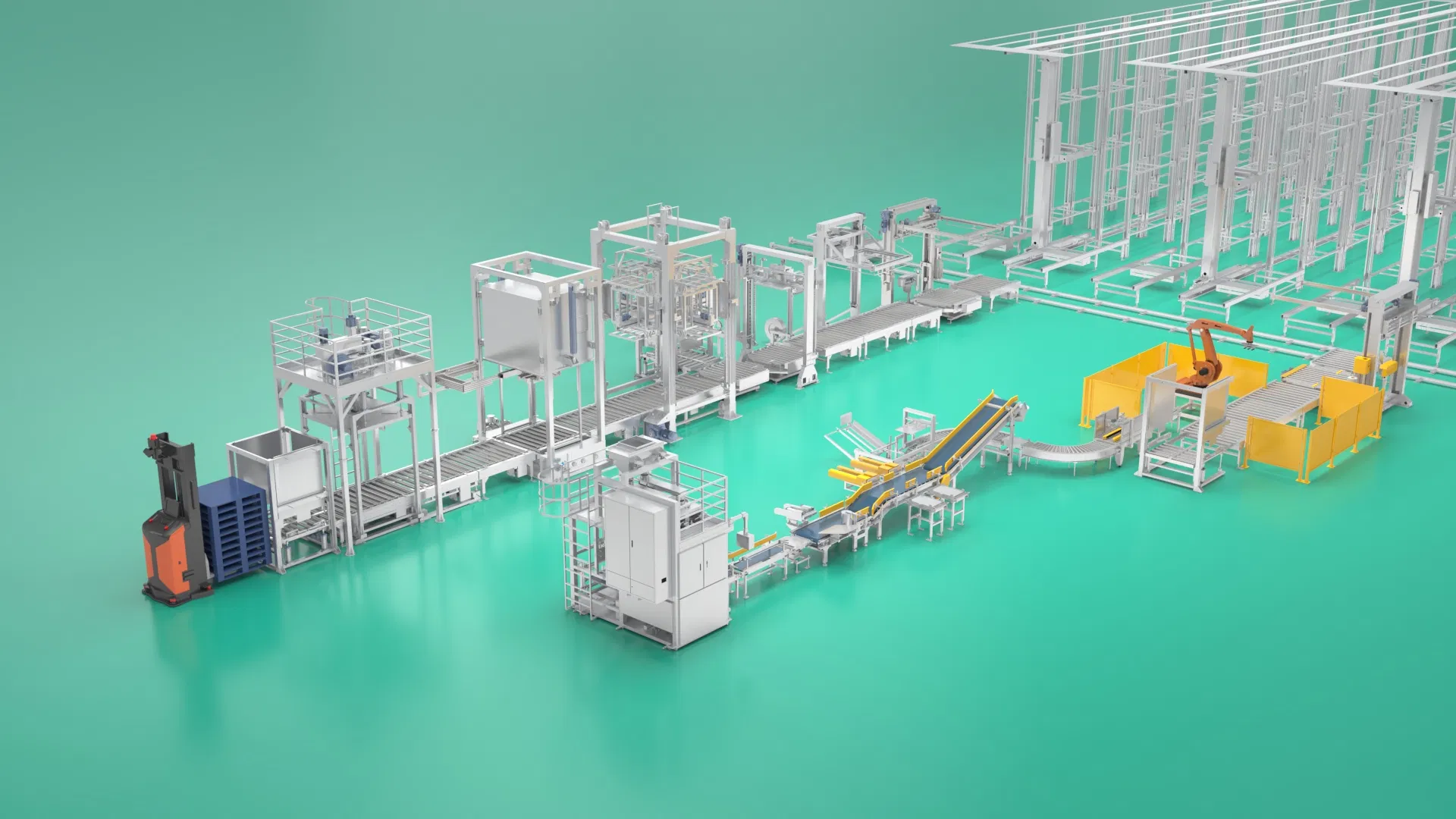

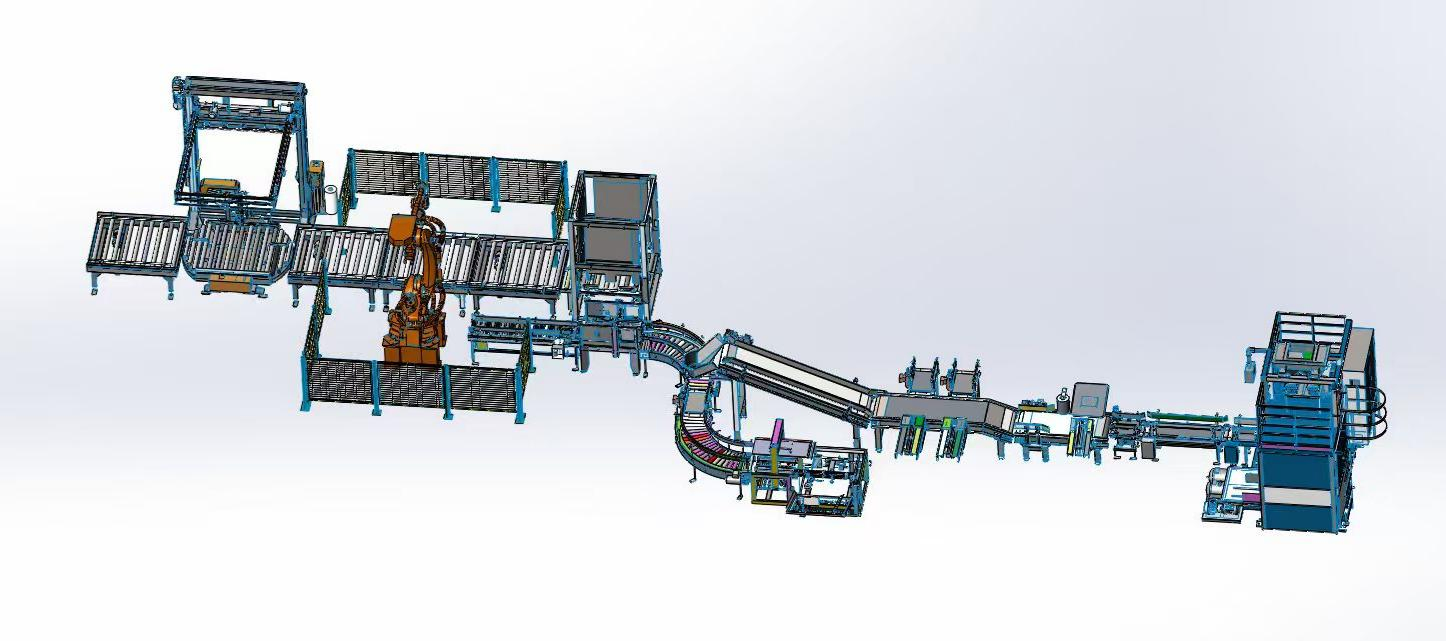

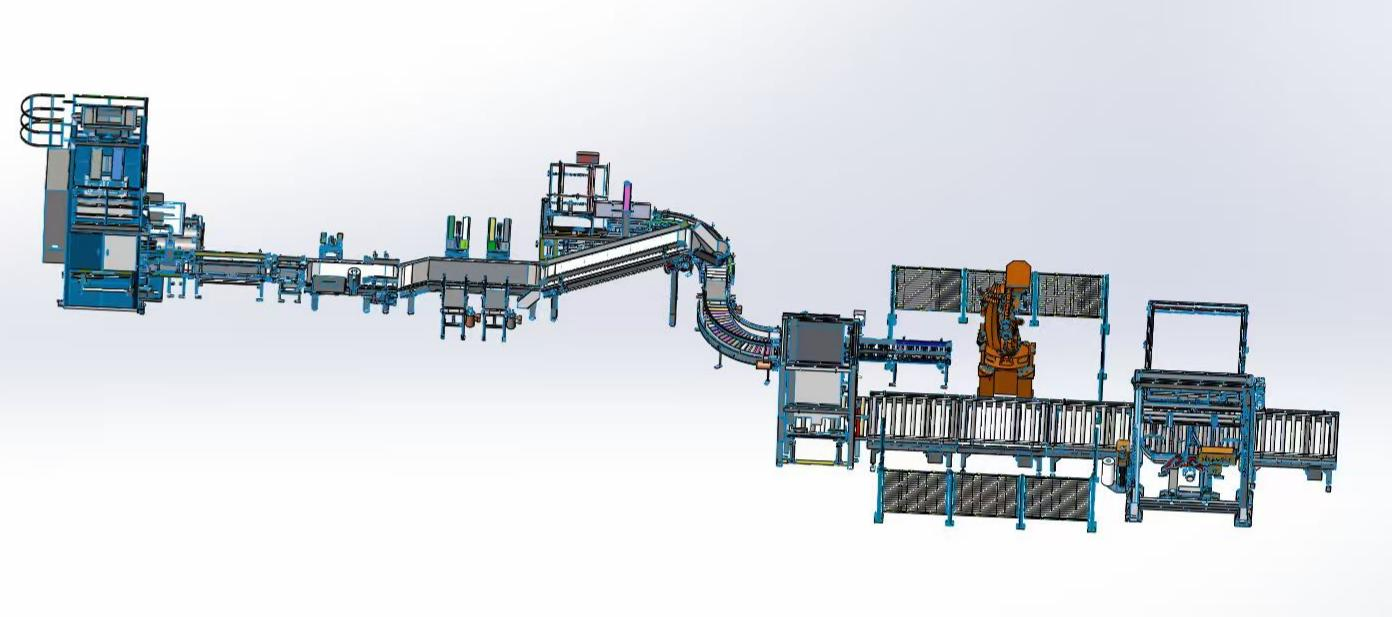

Fully Automatic Small Bag Packaging Machine

The fully automatic bag-loading small bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

Fully Automatic Packing System Smart Pouch Packing Equipment Efficient Automatic Small Packer

Structural Advantages

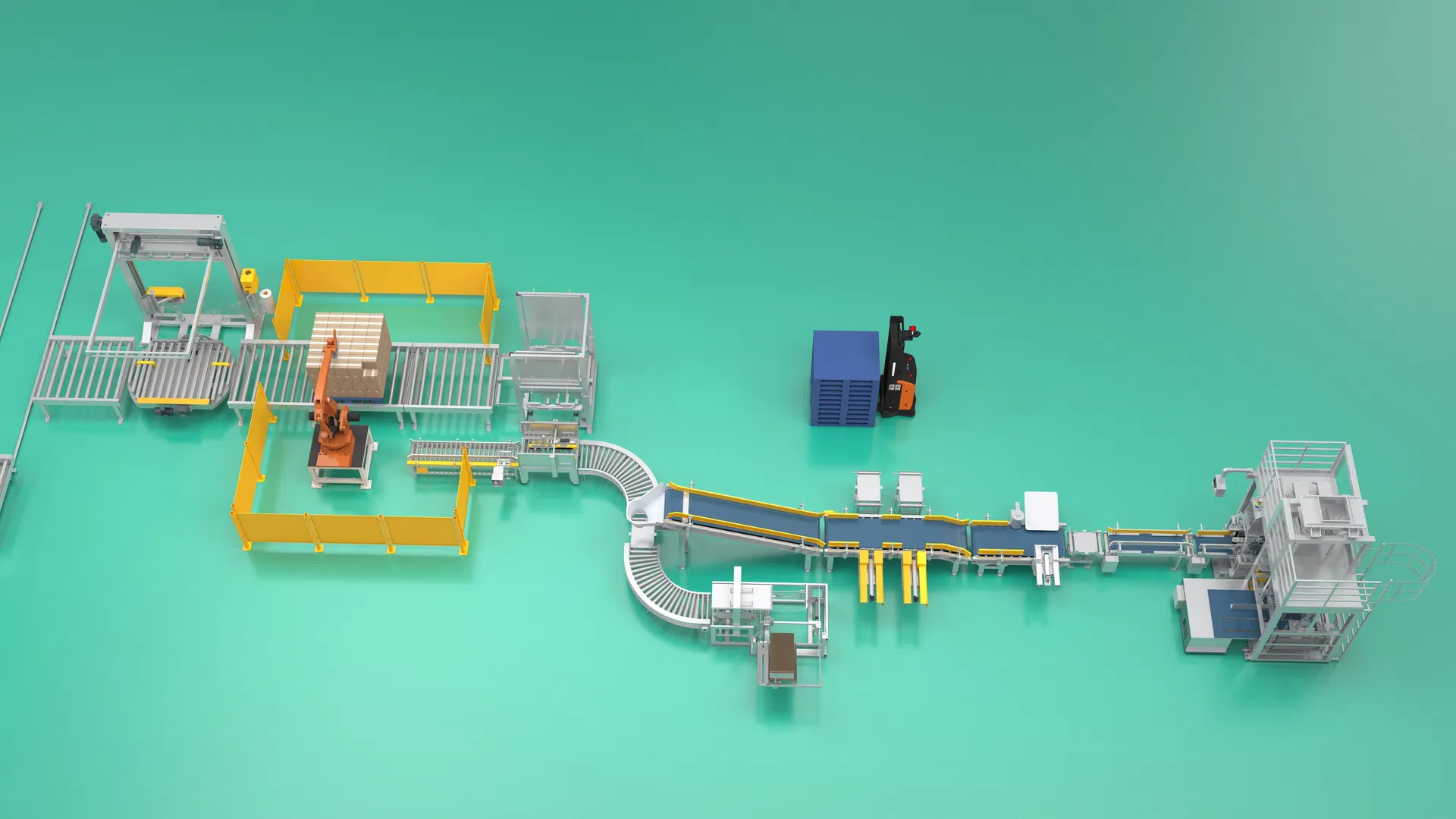

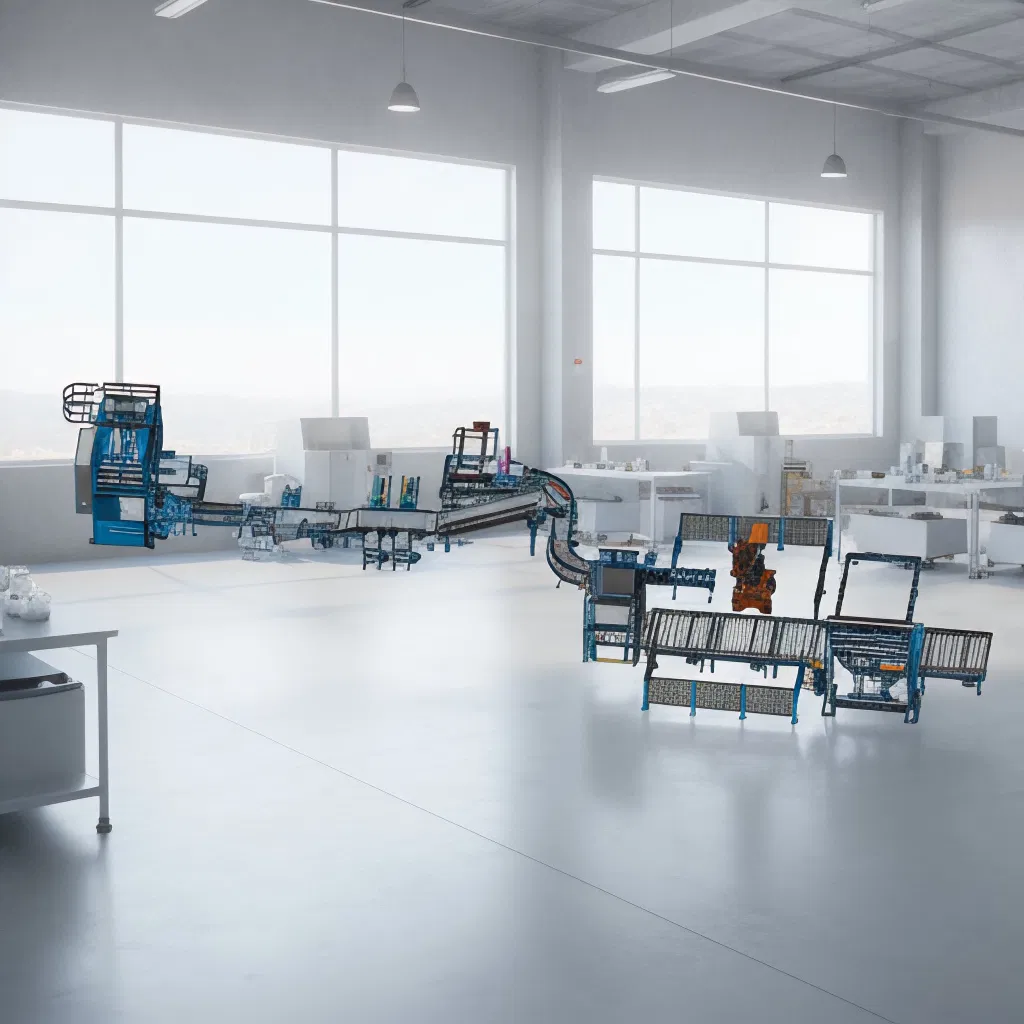

Modular Design: Optional integration of functions including conveyor lines, heat sealing, re-inspection, metal detection, and vacuum packaging based on requirements.
Safety Design: Complies with international PL d safety standards.
Precise Measurement: High-precision net-weight electronic scale with strong anti-interference capability and sustained operational stability.
Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various soft bags; automatic bag detection compatible with M-fold and pillow-style bags.
Stable Bag Transfer: Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications

Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	5 - 50 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 10 kW
Total Weight	3 tons
Load Cell Accuracy Grade	C3/C6/C10 (Optional)
Measurement Accuracy	±0.1%
Packaging Speed	100 - 600 bags/hour
Bag Storage Capacity	100 - 1000 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (Optional)
Communication Protocol	Supports PN, DP, 485, etc. (Optional)

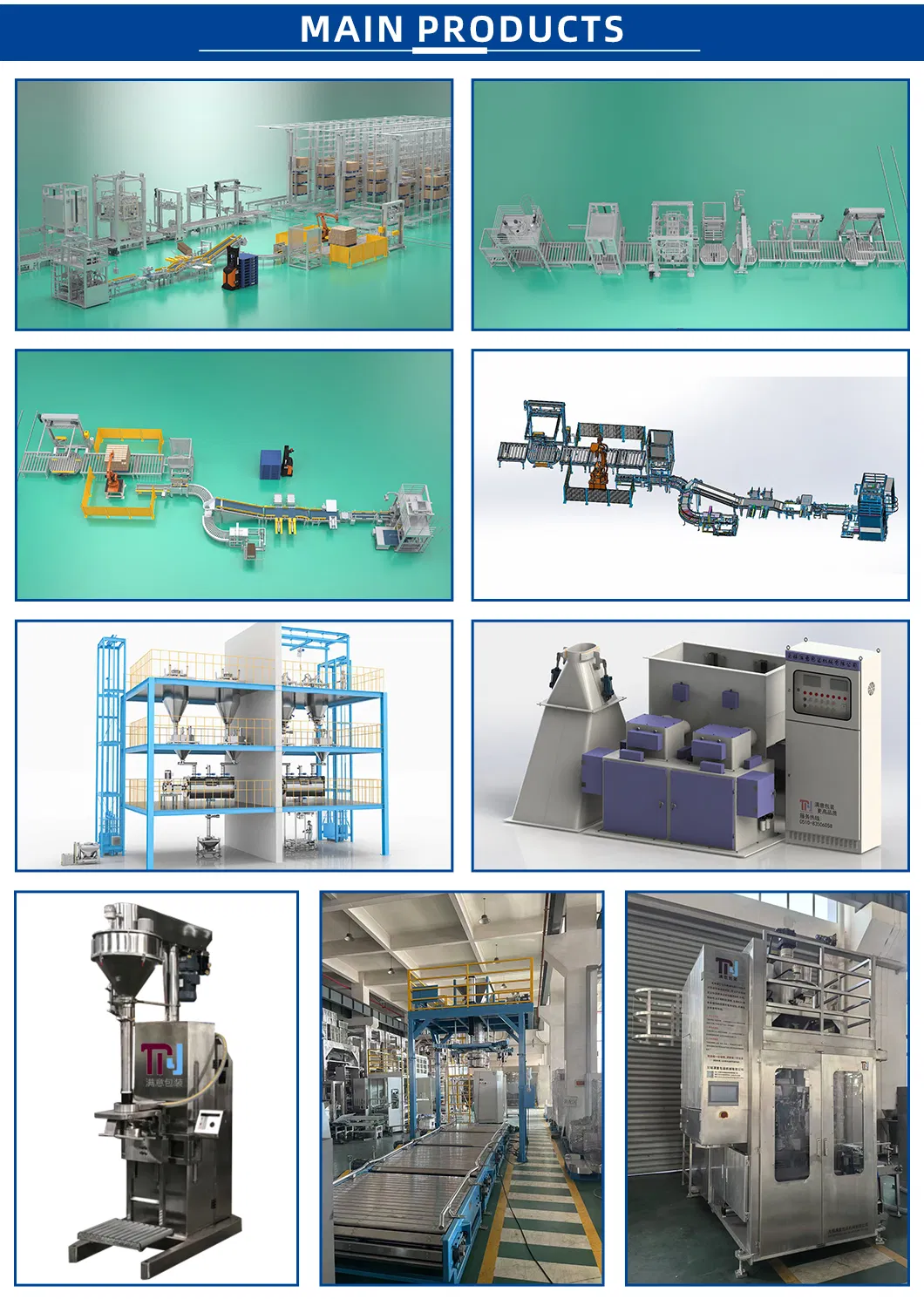

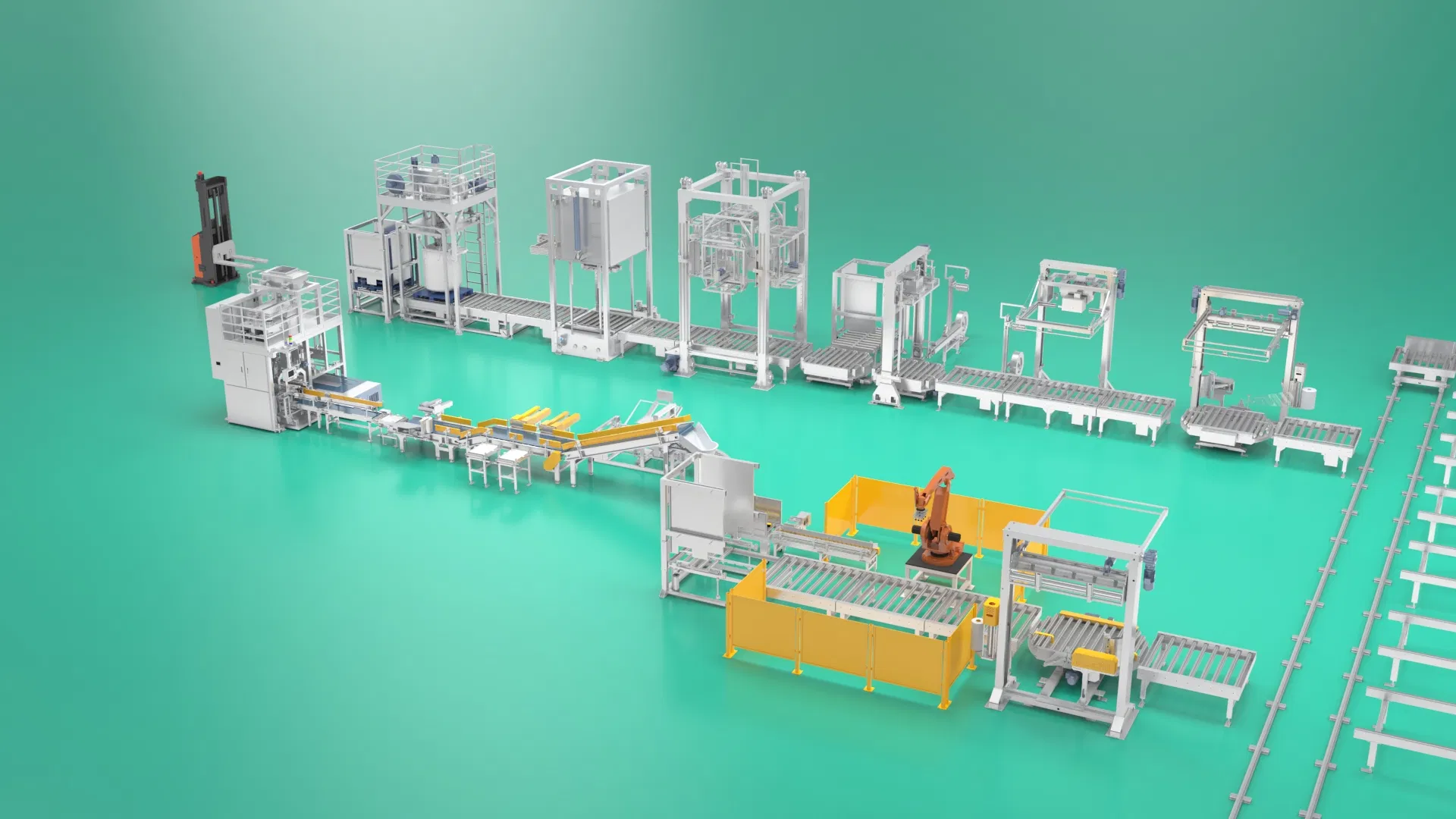

Main Products

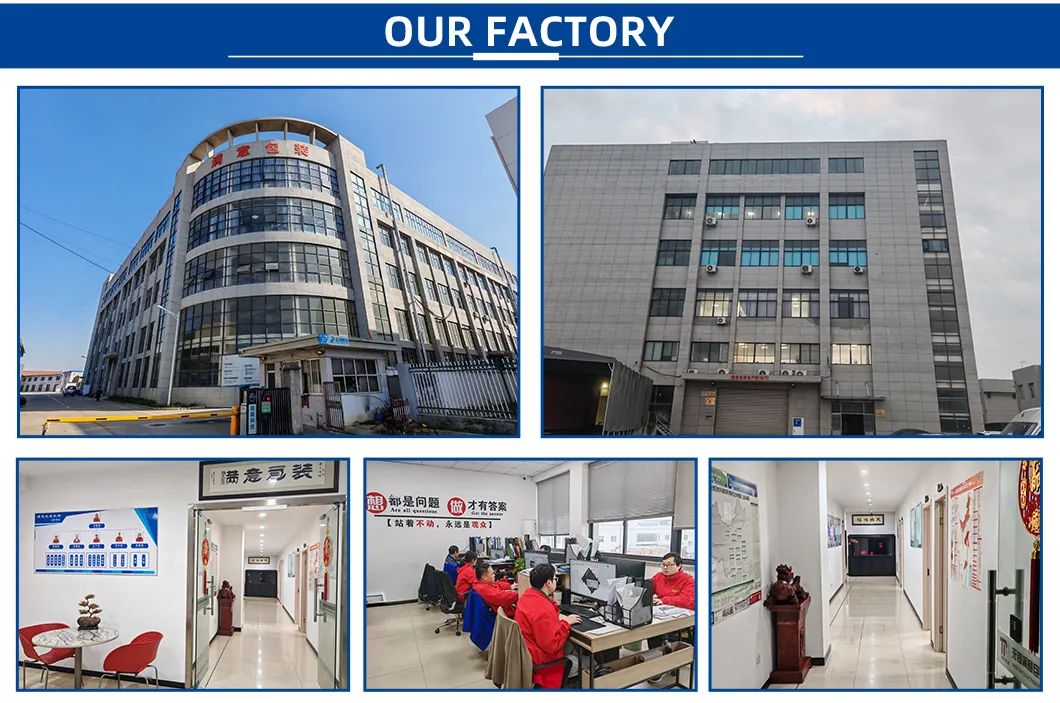

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment.

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.

As a leading high-tech enterprise, we have profound technical strength and advanced production technique. The company has established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.

The company has acquired ISO9001-2015 quality certificate and some patents. In 2022, its products obtained CE certification. Our customers include world-famous companies such as LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, CP GROUP, etc.

We have been upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.

Packaging & Shipping

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with licenses for exporting and importing.

What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment and material handling and transfer equipment.

What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.

Do you accept Customized Equipment?

Sure, we design and manufacture equipment based on our customers' actual requirements. Please contact us to share your specific requirements, and we will design a suitable solution for you.

What material industries can your equipment be applied to?

Any industry handling powdered materials, granular materials, flaked materials, or mixed materials is applicable.

What is the delivery time?

For package scales, the production time is usually within 30 working days. For package machines, the production time is usually 30 - 60 working days. For IBC tanks, the production time is usually 45 - 60 working days. The specific delivery time depends on the exact requirements and quantity of equipment.

Our Service

Pre-sale Service

We accept your inquiries and organize our engineers to analyze your equipment requirements. We will provide you with a suitable, detailed proposal.

After-sales Service

1. Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.

2. Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of customer requests for wear parts, consumables, and critical components.

3. We provide 24-hour after-sales service online and via hotline.

4. We will provide on-site or video installation guidance for the equipment, and conduct visits to assess equipment performance.
