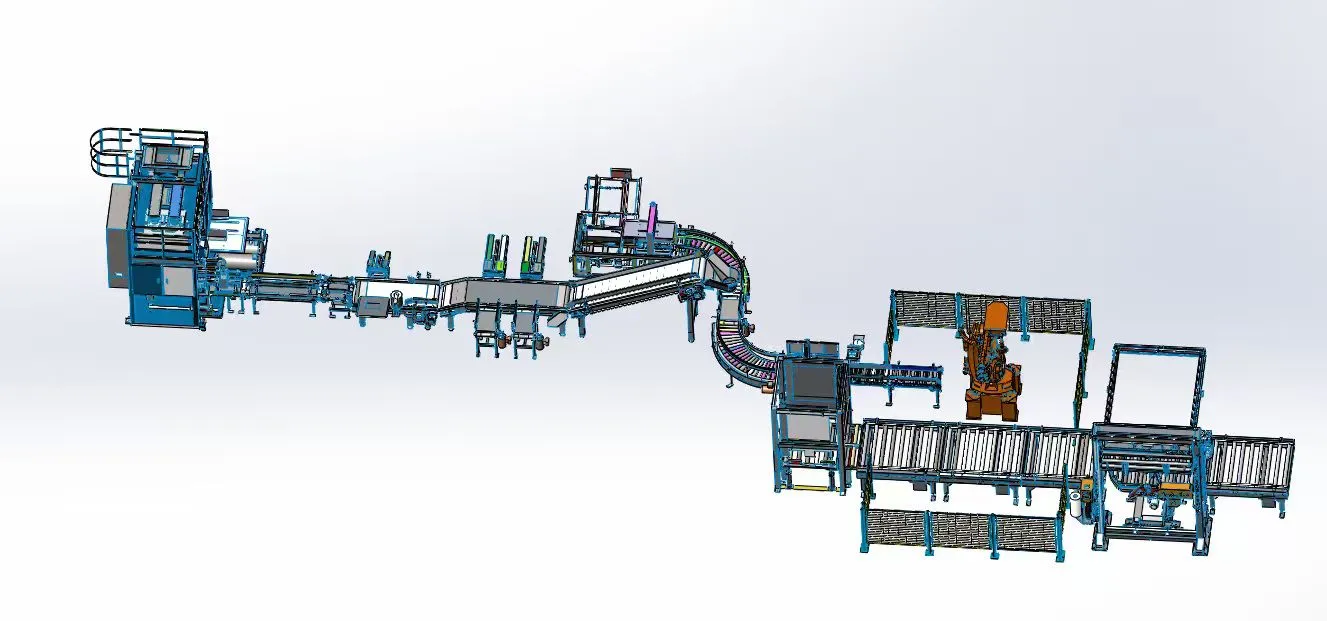

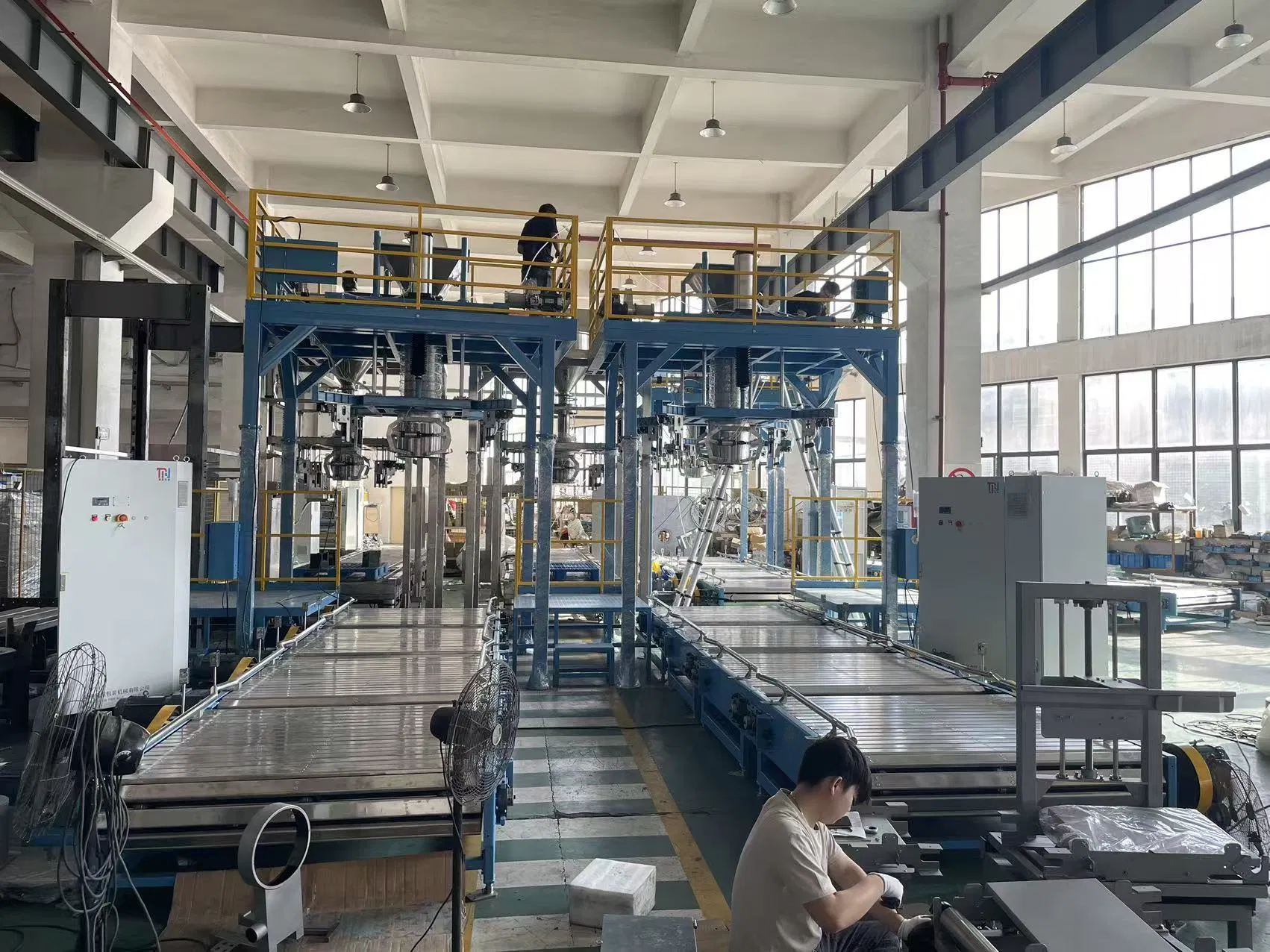

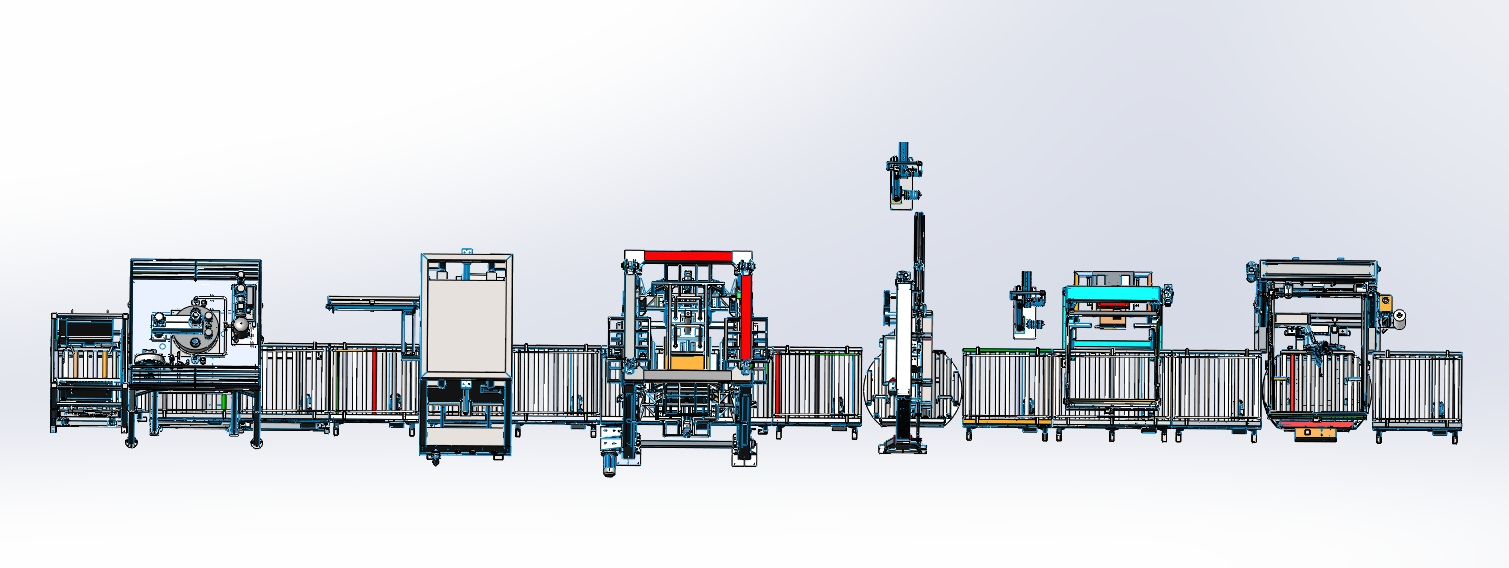

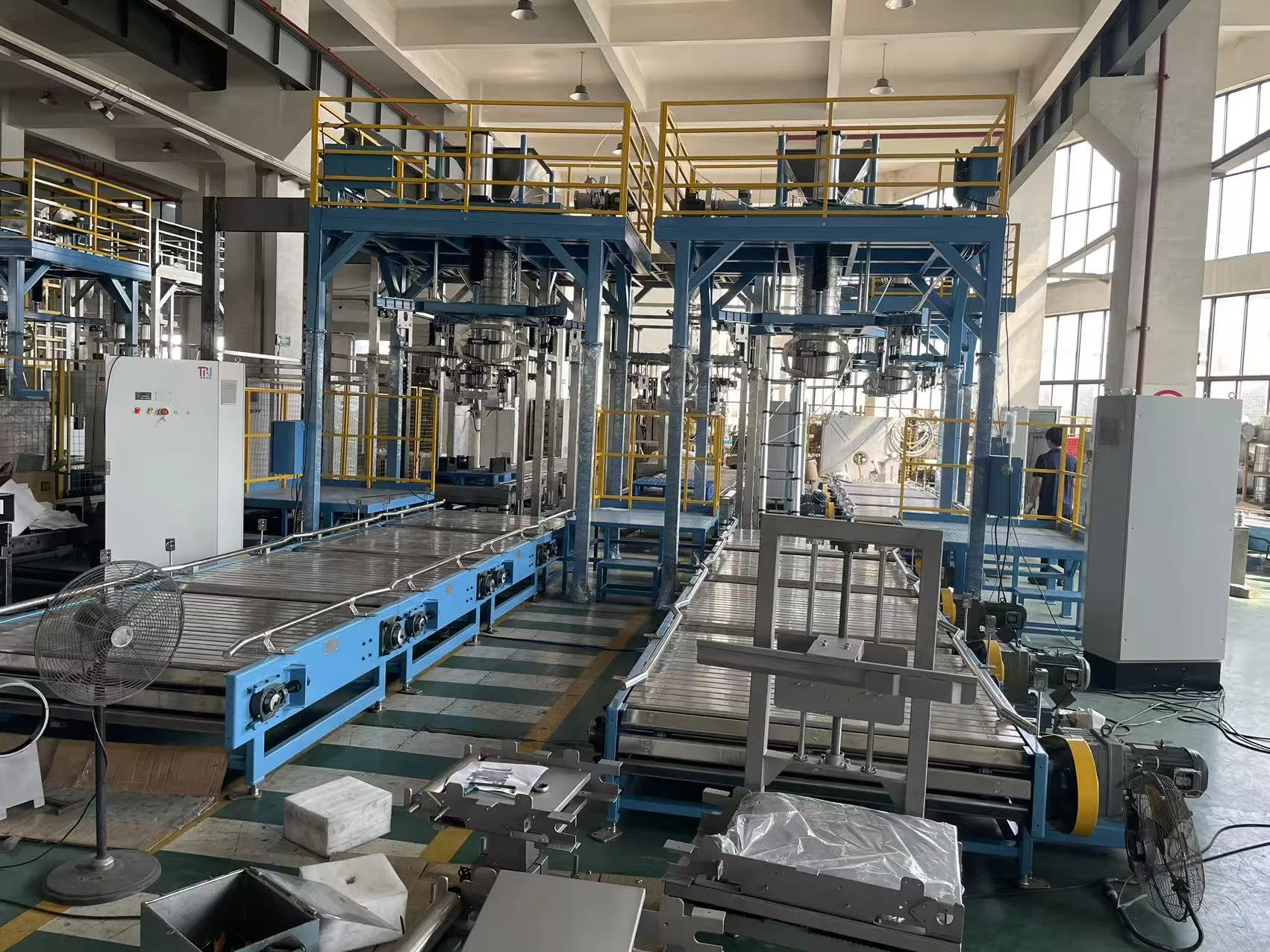

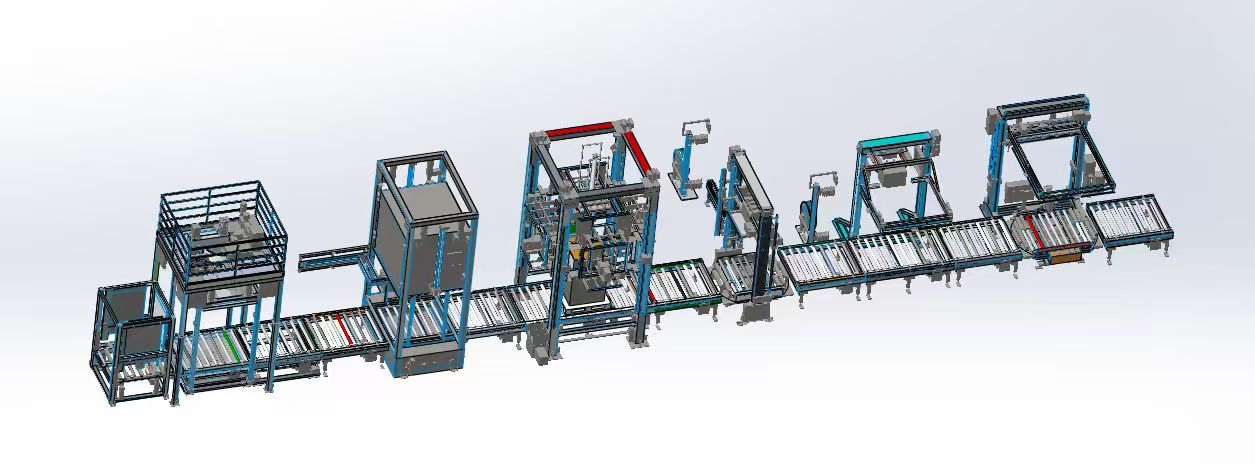

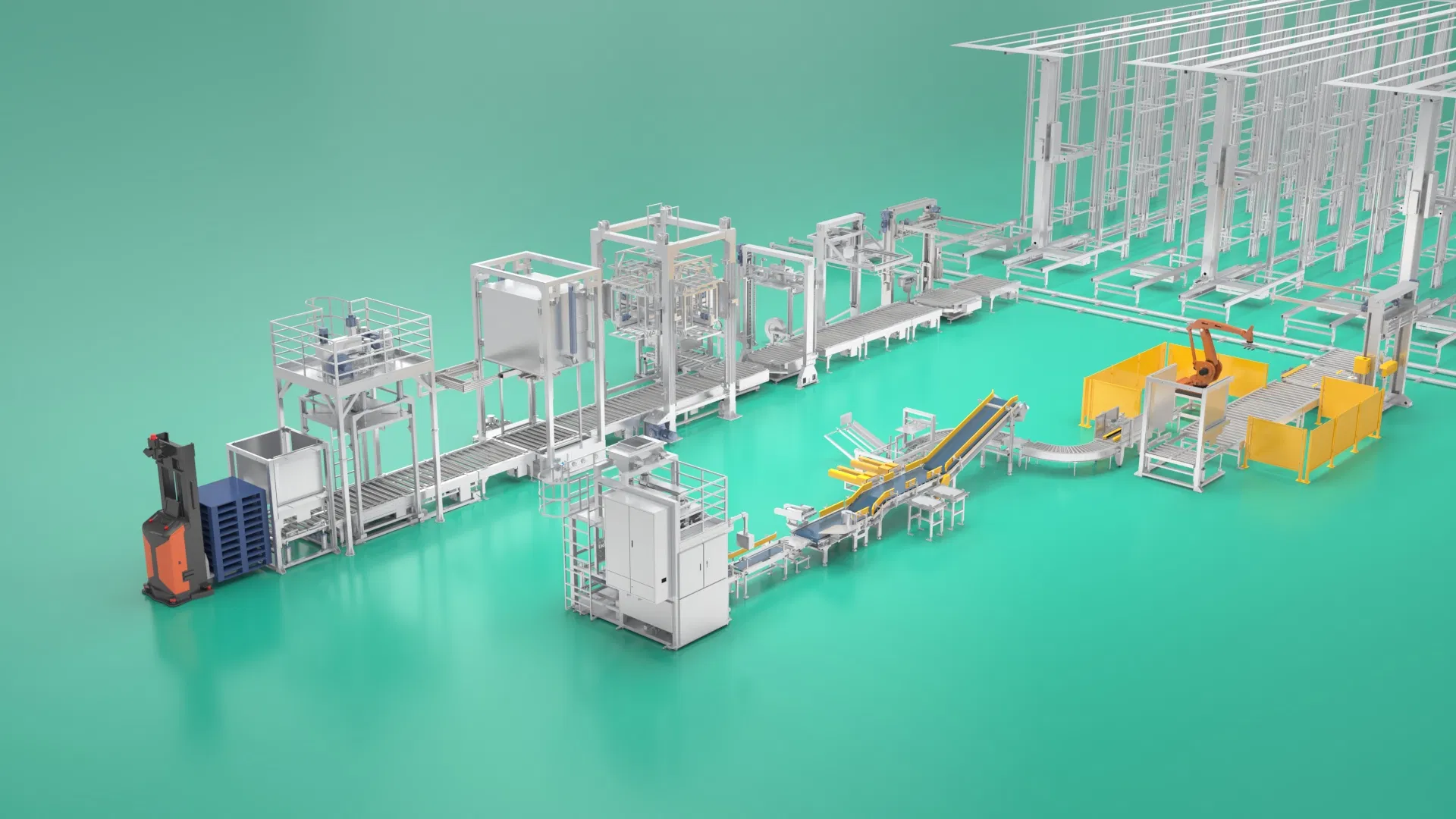

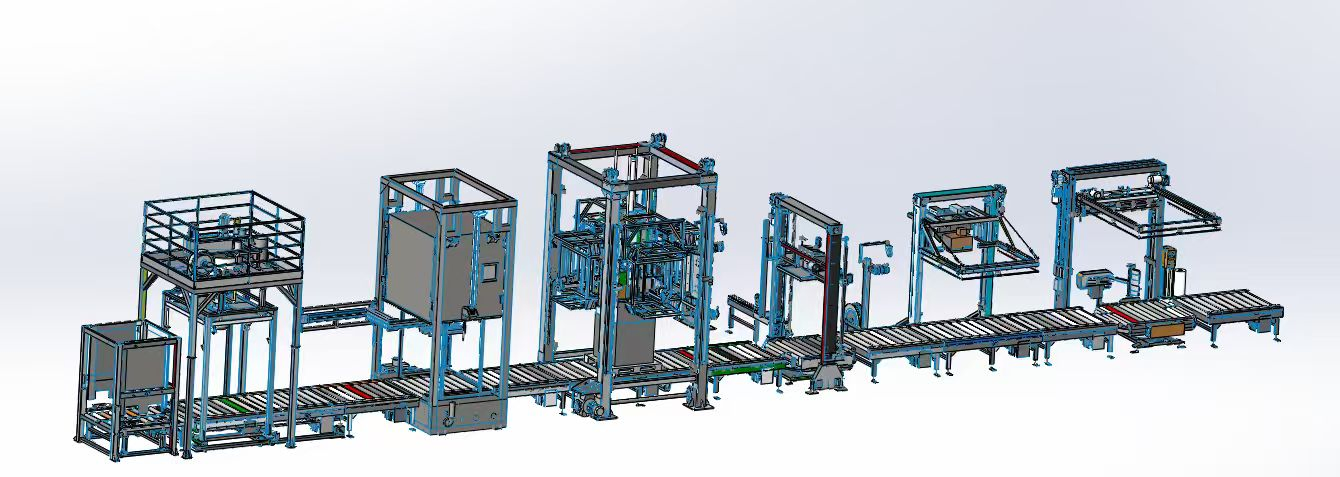

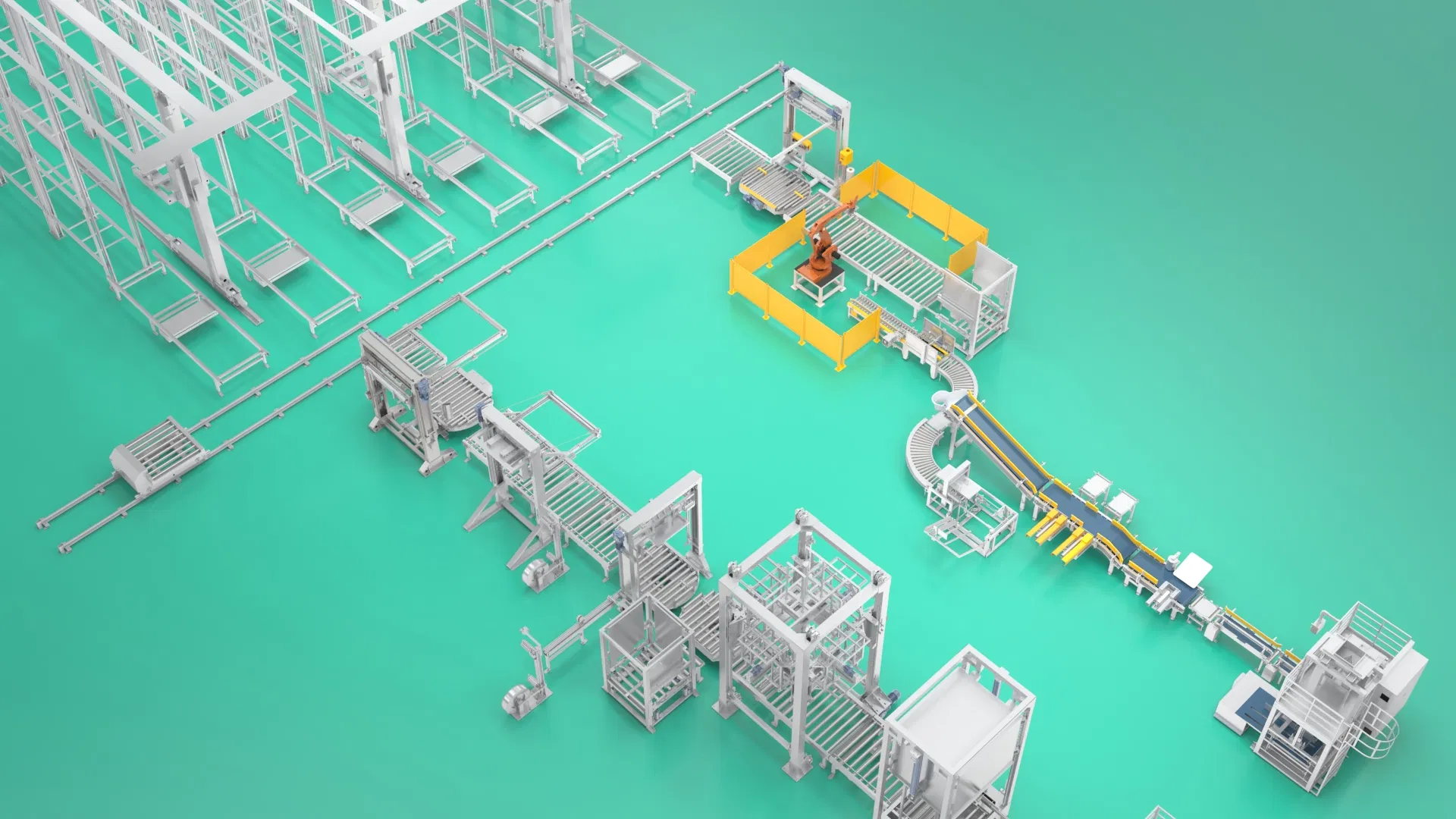

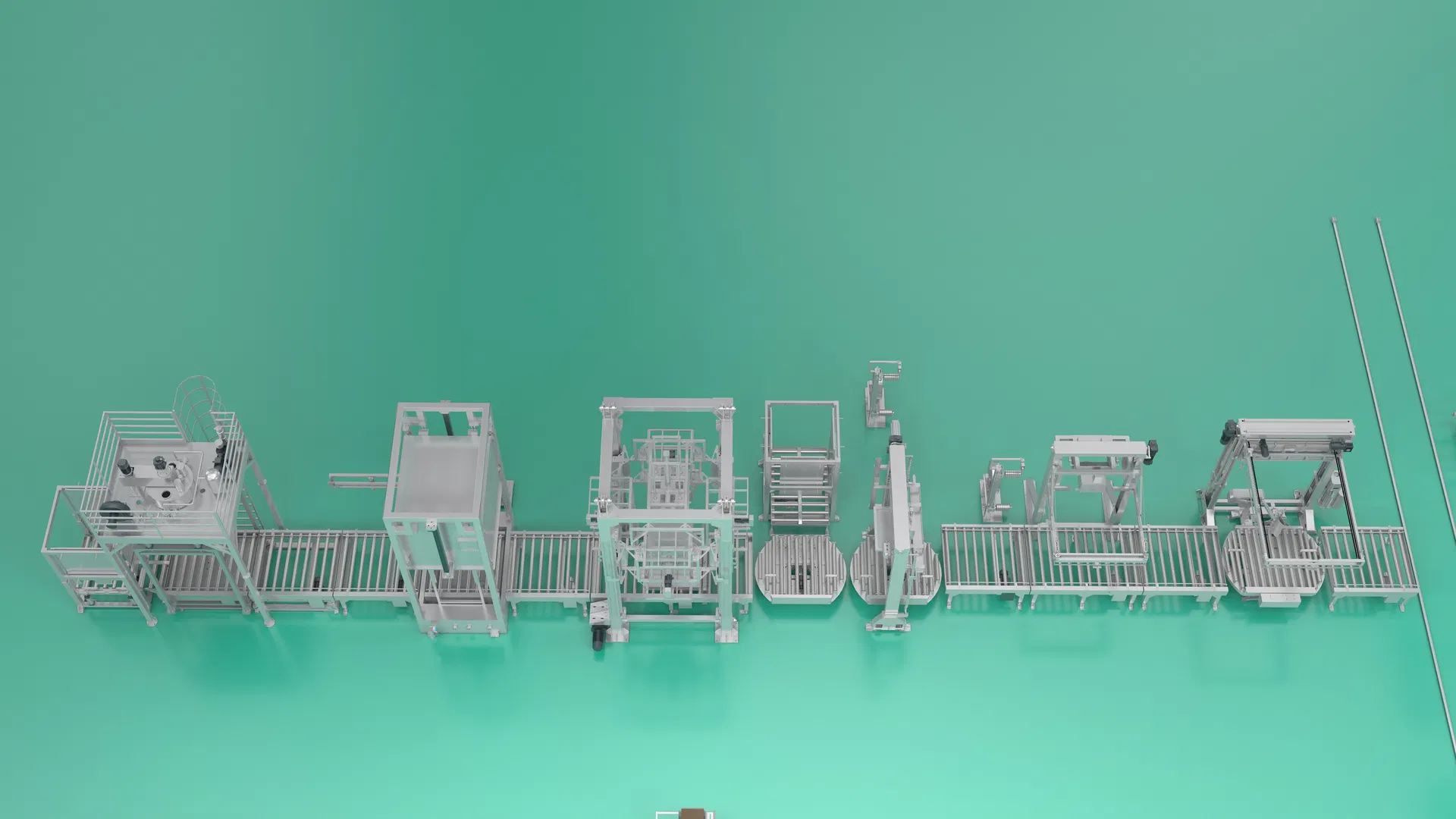

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.
| Parameter | Details / Range |
|---|---|
| Feeding Method | Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding |
| Packaging Specifications | 300 - 1000 kg/bag |
| Main Unit Dimensions | 3500 (L) × 2800 (W) × 3000 (H) mm |
| Total Power | Approx. 13 kW |
| Total Weight | 3.5 - 6 tons |
| Load Cell Accuracy Grade | C3/C6/C10 (optional) |
| Measurement Accuracy | ±0.1% |
| Packaging Speed | 5 - 15 bags/hour (depending on material and feeding mode) |
| Bag Storage Capacity | 5 - 20 bags (expandable) |
| Control Method | PLC + Touchscreen |
| Power Supply | 380V, Five-wire Three-phase |
| Air Source | 0.5-0.7 MPa |
| Noise Level | ≤80 dB (at 1 meter from equipment) |
| Exterior Material | Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional) |
| Communication Protocol | Supports PN, DP, 485, etc. (optional) |
We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. Our company was established in 2014.
Our primary product lines include modern packaging systems, quantitative packaging scales, powder packaging systems, feed bagging scales, feed packaging scales, ton-bag packaging systems, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping systems, and portable IBC containers.
As a certified high-tech enterprise, we hold deep technical resources and advanced production lines. We have established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding advanced degrees, with engineering members certified as Senior National Engineers.
We operate under ISO9001-2015 quality management systems, holding multiple proprietary patents and CE certifications. Our high-performance systems serve globally recognized enterprises such as LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, and CP GROUP, among others.
Upholding the operational philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving," we deliver custom industrial solutions. We strive to pioneer innovations in the material packaging field and welcome long-term global partnerships.
