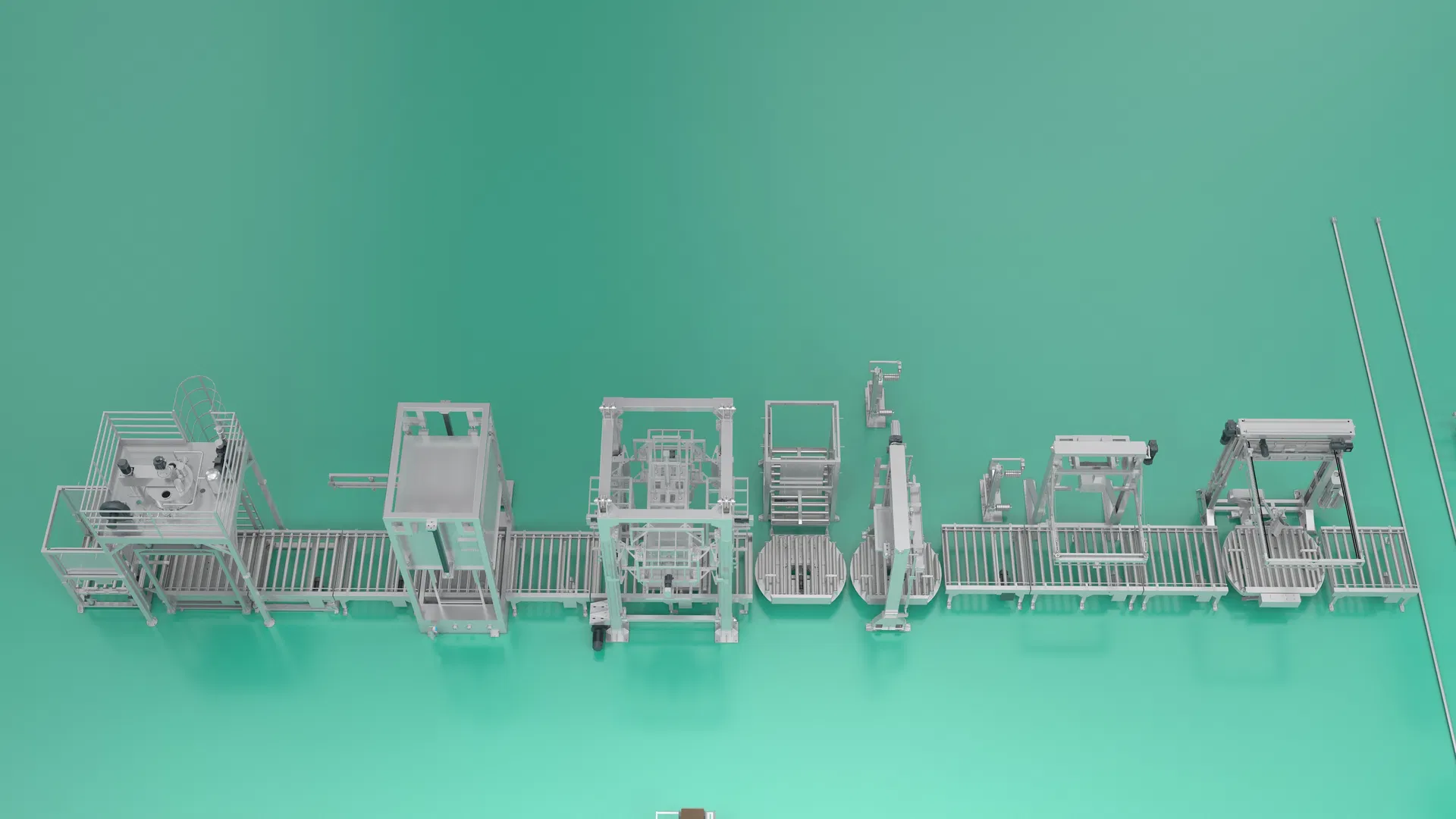

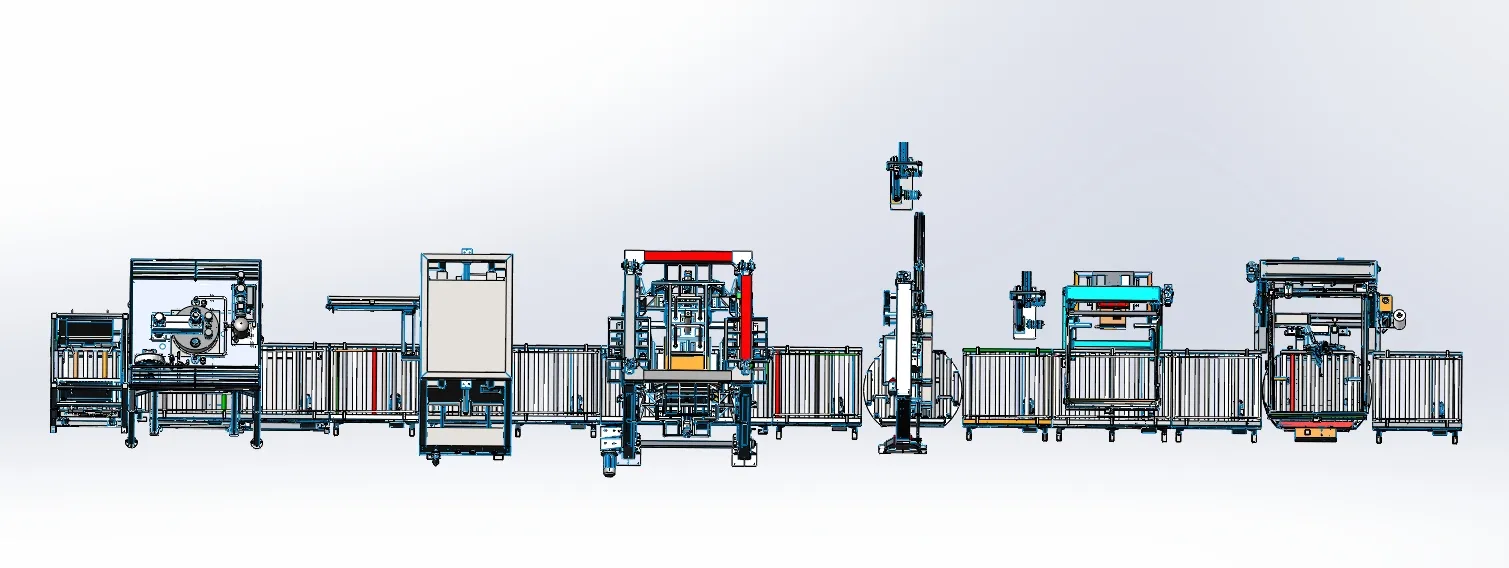

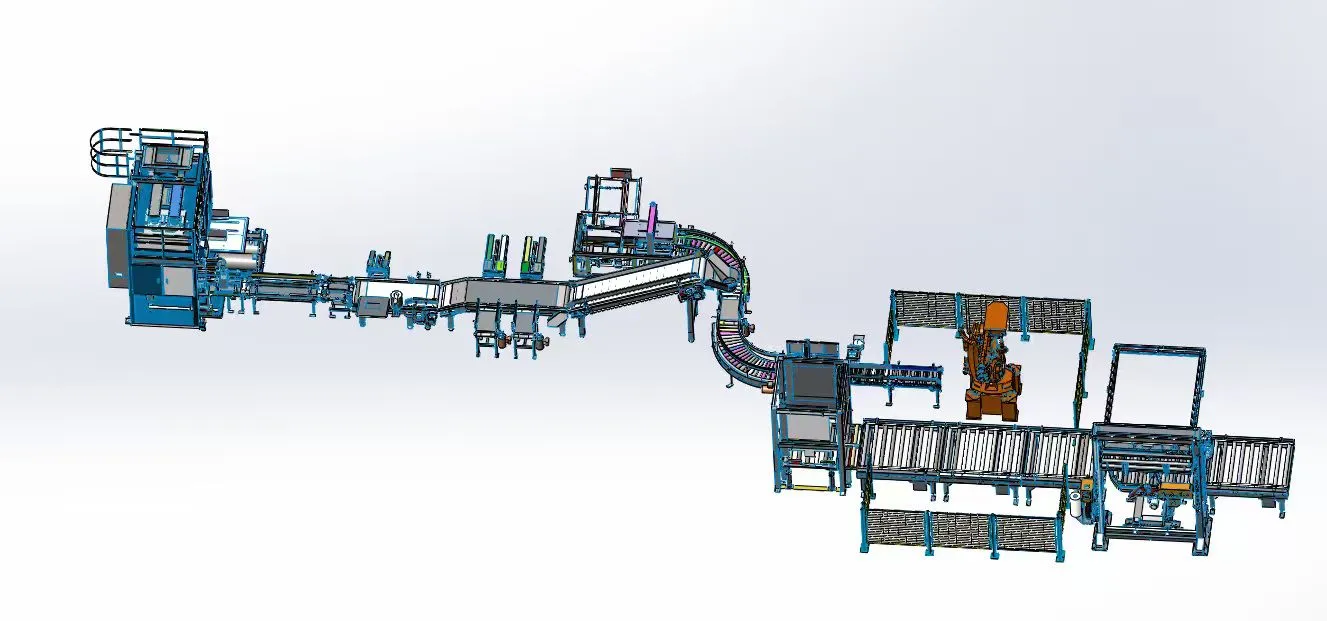

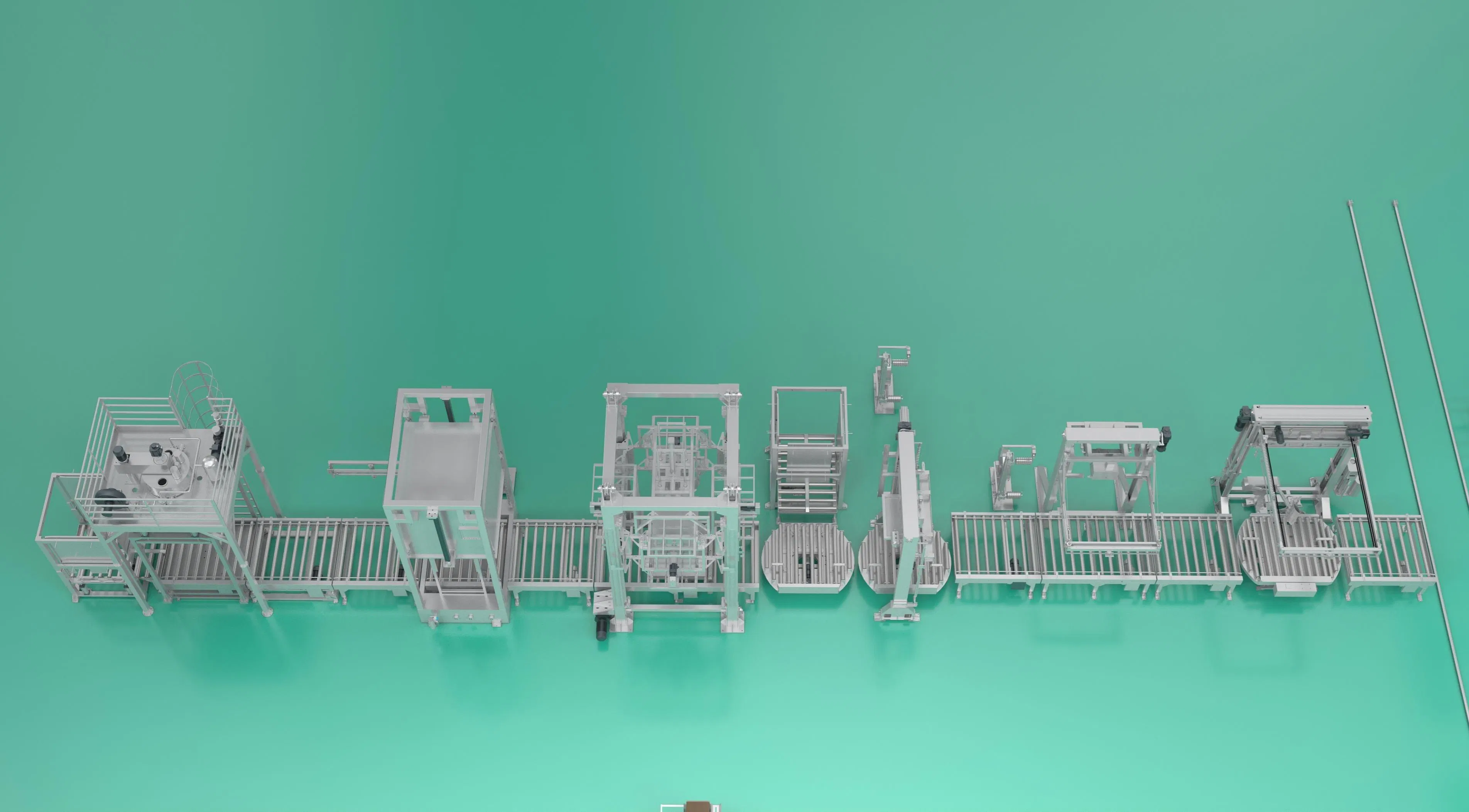

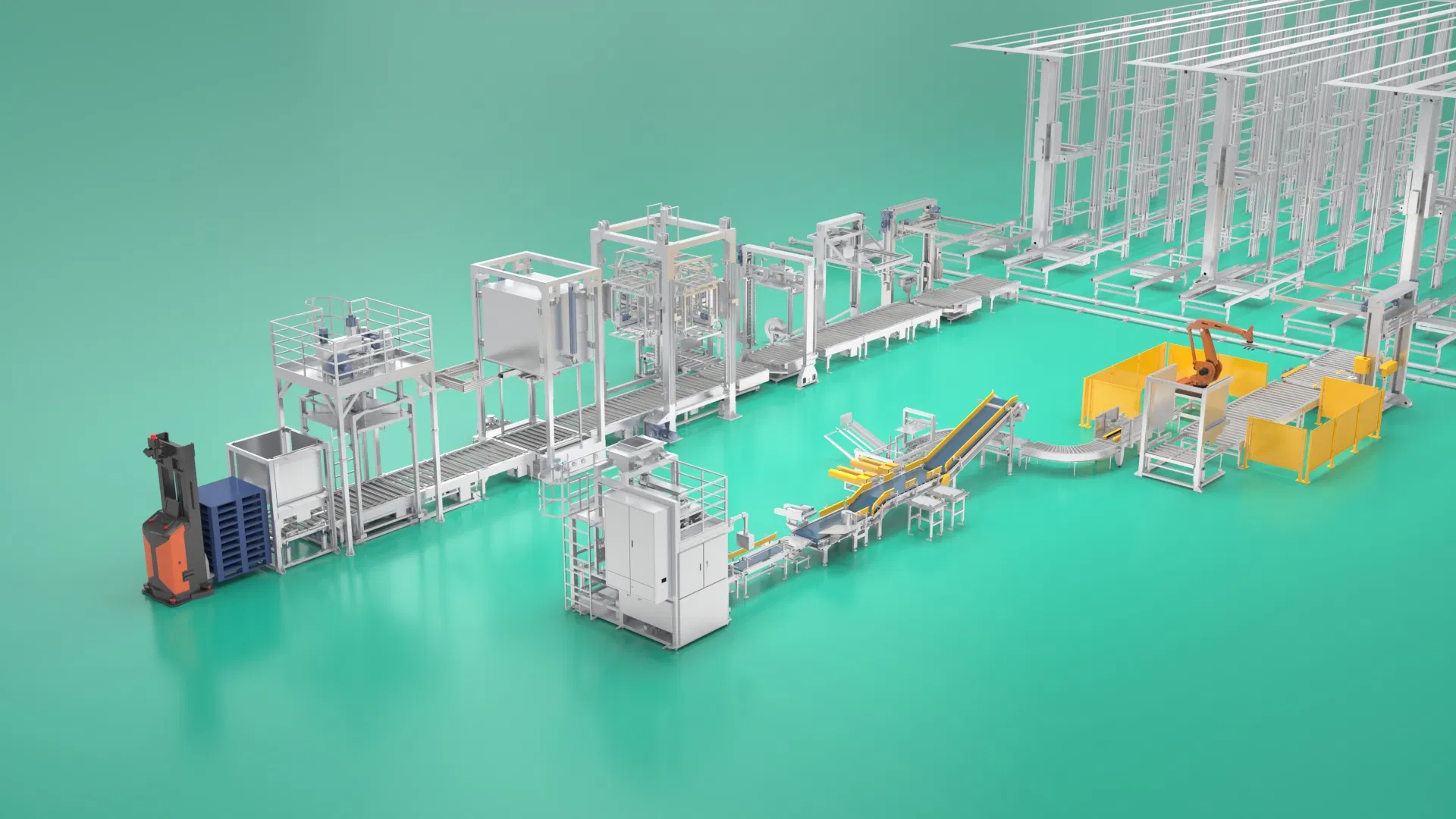

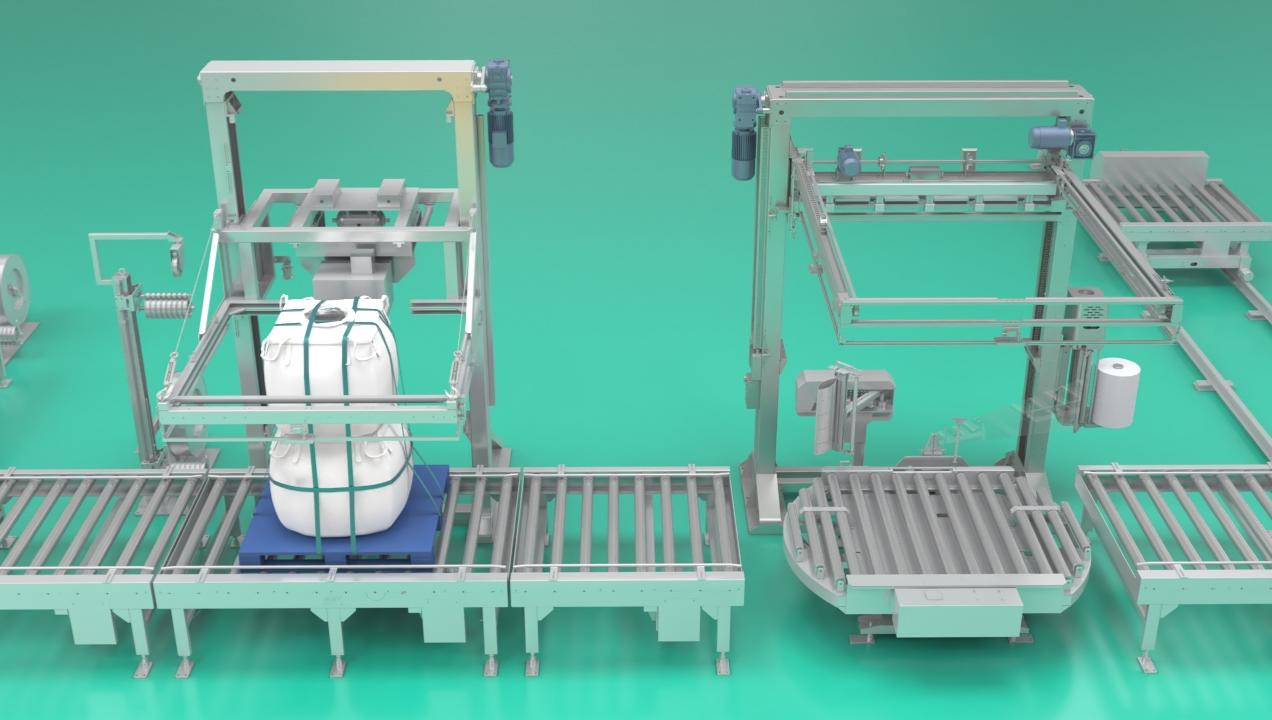

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.
| Feeding Method | Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding |
| Packaging Specifications | 300 - 1000 kg/bag |
| Main Unit Dimensions | 3500 (L) × 2800 (W) × 3000 (H) mm |
| Total Power | Approx. 13 kW |
| Total Weight | 3.5 - 6 tons |
| Load Cell Accuracy Grade | C3/C6/C10 (optional) |
| Measurement Accuracy | ±0.1% |
| Packaging Speed | 5 - 15 bags/hour (depending on material and feeding mode) |
| Bag Storage Capacity | 5 - 20 bags (expandable) |
| Control Method | PLC + Touchscreen |
| Power Supply | 380V, Five-wire Three-phase |
| Air Source | 0.5-0.7 MPa |
| Noise Level | ≤80 dB (at 1 meter from equipment) |
| Exterior Material | Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional) |
| Communication Protocol | Supports PN, DP, 485, etc. (optional) |
We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. Our company was established in 2014.

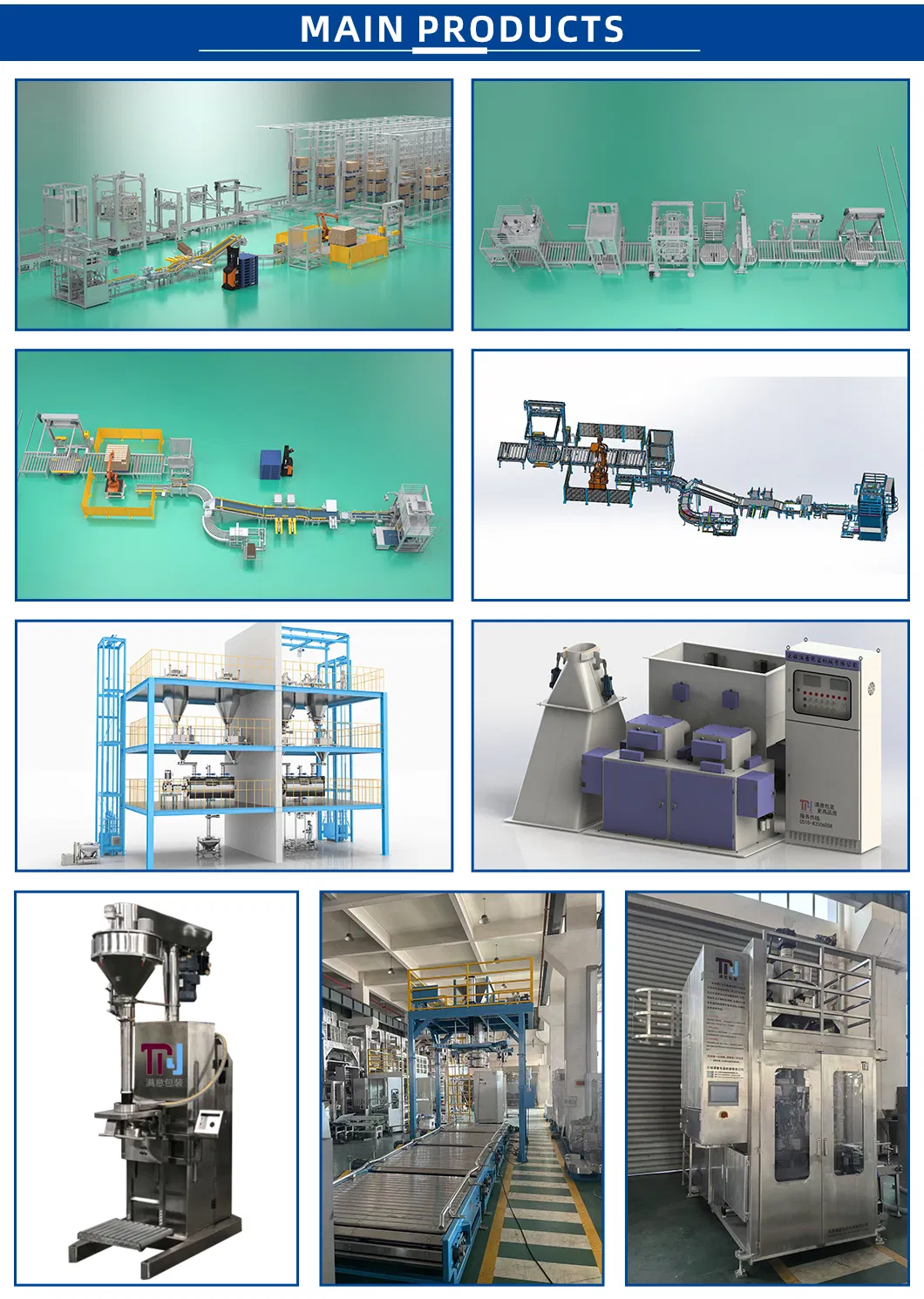

Our primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines and portable IBC.
As a high-tech enterprise, we have profound technical strength and advanced production technique. The company has established a scientifically structured talent pipeline, boasting an engineering team anchored by numerous senior and intermediate technical professionals. This includes specialized technical personnel holding master's and bachelor's degrees, with some members certified as National Senior Engineers.
We have acquired ISO9001-2015 quality certificate and some patents. In 2022, our products obtained CE certificate. Our customers include world famous companies like LG Chem, EASPRING, STANLEY, WANHUA, Clearway, BTR, CP GROUP, etc.
We have been upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving" to provide customers with high-quality products and reliable solutions. We strive to bring major innovation and changes to the industry. We look forward to partnering with you to become your trusted long-term collaborator.
Accept your inquiries and organize our engineers to analyze your requirements on equipment. We will provide you with a suitable detailed Proposal.
1. Under normal circumstances, our equipment comes with a one-year warranty and lifetime service.
2. Spare parts inventory is consistently maintained at sufficient levels, ensuring prompt fulfillment of customer requests for wear parts, consumables, and critical components.
3. We provide 24-hour after-sales service on our website and hotline.
4. We will provide on-site or video installation guidance for the equipment. We will also conduct irregular visits to customer sites to assess equipment performance.
