High-Speed Fully Automatic Filler System

Basic Info.

Model NO.

ATP-1600

Application

Powdered Materials, Plastic Pellets, Feed, etc

Packaging Material

Carbon Steel Powder Coating / 304 Stainless Steel

Feeding Method

Gravity Feeding, Horizontal (Vertical) Screw Feed

Main Unit Dimensions

3500 (L) × 2800 (W) × 3000 (H) mm

Total Power

Approx. 13 Kw

Total Weight

3.5 -6 Tons

Load Cell Accuracy Grade

C3/C6/C10 (Selectable)

Weighing Accuracy

±0.1%

Packaging Speed

5 - 15 Bags/Hour

Bag Storage Capacity

5 - 20 Bags (Expandable)

Control Method

PLC + Touchscreen

Power Supply

380V, Five-Wire Three-Phase

Air Source

0.5-0.7 MPa

Noise Level

≤80 dB (at 1 Meter From Equipment)

Communication Protocol

Supports Pn, Dp, 485, etc. (Optional)

Specification

300-1000 kg/bag

Origin

China

Product Description

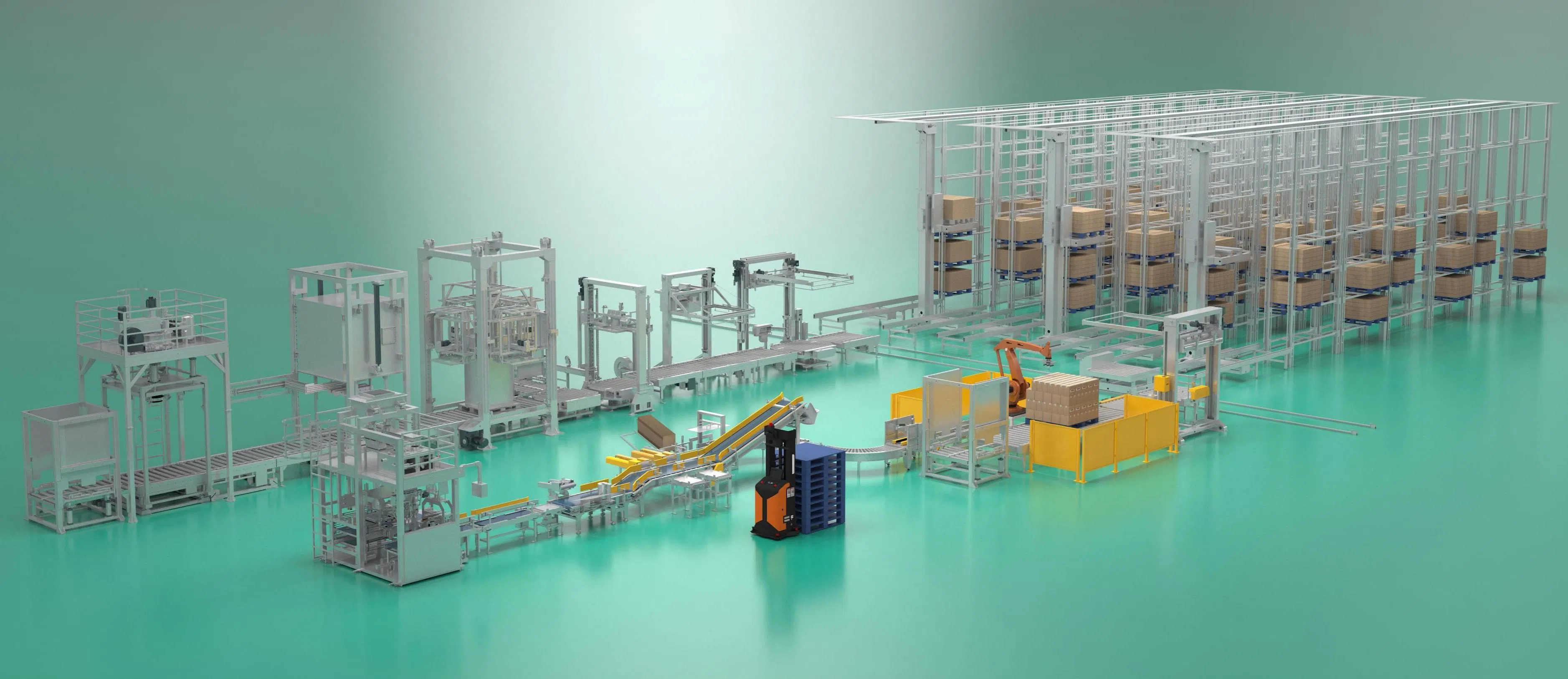

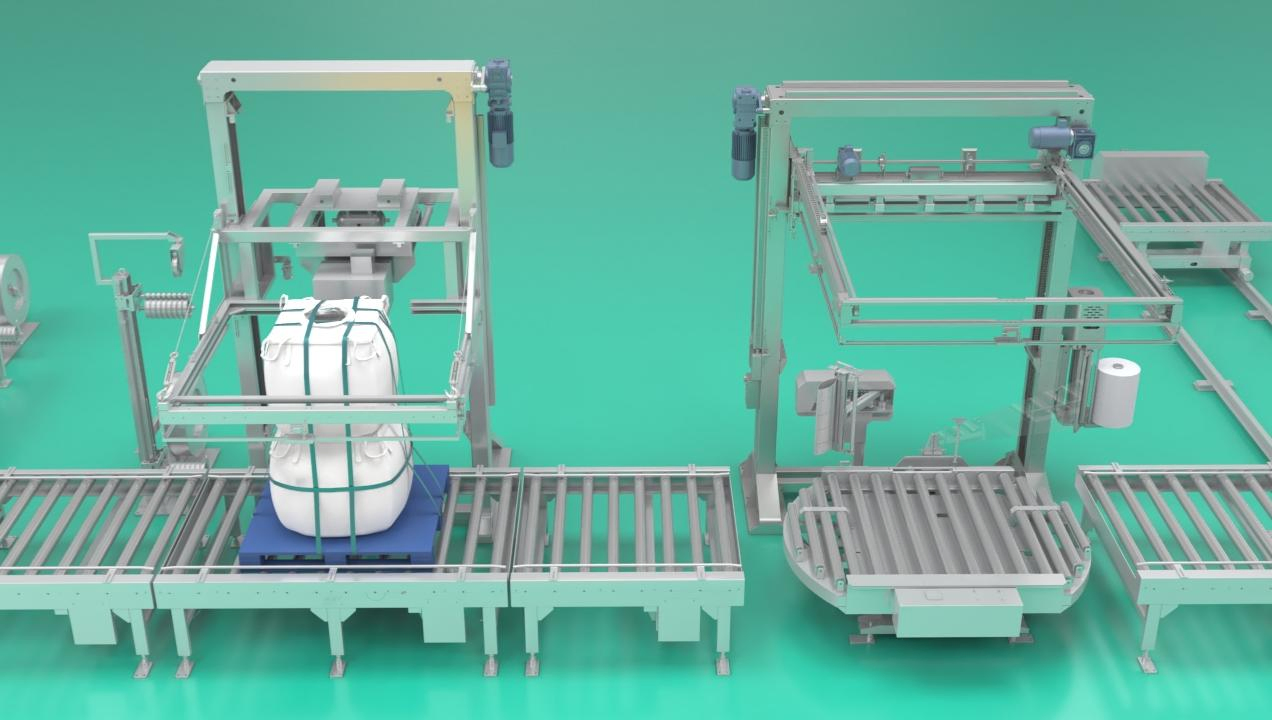

Fully Automatic Ton Bag Packaging Machine

The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.

High-Speed Fully Automatic Filler System

Structural Advantages

Modular Design: Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.
Safety Design: Complies with international PL d safety standards.
Precise Measurement: High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.
Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.
Stable Bag Transfer: Utilizes an integrated "lower clamp, upper grip" mechanism for rapid, stable bag transfer to the sealing unit.

Product Specifications

Parameter	Specification Details
Feeding Method	Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications	300 - 1000 kg/bag
Main Unit Dimensions	3500 (L) × 2800 (W) × 3000 (H) mm
Total Power	Approx. 13 kW
Total Weight	3.5 - 6 tons
Load Cell Accuracy Grade	C3/C6/C10 (optional)
Measurement Accuracy	±0.1%
Packaging Speed	5 - 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity	5 - 20 bags (expandable)
Control Method	PLC + Touchscreen
Power Supply	380V, Five-wire Three-phase
Air Source	0.5-0.7 MPa
Noise Level	≤80 dB (at 1 meter from equipment)
Exterior Material	Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol	Supports PN, DP, 485, etc. (optional)

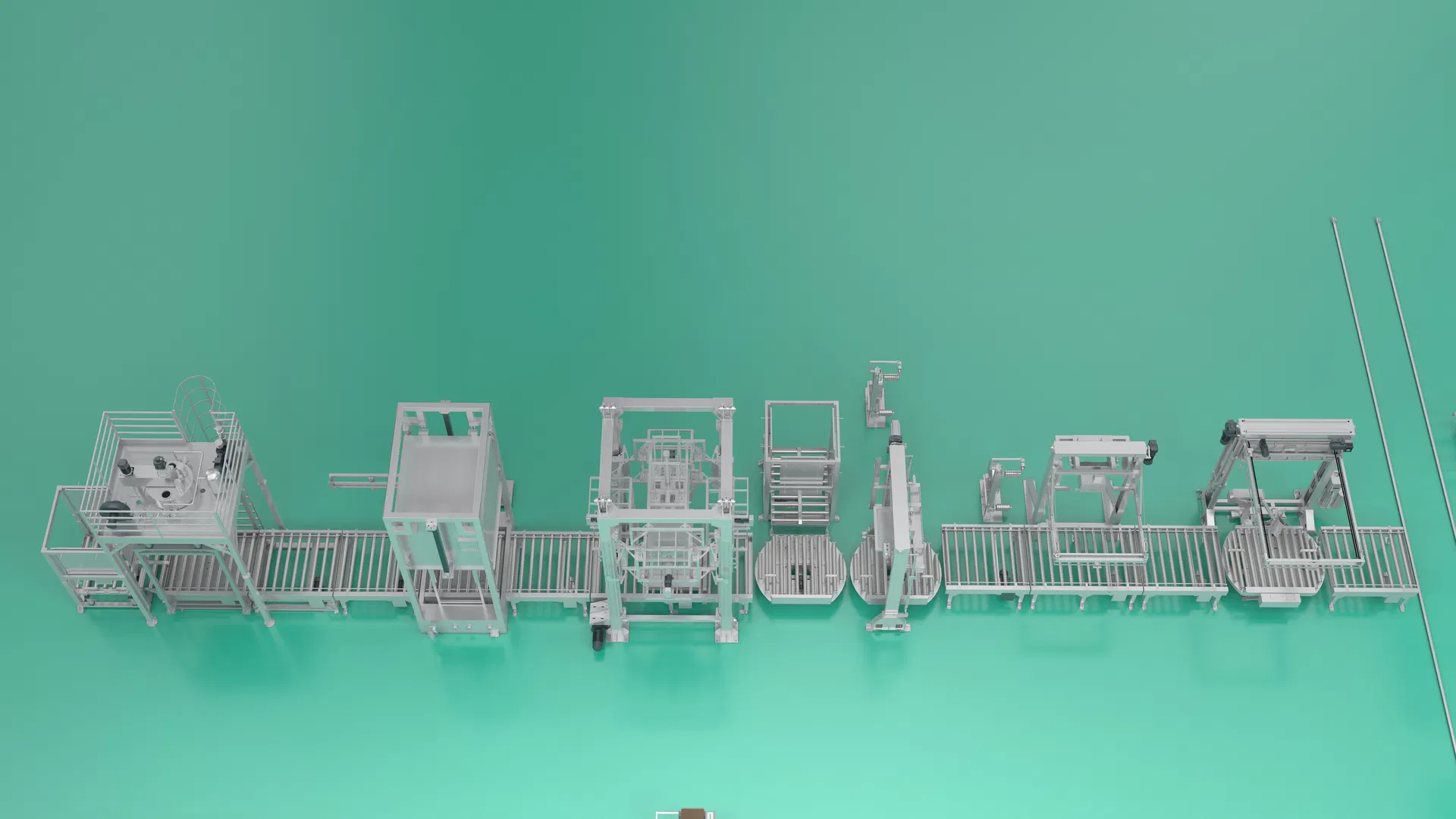

High-Speed Fully Automatic Filler System Details

Main Products

Company Profile

We are a high-tech enterprise specializing in the R&D, manufacturing, and sales of Packaging Machines and Material Handling and Transfer Equipment. The enterprise was established in 2014.

Primary products include packaging machines, quantitative packaging scales, powder packaging machines, feed bagging scales, feed packaging scales, ton-bag packaging machines, ton-bag packaging scales, fully automated robotic palletizers, fully automated film wrapping machines, and portable IBC.

As a certified high-tech enterprise, profound technical strength and advanced production techniques are utilized. The team boasts a scientifically structured talent pipeline, anchored by numerous senior and intermediate technical professionals, including specialized engineers holding master's and bachelor's degrees.

We have acquired ISO9001-2015 quality certificates, various patents, and CE certificates. Upholding the philosophy of "Integrity-Based, Quality First, Professional Service, Keep Improving", we aim to provide premium quality products and reliable solutions to users globally.

Packaging & Shipping

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with licenses for importing and exporting.

What is your main business?

We are dedicated to providing our customers with a wide range of packaging equipment, as well as material handling and transfer equipment.

What are your main products?

Our main products include fully automatic/semi-automatic small bag packaging machines, fully automatic/semi-automatic ton bag packaging machines, quantitative packaging scales, sewing machines, bag-opening machines, IBC mobile containers, fixed stations, and unloading stations.

Do you accept Customized Equipment?

Yes, we design and manufacture equipment based on our customers' actual requirements. Please contact us to share your specific needs, and we will formulate a suitable solution.

What material industries can your equipment be applied to?

Our equipment applies to any industry handling powdered materials, granular materials, flaked materials, or mixed materials.

What is the delivery time?

For package scales, production time is usually within 30 working days. For package machines, it is usually 30 - 60 working days. For IBC tanks, it is usually 45 - 60 working days. Specific delivery time depends on precise project requirements.
