Advanced Poultry Breeder Feeding System for Optimal Growth

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info

Model NO. BC-FL01s
Usage Chicken Farm Automation
Application Chicken
Power Source Electric
Heating and Ventilation Equipment Type Fan, Air Inlet, Cooling Pad
Epidemic Prevention Equipment Mobile Vaccination Car
Blade Type According to The User's Situation
Computerized Computerized
Certification ISO9001:2008
Condition New
Warranty 1 Year
Feed Pan Spacing 3 or 4 Feeder Per 3m
Feed Pipe Material Hot Galvanized
Feeder Material PVC
Raising Quantity 13-18 Chickens Per Squaremeter
Feature Practical, Durable, Cheap
Life Span More Than 15 Years
Transport Package Container by Sea Way
Specification Plastic. According to customer requirements
Origin China
HS Code 84362900
Production Capacity 50000PCS/Month

Packaging & Delivery

Package Size 70.00cm * 60.00cm * 35.00cm
Package Gross Weight 30.000kg

Product Description

Separator Line Advanced Poultry Breeder Feeding System for Optimal Growth

1. Main Feeding System (Silo)

The feed is transported to the inside of the chicken coop via a main feed line conveyor system in the lower part of the storage tower, and the feed is transported separately to the individual distribution lines via hoppers. State-of-the-art storage systems ensure that feed is not easily contaminated and transport systems avoid loss of feed during transport.
  • Silo: 3Ton-34TonD
  • Auger type feed uploading device for silo: Hot-dip galvanized material
  • Drive Motor: wanxin, 1.1KW 380V 50HZ 3-PHASE
  • Feed sensor: IFM KI0209
  • Main feed line: Ø75mm Auger (Technical System)
  • Feed drop part: Ø75mm include soft pipe

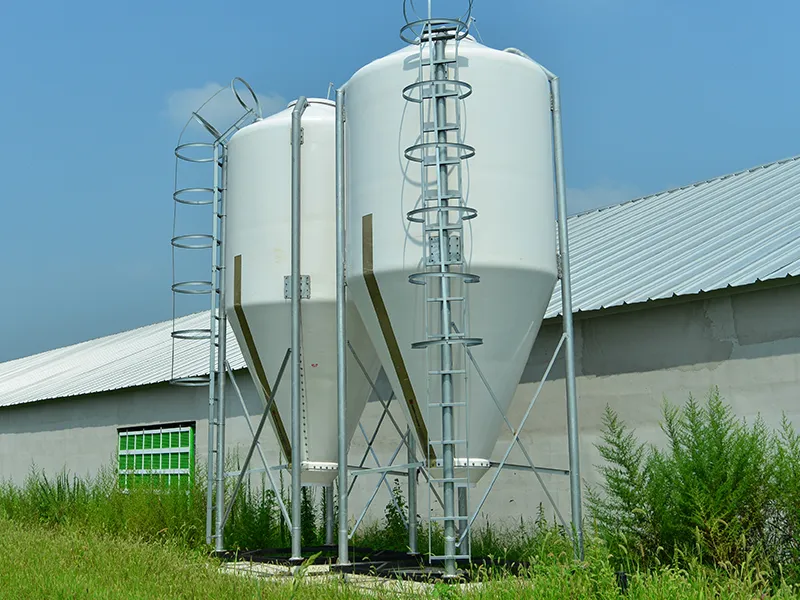

Main Feeding System Silo

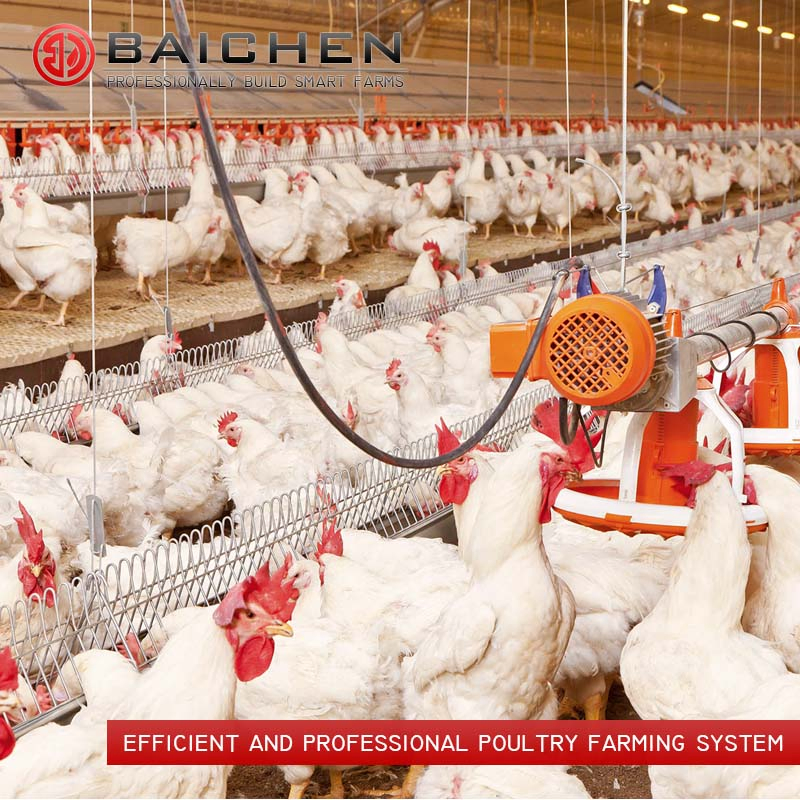

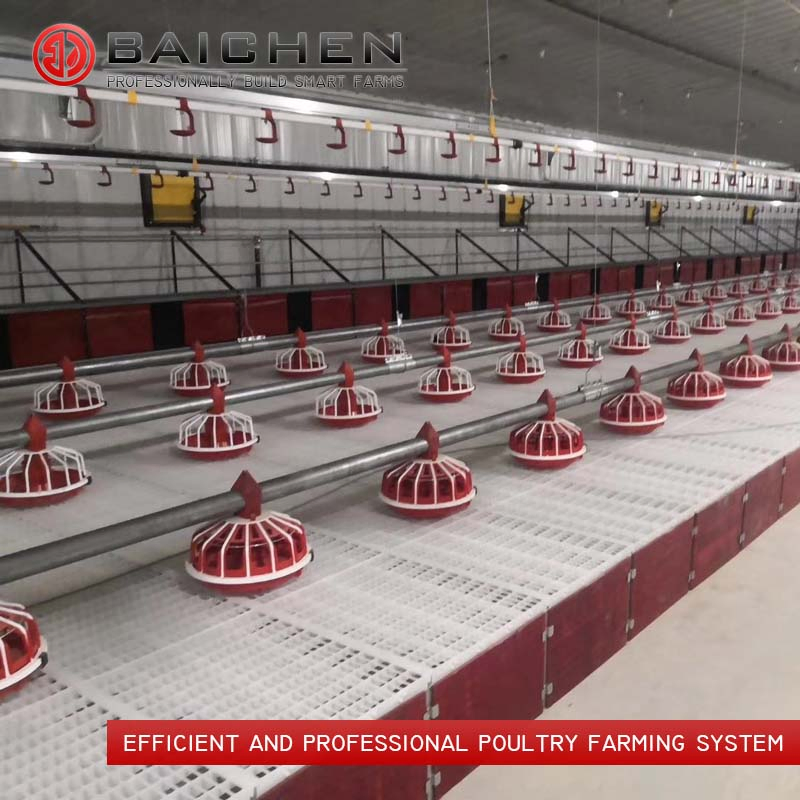

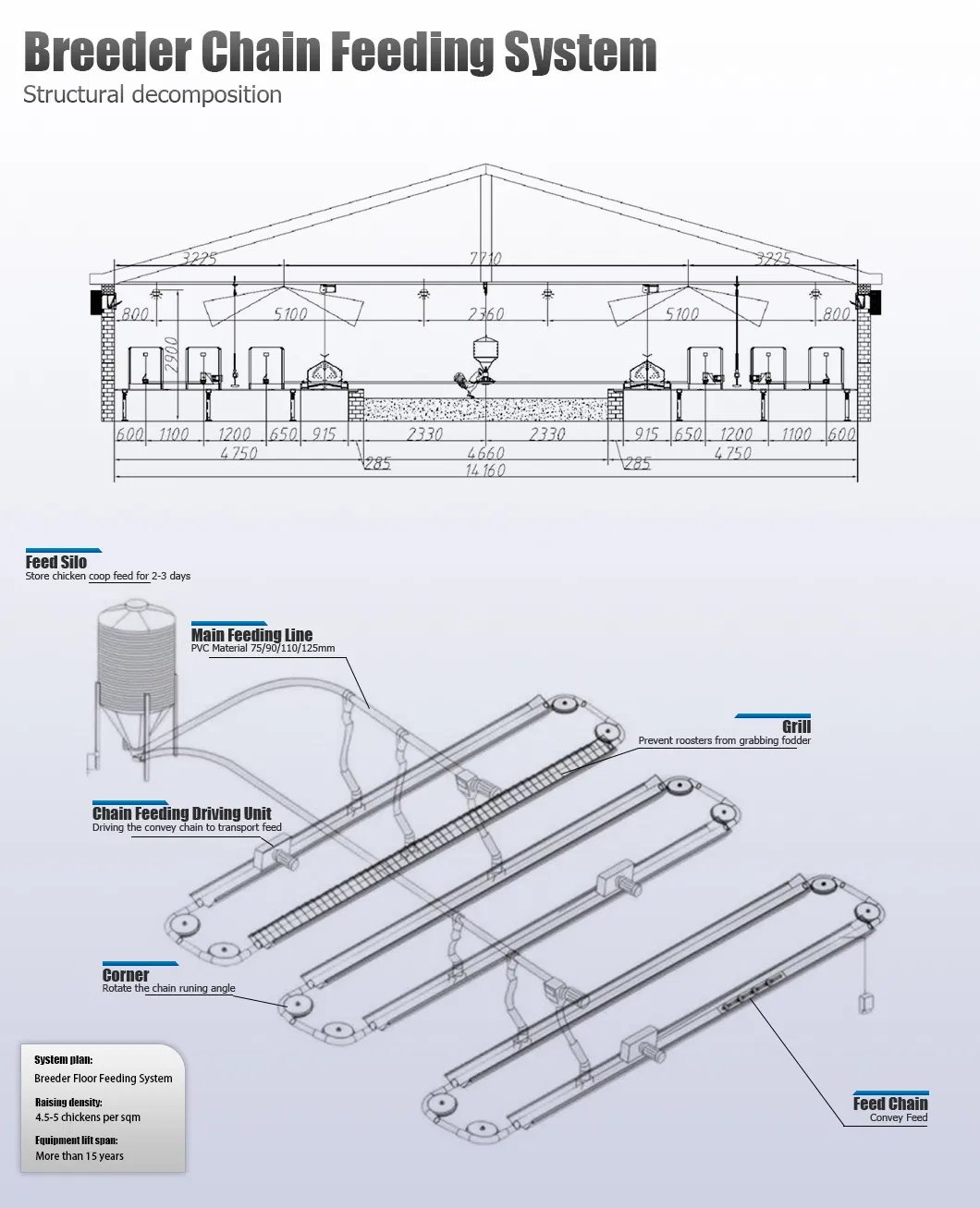

2. Chain Feeding Line System

After the hopper receives the dropped feed in the tee pipe, the feed is transported to the individual feed trays through the hot-dip galvanized pipe through the motor on the feed line, and the level sensor at the tail senses the amount of feed to avoid feed overflow.
  • Feeder: 4 feeders or 3 feeders / 3 meters
  • Driving Motor: wanxin, 0.75 Kw 380V, 50HZ, 3-PHASE
  • Feed Hopper: Hot-dip galvanized material
  • Feed Tube: 4holes / 3m / unit
  • Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.
  • Hanging System: winch in the middle of house, hanging point 3m, all steel wire.
  • Anti-roost System: Included

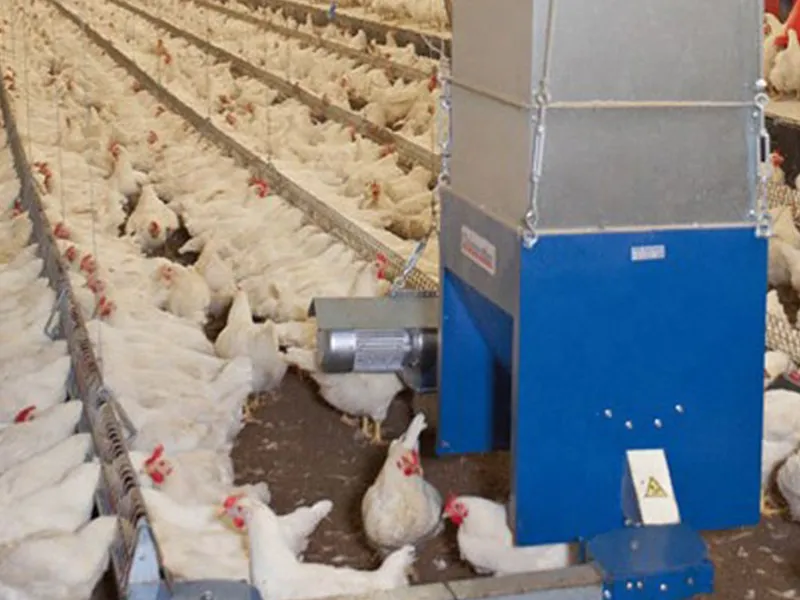

Chain Feeding Line System

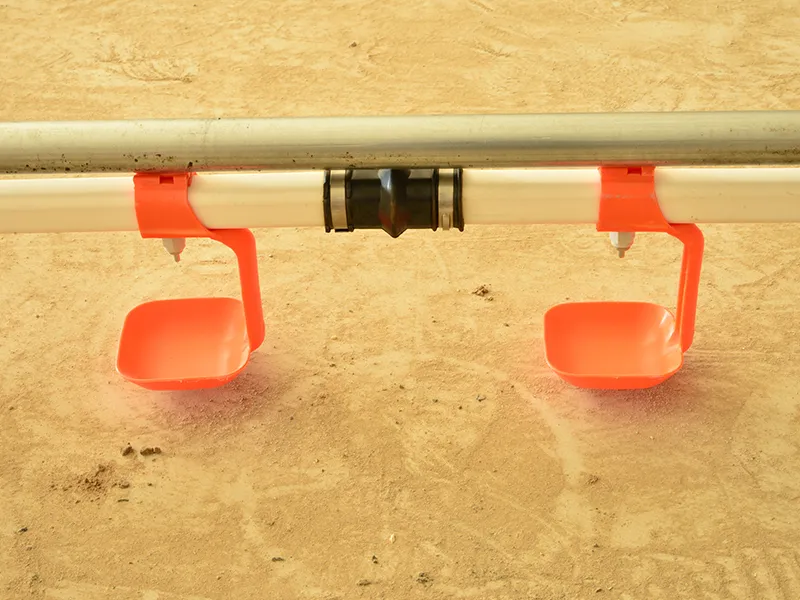

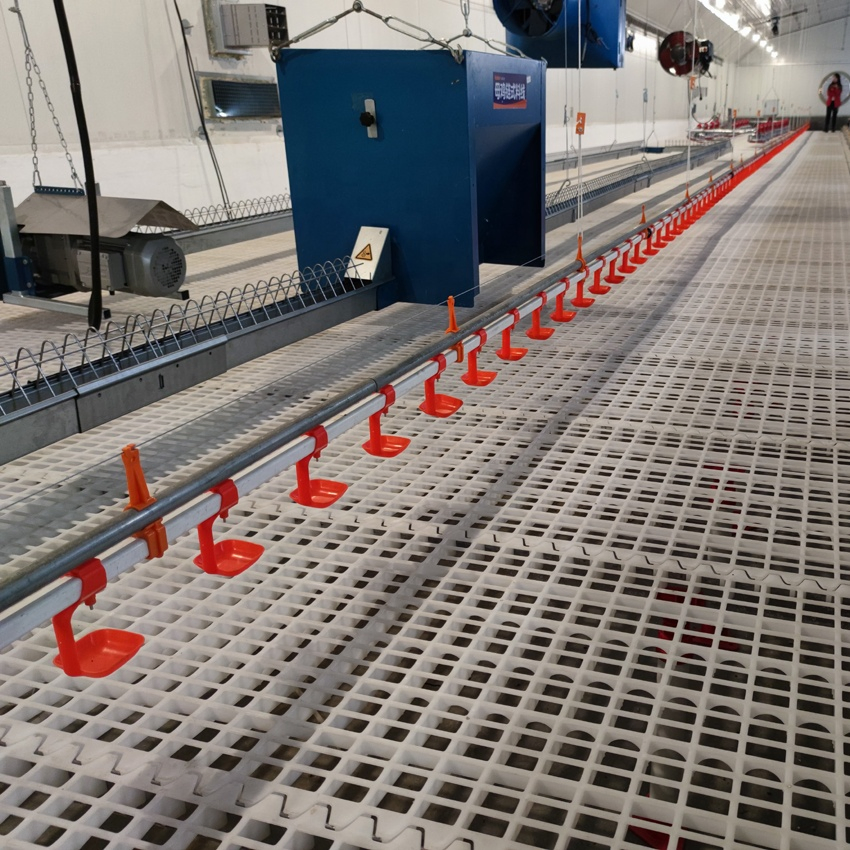

3. Nipple Drinking Line System

The chicken drinking water system in the chicken coop has been treated at the front end of the coop by a Dosatron brand filter/doser system, ensuring that the quality of the water does not make the flock sick.
  • Waterline Front System: Used to control the drinking system, including filter, water meter, Dosatron medicator etc.
  • Pressure Regulator: 10-13KPA
  • Main Water Inlet System: Ø32mm PVC (Connecting of Regulator and Re-flush Water Tube: include valve soft pipe)
  • Nipple Drinking System: 16nipples / 4m / unit with drip cup
  • Winch: 1500LB
  • Hanging System: 3m distance
  • Water-level Display Pipe: Included
  • Anti-roost System: Included
Nipple Drinking Line System

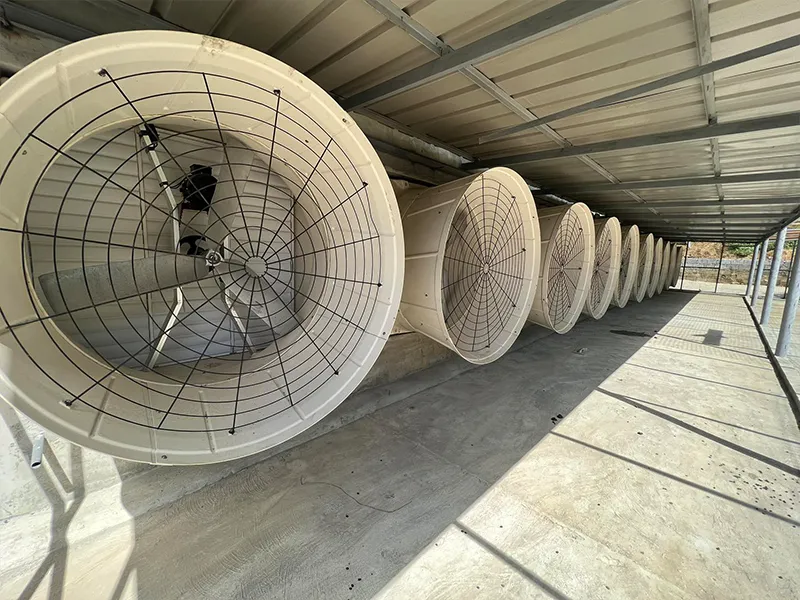

4. Ventilation System of Fan and Air Inlet

The professional ventilation system is composed of an air intake window and a negative pressure fan, which can be connected to an advanced environmental control system to provide different ventilation times according to different chicken ages and solar terms, to ensure that the chickens will not die due to insufficient ventilation or temperature reduction.
  • Ventilation Fan: 50'' or 36" (1.1KW, 380V, 50HZ)
  • Inlet: wanxin motor, 0.75 Kw 380V, 50HZ, 3-PHASE
Ventilation System Fan and Air Inlet

5. Automatic Cooling Pad System

Cooling Pad can control the temperature and humidity inside the chicken coop, in the hot equatorial area wet curtain is essential, through the water pump to pour water on the cooling pad and cooperate with the negative pressure fan driven by the air flow, the internal humidity of the chicken coop is controlled within a suitable range, reduce the cluster mortality.
  • Cooling Pad: 16nipples / 4m / unit with drip cup
  • Ventilation Fan: 50'' or 36" (1.1KW, 380V, 50HZ)
  • Winch: For pulling water line; for pulling deflector handle

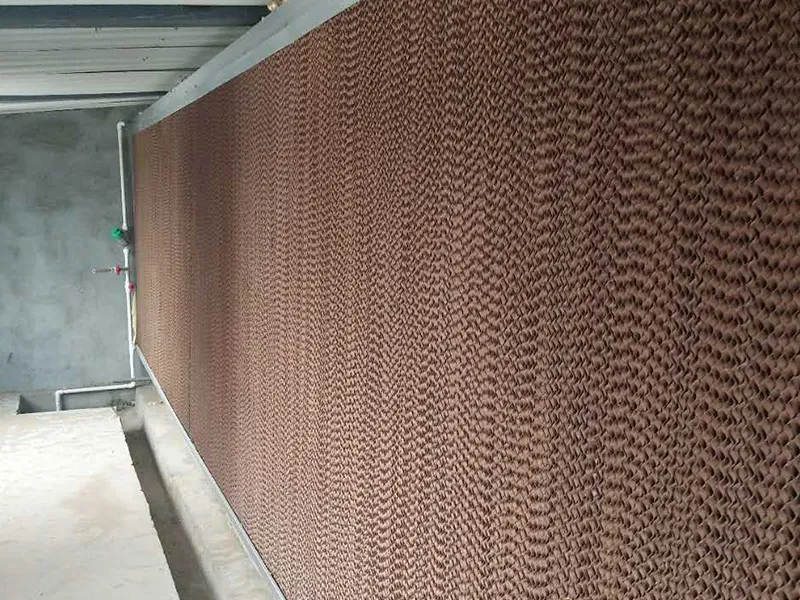

Automatic Cooling Pad System

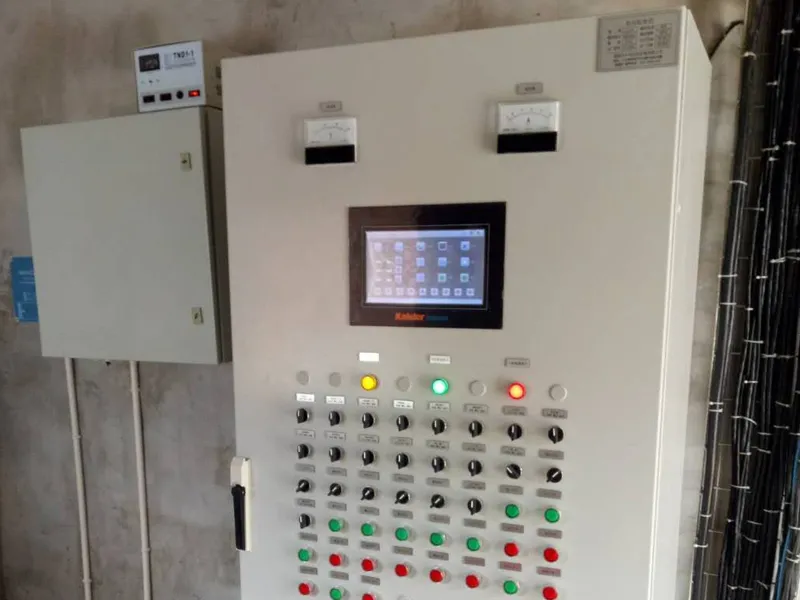

6. Automatic Power Control and Environmental System

The environmental control system is the core part of the automatic environmental control of the chicken coop, usually this system is based on experts and previous chicken raising experience to a certain degree of system preset, to ensure that less experienced farmers can also adjust the chicken coop environmental control system according to expert advice.
  • Environmental Controller: Advanced Controller Or Agrologic 607A
  • Electrical Control System: Output power 50kw, China configuration
  • Wires and Accessories: China standard wire
Automatic Power Control and Environmental System

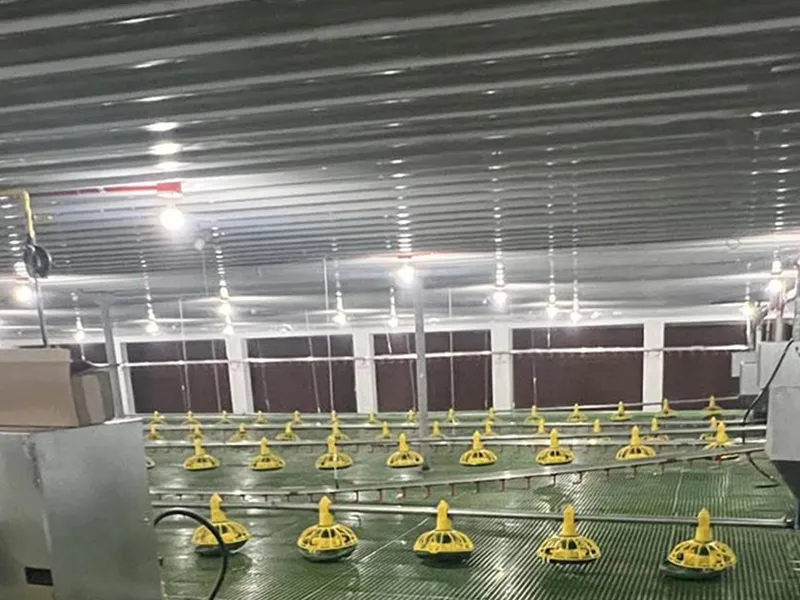

7. Lighting system

The lighting system is a necessary system to promote the growth of chicken flocks. By simulating sunlight, the chicken flocks can obtain higher eating desire and vitality to ensure the growth of chicken flocks.
  • LED bulb: LED 6W
  • Wire: Water proofing
Lighting system

System Details

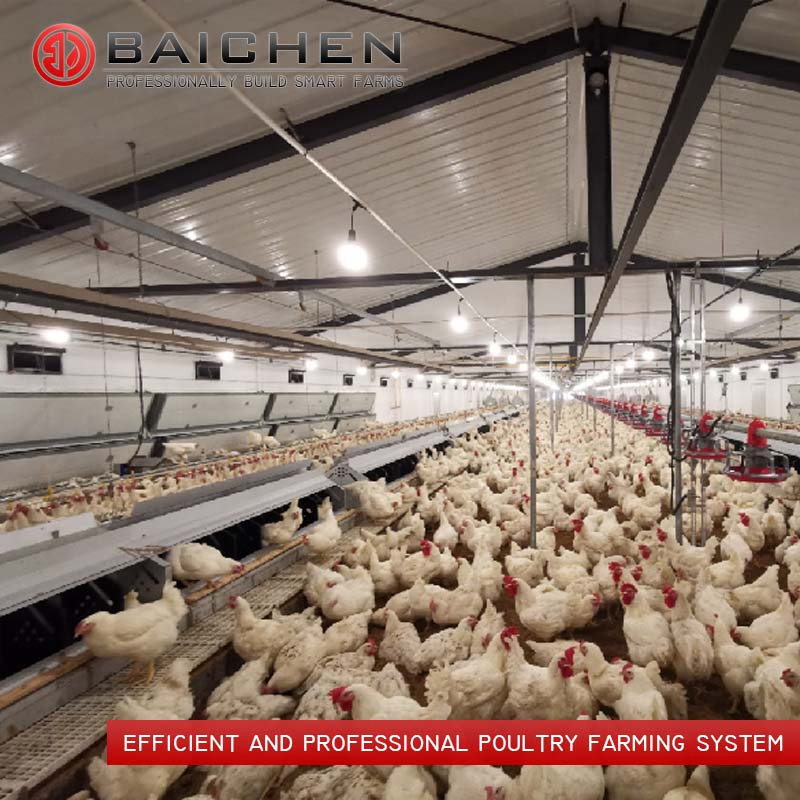

Poultry Breeder Floor Raising System Details
Raising Quantity 10000-30000 Chickens
Feed to meat Ratio 1.8kg : 1kg
Equipment Life 15 Years
Manure Cleaning Auto / Manual
Mortality In The Whole Raising Process 3%
Initial Farming Cost 1.3-1.5 USD / Chicken
Epidemic Prevention Effect Excellent

System Visual Presentation

Separator Line

Frequently Asked Questions (FAQ)

What is the capacity range of this poultry breeder floor raising system?

The system is highly optimized to raise between 10,000 to 30,000 chickens efficiently, making it ideal for medium to large-scale poultry farming operations.

How long is the expected lifespan of the equipment?

Built with robust, hot-dip galvanized materials and high-quality PVC components, the system is designed to have a lifespan of more than 15 years.

What is the typical feed-to-meat ratio achieved using this system?

This automated system ensures highly efficient feed distribution, helping you achieve a productive feed-to-meat ratio of 1.8kg of feed to 1kg of meat.

How does the environment control system help minimize flock mortality?

The automated cooling pad and negative-pressure ventilation fan systems continuously monitor and adjust temperature and humidity levels inside the coop. This configuration effectively prevents flock suffocation and heat stress, maintaining average mortality rates within 3%.

Can the system be run by growers with limited automation experience?

Yes. The system utilizes advanced integrated environmental controllers (such as Agrologic 607A) preloaded with professional raising parameters. This allows easy manual overrides and guided management based on chicken age and seasonal changes.

What is the estimated initial farming cost per chicken?

The initial equipment investment cost ranges between 1.3 to 1.5 USD per chicken, offering an exceptionally cost-effective option for full farm automation setup.
