Basic Info.
Model NO.
MP-PF
Balance Brand
Mettler Toledo
Working Unit
Two Station
Water Temperature
5
Capacity
6-8t/H, 2 Stations
Power
3kw
Transport Package
Container by Sea Transport by LCL
Specification
two working station
Origin
China
HS Code
84743900
Production Capacity
20sets/Three Month
Product Description

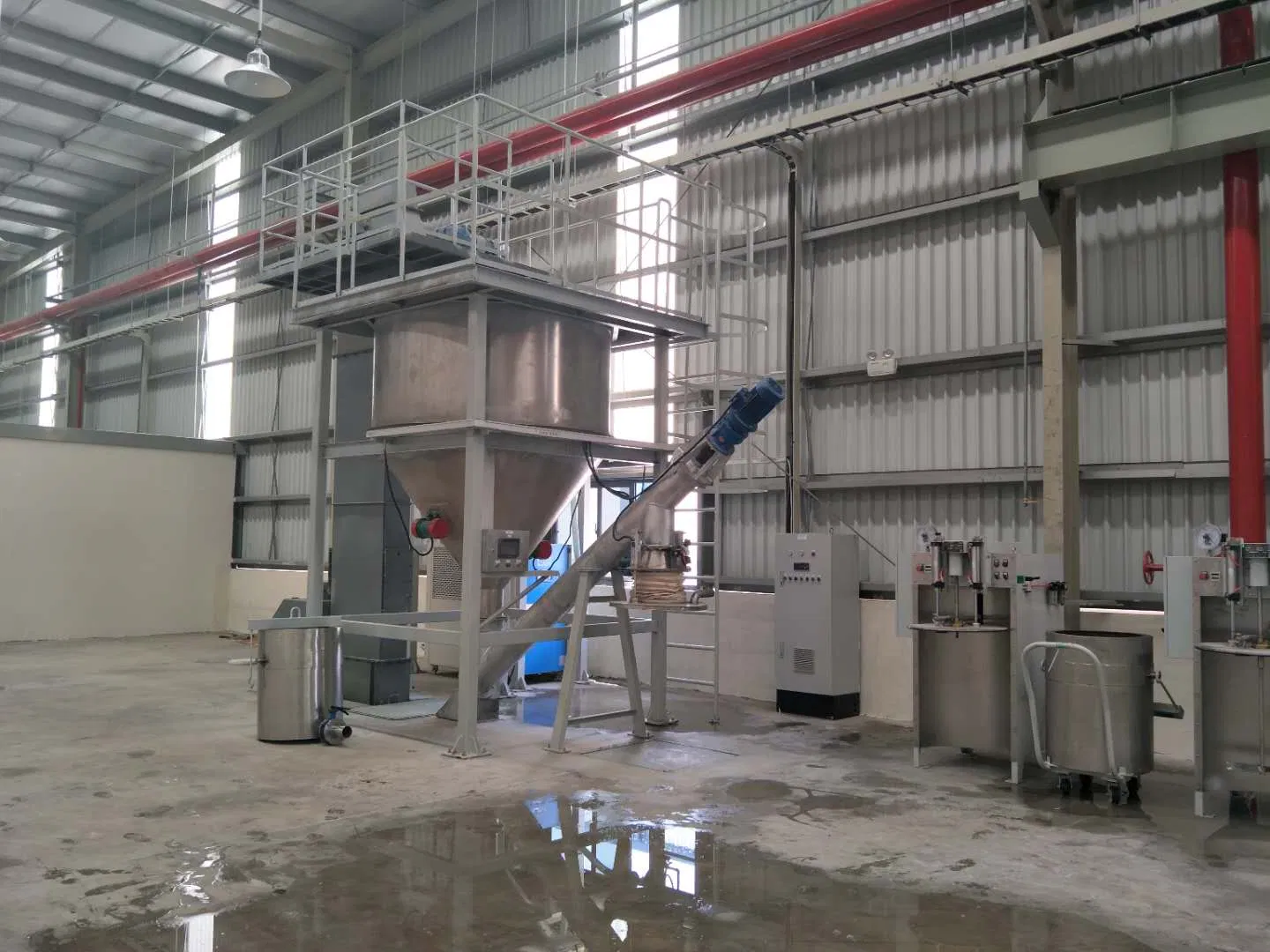

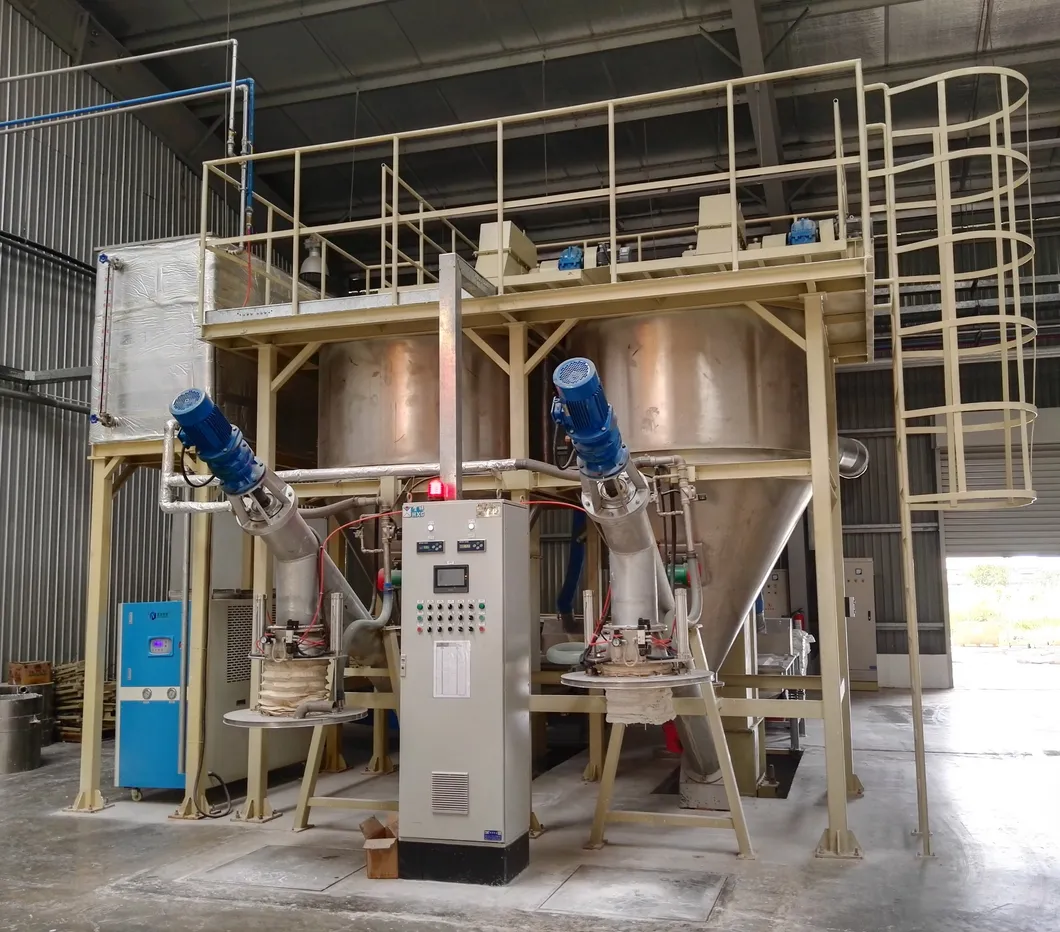

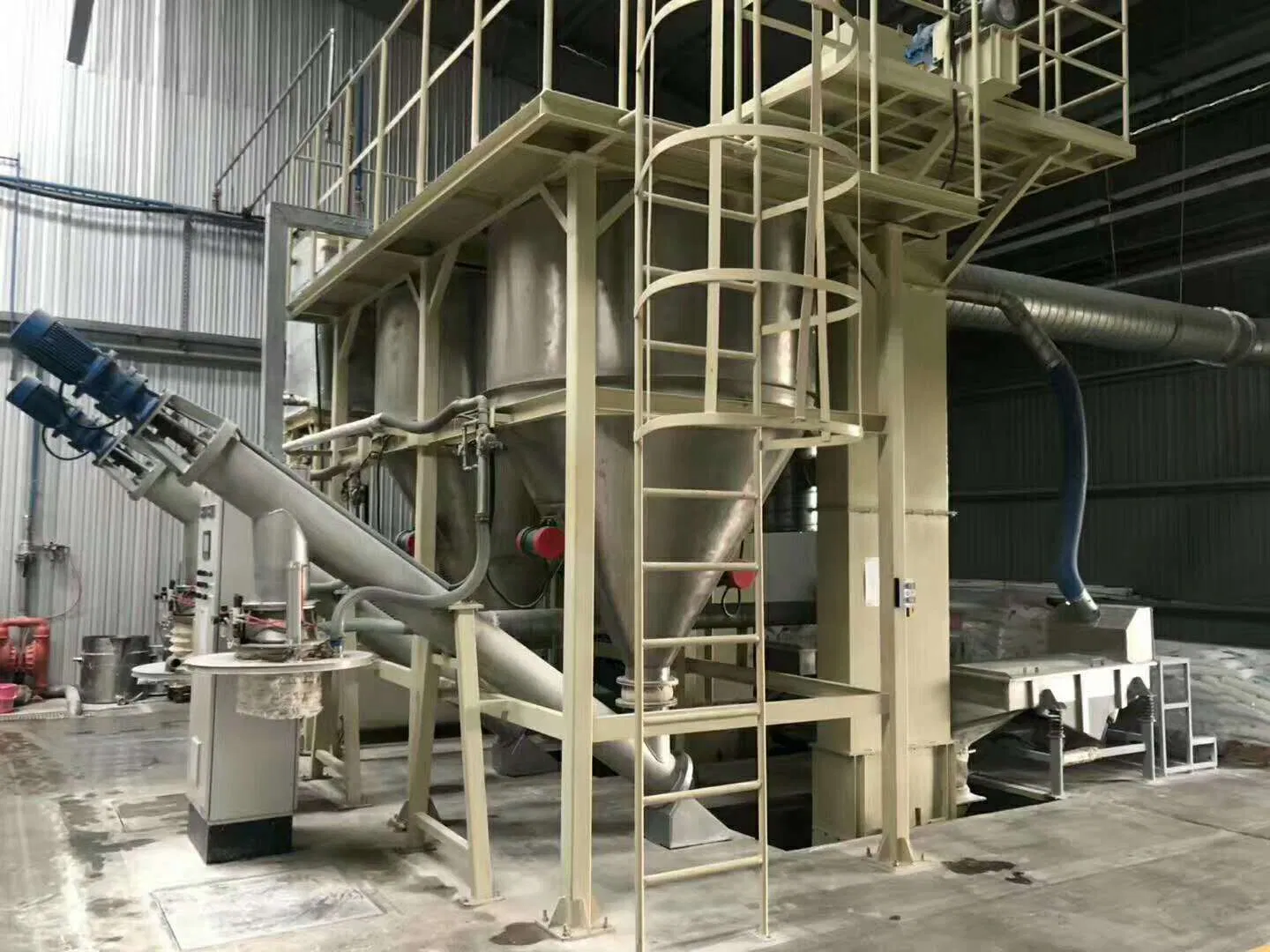

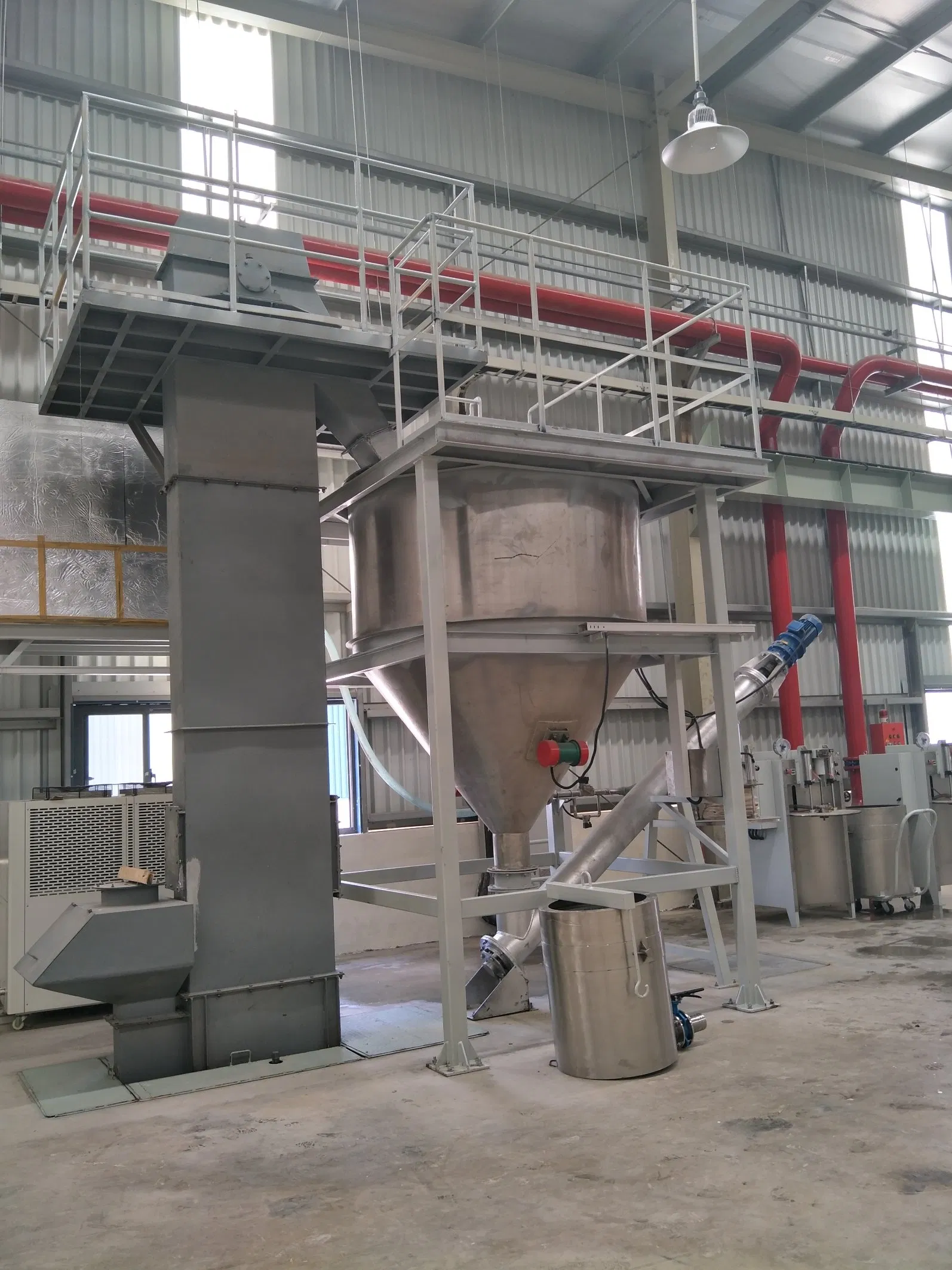

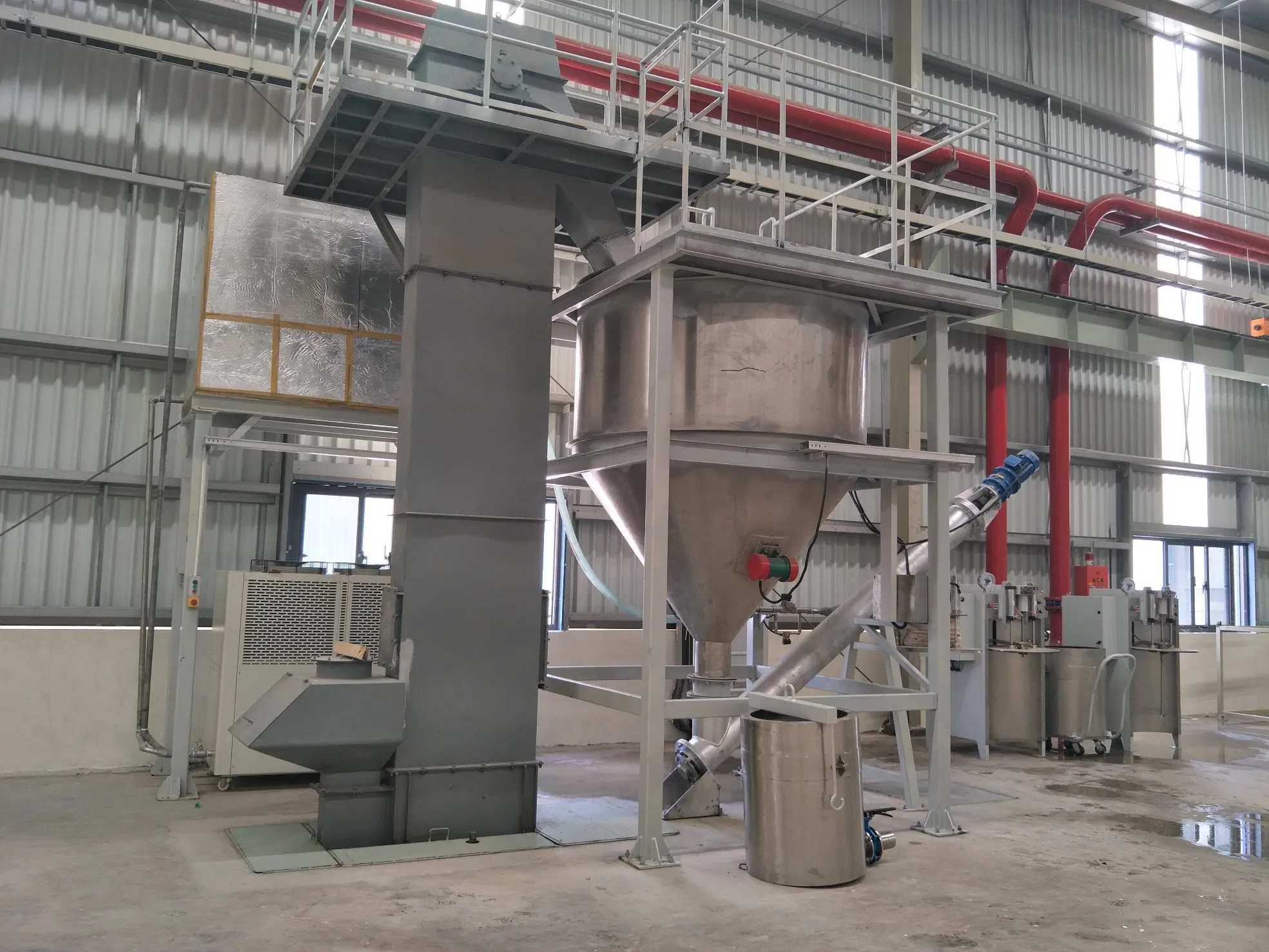

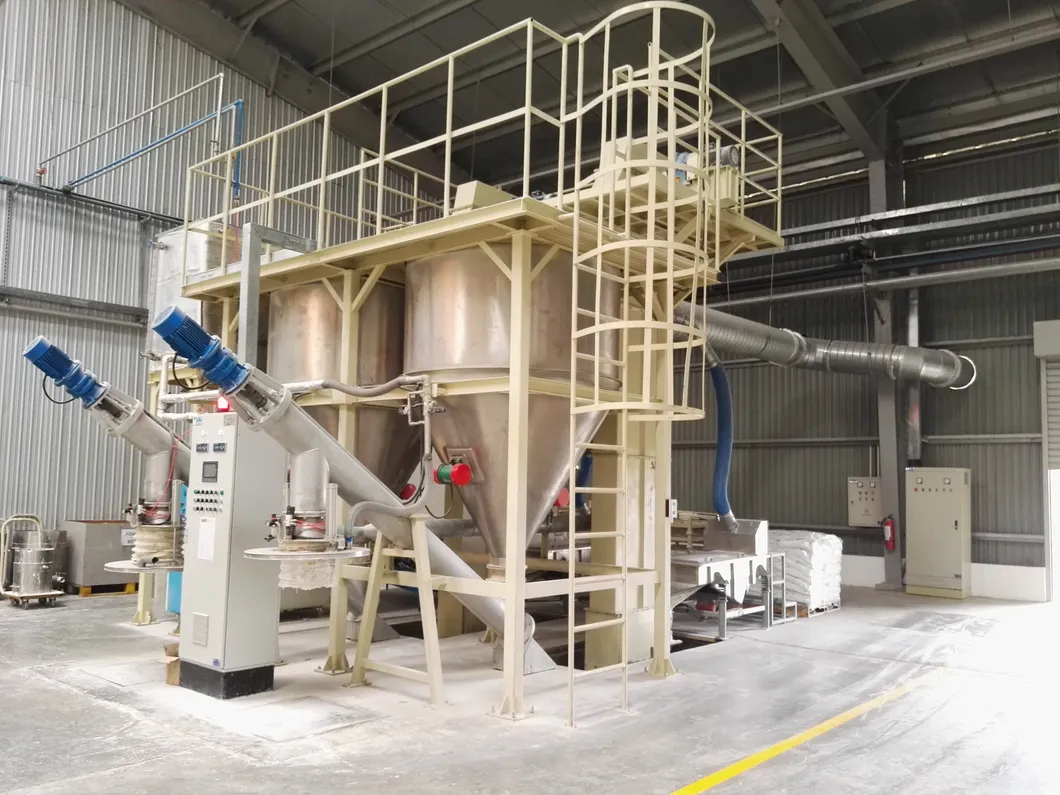

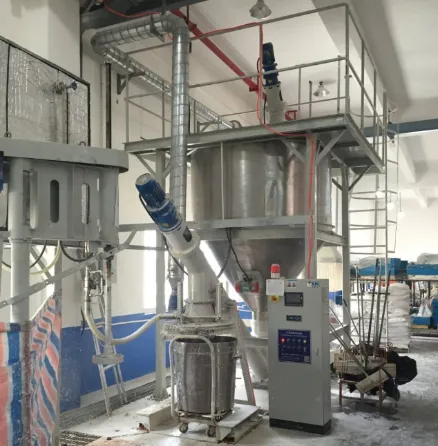

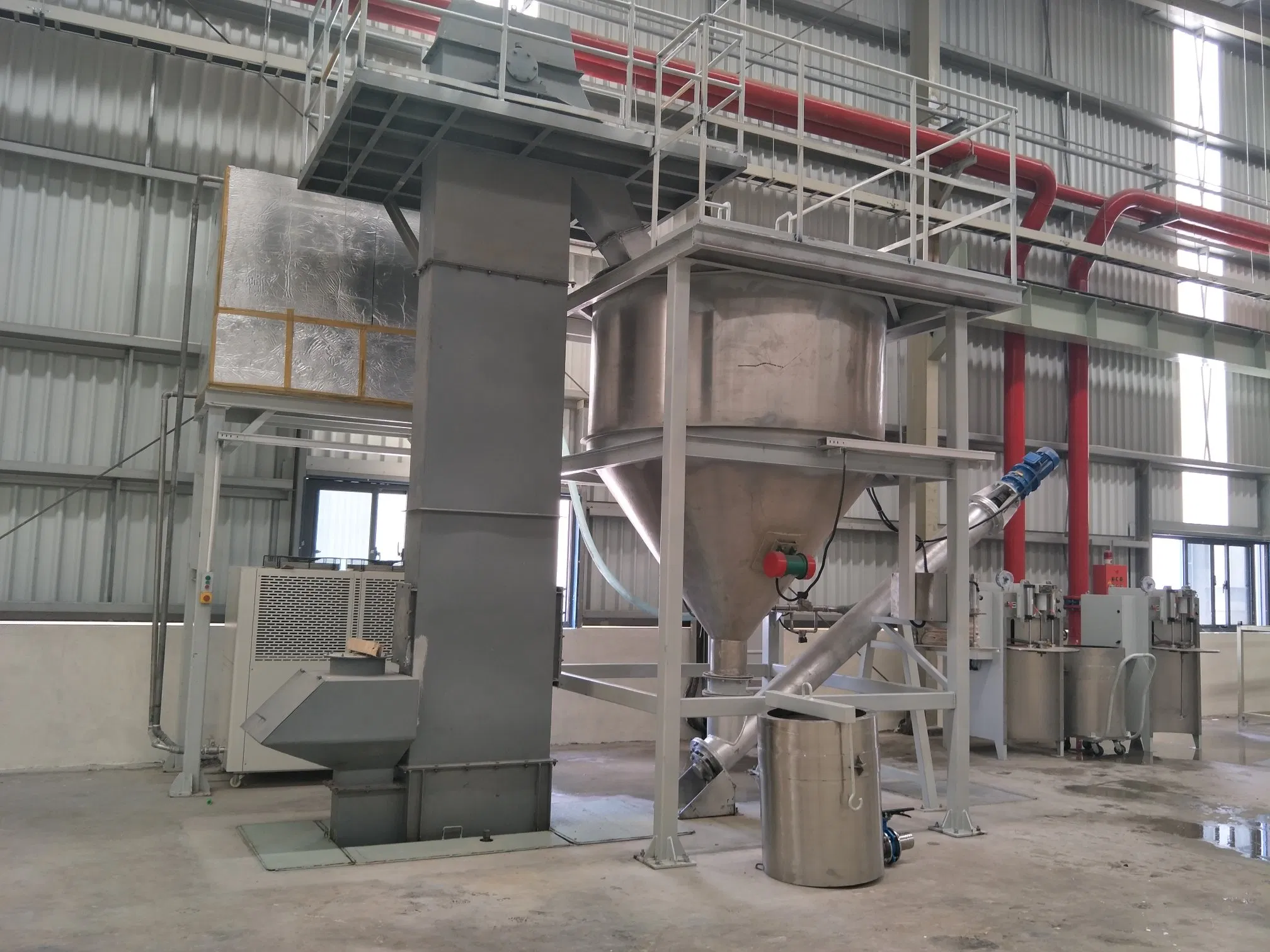

The plaster feeding system is mainly used to auto weight and matching plaster and water, which includes dedust system to keep the environment with good condition.
Put the plaster bucket on the electronic scale, press the start button, and the plaster bucket sealing cover is pushed by two cylinders to complete the descending process. Then, the automatic water supply device starts, and when the predetermined weight is reached, the water supply device automatically stops. After stopping, the silo wall vibrator and screw conveyor work automatically at the same time to complete the plaster powder transportation. When the weight reaches the requirement, the weighing sensor sends out an electric signal again to stop the conveying work, the sealing cover rises, and the whole plaster powder measurement process is completed.
Product Parameters
| Parameter Item |
Specification Details |
| Single station plaster powder conveying capacity |
6-8t/h 2 stations |
| Conveying capacity of bucket elevator |
6-8t/h, 3KW, 2 sets |
| Screw conveyor power |
2.2kw (according to design) 2 sets |
| Warehouse wall vibrator power |
0.37kw 4 units |
| Load capacity of weighing system |
1500kg 2 sets |
| Silo volume: |
4 m³/2pcs |
| Water chiller: |
whole machine power 9.5kw, cooling power 29kw, cooling capacity 25000kcal/hr |
| Water chiller size |
1.35m (L) × 0.803m (W) × 1.55m (H) |
| Constant temperature water tank: |
2m (L) × 1m (W) × 1.5m (H) |
Frequently Asked Questions (FAQ)
What is the primary function of the plaster feeding system?
The system is designed for automatic weighing and matching of plaster and water. It includes an integrated dedust system to ensure a clean and healthy working environment.
How is the automatic weighing process operated?
Once the plaster bucket is placed on the electronic scale and the start button is pressed, the sealing cover descends via two cylinders. Water supply starts automatically and stops when the target weight is reached, initiating the screw conveyor and silo wall vibrator to finish the powder conveying process.
What components handle the weighing and what is their load capacity?
The system is equipped with 2 sets of high-precision weighing systems utilizing Mettler Toledo scales, with a total load capacity of 1500kg per set.
What are the specifications of the water chiller unit?
The chiller unit operates with a total power of 9.5kw, offering a cooling power of 29kw and a cooling capacity of 25000 kcal/hr. Its physical dimensions are 1.35m (L) × 0.803m (W) × 1.55m (H).
What is the capacity and setup of the bucket elevator?
The system utilizes 2 sets of bucket elevators with a conveying capacity of 6-8t/h and a power configuration of 3KW.
What is the volume of the plaster storage silos?
The system includes 2 silo units, with each unit having a volume capacity of 4 m³.
