Broiler and Breeder Chicken Pan Feeding System

Basic Info.

Usage Poultry Feeding Equipment

Application Chicken

Power Source Electric

Heating and Ventilation Equipment Type Fan and Heater

Epidemic Prevention Equipment Medicated Bath Equipment

Blade Type Curved Teeth

Computerized Computerized

Certification ISO9001:2008, CE

Condition New

Warranty 1 Year

Transport Package Standard Export Package

Origin China

HS Code 84362900

Production Capacity 1000000

Product Description

Automatic feeders for poultry chickens

Broiler and Breeder Chicken Pan Feeding System

Our automatic feeder for chicken specifics:

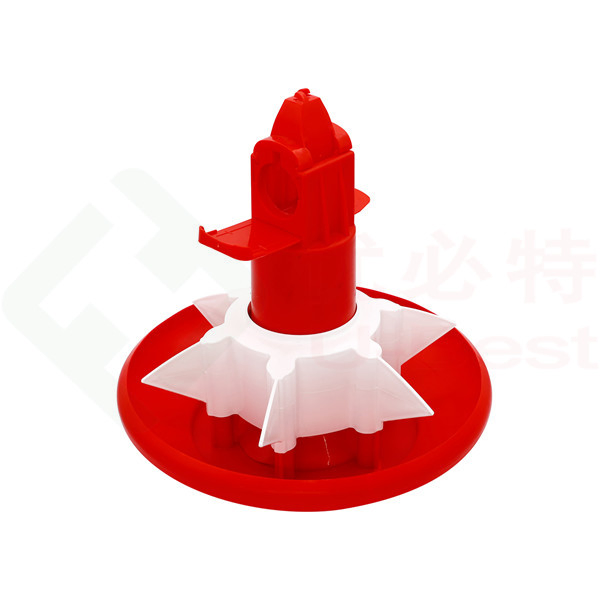

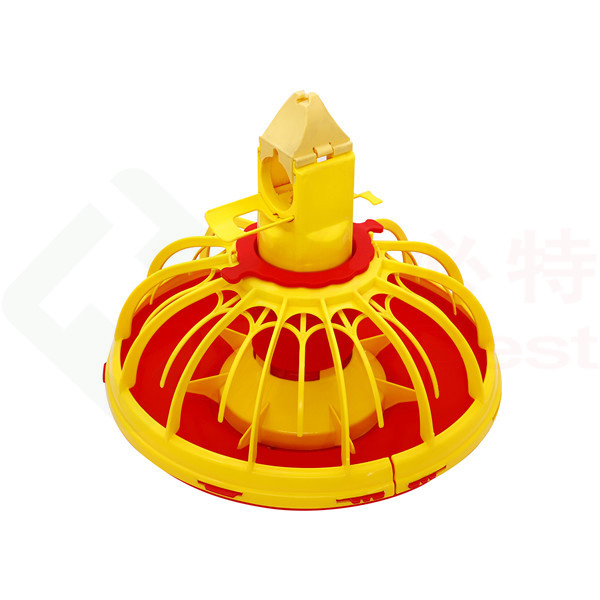

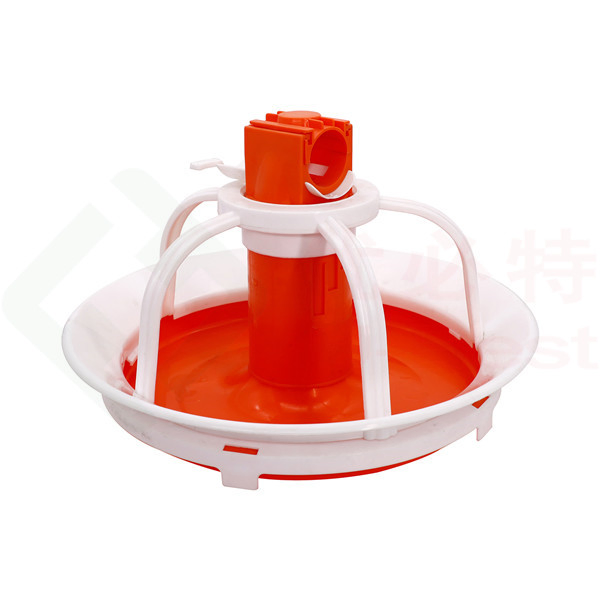

Basic information	Material: PP--Polypropylene Grilles: 14 grids Diameter of pan bottom: 330mm Net weight: 560g/pc
Feeding ability	50-55 broilers/pc
Advantages	a. Different gears of feed amount, meeting eating demands of different period chickens. b. Accurate and quick to adjust feed flow, the principle is to catch two ears in the inner and pull them out adjust up and down. c. The pan bottom can be disassembled on the ground, which can be used for day-old chicks. d. V-shape plate design can reduce feed storage on bottom, so birds can always eat fresh feed, which also prevents birds staying on the plate for a long time. e. The edge of pan plate tilt towards the center, which avoids waste of feed, the smooth edge prevents birds craws hurting and make sure safe and comfort feeding.

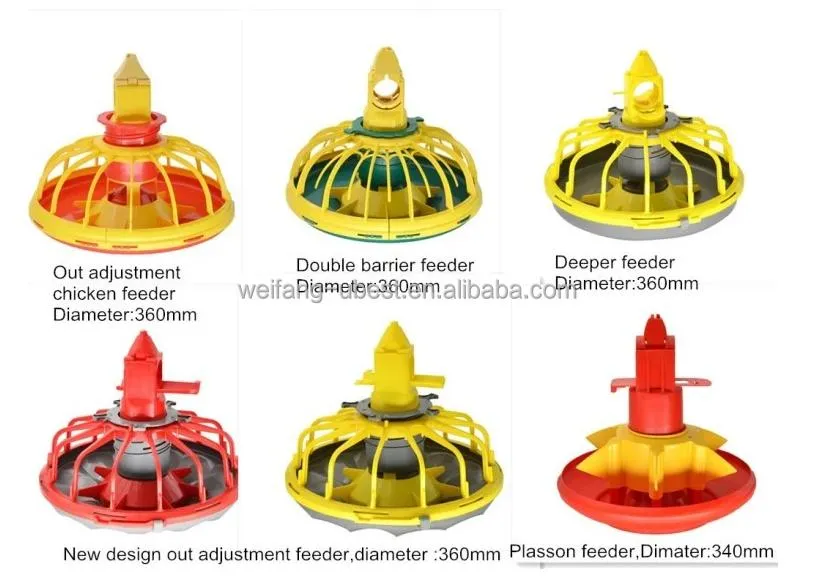

Broiler and Breeder Chicken Pan Feeding System Specifications

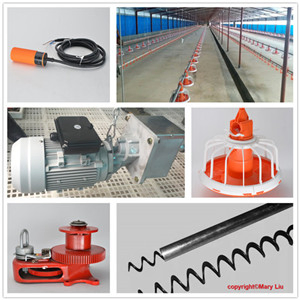

Automatic pan feeding system specifics:

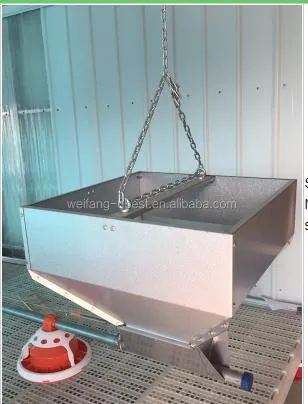

Vice hopper

Size: 70Kg, 90Kg

Material: Hot-dip galvanized sheet

Thickness: 1mm

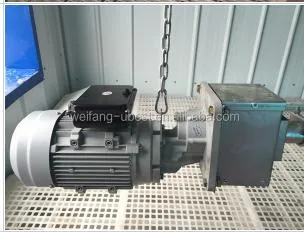

Driving motor

Brand: Taiwan brand

Power: 0.75Kw/1.1Kw/1.5Kw

Voltage: 380V/220V/others, Three-phase/Single-phase

Frequency: 50Hz, AC current

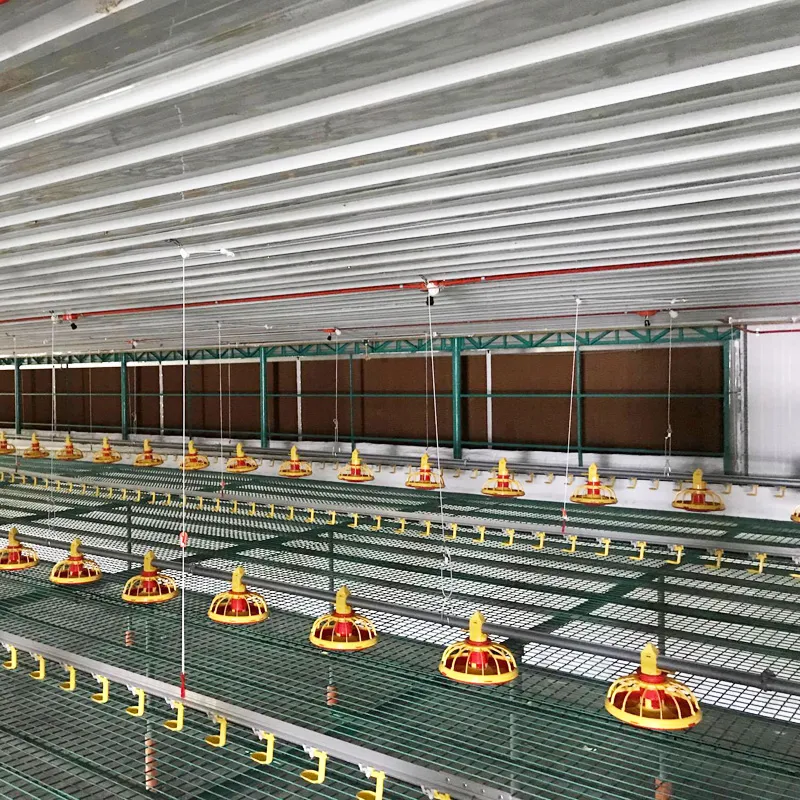

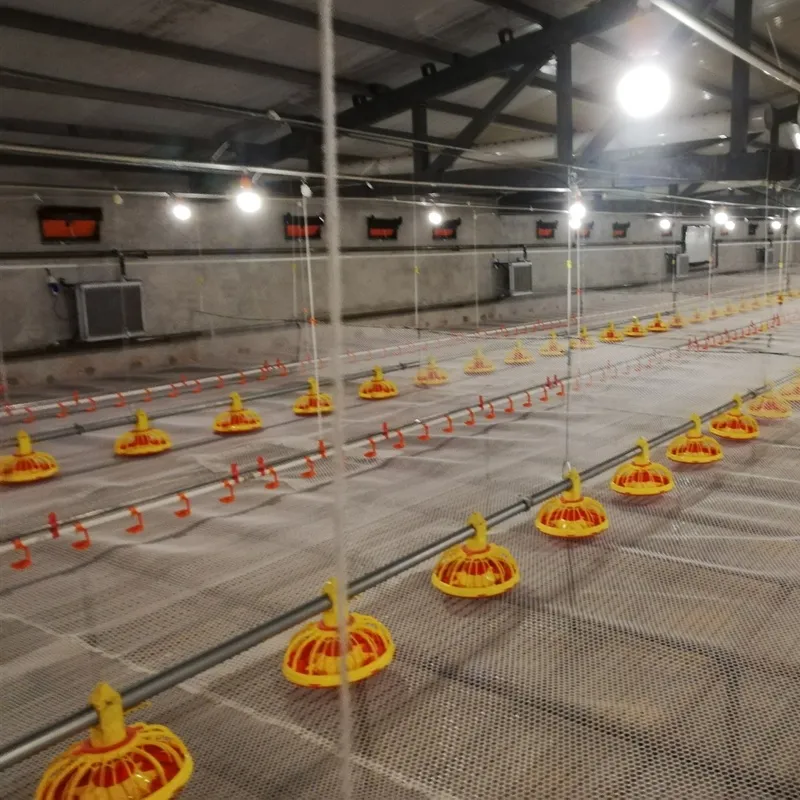

Pan feeding lines

Feed pipe: Φ45mm diameter, hot-dip galvanized sheet pipe with >275g/m2 zinc coating amount.

Auger: Imported from South Africa, feeding ability: 450Kg/h.

Specification: 4 feed pans/3 meter, 3 feed pans/3 meter.

Capability: 50-55 broilers/feed pan.

Sensor

Origin: Imported from Germany

Time delay range: 0-2 hours

Lifting & suspension system

Adjust feeding line height easily via winch to ensure proper development. The optimal height is when the chicken's back and the feed pan's upper grill are at the same level.

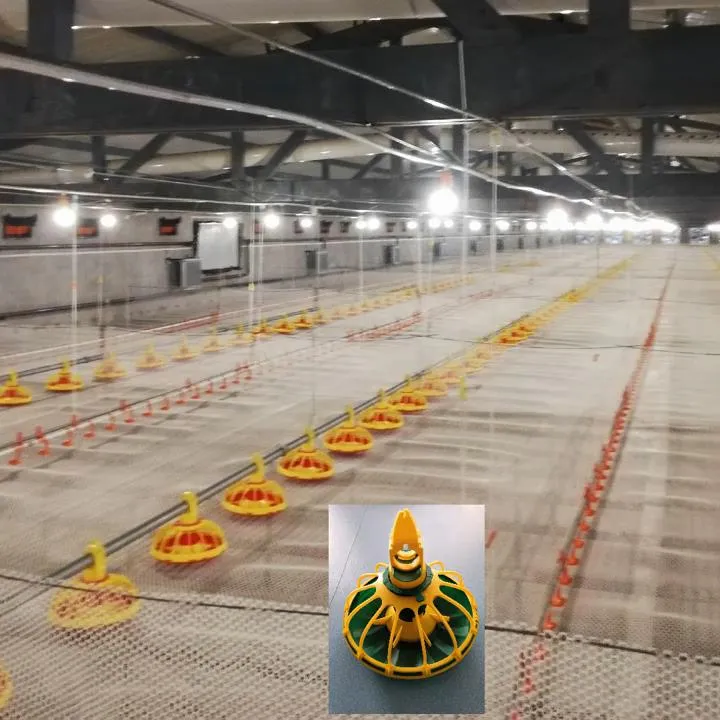

Anti-perching device

Prevents chickens from staying on the feeding line for too long.

Why Using This System?

Uniform distribution of feed
Easily adjusted
Easy to reach the best height
Easy to wash or disinfect
Easy to achieve good conversion rate

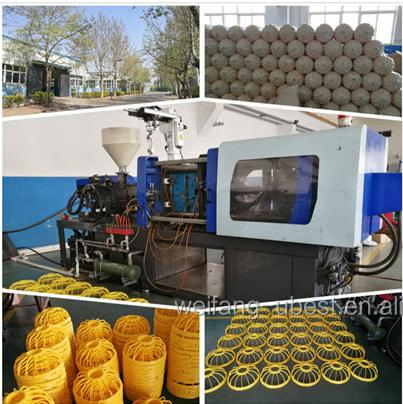

We are professional manufacturer and supplier of complete automatic poultry farming equipment for chickens, for broiler/ breeder /layer ground type&flooring type chicken raising.

We sincerely look forward to establishing business relationships with customers from all over the world based on mutual benefits.

Frequently Asked Questions

Q: What is the material and feed capacity of each individual feed pan?

A: The feed pans are made of high-quality PP (Polypropylene) material. Each pan features 14 grids, a 330mm bottom diameter, a net weight of 560g, and is designed to feed 50 to 55 broilers.

Q: How is the feed flow adjusted in this poultry feeding system?

A: The system allows accurate and quick adjustments of the feed flow. This is achieved by pulling out two ears in the inner portion of the pan and shifting them up or down to match the eating demands of chickens at different growth stages.

Q: What specifications are available for the vice hoppers and driving motor?

A: The vice hoppers are available in sizes of 70Kg and 90Kg, constructed from 1mm thick hot-dip galvanized sheet. The driving motor is a reliable Taiwan brand, offering power options of 0.75Kw, 1.1Kw, and 1.5Kw, and is compatible with various voltages (380V/220V) in both single-phase and three-phase configurations.

Q: How does the lifting and suspension system benefit flock growth?

A: The height of the feed lines can be adjusted easily using a winch system. Maintaining the correct height is critical; the optimal feeding height is achieved when the chicken's back is level with the upper grill of the feed pan.

Q: What components are used in the feeding line, and where are they sourced?

A: The feeding lines utilize Φ45mm feed pipes made of hot-dip galvanized sheet with a zinc coating amount greater than 275g/m2. The auger is imported from South Africa (with a feeding capacity of 450Kg/h), and the control system integrates high-precision sensors imported from Germany featuring a 0-2 hour time delay.
