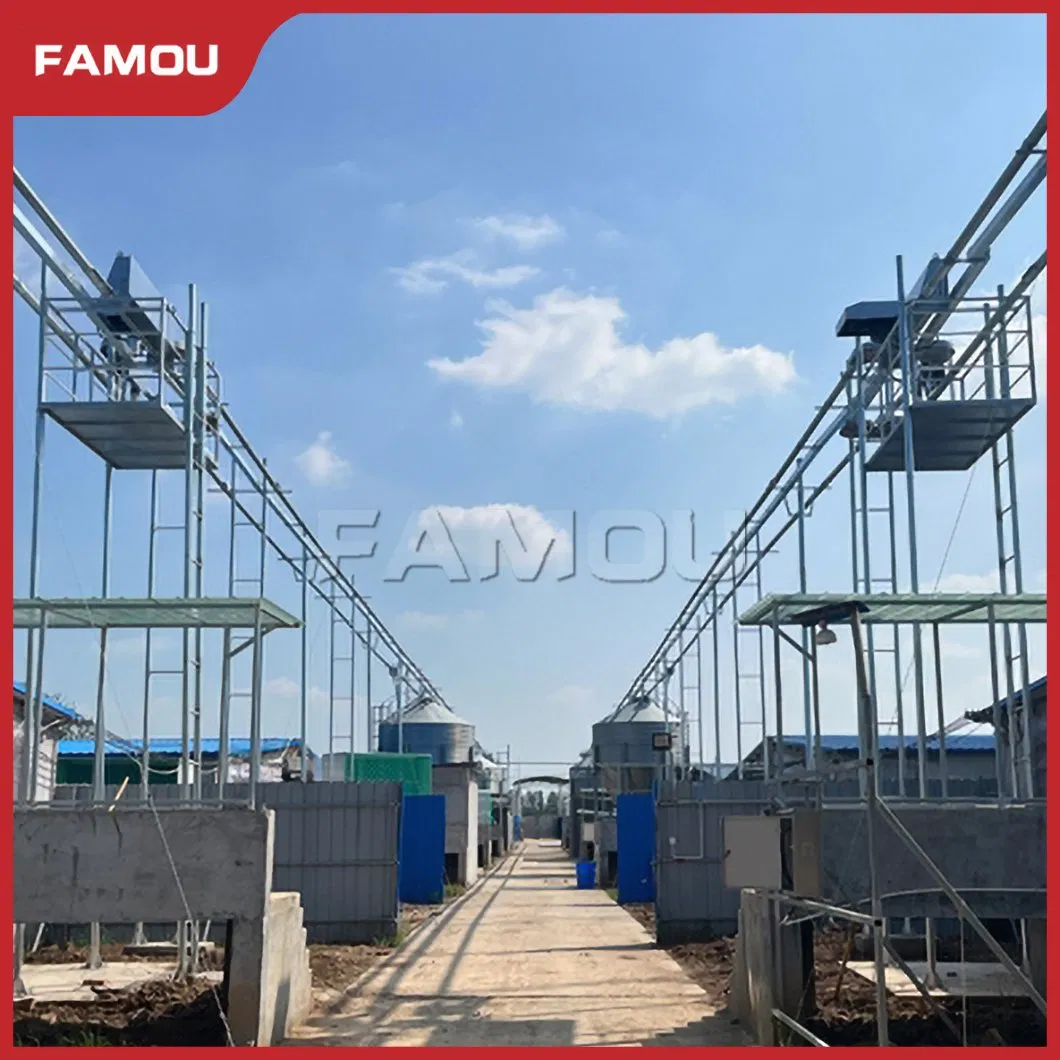

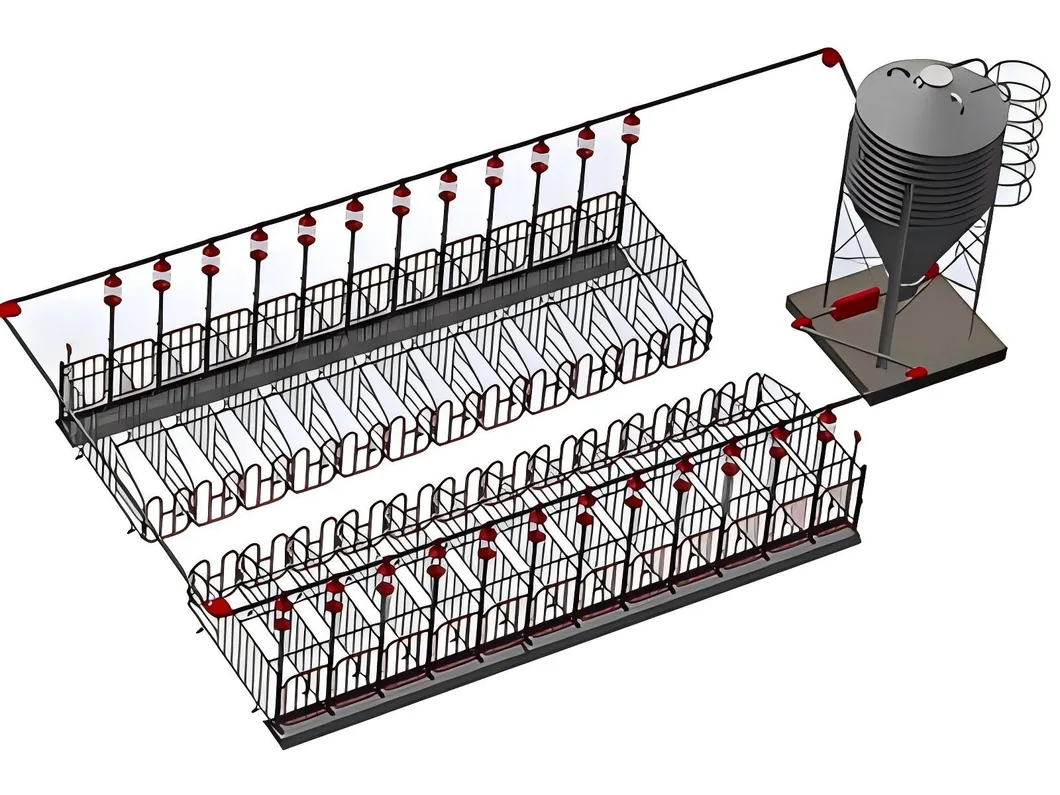

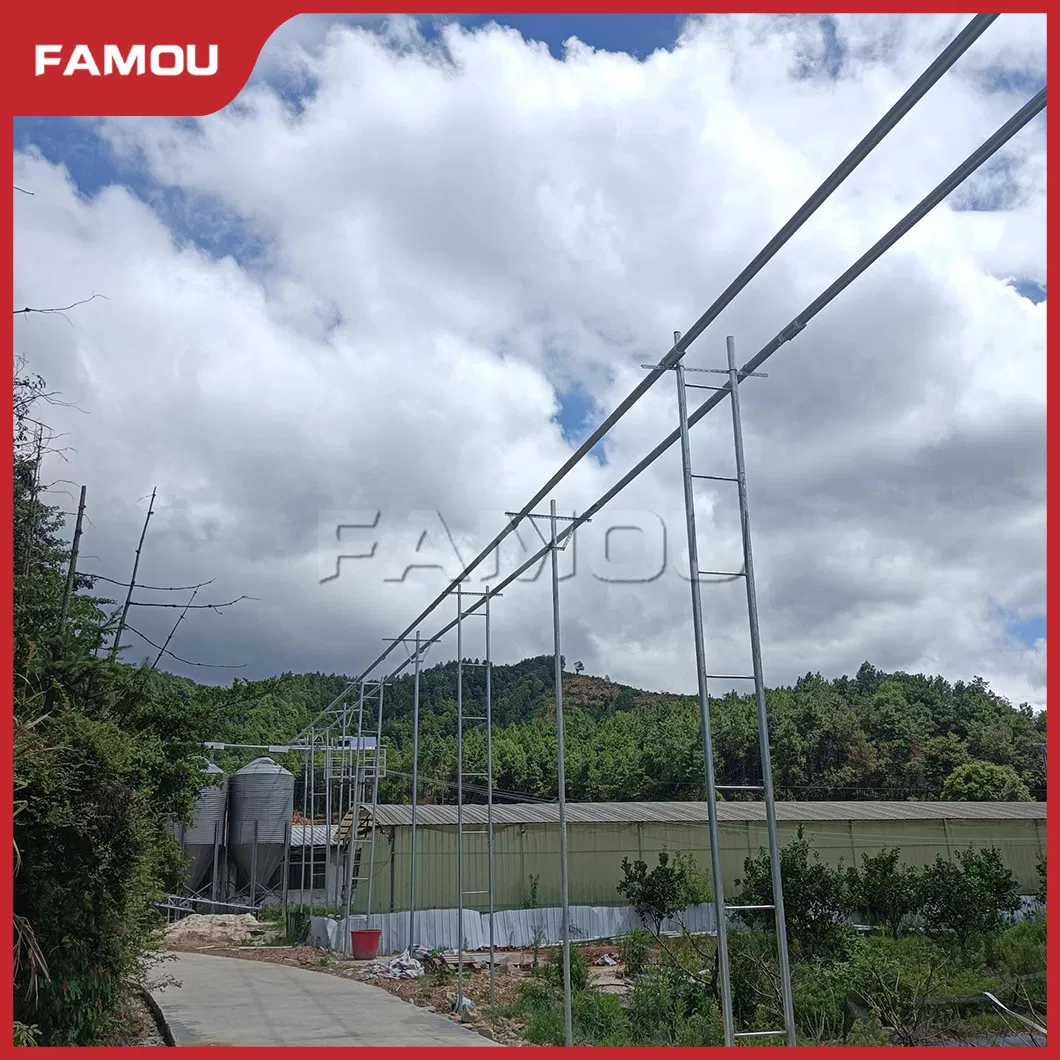

The pig disc chain automatic feeding system is a modern and advanced feeding equipment used in pig farming. This system consists of a network of pipes, rotating discs, chains, and feeding stations that work together to deliver precise amounts of feed to the pigs at designated locations.
The system is automated and programmed to distribute the feed accurately to each feeding station in the pig barn. It operates by conveying the feed through the pipes, rotating discs, and chains, delivering the feed to the feeding stations in a controlled and efficient manner.
The feeding system can be customized to meet the specific dietary needs of different groups of pigs, ensuring that each pig receives the appropriate type and amount of feed. This personalized feeding approach helps in improving the health and growth of the pigs.
The pig disc chain automatic feeding system streamlines the feeding process on the farm, reduces labor requirements, and enhances efficiency and productivity in pig farming operations. It represents a technological advancement in pig farming that contributes to better management practices and improved overall performance of the farm.
| CHAIN DISK FEEDING SYSTEM SPECIFICATION | |
|---|---|
| Product Name | 102mm Chain-Disk Feeding System |
| Keywords | Chain Disk Feed Delivery System |
| Key Selling Points | Automatic,Cost Saving |
| Voltage | 380V |
| Frequency | 50Hz |
| Chain Disc | 102mm |
| Shell | Stainless Steel |
| Shell Wall Thickness | 3mm |
| Corner Shell | ZL102 Cast Aluminum |
| Feature | Save Time and Save Breeding Cost |
| Feed Pipe | Hot Galvanized/PVC Pipe |
| Conveying Length | 200m |
| Dispenser Capacity | 8L |
| Dispenser Control | Manual or Auto Winch |
| MOQ | 1 Piece |

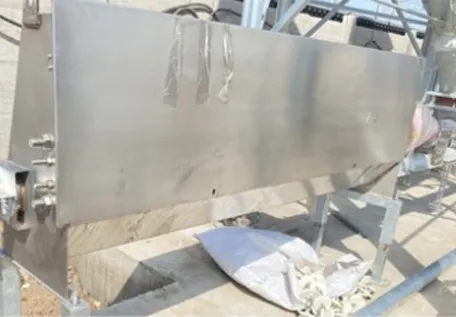

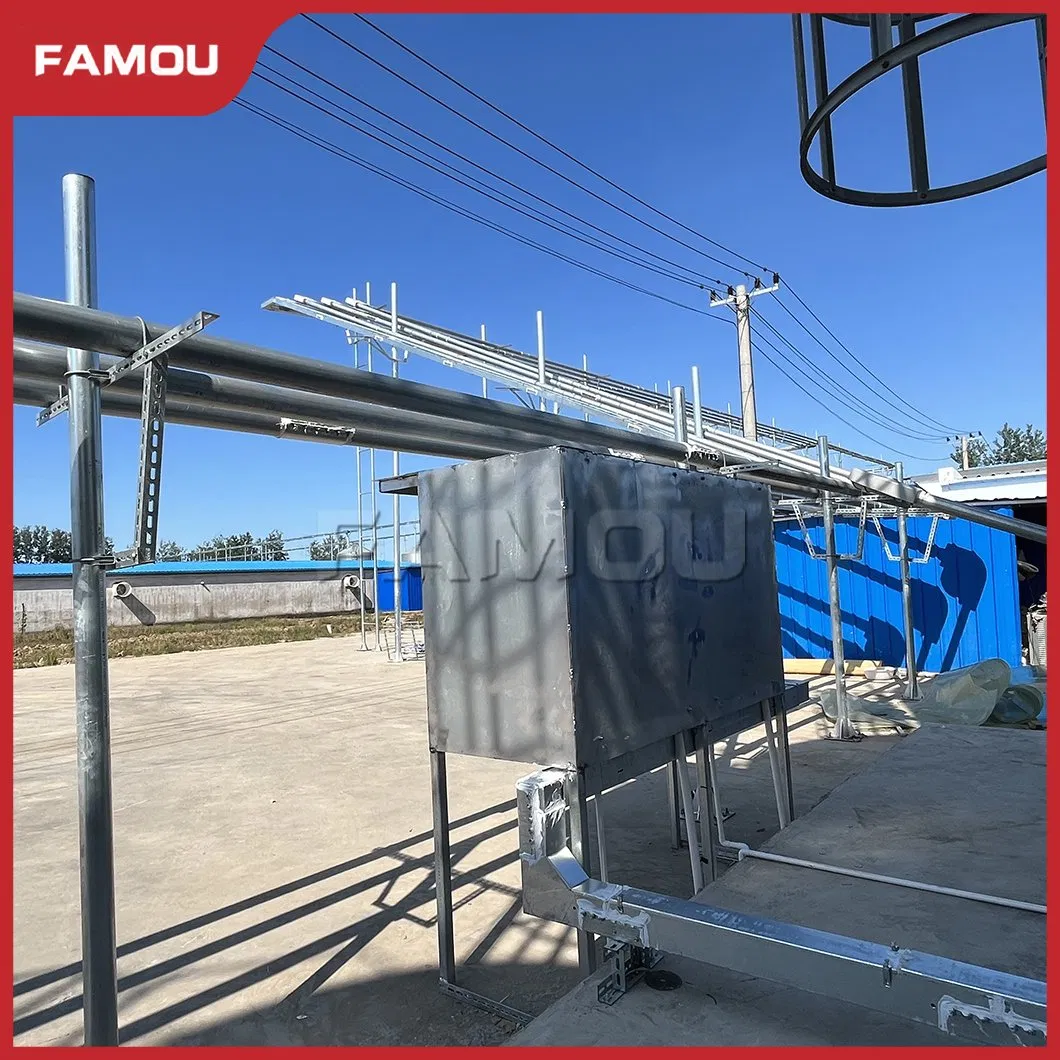

A steel sprocket wheel drives the chain as it passes through the drive unit while the chain tensioner assembly maintains proper tension on the chain for optimal performance.
Two safety switches; one located on the chain tensioner and the other on the access cover, prevent chances for injury or damage to the system's components.
A clamping safety rod provides additional increased operator safety compared to cable or spring options when the drive unit is open.
Systems feature superior grade hardened steel chain that is stronger than galvanized chain, which is weakened by heat during the galvanizing process.
Our multi-directional chain cannot be incorrectly installed and eliminates the need for frequent tightening common with cable style systems.
The low friction disks gently convey all common pig ration mixtures while minimizing damage or feed separation compared to flexible auger systems.

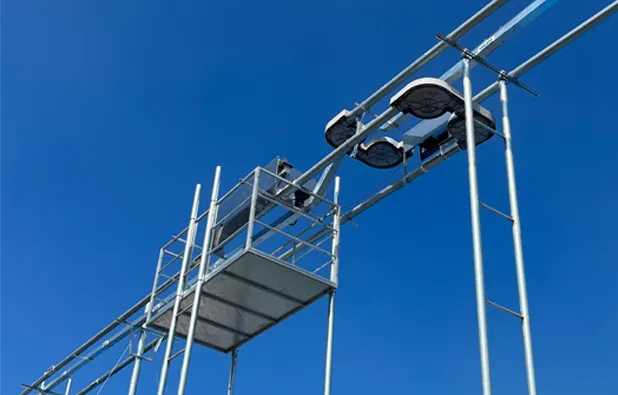

The black corner wheel housing is fabricated from a tough reinforced polymer with a dome peaked lid to prevent the accumulation of water or moisture.
The transparent swing down door is molded from impact resistant polycarbonate with 3 toggle latches that hold it securely in place.
Molded metal inserts with rubber seals reinforce critical axle wear points to prevent cracking and eliminate moisture from entering the housing.

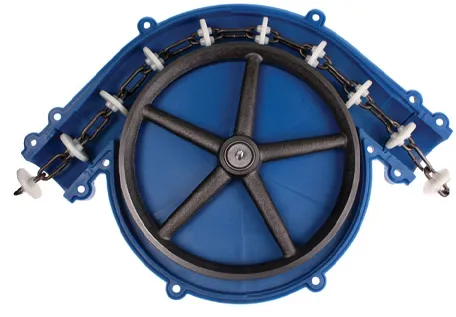

The corner wheel housing is constructed of durable, heavy-duty fiberglass reinforced polymer, which is stronger than polypropylene and designed to withstand years of constant use in production environments.
A heavy cast iron corner wheel turns on a stainless steel axle and a low-friction, encapsulated ball bearing.
The self cleaning design prevents feed build-up in the wheel housing providing long-term reliability.
Nursery and finishing pigs can be sorted from any pen as needed since it doesn't rely on a hopper/feeder switch to activate feed cycles. Empty farrowing rooms or stalls will not create issues with pig movements and feed availability.
Feed availability is easily controlled at each individual output location by opening/closing the feed drop or sow drop.
Available kit and replacement parts install directly on the feed line for easy access and adjustment.
