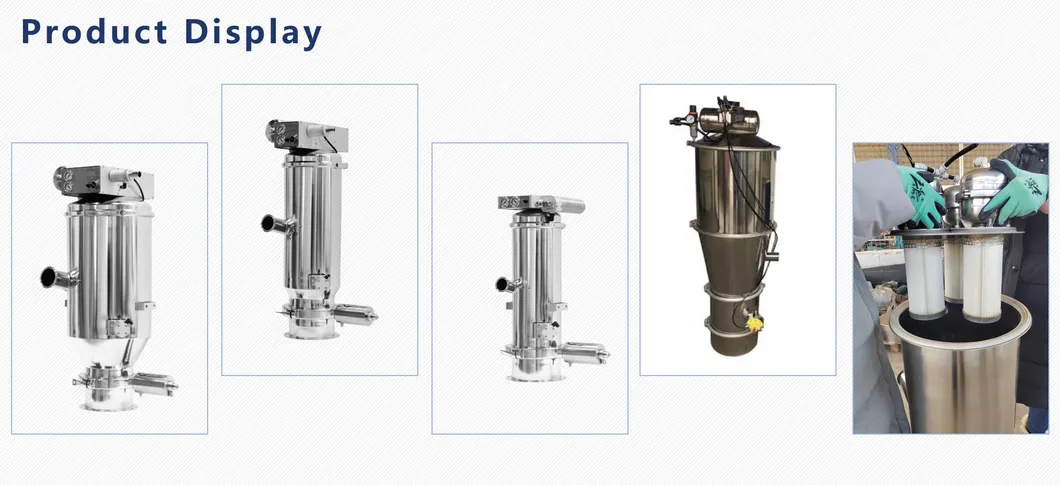

Advanced Pneumatic Powder Feeder with Negative Pressure Technology

1 / 5

Advanced Pneumatic Powder Feeder with Negative Pressure Technology

Customization:	Available
Capacity(t/h):	Customized
Control System:	Fully Automatic Control

Send Inquiry

Product Description

Basic Info.

Model NO.

XL-14/XL-33/XL-56

Conveying Distance

10 meters

Motor Power(kw)

1~10

Usage

Building Materials, Chemical Industry, Metallurgy, Food Processing

Voltage

220V~600V

Control Method

Button / PLC

Conveying Method

Negative Pressure Pneumatic Conveying

Certification

CE, ISO

Transport Package

Non-Fumigated Wooden Box

Specification

XL-14/XL-33/XL-56

Origin

China

Production Capacity

50000 Pieces/Year

Product Description

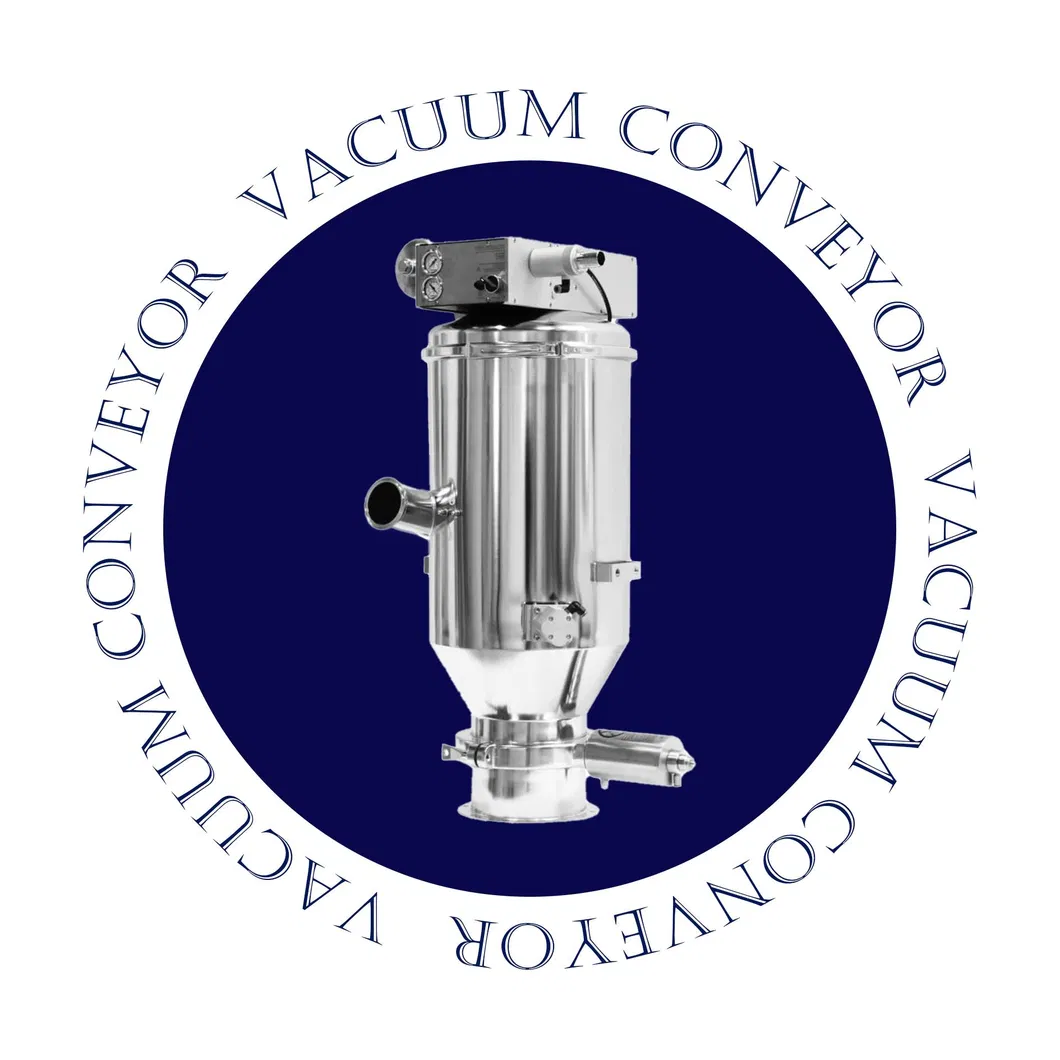

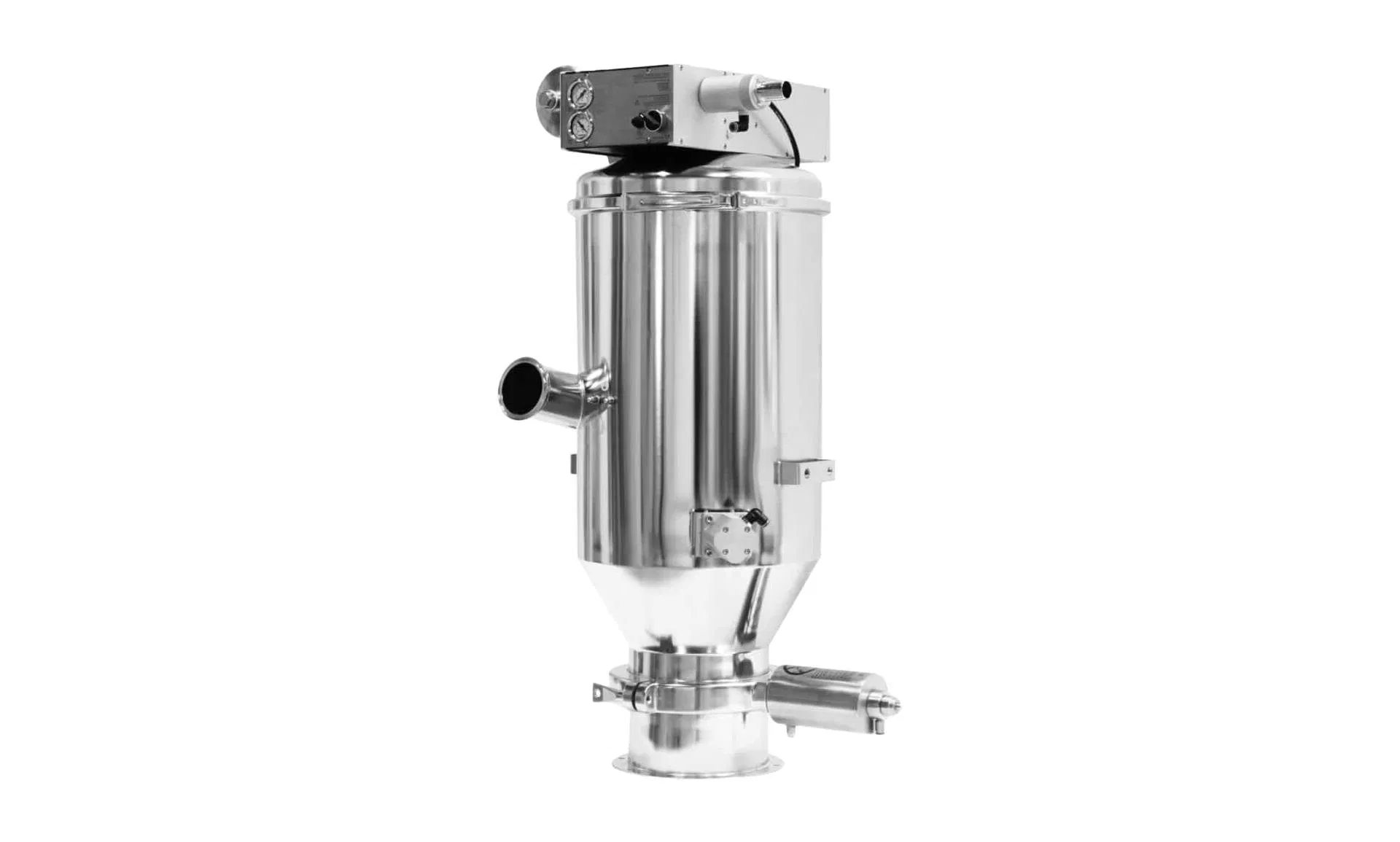

Vacuum Conveyor

The vacuum conveyor stands as a pinnacle of contemporary engineering excellence, featuring revolutionary technology and unparalleled efficiency. This exceptional system sets a new benchmark in material handling solutions with its innovative and elegant design. Delivering an entirely dust-free, sealed pipeline conveying solution, this remarkable system showcases engineering brilliance. Expertly designed to transport granular and powdery materials effortlessly, powered by robust vacuum suction, it redefines convenience and efficiency in material handling.

Utilizing the pressure differential between the vacuum and its surroundings, it generates a dynamic airflow within the pipeline. This advanced technique propels powdered materials at impressive speeds, ensuring precision, optimal performance, and consistent results in every application.

To meet the diverse needs of various industries, customized vacuum conveying systems are offered that seamlessly integrate sophisticated cleaning and sterilization functionalities, alongside state-of-the-art high-precision weighing capabilities. This combination establishes new standards for accuracy and reliability in material handling.

Key features include a standalone reverse blowing mechanism for automatic filter cartridge cleaning.
A streamlined structure for effortless operation and maintenance, paired with low noise levels that foster a tranquil working environment.
Cost-efficient operation with wide-ranging applicability, offering unmatched versatility and value.
Completely enclosed, eco-friendly conveying that ensures zero material leakage, safeguarding both product quality and environmental integrity.
Utilization of inert gas for secure transport, allowing for the safe handling of flammable and explosive materials, providing unparalleled safety.
A material suction machine with integrated cleaning balls and components, enabling in-place cleaning (CIP) and sterilization (SIP), ensuring immaculate hygiene effortlessly.
Customizable high-precision weighing components, delivering measurements with 0.5% precision, ensuring consistent quality control.

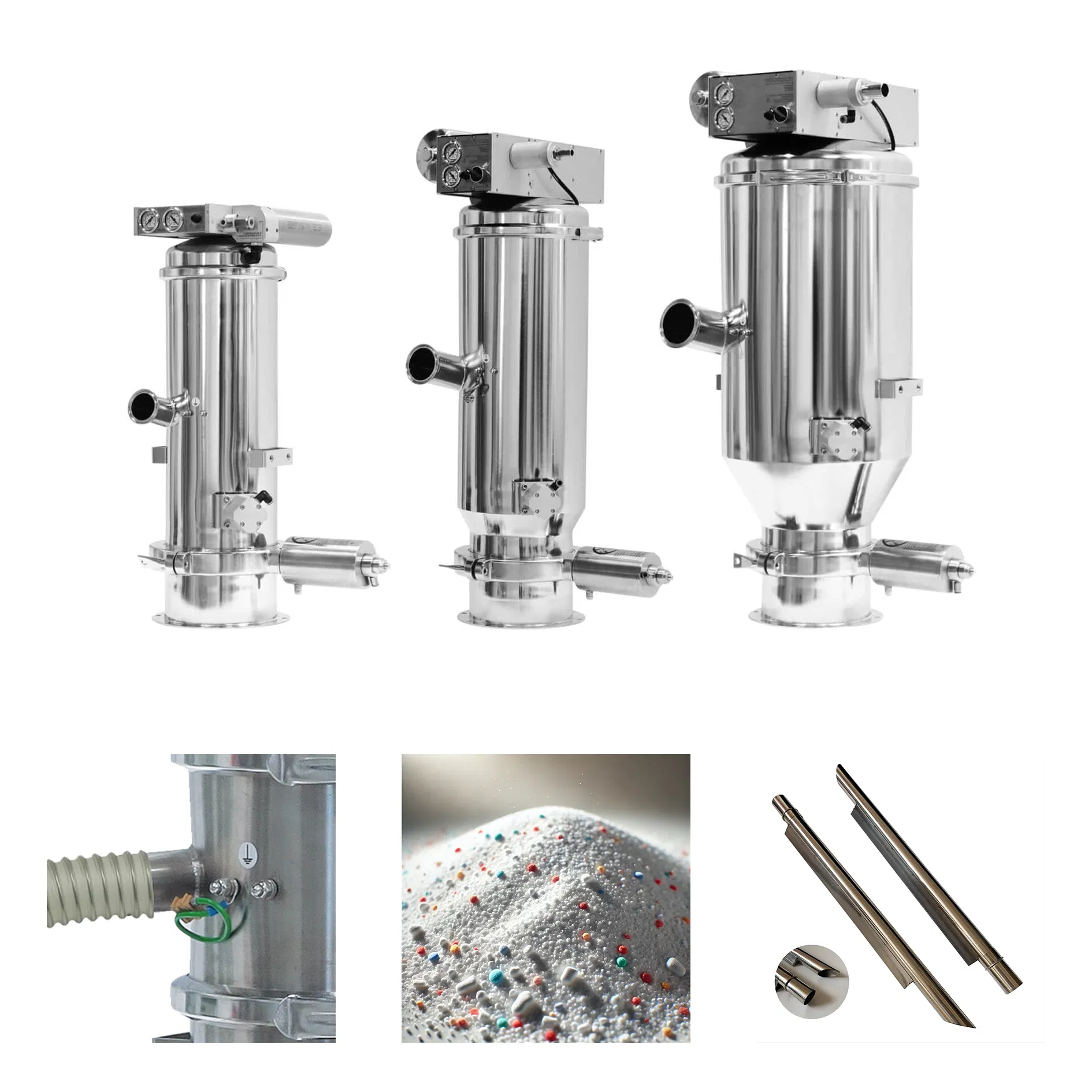

Model	XL-14	XL-33	XL-56
Volume (L)	14	33	56
Power (W) [1]	200
Compressed air consumption [2] / Pressure [(L/min)/MPa]	100/0.6		200/0.6
Vacuum extraction interface	2-inch quick connector	3-inch quick connector	4-inch quick connector
Feed inlet interface	2-inch quick connector	3-inch quick connector	4-inch quick connector
Weight (Kg)	37	40	65
Overall dimensions (mm) [diameter × height]	Φ400 × 1000	Φ400 × 1250	Φ650 × 1350

[1] Excludes the power requirements for any additional selected fan and its electrical components, providing transparency on energy consumption.
[2] Specifies only the compressed air consumption required for the backflush device, clearly defining operational metrics.

Our Customers

Frequently Asked Questions

What types of materials are vacuum conveyors designed to handle?

Vacuum conveyors are expertly engineered to transport both granular and powdery materials efficiently under negative pressure, ensuring a dust-free and clean conveying process.

How is the dust-free environment maintained during operation?

By utilizing a completely enclosed and sealed pipeline system powered by vacuum suction, the material remains isolated within the system, ensuring zero leakage and safeguarding product quality.

Can these conveyors handle hazardous, flammable, or explosive materials?

Yes. The systems can utilize inert gas during the conveying process to ensure secure transport and prevent ignition when handling volatile or explosive powders.

Does the vacuum conveyor require manual filter cleaning?

No, the system is equipped with a standalone reverse blowing mechanism that enables automatic cleaning of the filter cartridge, simplifying maintenance.

Are in-place cleaning (CIP) and sterilization (SIP) supported?

Yes, the material suction machine integrates dedicated cleaning balls and components that enable CIP and SIP sterilization protocols, meeting high hygiene standards.

What level of weighing accuracy do the systems offer?

The vacuum conveying systems can be customized with high-precision weighing components that deliver measurements accurate to within 0.5% precision for strict quality control.
