Automatic Dispensing PAM PAC Polymer Preparation Dosing Machine Equipment

Customization:	Available
After-sales Service:	Engineers Available for Technology Assistence
Warranty:	12 Months

Basic Info

Model NO.

YTH

Type

Polymer Dosing Machine

Method

Chemical Treatment

Usage

Industrial, Agriculture, Hospital, Municipal, Farming, Restaurant Sewage etc.

PAM Dosage

1-25 Kg/H

Water Inflow

0.3-12 M3/H

Motor

Nord/Customize

Electrical Component

Omron/Customize

Protection Level

IP55 F

Capacity

500-6000 L/H

Material

SS304

Transport Package

Wooden Case

Specification

according to customer's requirements

HS Code

8479820090

Production Capacity

3000 Sets

Packaging & Delivery

Package Size

690.00cm * 150.00cm * 140.00cm

Package Gross Weight

1500.000kg

Product Description

PAM PAC polymer preparation unit dosing polymer dosing machine equipment

The automatic polymer dosing machine is widely used in waste water treatment. It can mix the compounds continuously and effectively, so the reactive polymer solution appears. The machine includes different parts: dry powder hopper, infiltration device, Tank, Level controller, Mixer, water inlet pipe, and Electric cabinet.

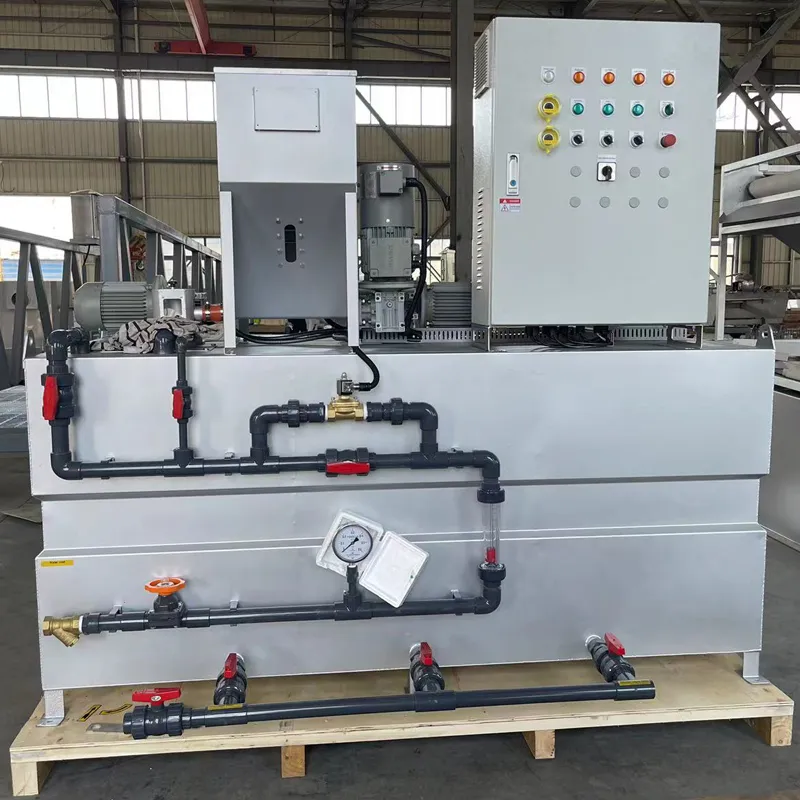

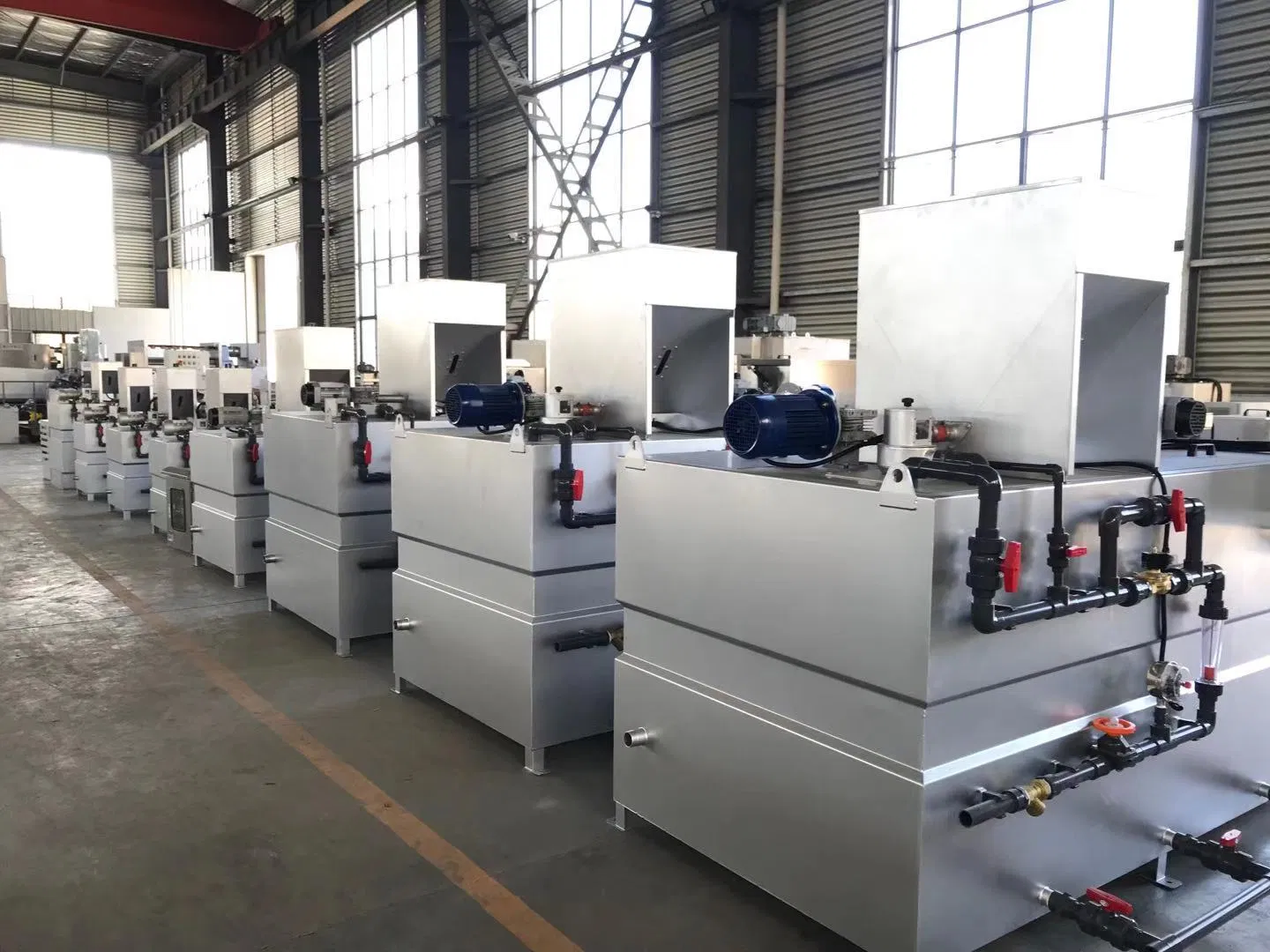

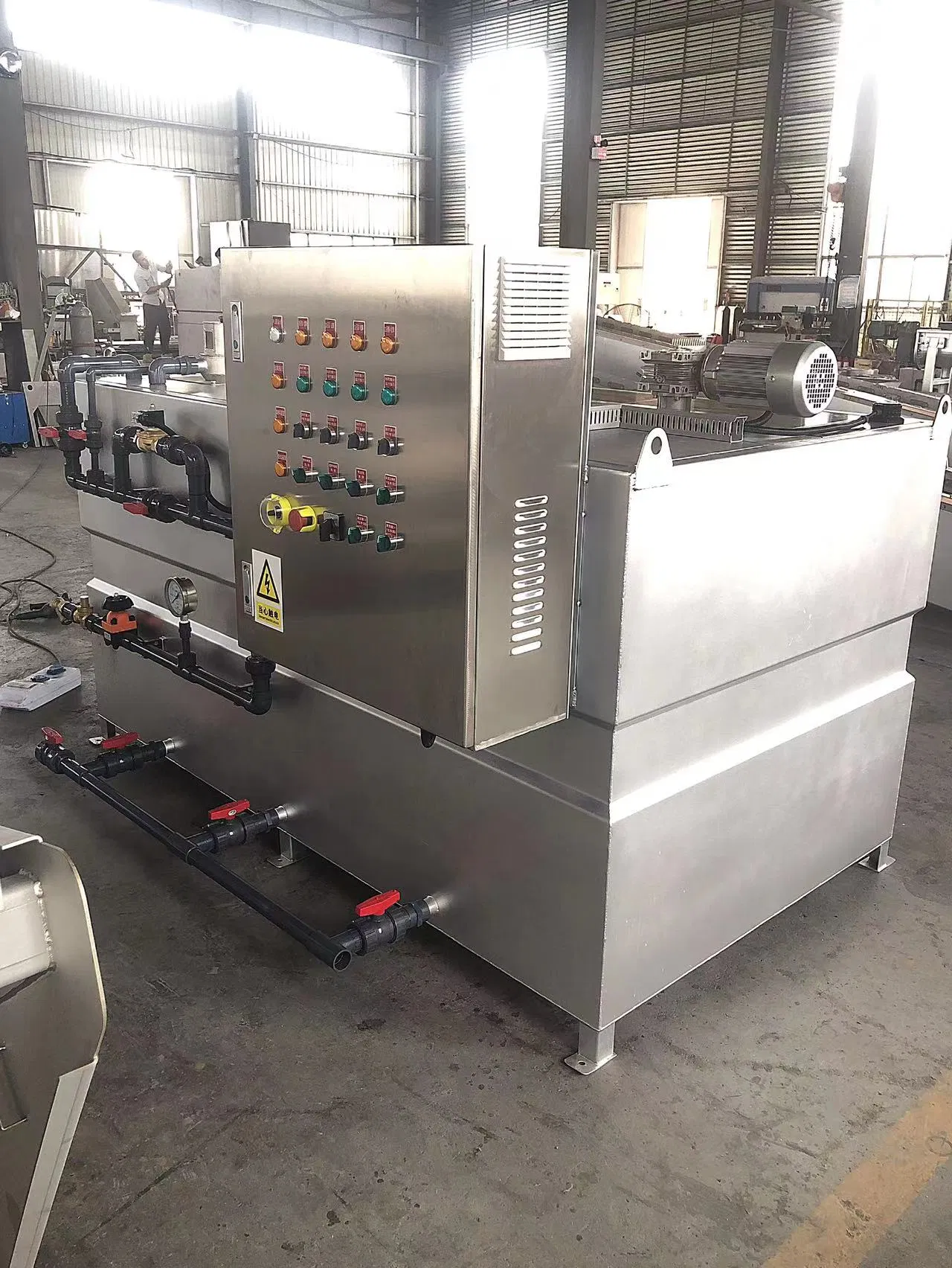

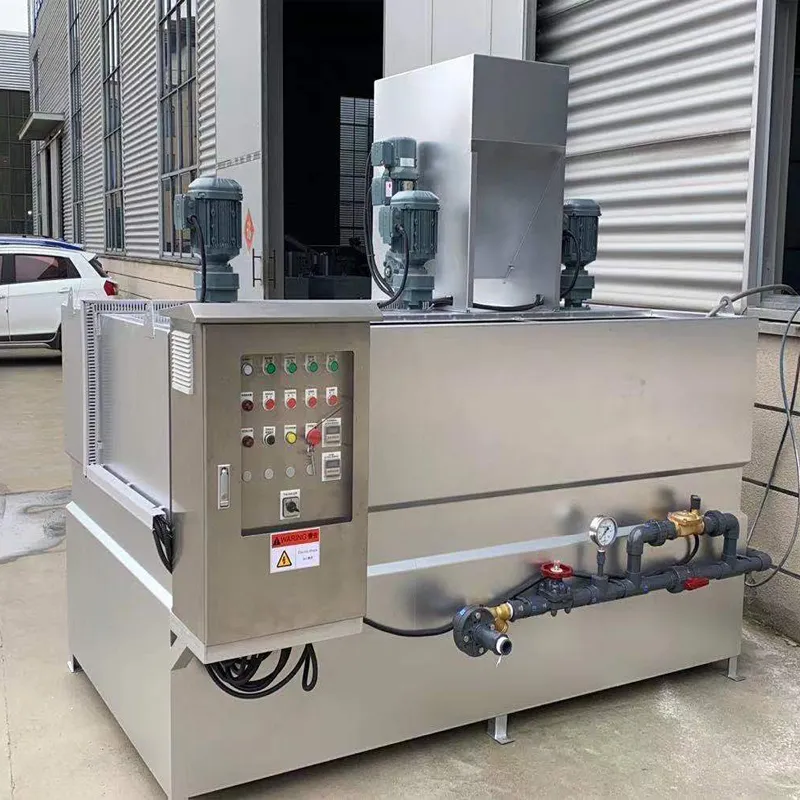

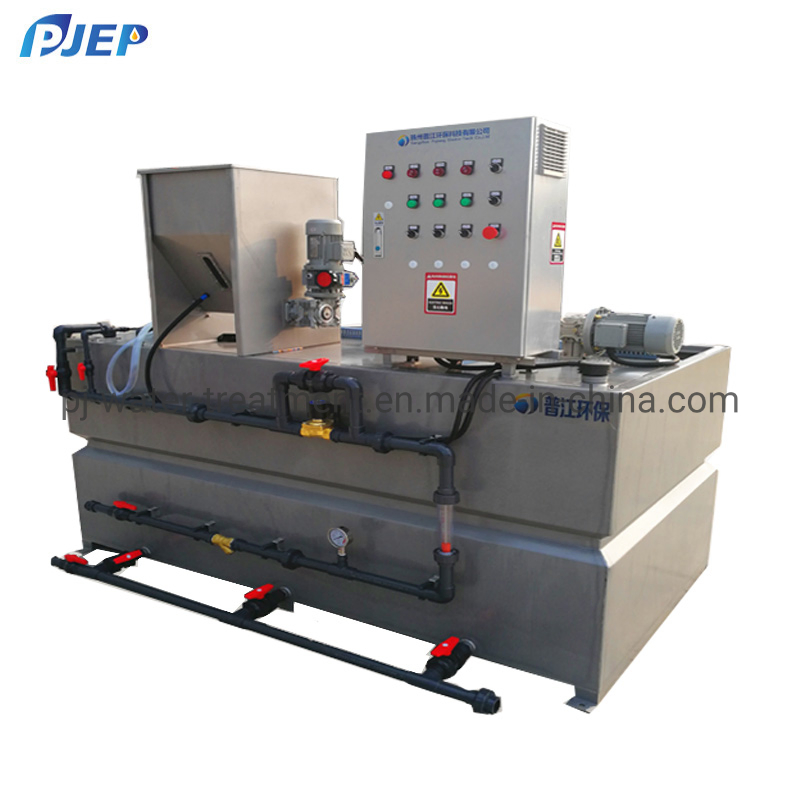

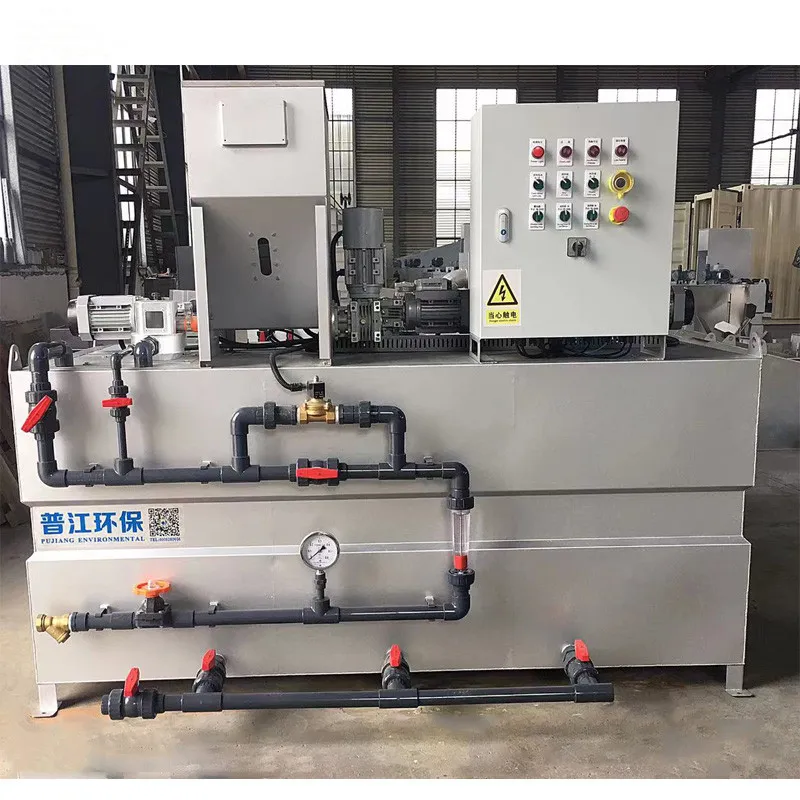

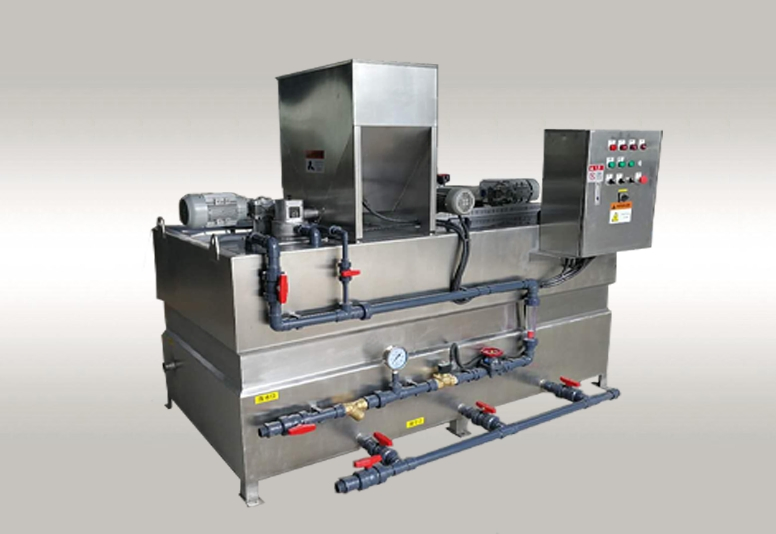

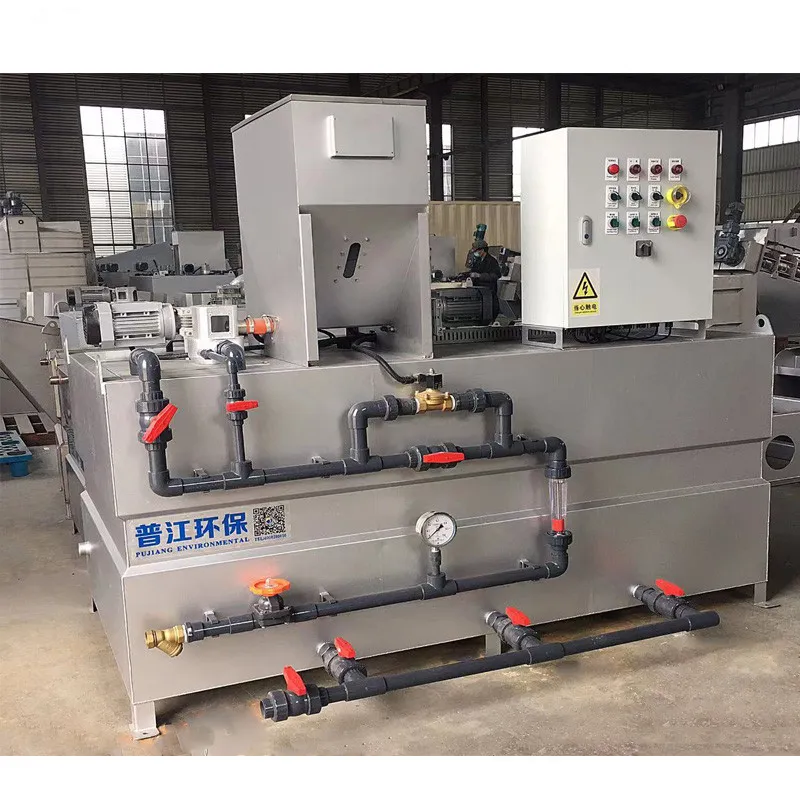

Detailed Photos

Automatic Dispensing PAM PAC Polymer Preparation Dosing Machine Equipment

Features

Fully automatic operation & integrated with automatic dosing, dissolving and feeding.
The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking.
The dosage of dry polymer and water can be adjusted, so the concentration of the solution can be prepared purposely. The electric control cabinet can control the whole process, and it will alarm to warn the operator to add polymer powder when the powder reaches a low position.

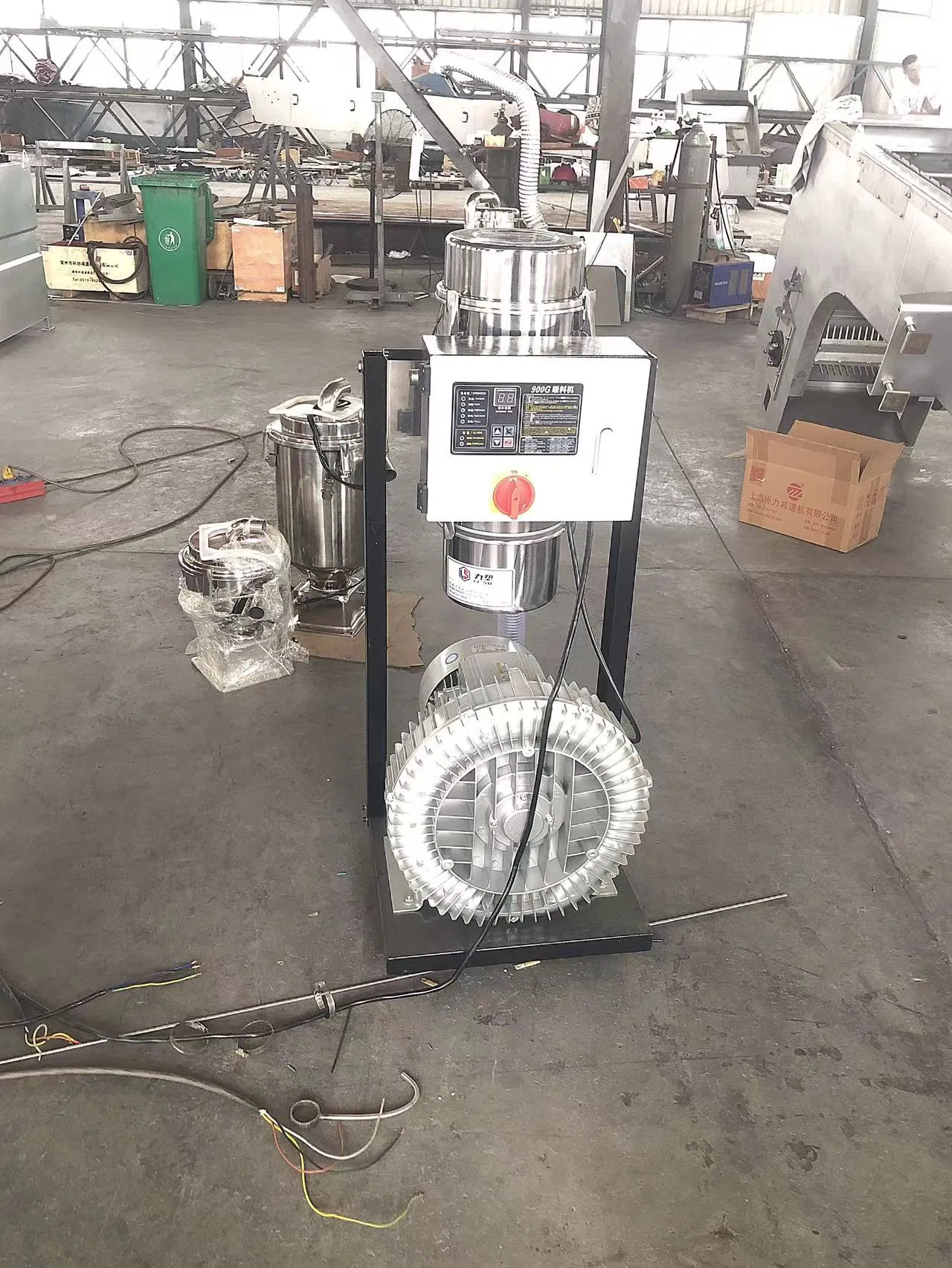

Optional: Vacuum feeding machine
Optional: on-line dilution system
Tank material: SS304 or SS316, Polypropylene PP, FRP etc.

Structure Diagram

Models & Specification

Model Item			YTH 500	YTH 1000	YTH 1500	YTH 2000	YTH 3000	YTH 4000	YTH 5000	YTH 6000
Capacity (L/h)	Curing for an hour		500	1000	1500	2000	3000	4000	5000	6000
Power (kw)			0.94	2.45	2.45	2.62	4.89	4.89	4.89	4.89
PAM dosage (kg/h)			1~5	2~10		3~15	3.5~20		4.5~25
Water inlet (m³/h)			0.3~1.5	0.6~3	0.9~4	1.2~6	2.0~10	2.4~12	2.4~12	2.4~12
Reference Dimension (mm)		L	1370	2000	2130	2200	2400	2720	2700	2970
		B	680	1000	1070	1200	1300	1400	1500	1600
		H	1485	1770	1810	1970	2270	2355	2222	2322
		L1	1320	1950	2080	2150	2350	2670	2630	2900
		B1	720	1040	1110	1245	1340	1440	1550	1650
		Powder feed port (DN)	DN25	DN32	DN32	DN32	DN40	DN40	DN40	DN40
		Water inlet port (DN1)	DN25	DN32	DN32	DN32	DN50	DN50	DN50	DN50
		Overflow port (DN2)	DN32	DN40	DN40	DN40	DN40	DN40	DN40	DN40
		Vent port (DN3)	DN25	DN32	DN32	DN32	DN40	DN40	DN40	DN40
N.W. (kg)			250	400	490	550	700	770	960	1050
