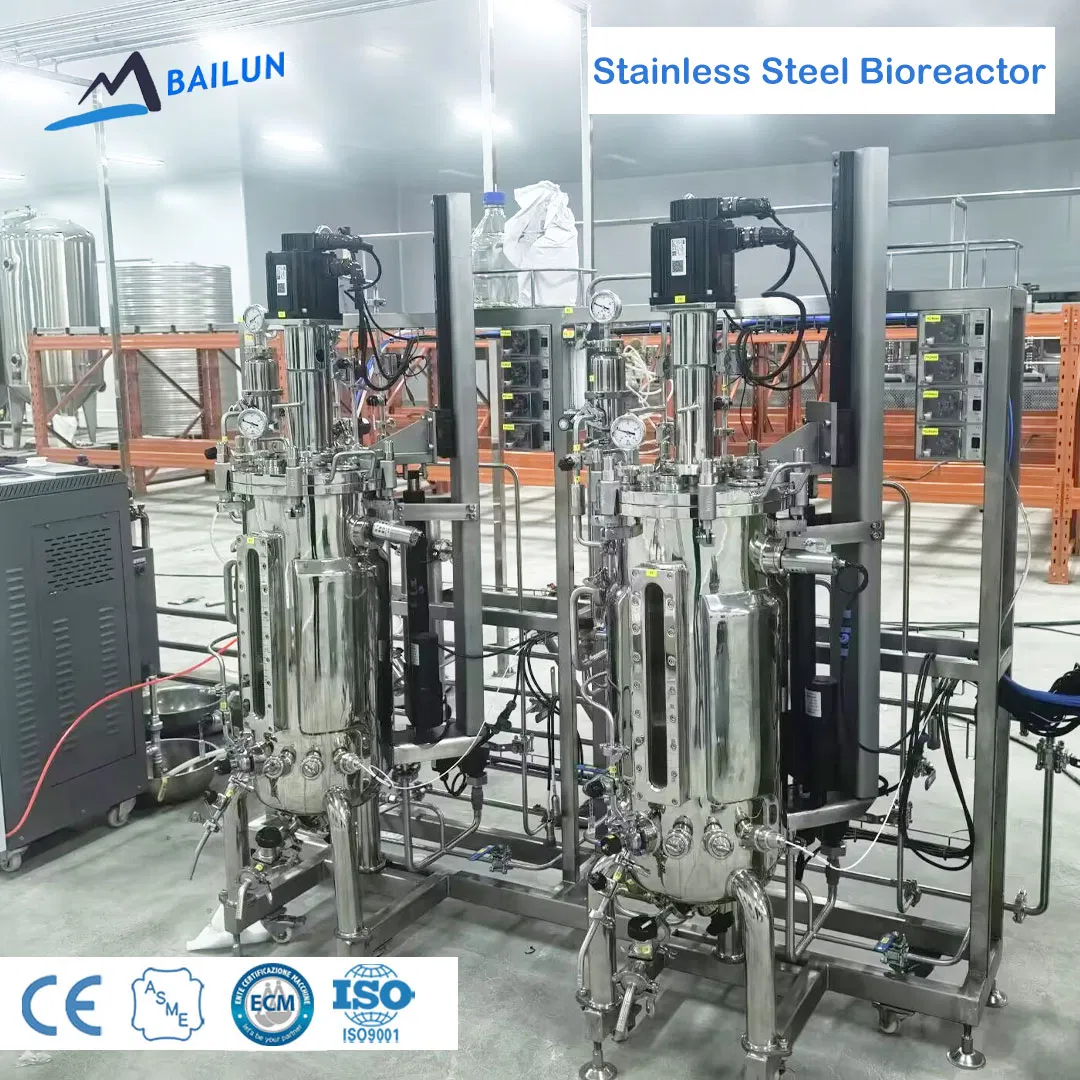

Instant Dry Yeast Production Line Fermenter Jacketed Stirred-Tank Bioreactor

1 / 5

Instant Dry Yeast Production Line Fermenter Jacketed Stirred-Tank Bioreactor

Customization:	Available
After-sales Service:	Online After Sales
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.BLBIO-SJA/SCA

FunctionReaction Pressure Vessel

ApplicationLiquid

MaterialStainless Steel

Pressure0.1MPa≤p<1.6MPa

Storage MediumNontoxic

Pressure LevelLow Pressure (0.1MPa≤p<1.6MPa)

ConditionNew

Total Volume5L~50kl

Feeding Volume30%~70%

Stirring SystemAirlift System

Ventilation1~2vvm

pH/Do SensorHamilton/Mettle, Switzerland

ApplicationsVaccine Production/Microbial Culture/Bacteria Cult

Compliance StandardCE Certified/ISO 9001/ASME Bpe Certificate/cGMP St

Jacket Tank Material316L Stainless Steel/304 for Jacket with Insulatio

Control SystemPLC + HMI (Touch Screen), SIP/CIP, Customizable

Controled ParameterspH, Do, Temparature, Anti-Foaming, Aeration,Feeding

SterilizationFull Automatic Sterilization on-Site(SIP)

Aeration Filter0.2μm, Dominica United Kingdom

Solenoid ValveUnid, Taiwan China

Pressure TransmitterBd, Germany

After-Sales ServiceEngineers Available to Service Machinery Overseas

Transport PackageWooden Case

Specification5~300000L

HS Code8419899090

Production Capacity5000 Set/Year

Packaging & Delivery

Package Size180.00cm * 100.00cm * 200.00cm

Package Gross Weight400.000kg

Product Description

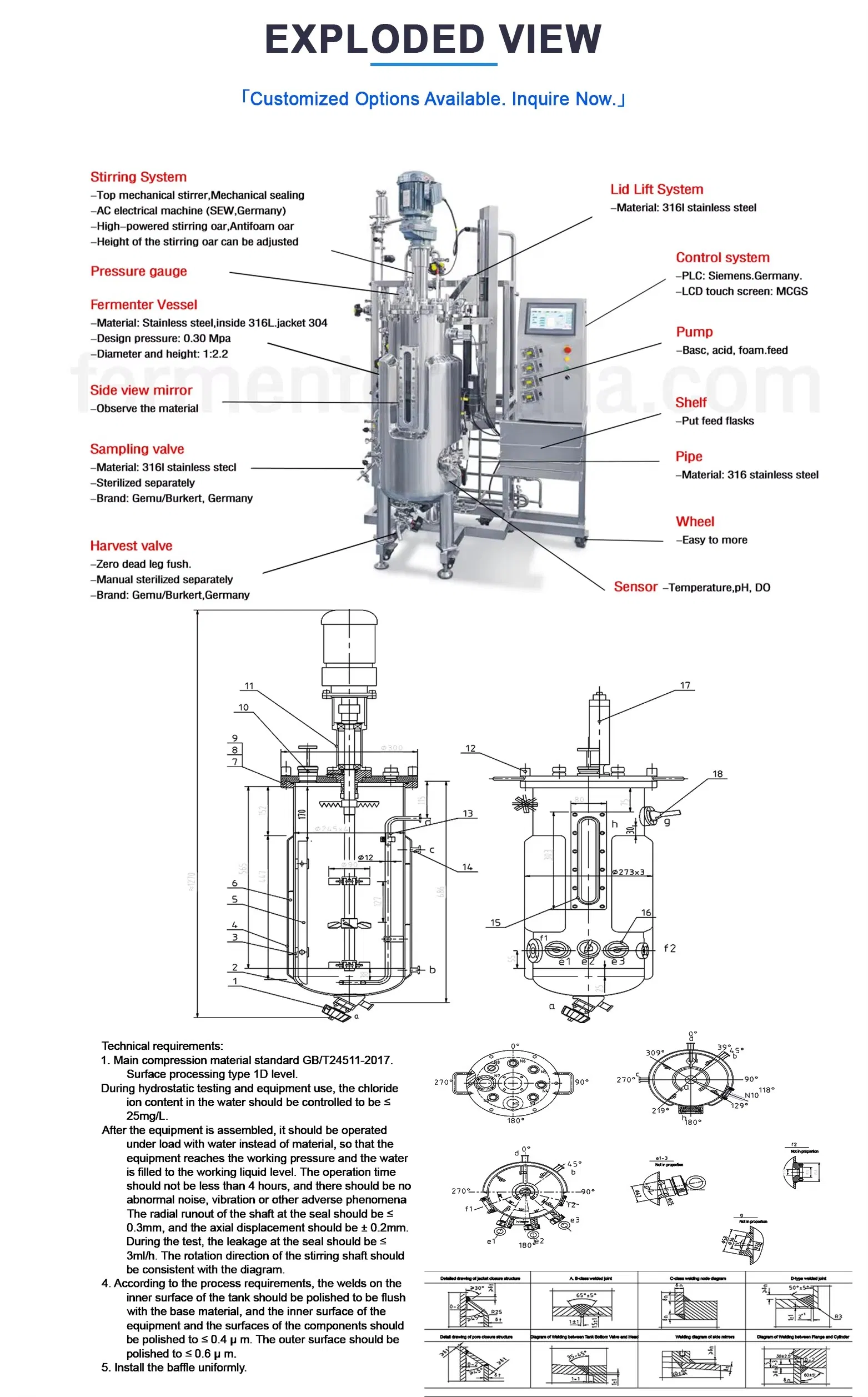

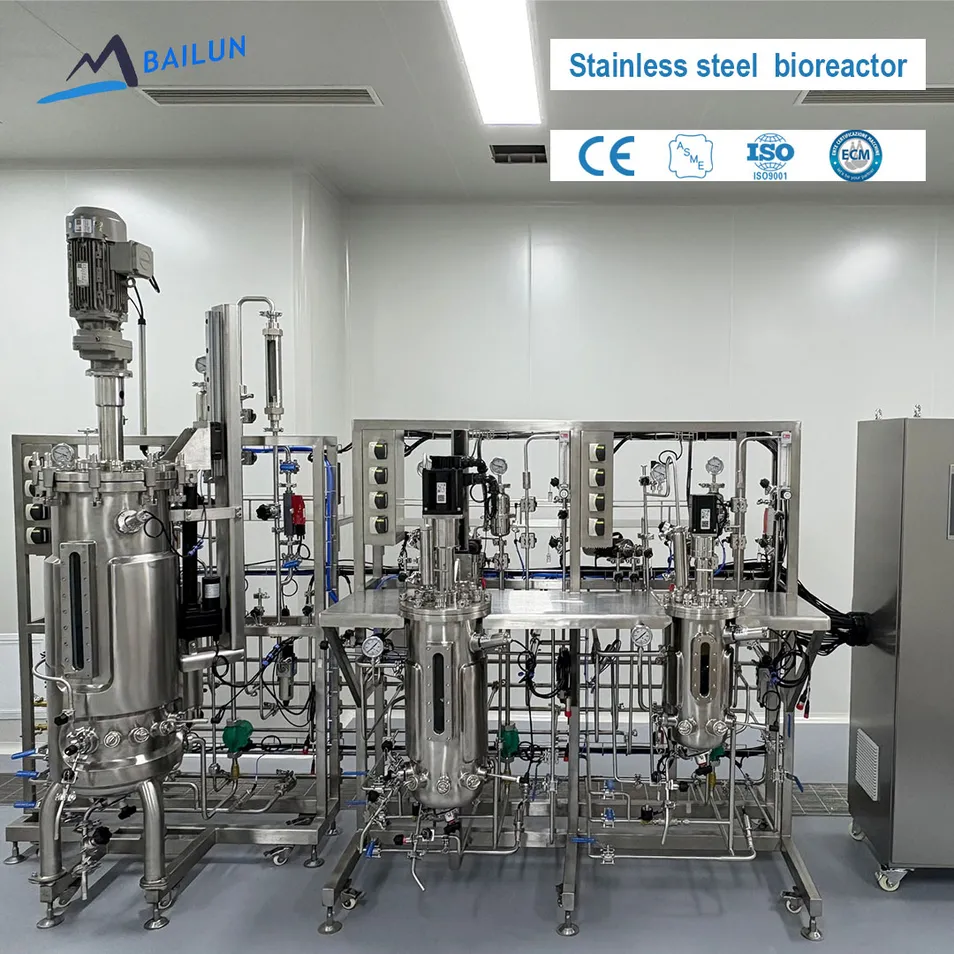

Fermenter Jacketed Stirred-Tank Bioreactor Specification

BLBIO-SJA Bioreactor

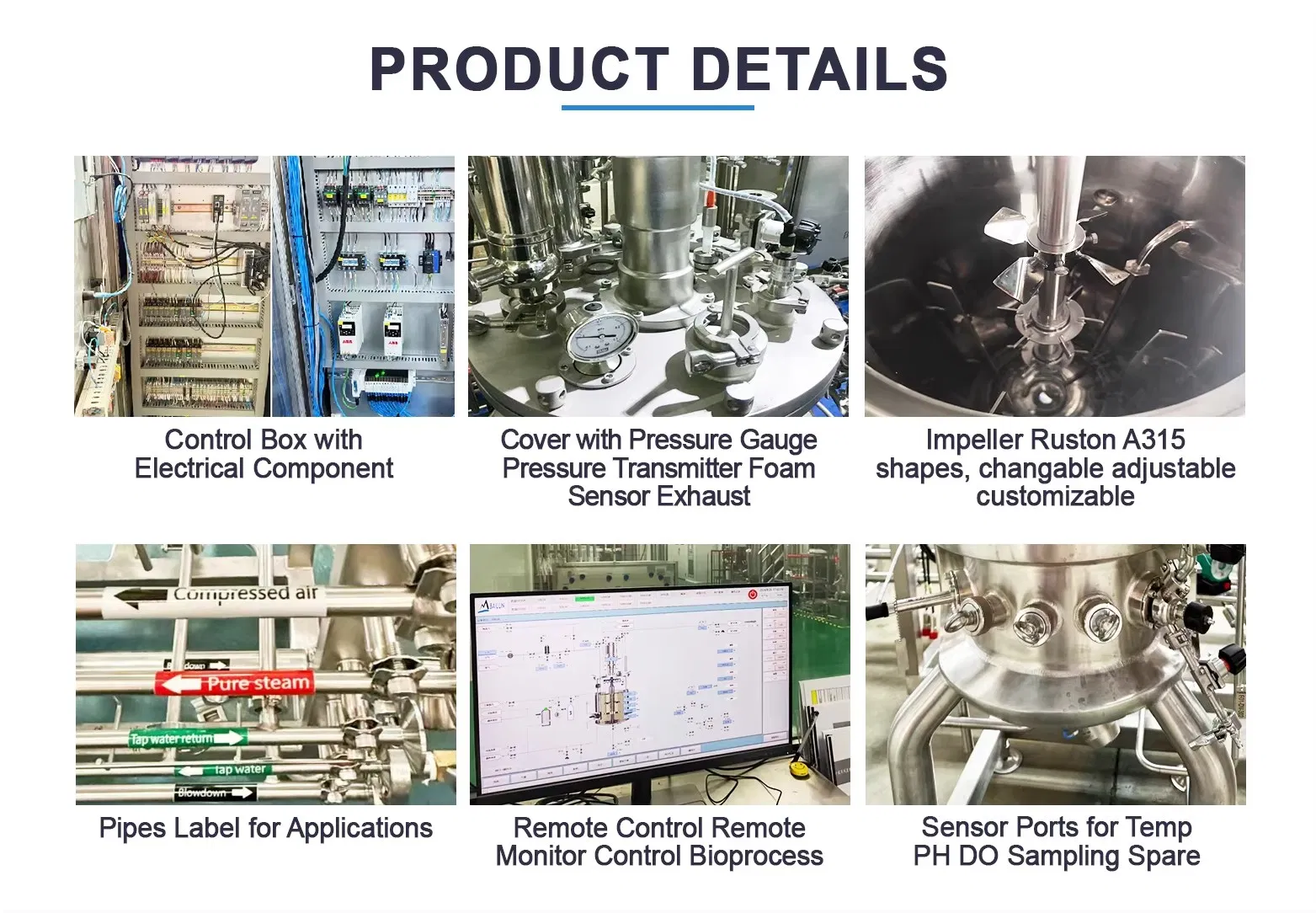

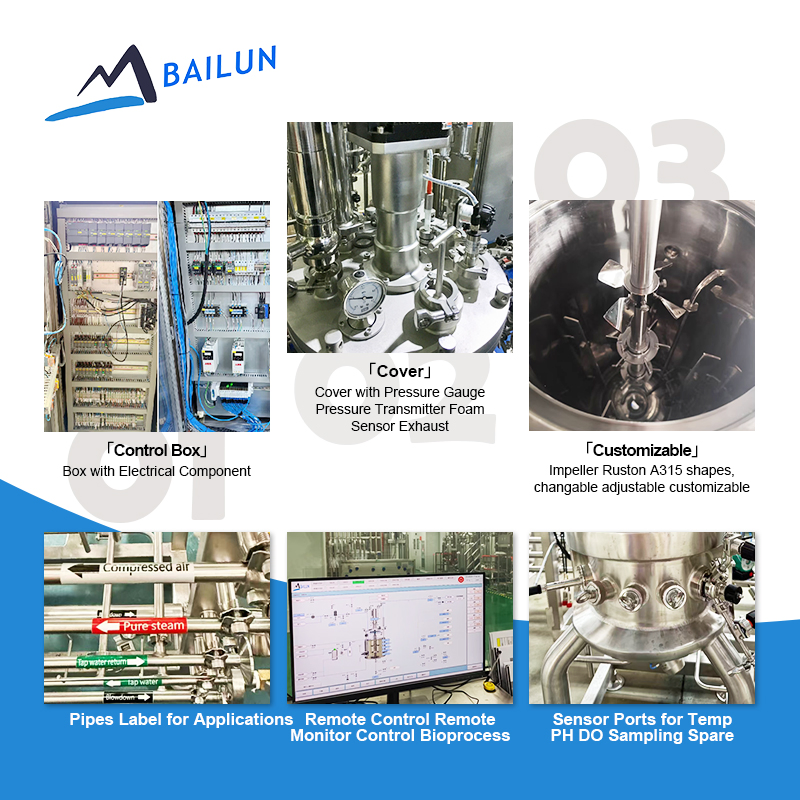

Standard Main Functions:

Automatic control of Temperature, Agitation, pH, and Dissolved Oxygen
Defoaming, Feeding, and Tank Pressure control
SIP (Sterilization-in-Place) and CIP (Clean-in-Place) via spray ball
Air Flow control, Sampling, Harvesting, and Lid lift system
Stainless steel bioreactor fermenter supports customization and design

More Optional Features: Remote control, Mass flow meter, gas O2/N2/CO2, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Variable speed pump, Printing, 15" color touch screen, Siemens screen, program open setting, etc.

System Specifications

Total volume	5L, 10L, 15L, 20L, 30L, 50L, 100L, 150L, 200L, 300L, 500L, 700L, 1000L, 2000L, 5000L ... 20KL, 30KL, 50KL, 100KL, 200KL
Working volume	30% ~ 70%
Basic Configuration	Auto control Temperature/Agitation/PH/Dissolved Oxygen/ Defoaming/Feeding/Tank Pressure/SIP, CIP by spray ball, control Air Flow, Sampling, Harvest, Lid lift system
Optional Functions	Remote Control, Mass Flow Meter (Auto Control Gas), Bypass O2/N2/CO2, Gas (CO2/O2/N4/CH3) Exhaust Analysis, Level Sensor, Turbidity (OD) Sensor, ORP Sensor, Weight System, Live Cell Sensor (Biomass), Printing, Siemens Touch Screen, etc.

Certifications

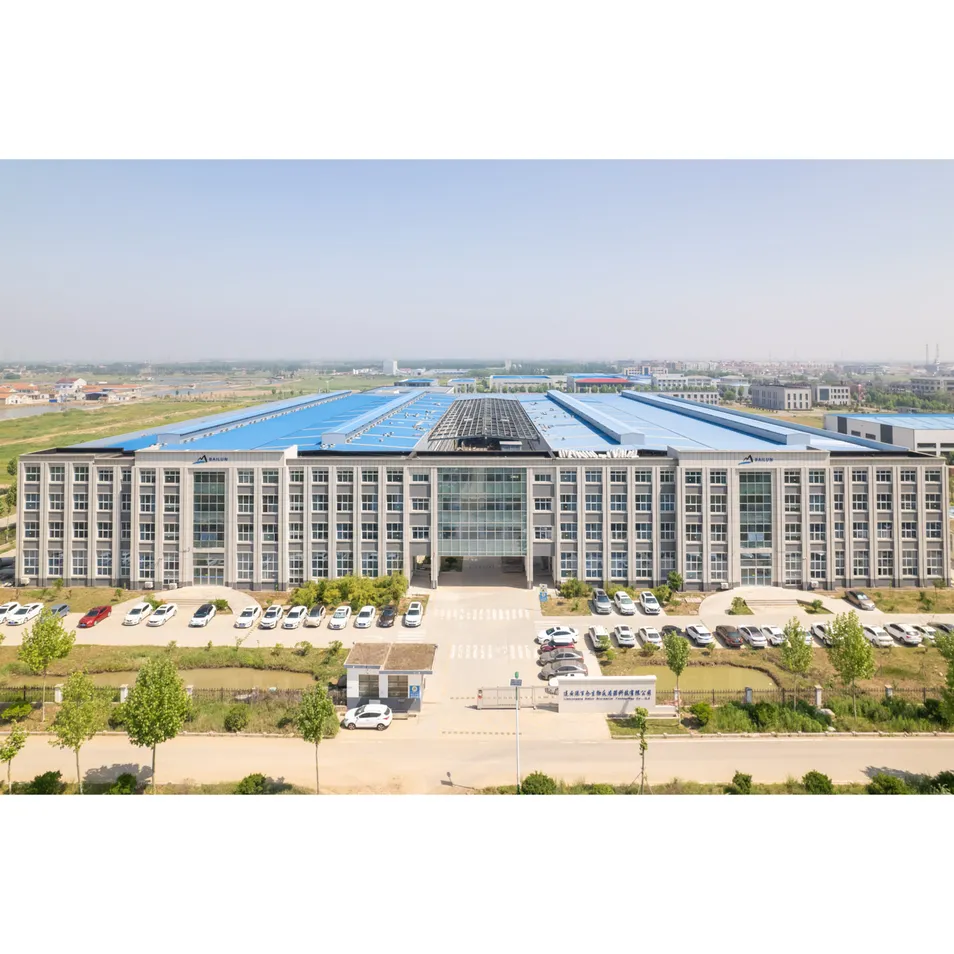

Profile

We are a leading supplier of intelligent data-driven bioreactor systems. Products cover all kinds of bioreactors in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc.

We can produce bioreactors of 0.1L-1000KL volume, provide technical services, and design intelligent and personalized comprehensive solutions for bioreactors process.

Our technical team consists of experienced fermentation process, biochemical equipment and chemical technical engineers, alongside many famous experts and scholars as our technical consultants. We forever pursue creating value for customers, and adhering to customer-centricity is our core value.
