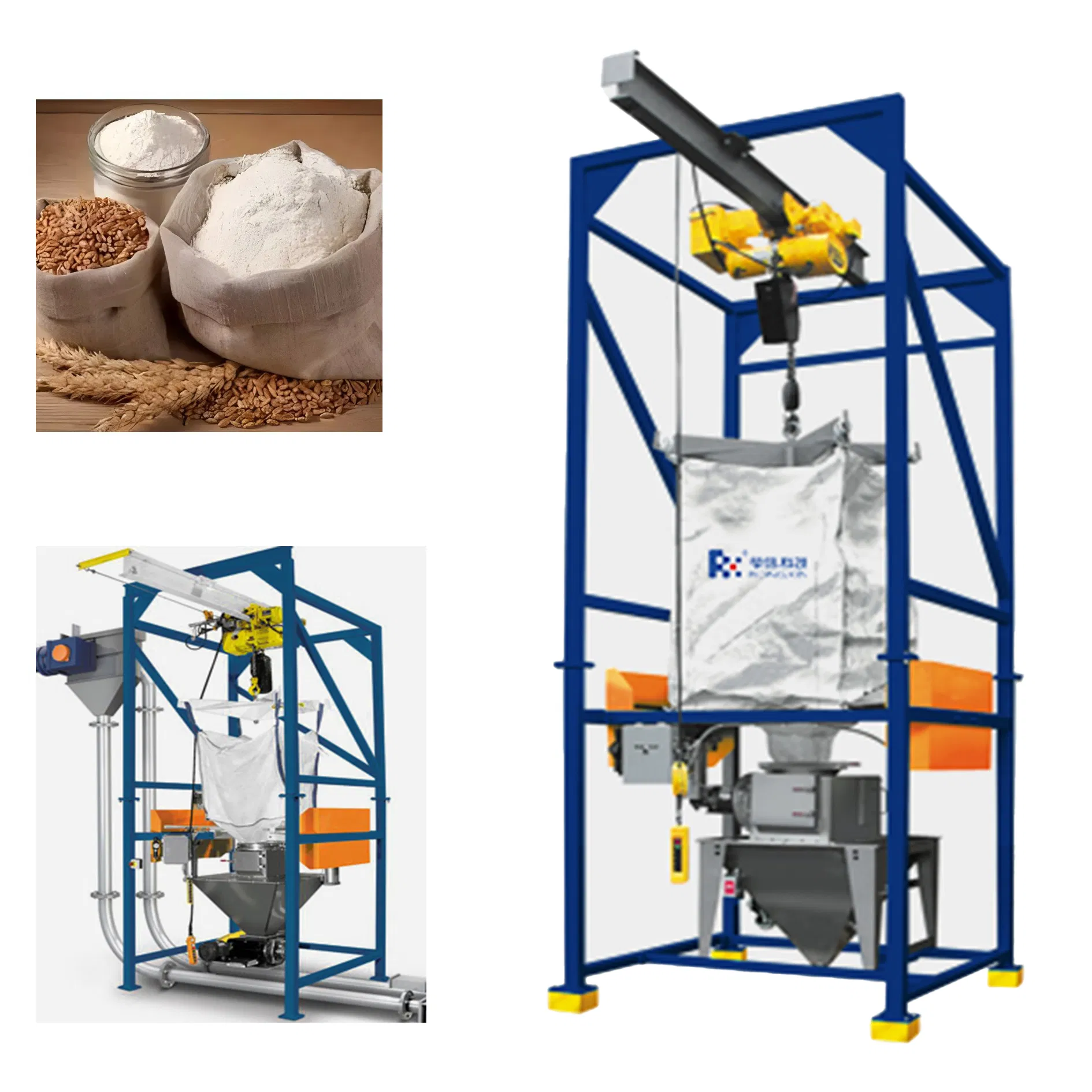

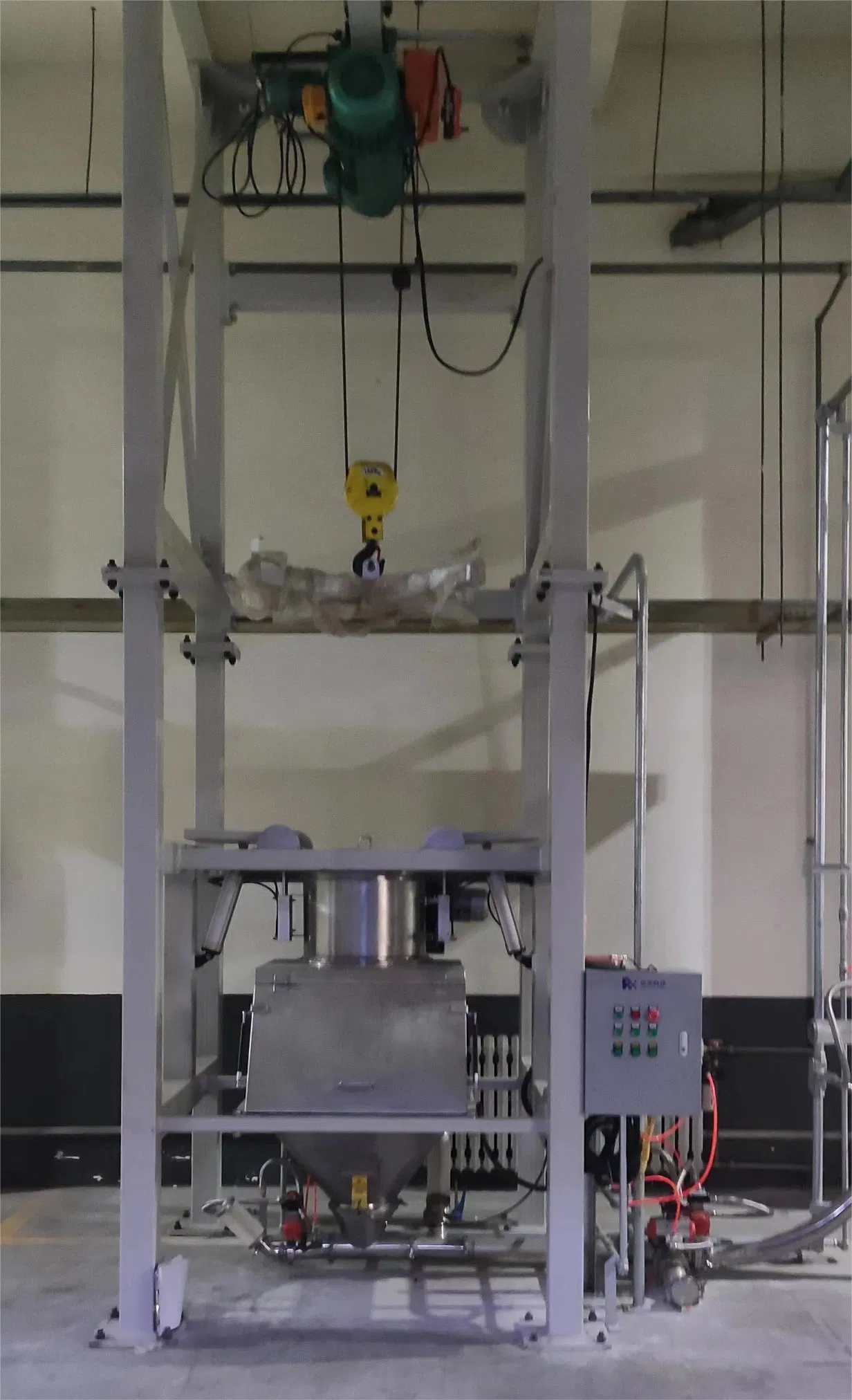

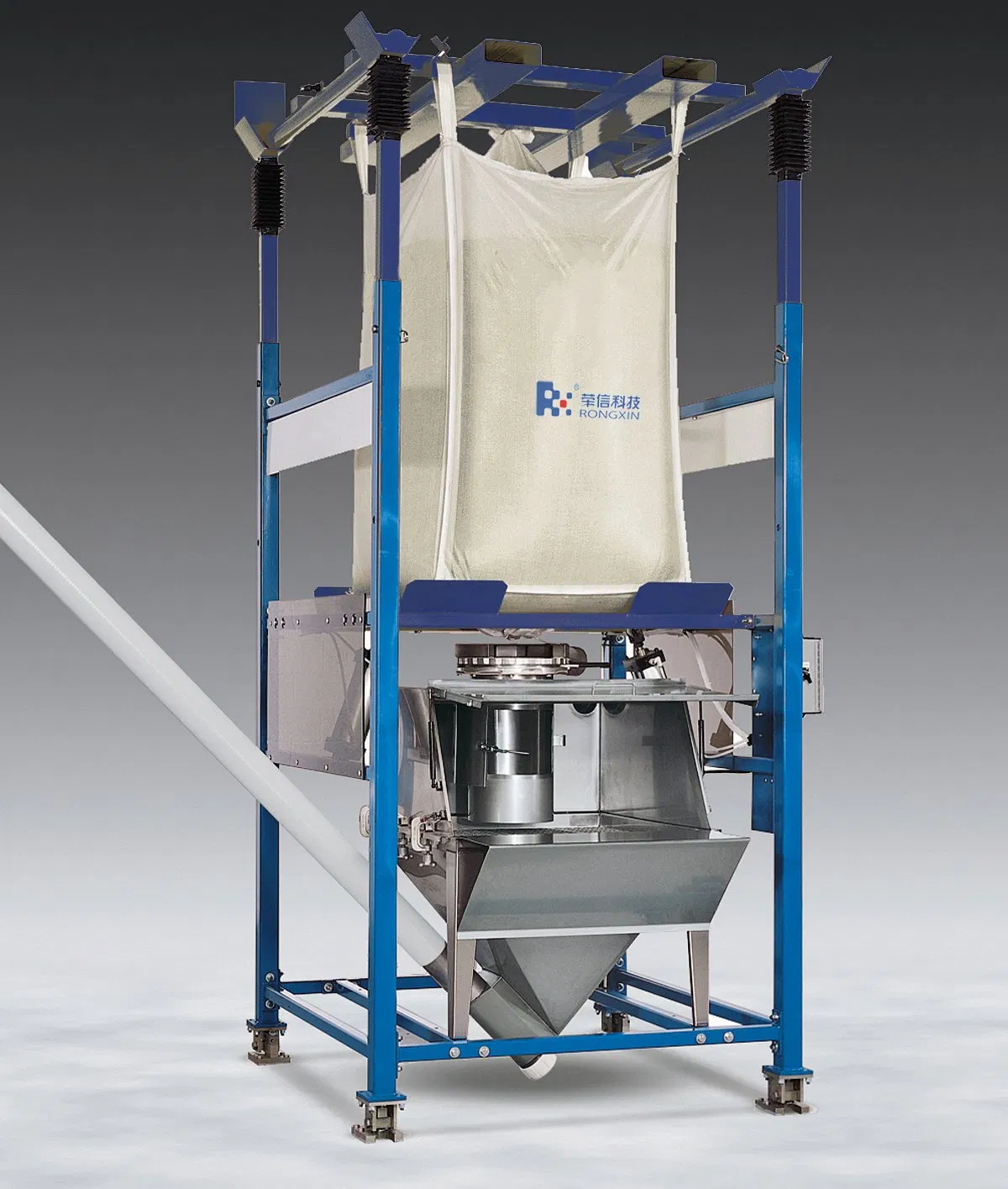

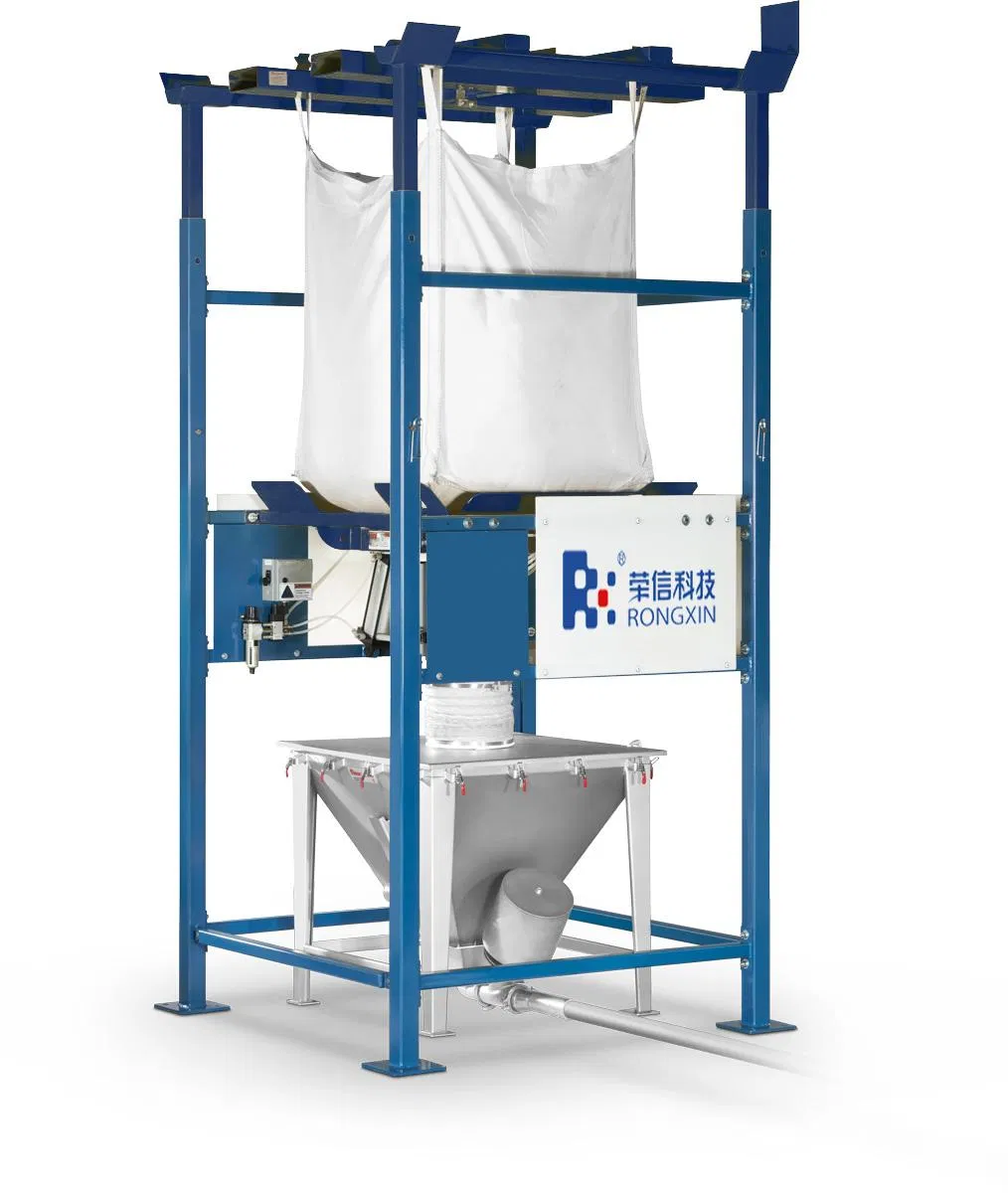

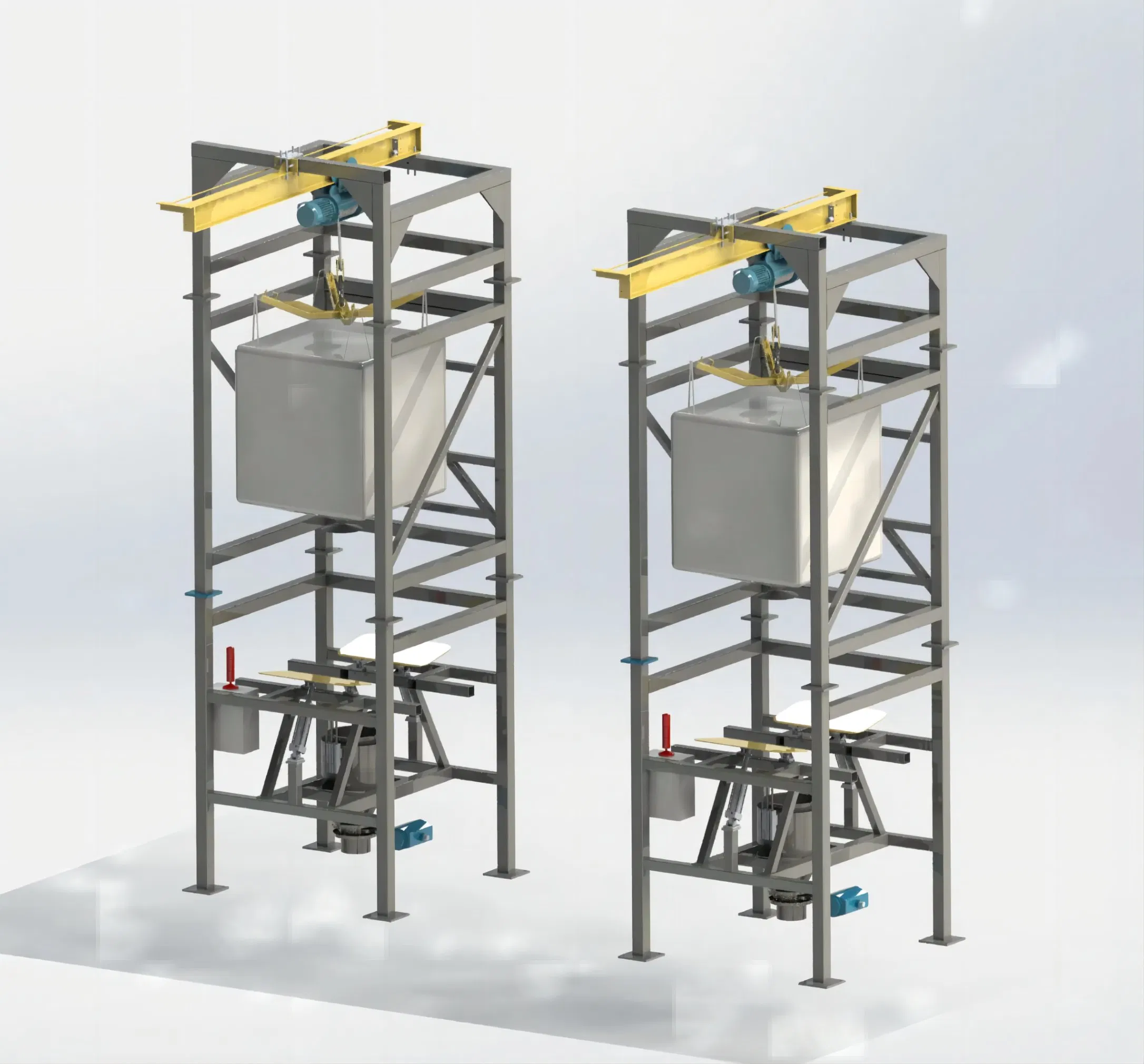

The Ton Bag Feeding Station
boasts a sleek and intuitive design, coupled with cutting-edge automation features. This innovative combination dramatically enhances feeding efficiency and significantly minimizes the labor-intensive tasks usually demanded of operators.
Moreover, it can be outfitted with a sealed bag clamp to ensure an airtight bag opening, effectively preventing any dust dispersion. For materials with poor flowability, additional vibration or tapping devices can be incorporated to enable seamless and efficient unloading.
Unpacking methods include manual assistance for bag opening or automatic knife cutting, catering to various types of ton bags. The high efficiency of this ton bag feeding station effectively tackles challenges such as clumping and discharge issues caused by moisture absorption during the bag opening process.
| Structural Unit | Specification | Material |
|---|---|---|
| Pounding Device | Pneumatic Control | Q235/304/316L Stainless Steel |
| Electric Hoist (Lifting Capacity) | 1T/2T/3T | |
| Temporary Storage Bin | 0.4m³ | |
| Hanging Bracket | 800-1200mm | |
| Dust Removal Device | 0.5-10μm | Filter Bag/Cartridge |
| Unpacking Method | Manual/Automatic | Q304 Stainless Steel |
It is widely used across building materials, chemical industry, metallurgy, food processing, and pharmaceuticals for the safe and efficient feeding of bulk materials.
The system features a sealed bag clamp that ensures an airtight connection when opening the bag. It can also integrate custom dust removal filters or cartridges (0.5-10μm capability) to capture any airborne particles.
For sticky or clumping materials, the station can be equipped with pneumatic pounding/tapping devices, vibrators, and specialized hopper designs to ensure smooth and uninterrupted discharge.
The unit supports voltage configurations from 220V to 600V with motor options ranging from 1 to 10 kW. The integrated electric hoist supports lift capacities of 1T, 2T, or 3T depending on configuration.
To meet diverse industrial requirements and ensure hygiene, components are constructed using high-durability metals including Q235, 304, and 316L Stainless Steel.
Yes, we support multiple unpacking and operation modes. Clients can select either manual assistance or automatic knife cutting for unpacking, managed via standard buttons or integrated PLC control systems.
