Industrial Super Sack Discharge System for Bulk Materials

Customization: Available
Accuracy: Customized
Capacity(t/h): 150-300

Product Description

Basic Specifications
Model NO.
Ton Bag Unloader RX-1
Feeding Rate Control
Semi-Automatic
Hopper Capacity
Customized
Motor Power(kw)
1~10
Usage
Building Materials, Chemical, Metallurgy, Food Processing
Optional Configuration
Weighing and Measuring Device / Beating Device
Control Method
Button / PLC
Voltage
220V~600V
Feeding Method
Gravity Attraction
Transport Package
Non-Fumigated Wooden Box
Specification
Ton bag unloader RX-1
Origin
China
Production Capacity
5000 Pieces/Year
Product Description
Industrial Super Sack Discharge System for Bulk Materials

The Ton Bag Feeding Station boasts a sleek, intuitive design and state-of-the-art automation features. This groundbreaking synergy dramatically enhances feeding efficiency, significantly reducing the labor-intensive tasks traditionally required of operators.

Moreover, it can be equipped with an airtight sealed bag clamp to prevent dust dispersion. For materials with poor flowability, additional vibration or tapping devices can be integrated for smooth and efficient unloading.

Unpacking methods include manual assistance for bag opening or automatic knife cutting, accommodating various ton bags. The high efficiency of this ton bag feeding station effectively addresses challenges such as clumping and discharge issues caused by moisture absorption.

Product Features
  • Featuring a simplistic structure, effortless installation, and user-friendly operation.
  • It significantly reduces material residues, preventing potential cross-contamination.
  • With various integrated accessories, it expertly handles the unloading of diverse materials.
  • Ensuring sealed unloading to eliminate dust dispersion, it enhances the working environment for staff.
  • It can effortlessly connect to equipment such as glove boxes, hoppers, and reactors.
  • Generating no heat during the opening process, it ensures optimal safety and mitigates explosion risks.
Technical Parameters
Structural Unit Specification Material
Pounding Device Pneumatic Control Q235/304/316L Stainless Steel
Electric Hoist (Lifting Capacity) 1T/2T/3T
Temporary Storage Bin 0.4m³
Hanging Bracket 800-1200mm
Dust Removal Device 0.5-10μm Filter Bag/Cartridge
Unpacking Method Manual/Automatic Q304 Stainless Steel

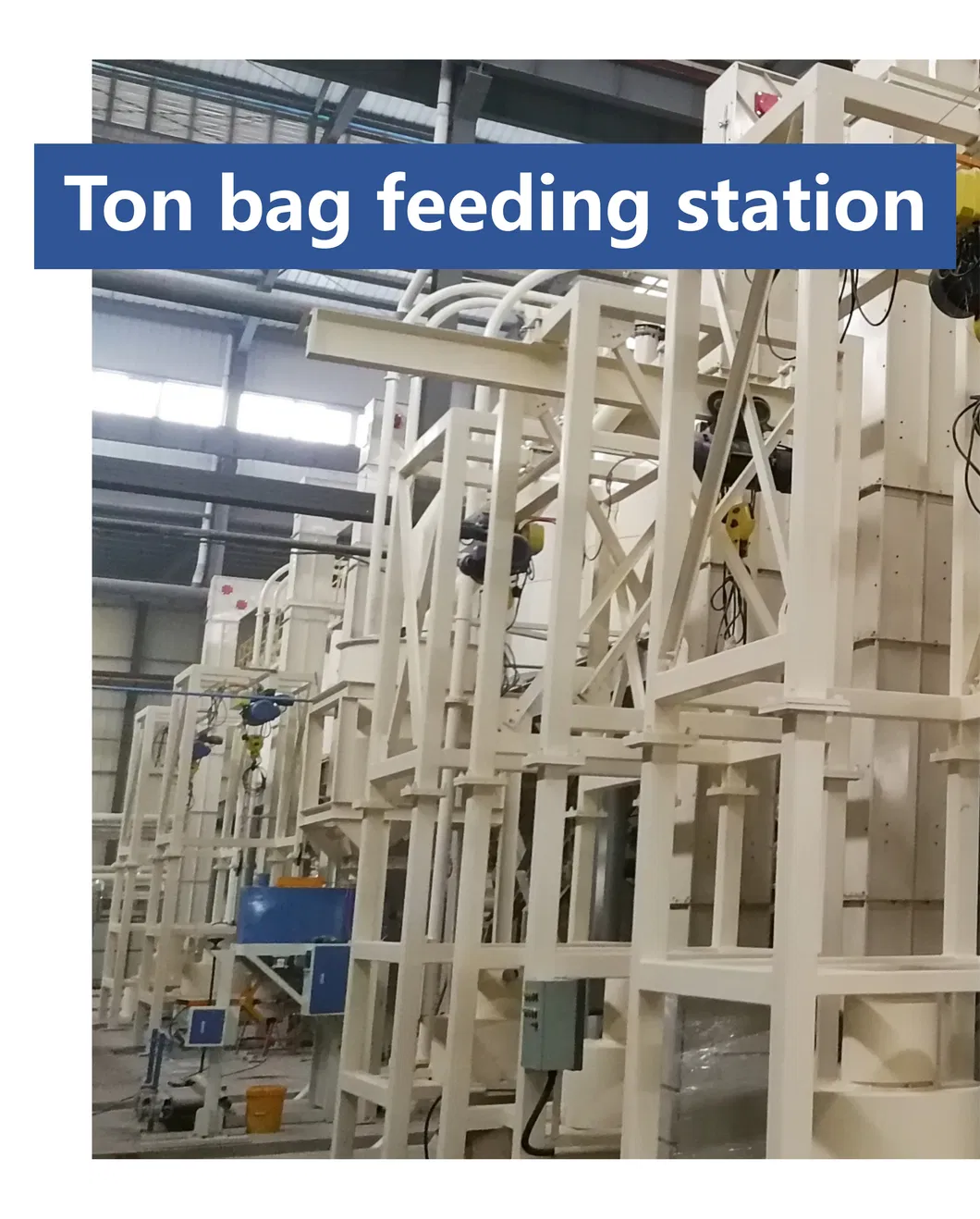

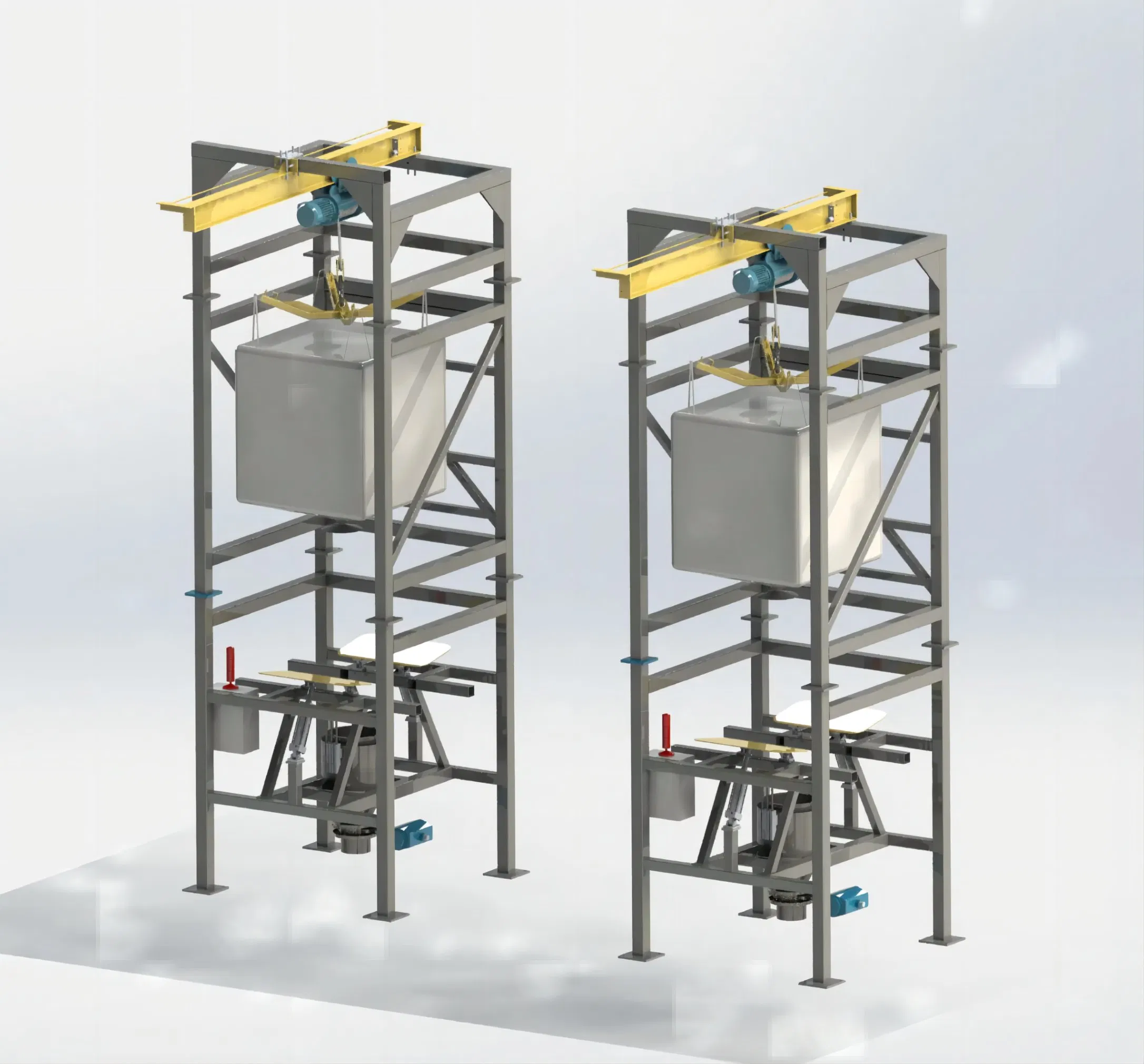

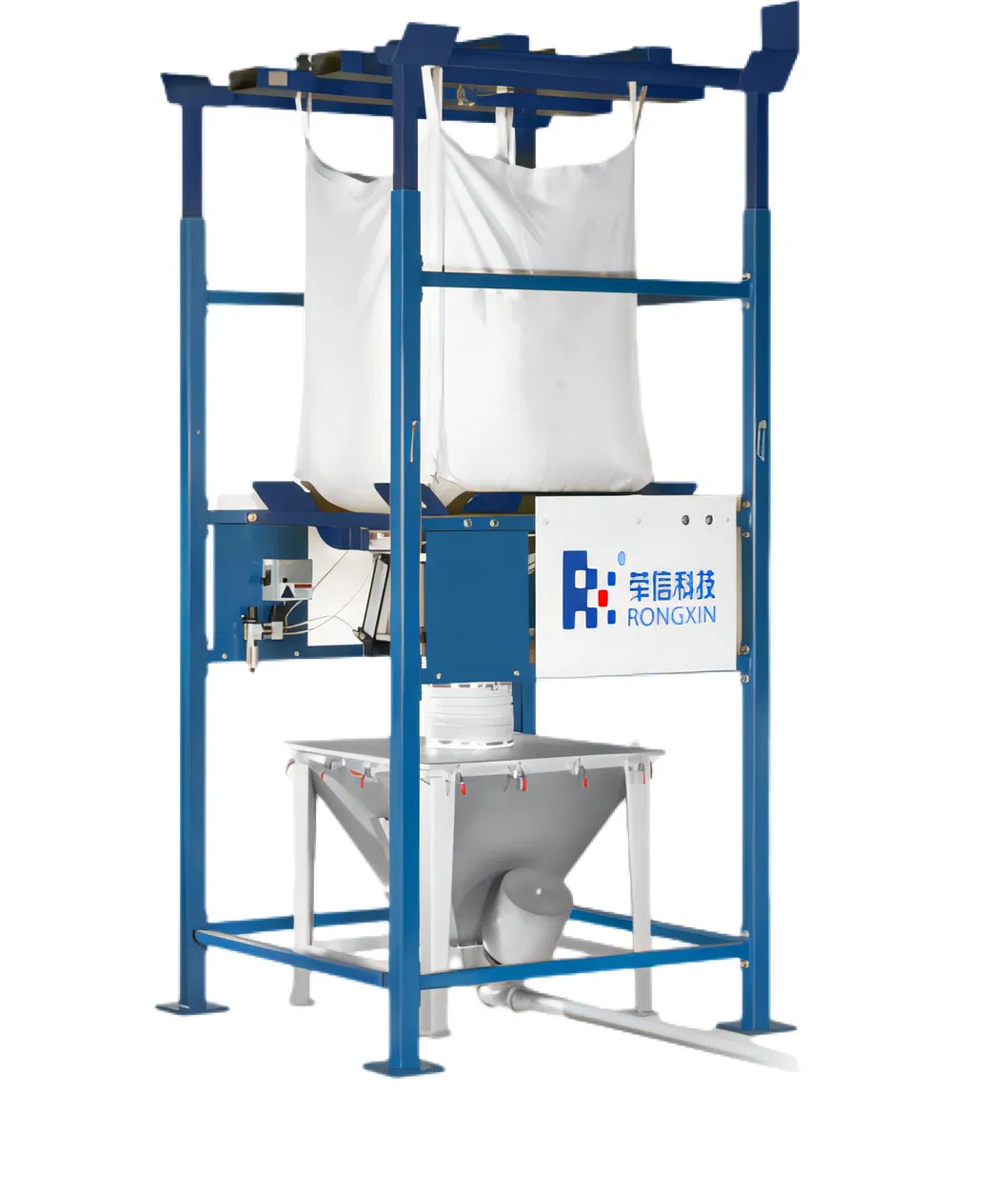

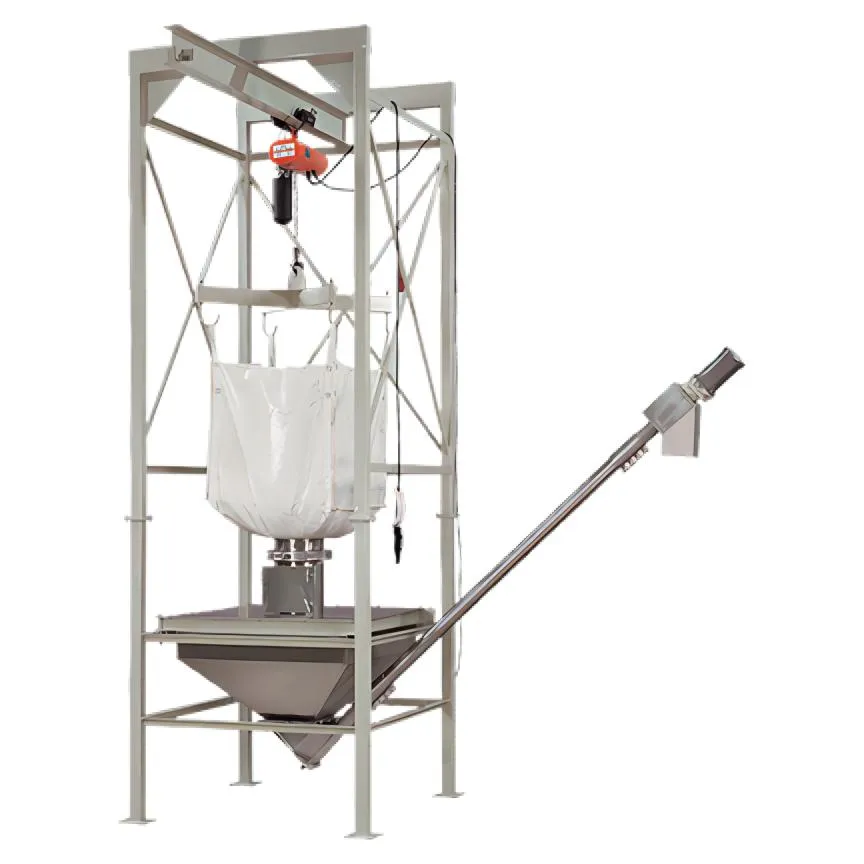

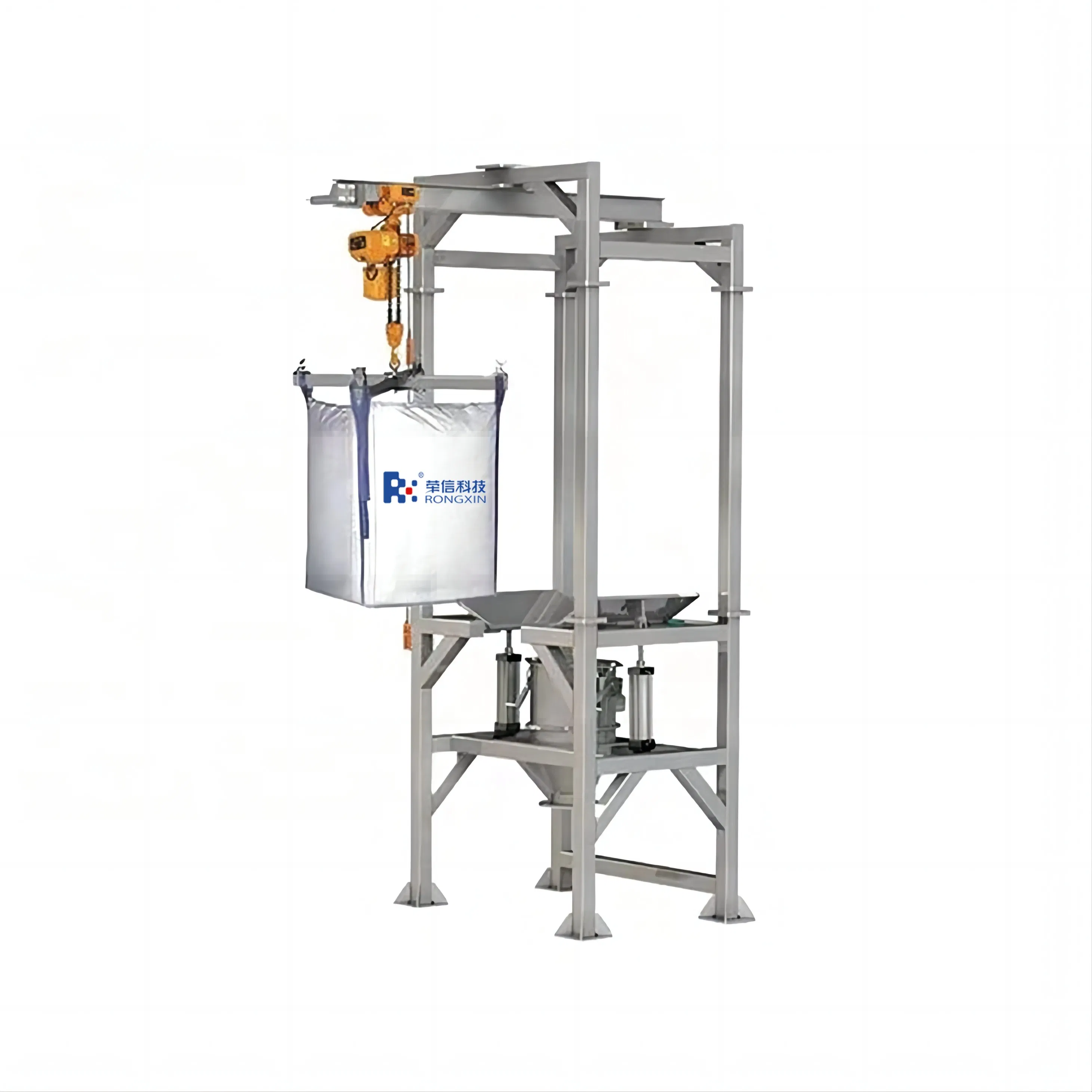

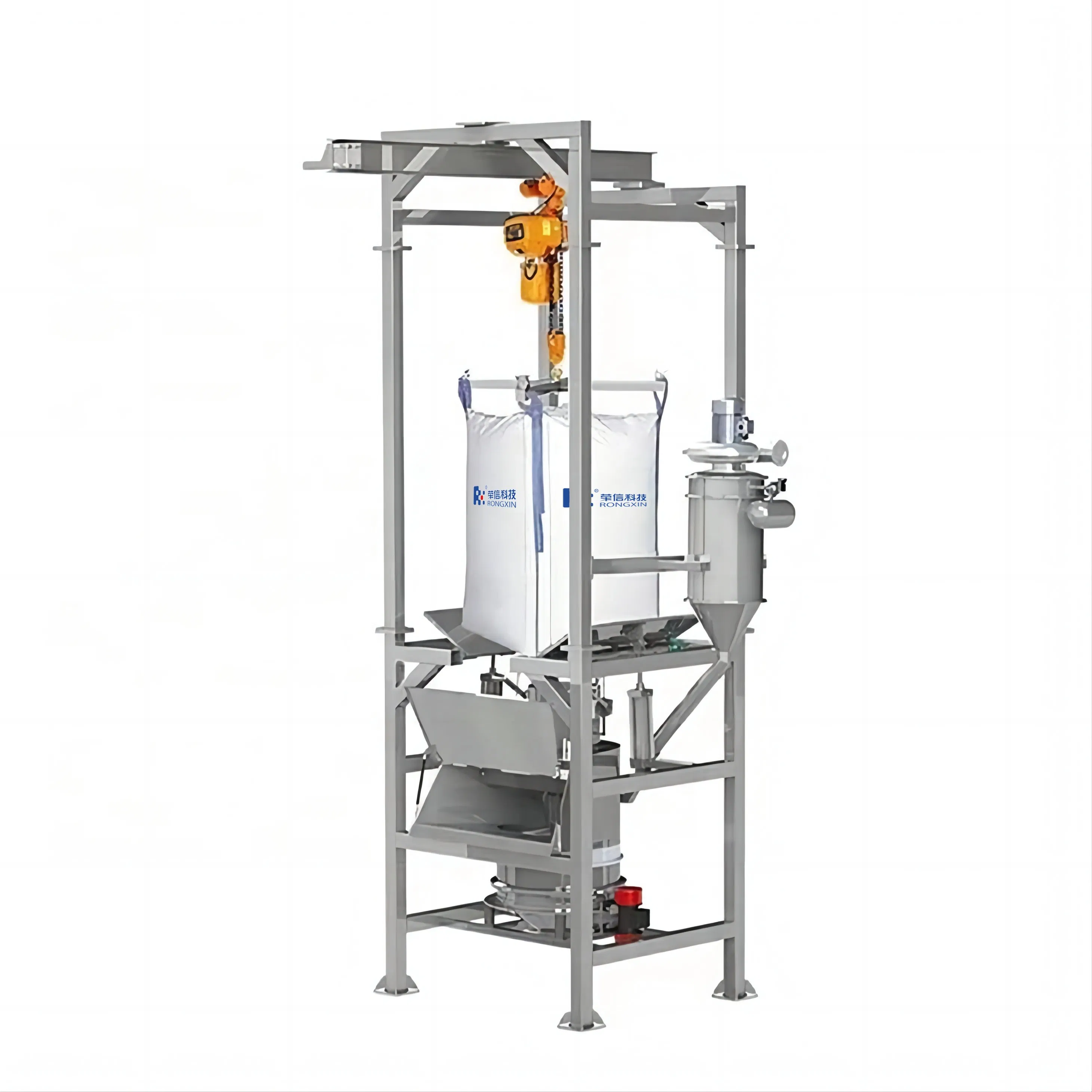

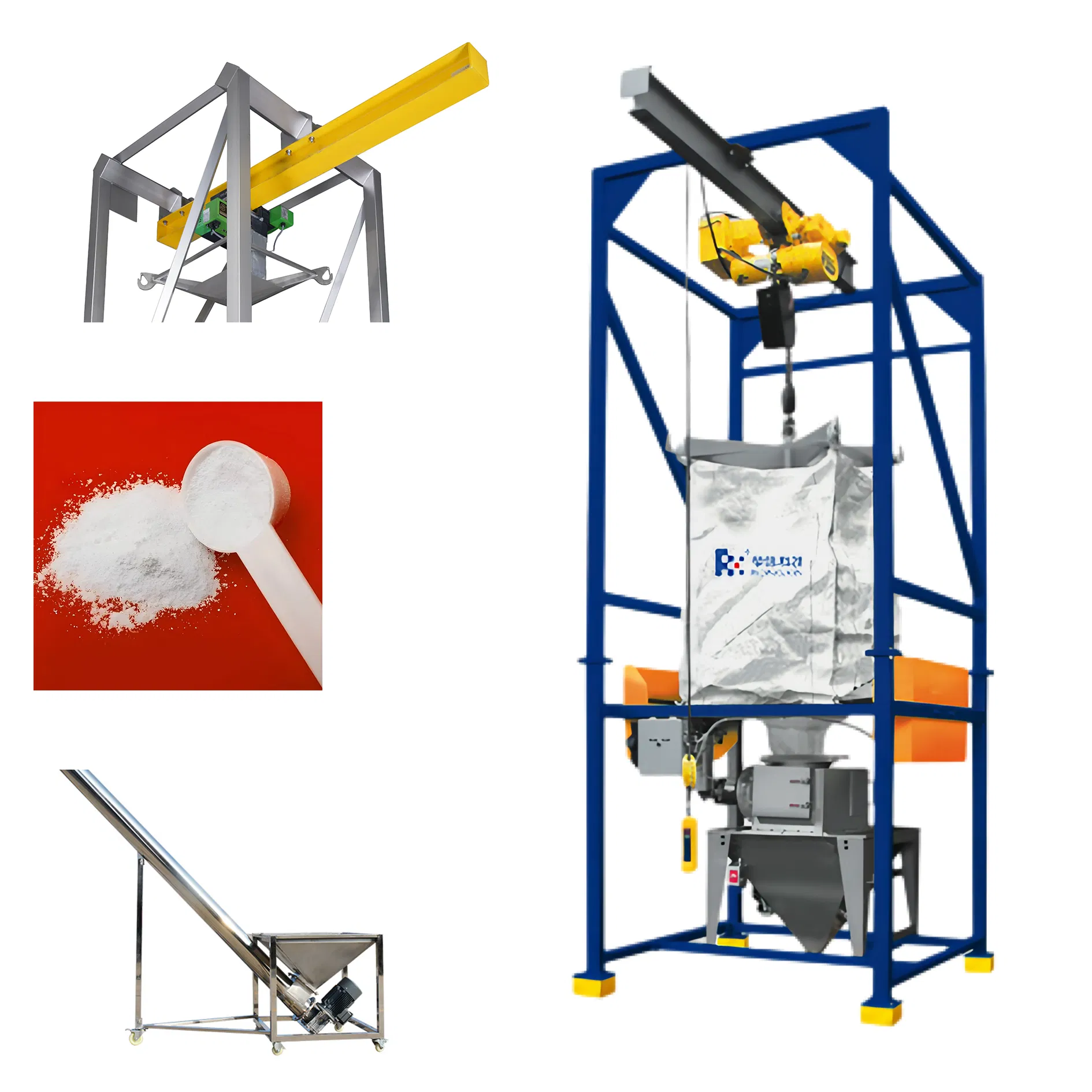

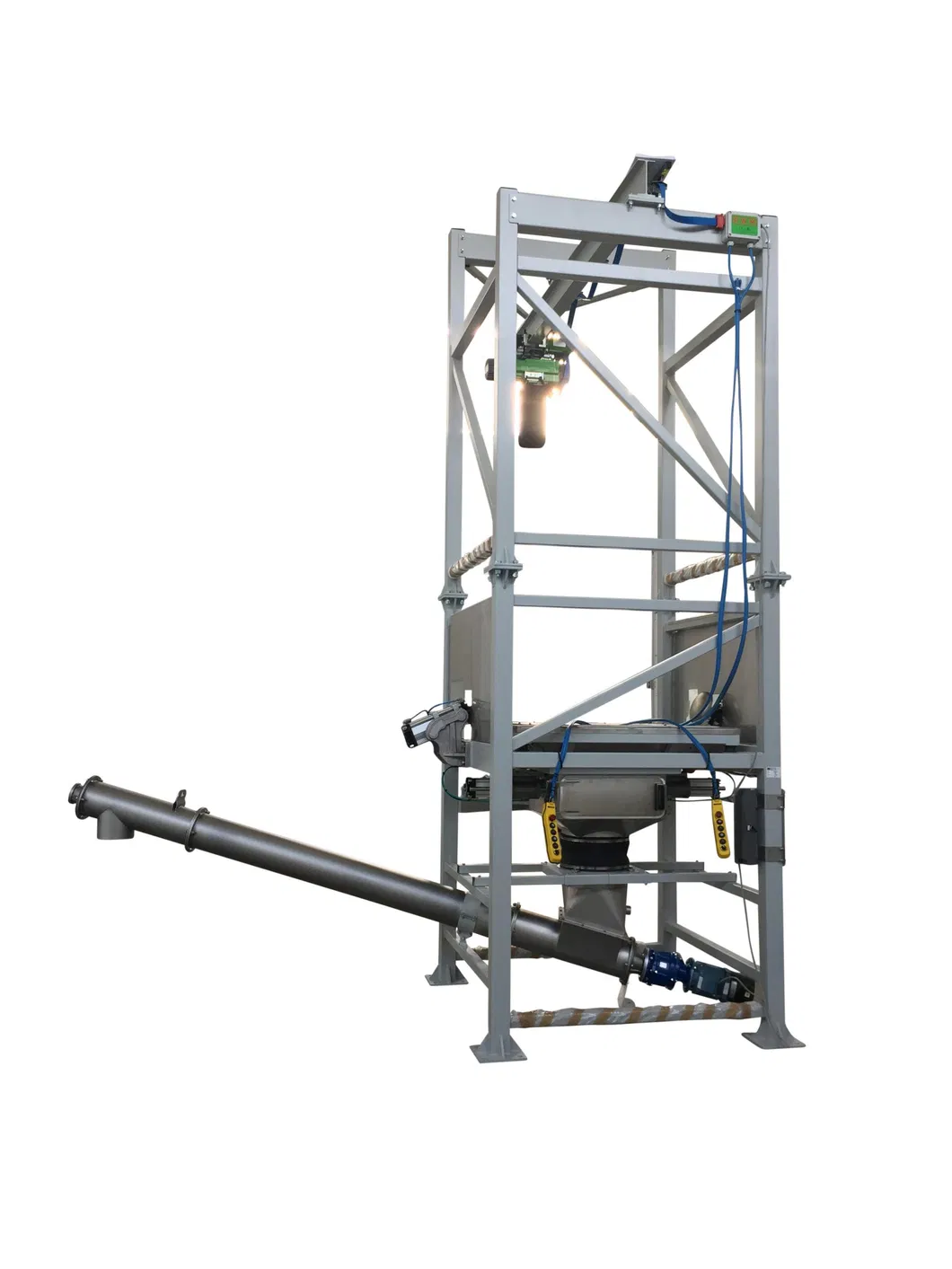

Product Display

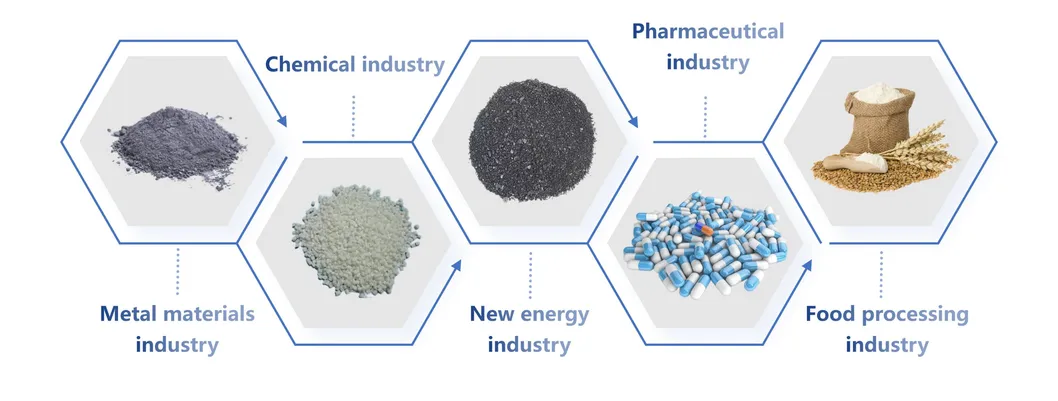

Applications
Industrial Super Sack Discharge System for Bulk Materials

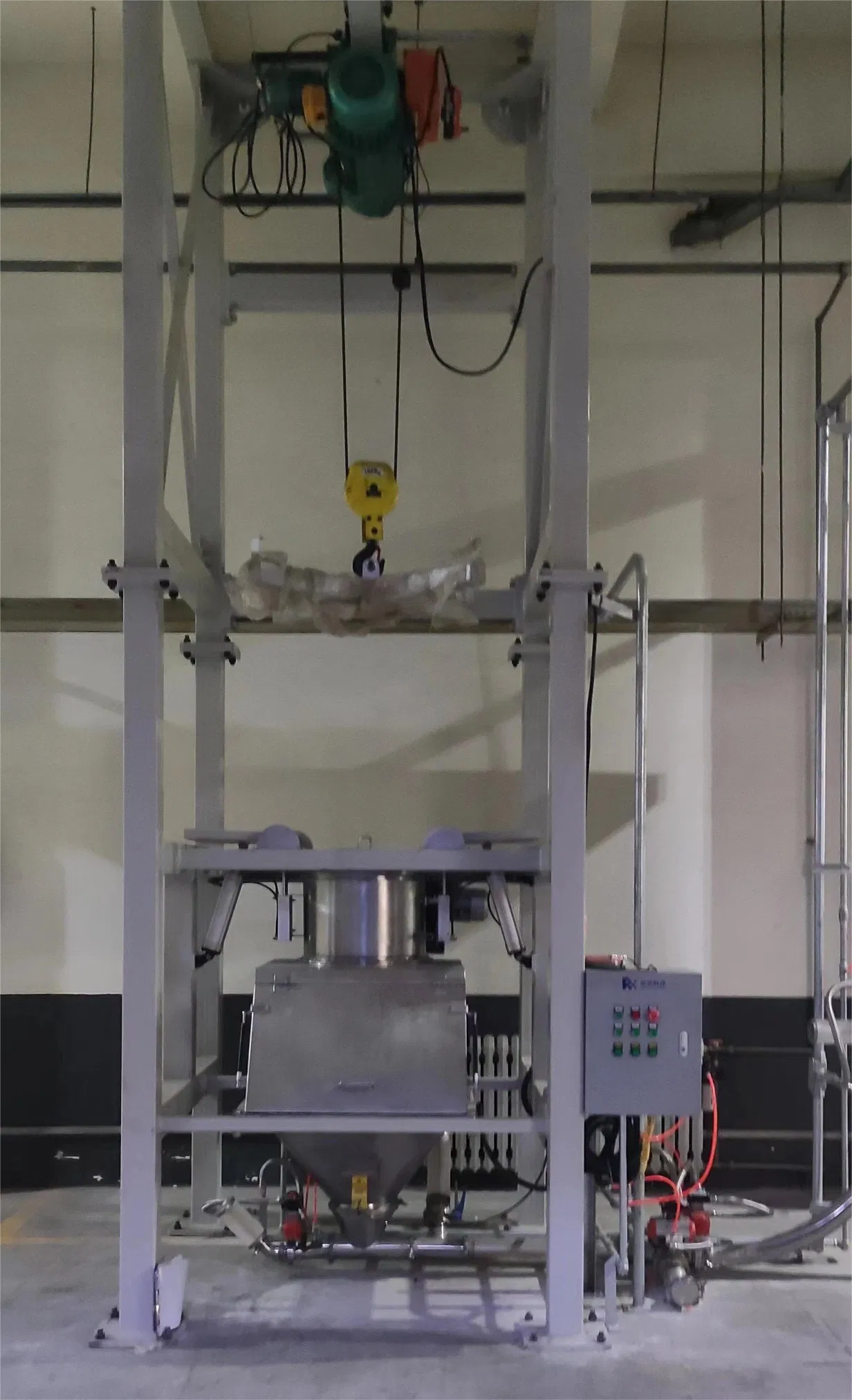

Our Valued Customers
Industrial Super Sack Discharge System for Bulk Materials
Frequently Asked Questions
What industries is the RX-1 Ton Bag Unloader suitable for?
It is widely used in industries such as building materials, chemical industry, metallurgy, and food processing for dust-free and efficient bulk material handling.
How does the system prevent dust dispersion?
The feeding station can be configured with an airtight sealed bag clamp and a dedicated dust removal device (0.5-10μm filter bag/cartridge) to ensure completely sealed unloading.
Can this equipment handle materials with poor flowability?
Yes, for materials that tend to clump or have poor flowability, a pneumatic control pounding/beating device or vibration devices can be integrated to ensure smooth discharging.
What are the available unpacking methods?
The station supports both manual assistance for opening the bags and automatic knife cutting, depending on your custom configuration and operational needs.
What control options are supported?
The system features semi-automatic feeding rate control and can be operated using a basic button interface or integrated into a PLC control system.
