| System Conveying Method | System Features |
|---|---|
| Dense phase/dilute phase pneumatic conveying systems | |
| Dense Phase High Pressure Pneumatic Conveying | The system has low flow rate, low air consumption, suitable for long distance, large capacity, multi-dispersed conveying, for the permeability of the material, it is easy to realise the fluidisation of conveying, with low noise, less crushing characteristics. |

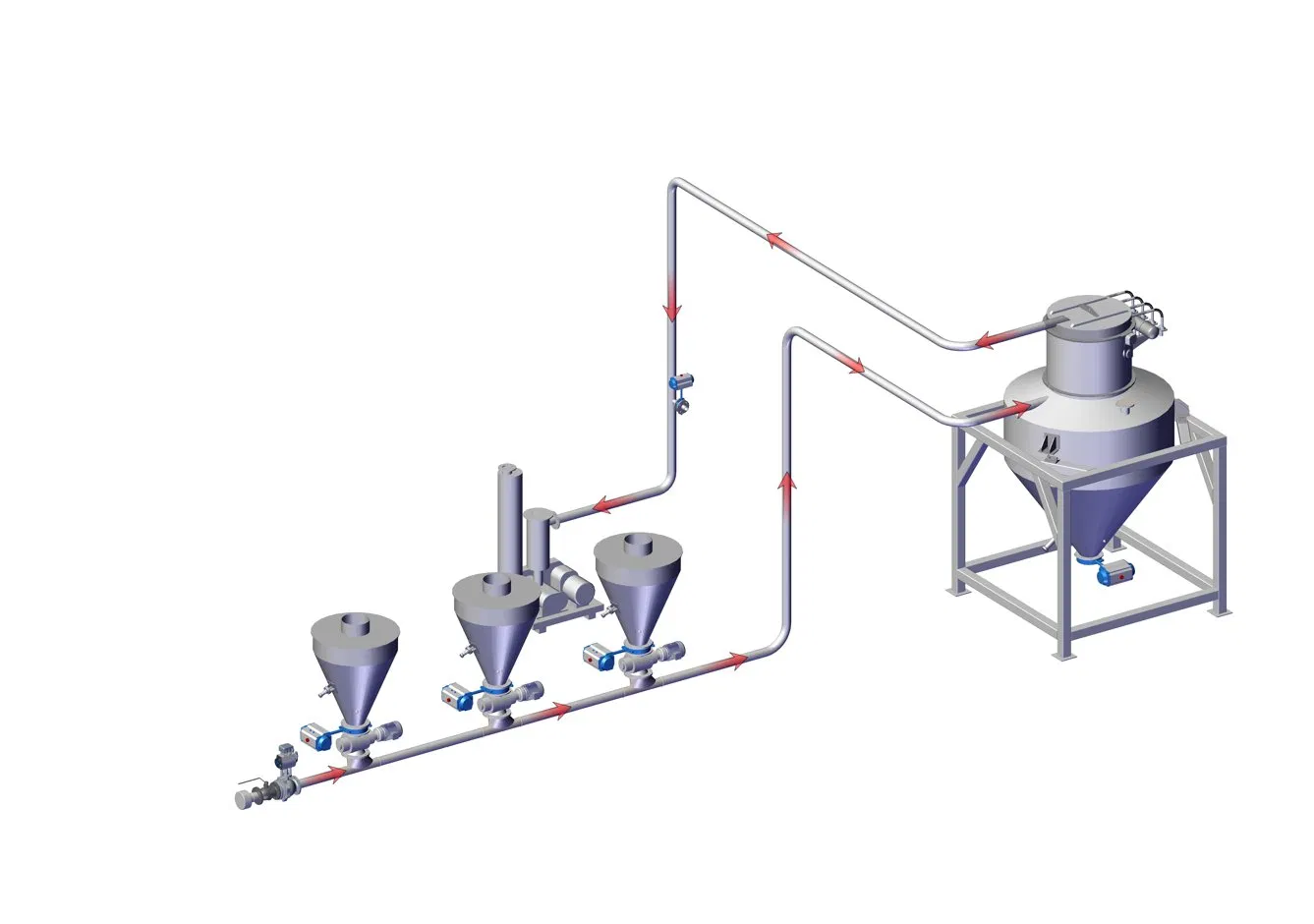

| Dilute Phase Medium And Low Pressure Vacuum Suction Pneumatic Conveying | The system has the ability to transport materials from several places to one centralised transport; low conveying pressure, reliable conveying, simple equipment; because the pressure in the system is lower than the atmospheric pressure, the materials to be conveyed will not escape from the system: because of the suction nozzles sucking materials, can avoid the dust flying at the pick-up point, and the production efficiency is high. |
| Dilute Phase Medium and Low Positive Pressure Pneumatic Conveying | The system has the characteristics of low conveying pressure, short conveying distance, reliable conveying, suitable for dispersed conveying from one place to many places, play a role in drying and grading of materials: because the system is under positive pressure, so even if there is a gap in one of the joints of the components of the pipeline system, the outside world will not invade the air or rain: materials are easy to be discharged from the discharging port. |
| Circulating Pneumatic Conveying Systems | |

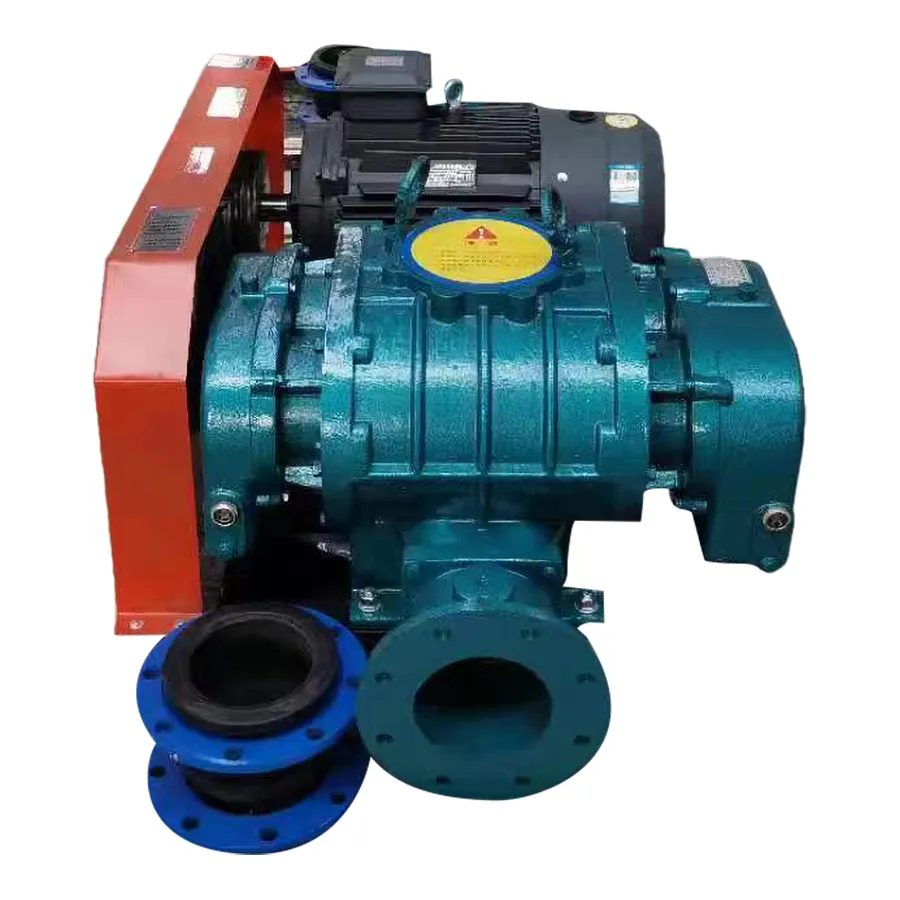

| Inert Circulation Pneumatic Conveying | This system is a kind of circulating pneumatic conveying system with Roots blower as the air source and inert gas as the conveying medium to convey materials continuously. The system is suitable for conveying flake, powder and granular materials with unstable chemical properties. It has the characteristics of low pressure, reliable conveying and recycling of inert gas. Roots blower plays the role of pressure conveying (blower) and suction conveying (vacuum pump) in the system. |
There are many varieties of powders and granules that can be conveyed by pneumatic conveying, and the material properties of each material have a great influence on the suitability and efficiency of the pneumatic conveying device, so the design of each system needs to be analysed for the material.
We will provide suitable overall solutions according to your actual needs and process characteristics to meet your requirements for pneumatic conveying systems.
