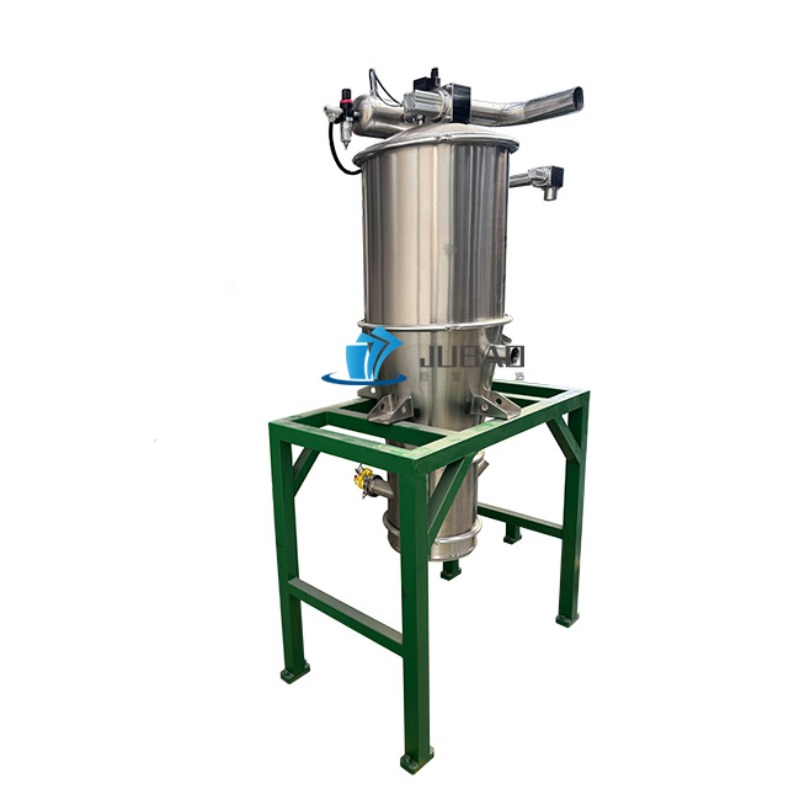

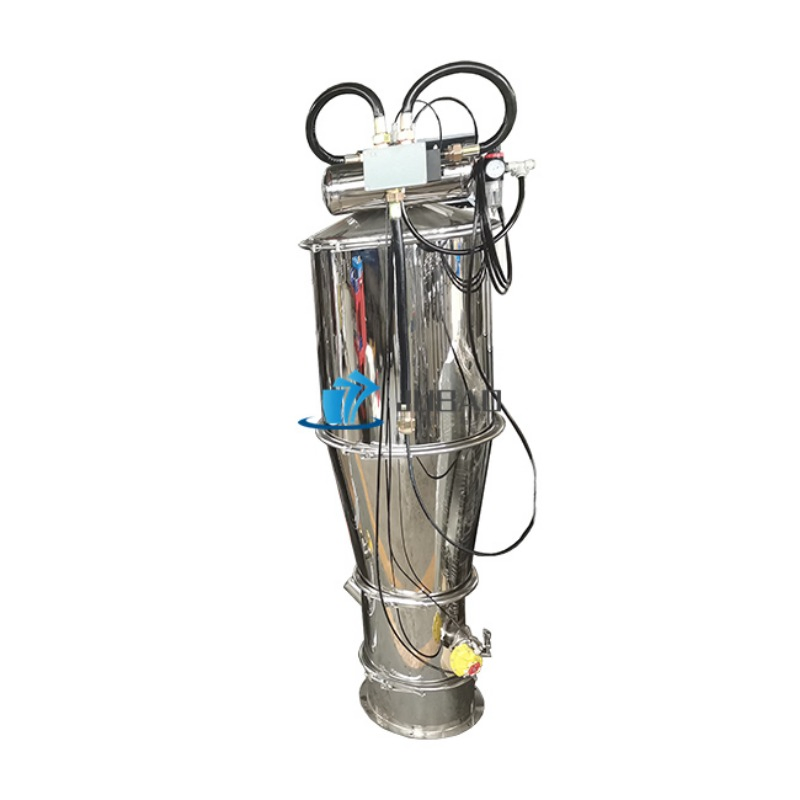

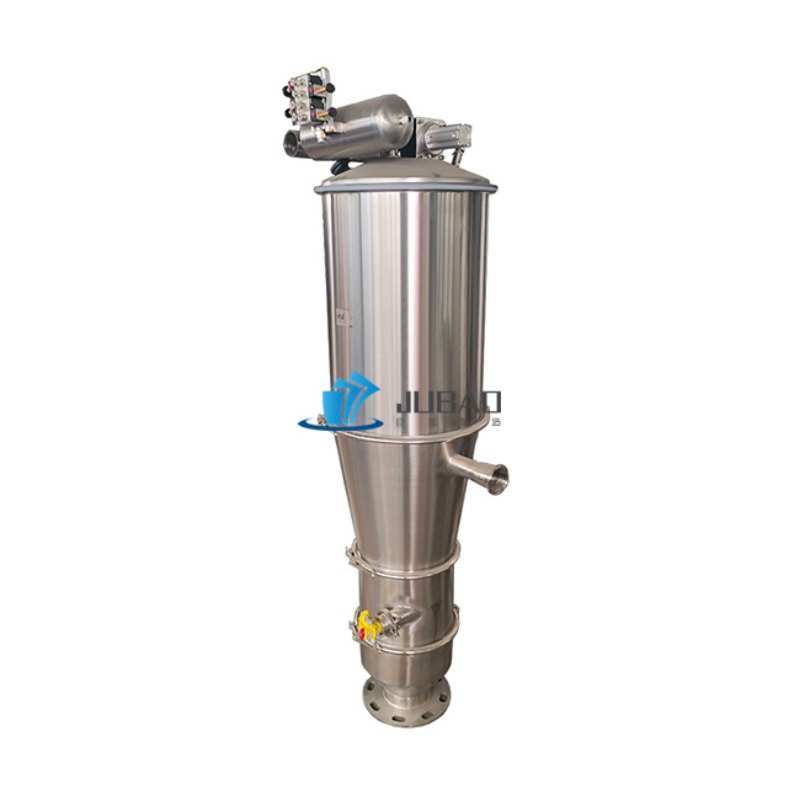

The vacuum conveyor feeder is a type of pneumatic vacuum conveyor featuring a closed structure, which is environmentally friendly for powder and granule transfer systems. It utilizes the air pressure difference between the vacuum and environmental space to drive airflow in the pipe, moving powder materials to complete conveying. Due to its enclosed structure, it is widely used to feed materials into packaging machines, injection molding machines, shredders, mixers, and more.

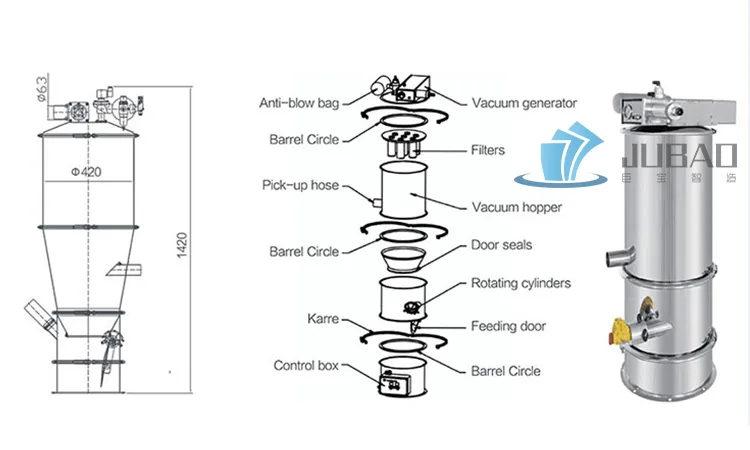

Detailed structure of the vacuum conveyor feeder:

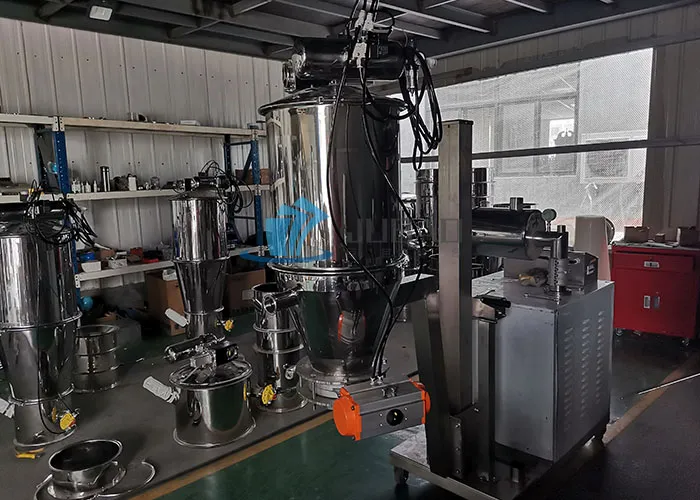

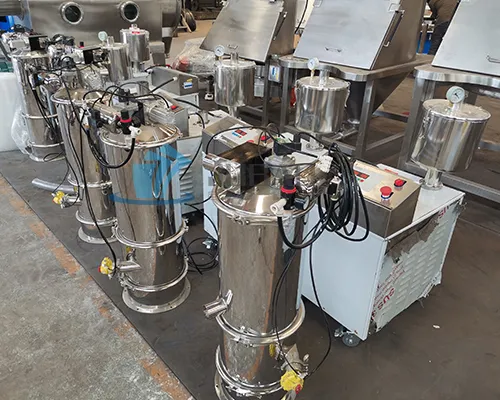

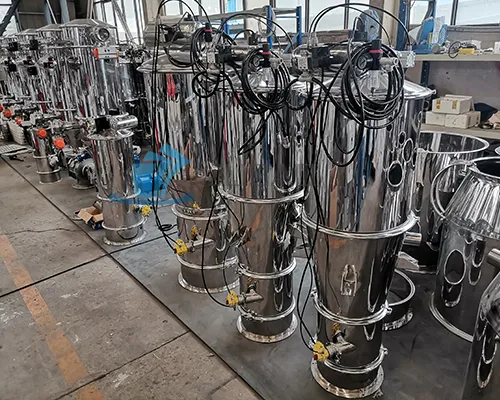

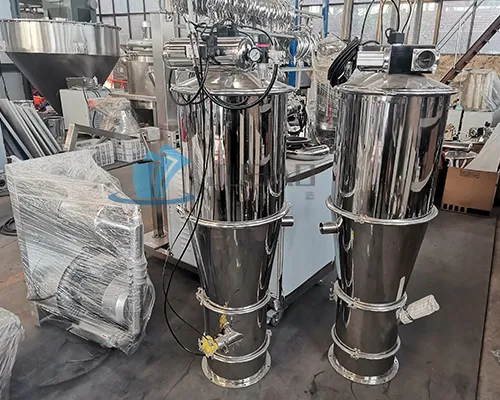

The conveyor configurations below represent different types of vacuum conveyor feeders. The electric model provides large capacity, while the pneumatic model offers power-saving operations to suit different application designs.
Main Specifications of the vacuum conveyor feeder. Various models are engineered to match distinct capacity requirements.
| Model | Capacity (kg/h) | Compressed Air Consumption (L/min) | Pressure of Supplied Air (MPa) | Dimension (mm) |
|---|---|---|---|---|
| QVC-1 | 350 | 180 | 0.4 - 0.6 | Φ140 x 560 |
| QVC-2 | 700 | 360 | 0.4 - 0.6 | Φ213 x 720 |
| QVC-3 | 1500 | 720 | 0.4 - 0.6 | Φ290 x 850 |
| QVC-4 | 3000 | 1440 | 0.4 - 0.6 | Φ420 x 1150 |
| QVC-5 | 6000 | 2880 | 0.4 - 0.6 | Φ420 x 1150 |
| QVC-6 | 9000 | 4320 | 0.4 - 0.6 | Φ420 x 1350 |

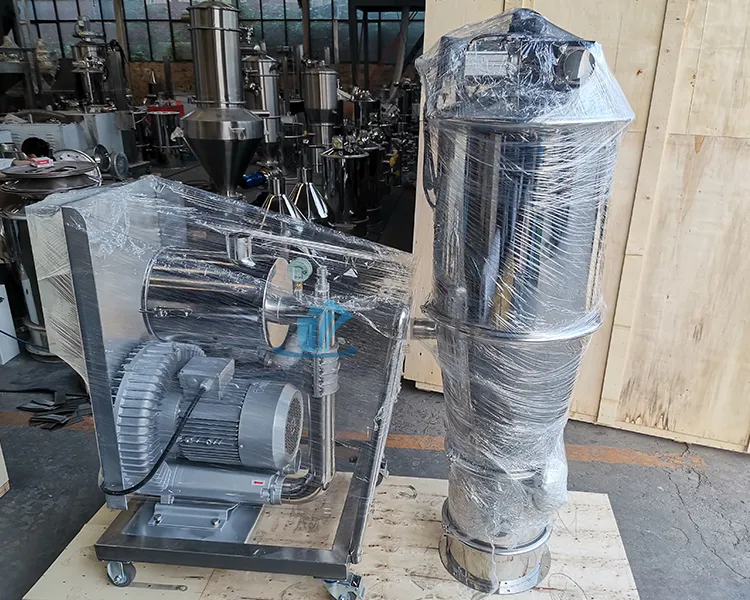

We apply stretch film internally for moisture-proofing, and pack externally in standard fumigation plywooden boxes for transit protection.
Located in the vibration screening industry base, our enterprise has grown into a leading manufacturer in the screening and conveying industry after more than 10 years of rapid development. Every year, we deliver over 2,000 sets of vibration screening equipment and systems to hundreds of wholesalers and end-users worldwide.

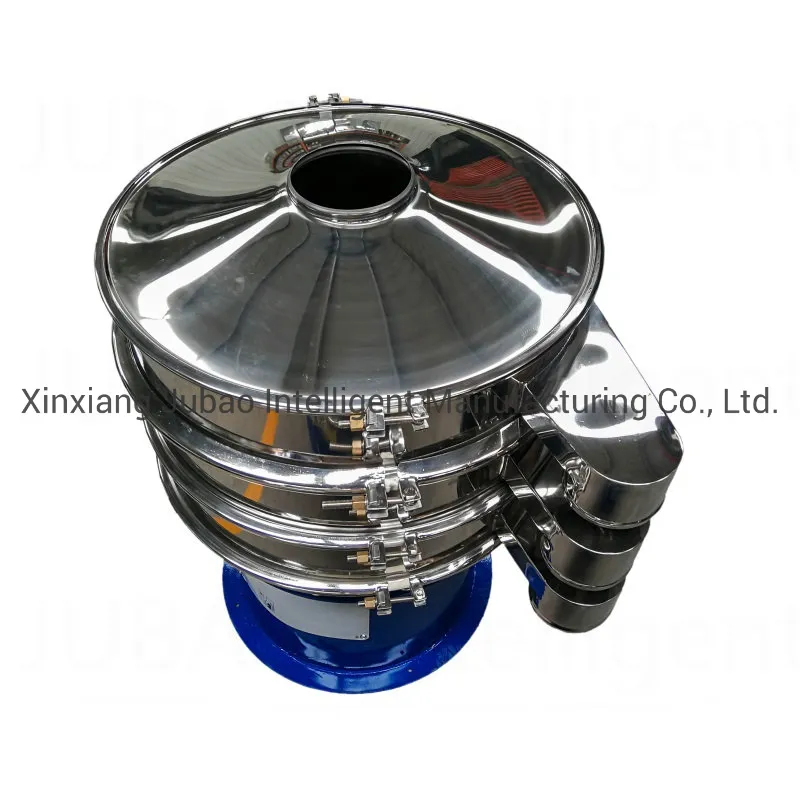

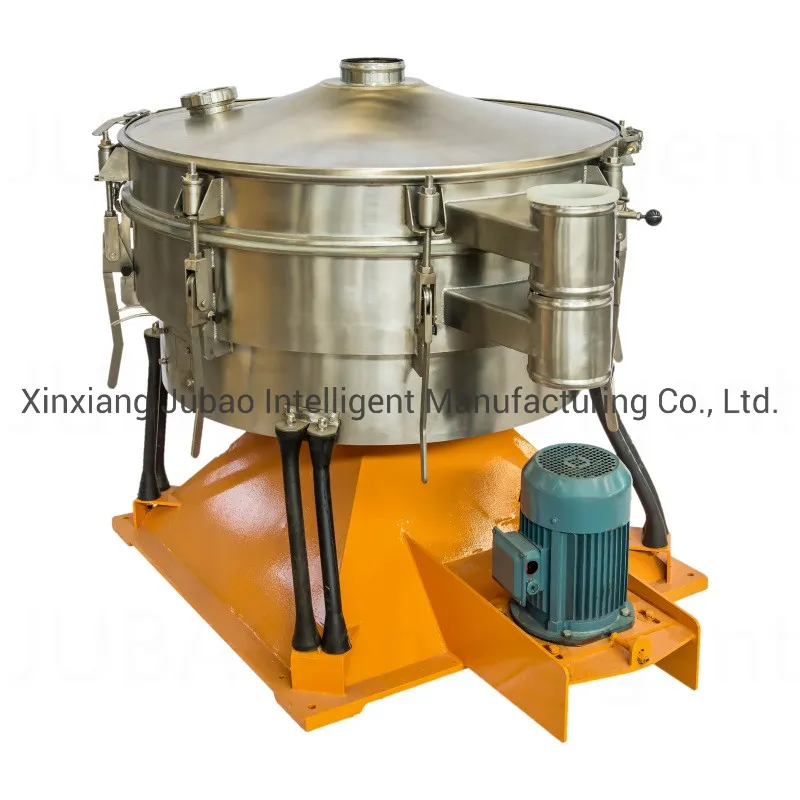

Our primary product lines range from round vibrating separators, ultrasonic vibrating sieves, linear vibrating screens, gyratory sifters, tumbler screening systems, Rotex-type screeners, centrifugal sifters, test sieve shakers, to pneumatic vacuum conveyors and integrated systems. We also undertake customized sieving, dust-free conveying, and intelligent integrated systems.
With manufacturing facilities featuring over 5,000 square meters of workshops, a full suite of heavy and light production machinery, and a team of 150 experienced professionals, our production efficiency is backed by a mature manufacturing management system developed over the past decade. Clients directly benefit from this highly efficient, quality-controlled, mass-production workflow offering fast delivery times and reliable support.
For recommendations on the correct model of vacuum conveyor feeder, please provide the details to the following questions:
It is primarily designed to safely convey powder and granule materials in a dust-free and enclosed environment. Common setups include feeding mixers, packaging systems, injection molding machines, and shredders across the chemical, mining, agriculture, and power industries.
The completely closed design prevents material leaks, protects workers from dust exposure, and protects the surrounding production area from environment-related contamination, ensuring a cleaner, safer workspace.
Our standard series ranges from the QVC-1 model with a capacity of 350 kg/h to the QVC-6 model which can process up to 9,000 kg/h, allowing clients to select the optimal size depending on production requirements.
The system functions using a pneumatic vacuum pump mechanism combined with electrical control. High-pressure air supply at 0.4 to 0.6 MPa is required for operation.
We prepare the machines by wrapping them internally with stretch film to block moisture. We then place the machinery in standard fumigation-free plywood boxes to handle the demands of international transit.
Yes, we can fabricate the components using either SS304 or SS316L stainless steel depending on the chemical characteristics and sanitary requirements of the materials being conveyed.
