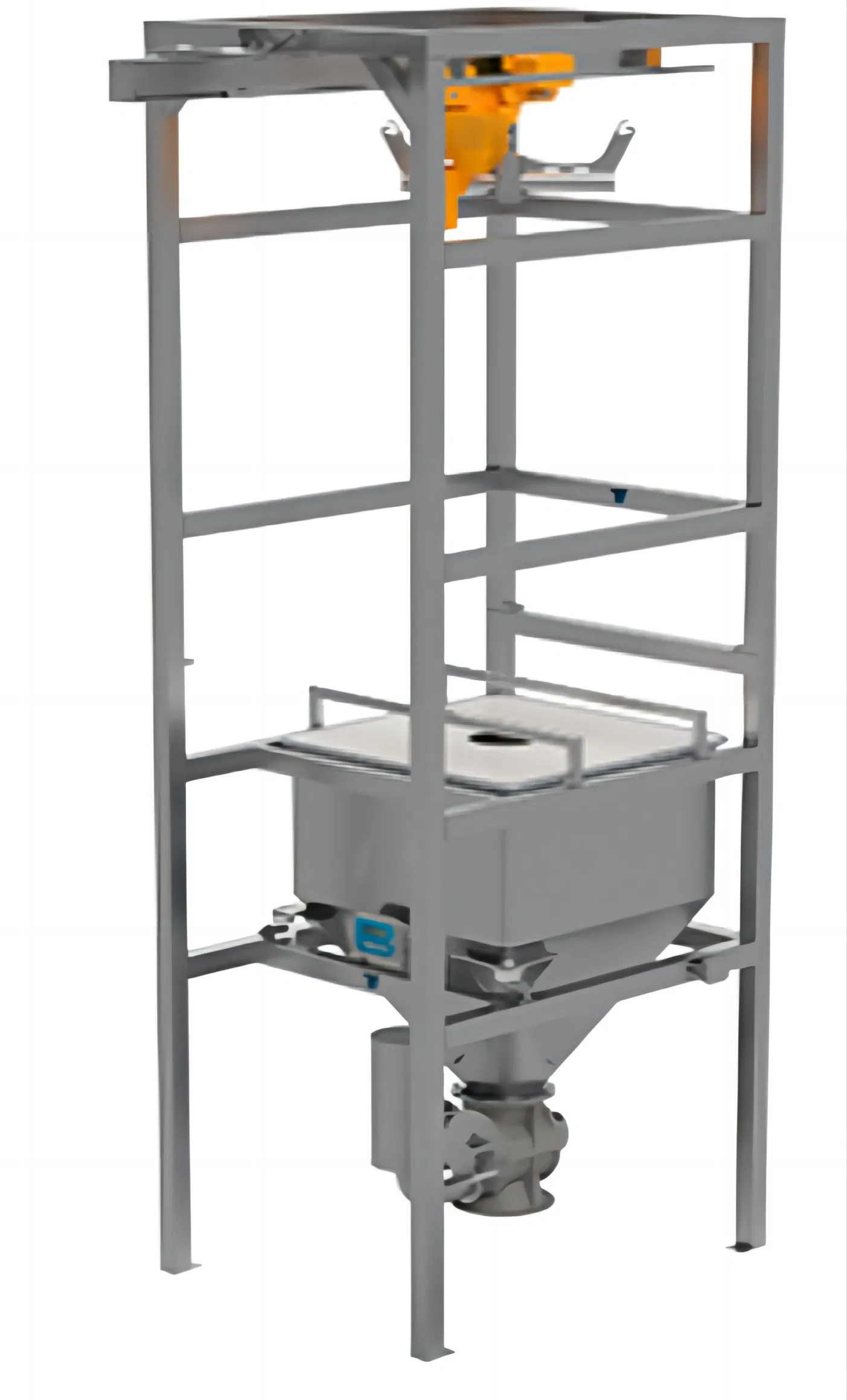

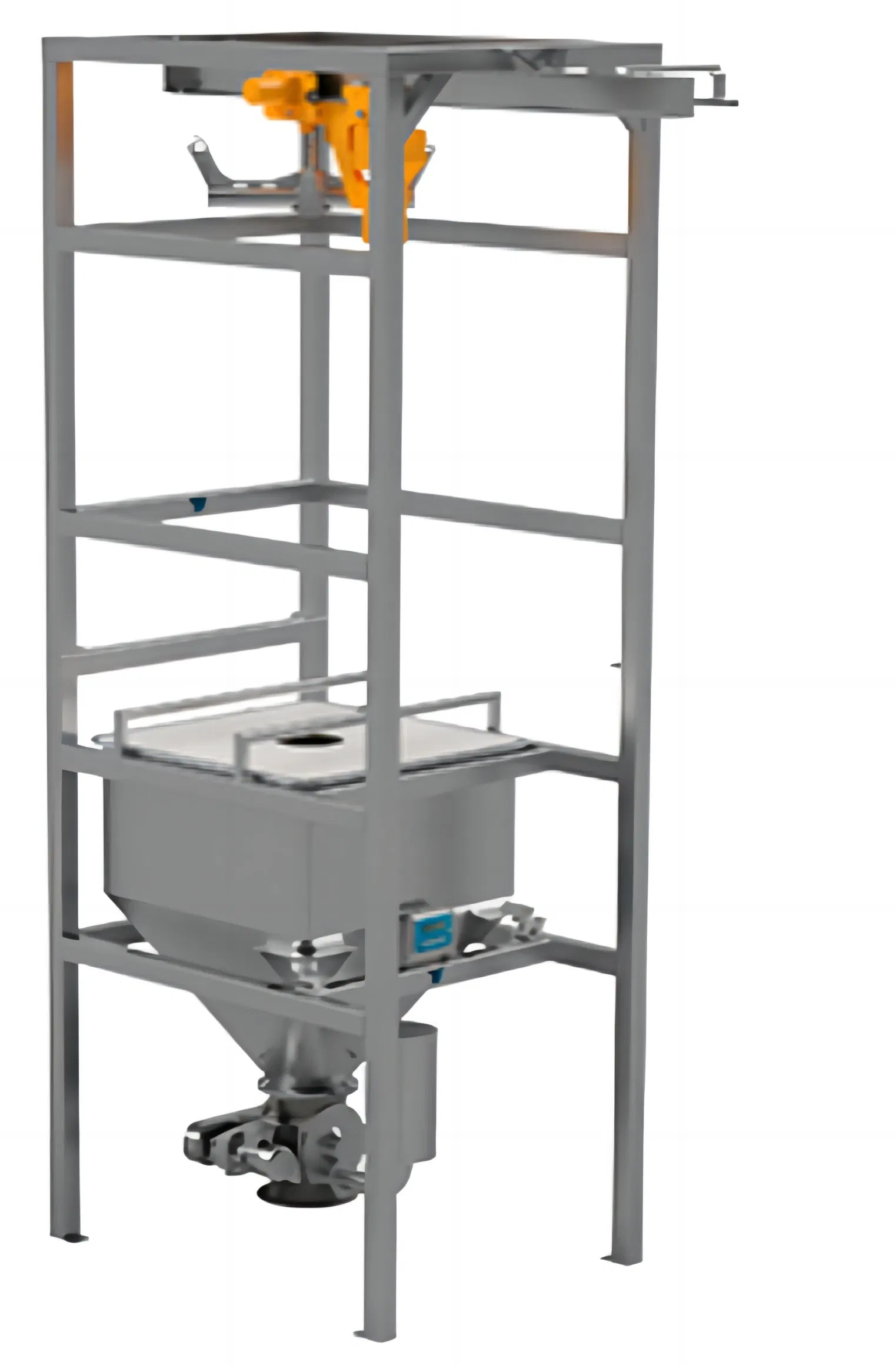

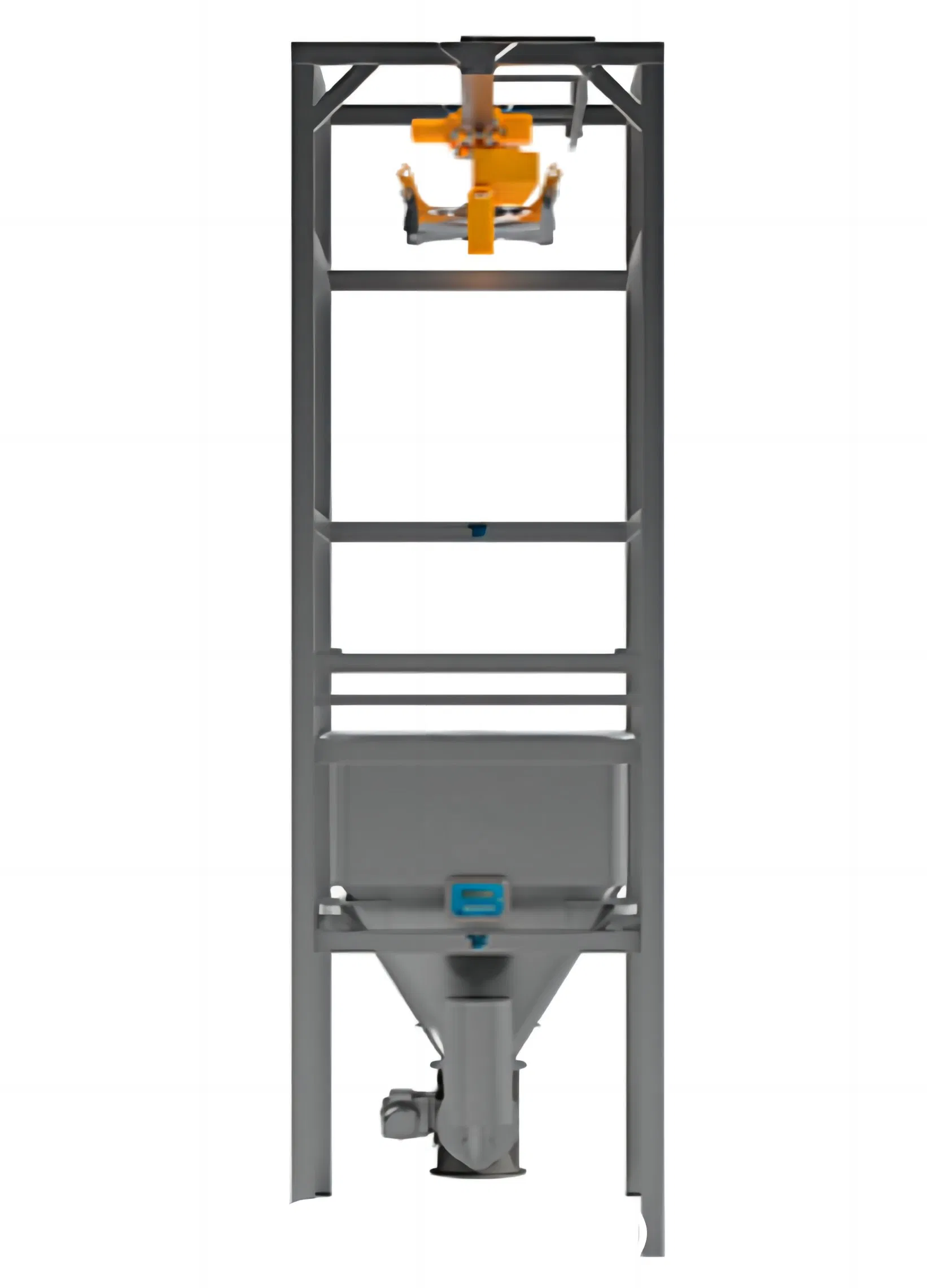

Effortless Jumbo Bag Discharging System for Bulk Materials

Customization:	Available
Capacity(t/h):	150-300
Feeding Rate Control:	Fully Automatic

Technical Specifications

Model NO. Ton Bag Unloader RX-1

Material Carbon Steel / SS304 / SS316

Motor Power(kw) 1~10

Raw Material Powder

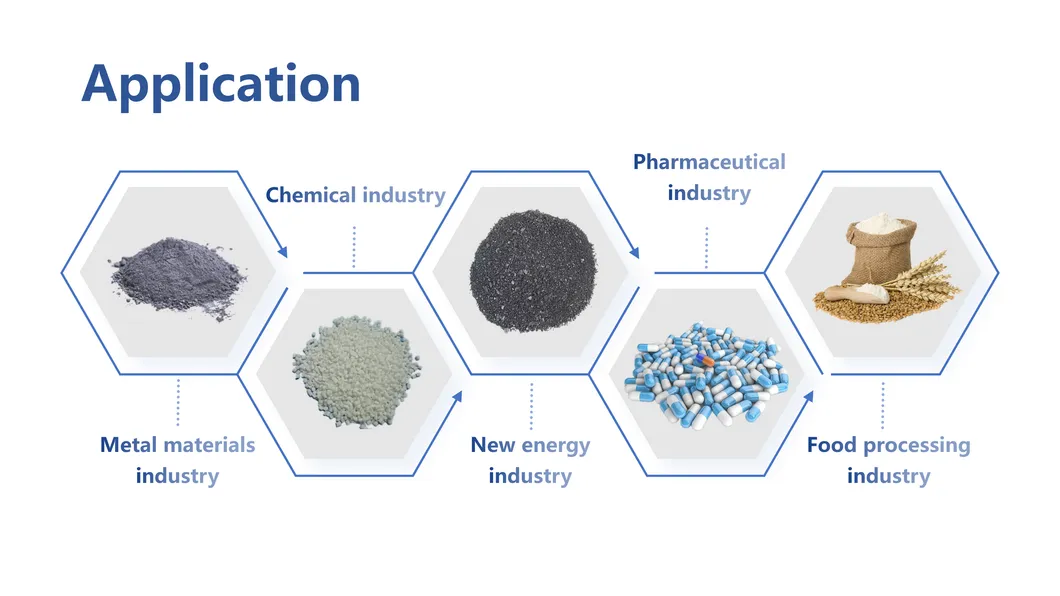

Usage Building Materials, Chemical, Metallurgy, Food

Optional Config Weighing / Beating Device

Control Method Button / PLC

Voltage 220V~600V

Appearance Open-Type

Max Feeding (mm) 630

Installation Slope 0

After-Sales Service Support

Warranty 1 Year

Type Ton Bag Discharger

Movement Mode Gravity Traction

Chute Size(mm) Customized

Overall Dimension Customized

Origin China

Production Capacity 5000 Pieces/Year

Transport Package Non-Fumigated Wooden Box

Packaging & Delivery

Package Size 200.00cm * 200.00cm * 200.00cm

Package Gross Weight 500.000kg

Product Description

The Ton Bag Feeding Station boasts a streamlined, intuitive design paired with advanced automation capabilities. This synergy significantly boosts feeding efficiency while drastically reducing the arduous manual labor typically required by operators.

Moreover, it can be equipped with a sealed bag clamp to guarantee airtight bag opening, effectively preventing any dust dispersion. For materials that exhibit poor flowability, additional vibration or tapping devices can be incorporated to facilitate seamless unloading.

Unpacking methods include manual assistance for bag opening or automatic knife cutting, meeting the needs of various ton bag types. The high efficiency of the ton bag feeding station proficiently addresses challenges such as clumping and discharge difficulties caused by moisture absorption during the bag opening process.

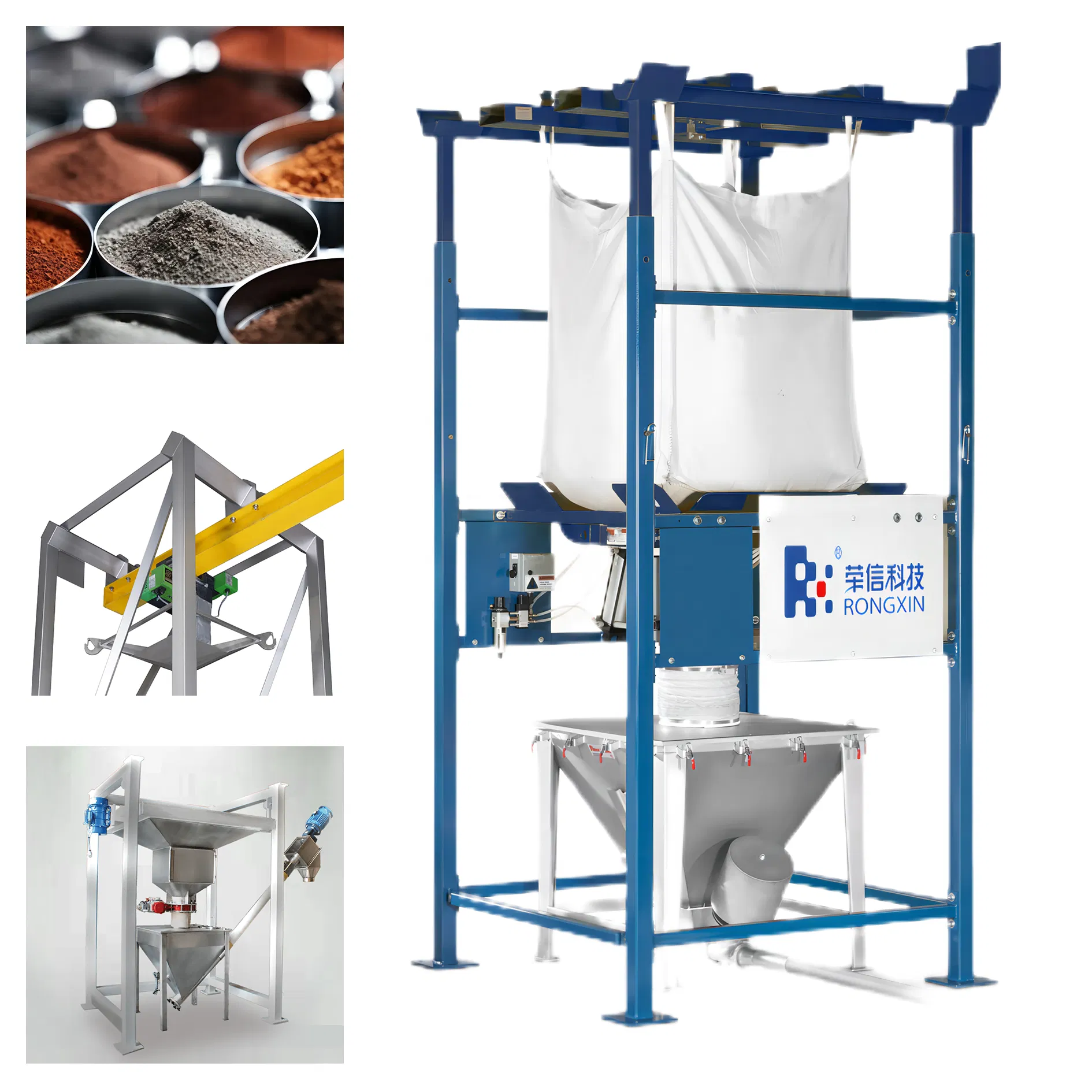

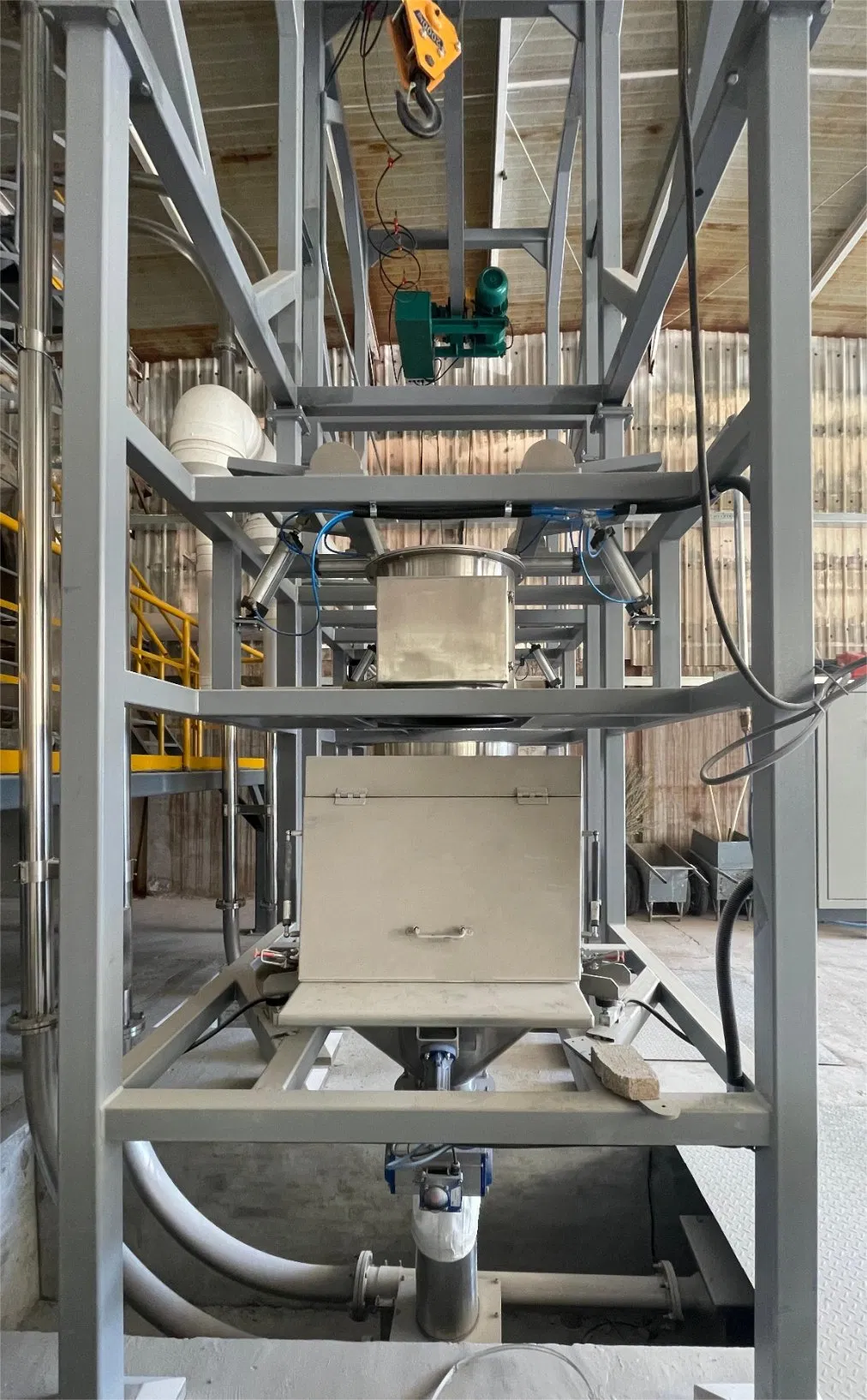

Effortless Jumbo Bag Discharging System for Bulk Materials

Product Features

Features a simplistic structure, straightforward installation, and user-friendly operation;
Significantly reduces material residues, thereby preventing potential cross-contamination;
With the integration of various accessories, it adeptly handles the unloading of a diverse array of materials;
Ensures sealed unloading to eliminate dust dispersion, thus enhancing the working environment for staff;
Can be effortlessly connected to equipment such as glove boxes, hoppers, and reactors;
Generates no heat during the opening process, ensuring optimal safety and mitigating explosion risks.

Structural Units & Material Specifications

Structural Unit	Specification	Material
Pounding Device	Pneumatic Control	Q235 / 304 / 316L Stainless Steel
Electric Hoist (Lifting Capacity)	1T / 2T / 3T
Temporary Storage Bin	0.4m³
Hanging Bracket	800-1200mm
Dust Removal Device	0.5-10μm	Filter Bag / Cartridge
Unpacking Method	Manual / Automatic	Q304 Stainless Steel

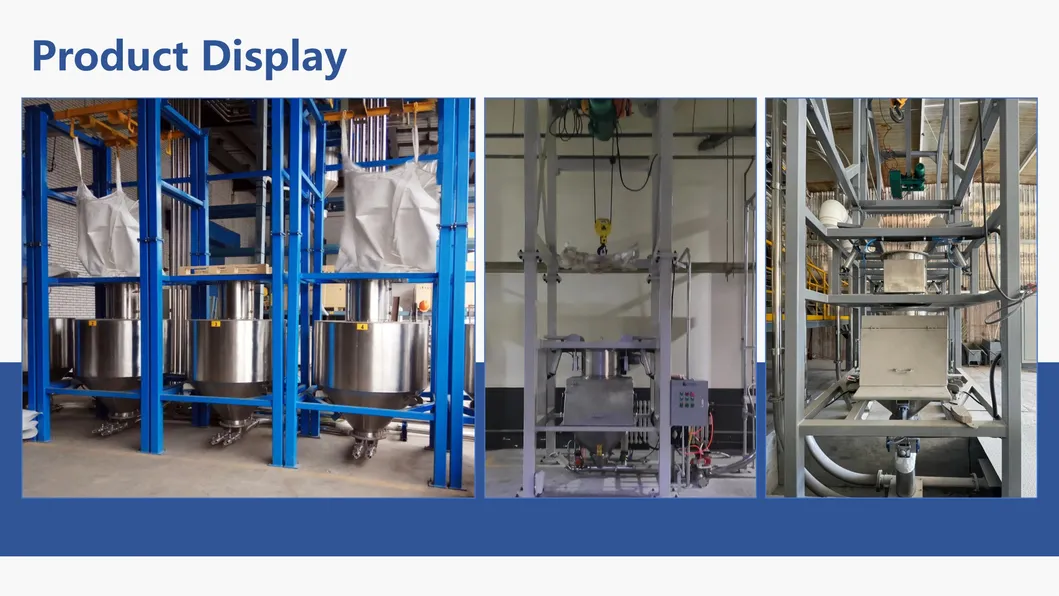

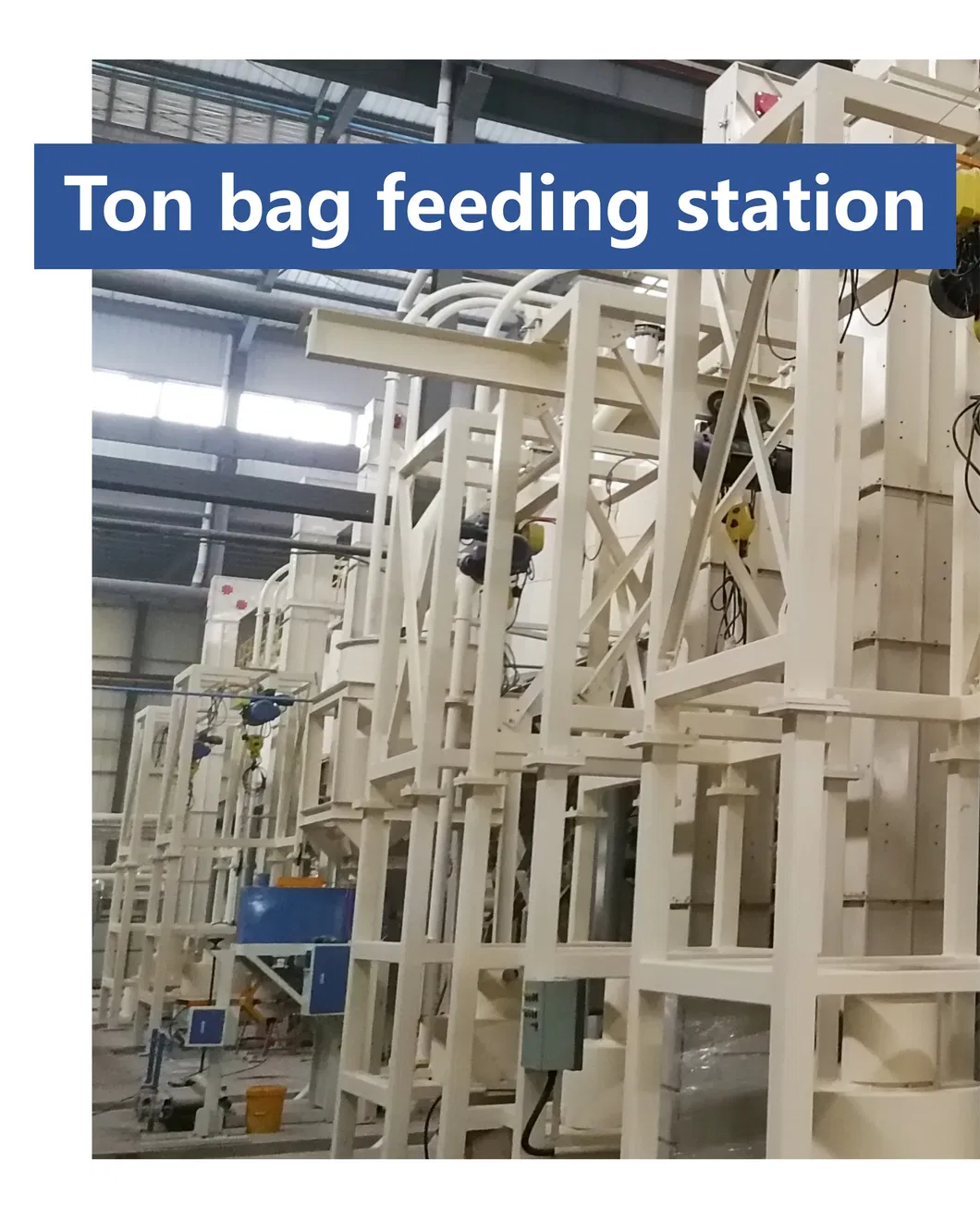

Operational Views

Our Valued Customers

Frequently Asked Questions (FAQ)

What materials are suitable for the Ton Bag Unloader RX-1?

The RX-1 is ideal for handling bulk dry powders and granular materials. It is widely used for processing building materials, chemical industry materials, colliery metallurgy powders, and food ingredients.

How does the system prevent dust leakage during operation?

The unloading station features a completely sealed design, equipped with an optional sealed bag clamp. This guarantees airtight bag opening and eliminates dust dispersion to protect the workplace environment.

What solutions do you offer for materials with poor flowability?

To manage materials that clod or resist discharge, the unloader can be integrated with pneumatic pounding/beating devices, vibrating plates, or mechanical bag massagers to promote stable gravity traction flow.

What control and automation systems are supported?

The system supports standard manual button operation as well as advanced PLC automated controls. The system can easily link with hoppers, glove boxes, pneumatic conveying systems, and reactors.

Can structural dimensions and load capacity be customized?

Yes. While standard specs offer a temporary storage bin of 0.4m³ and electric hoist lifting capacities of 1T, 2T, or 3T, the overall layout dimensions, chute sizes, and heights are fully customizable to fit specific production needs.
